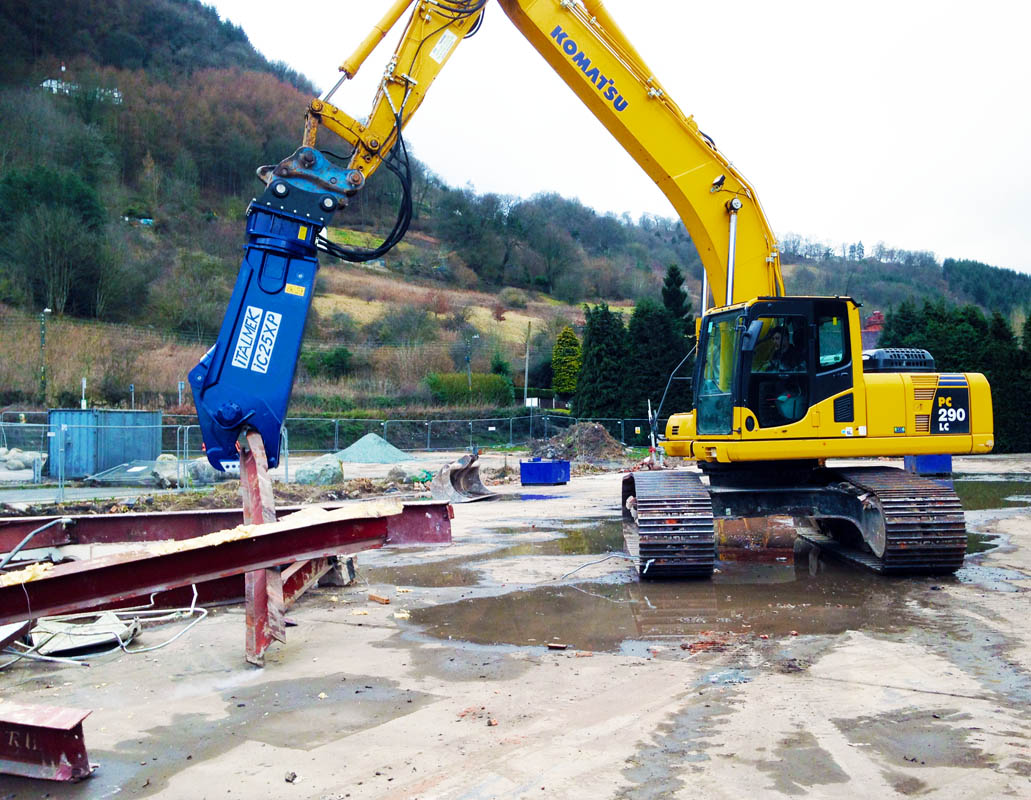

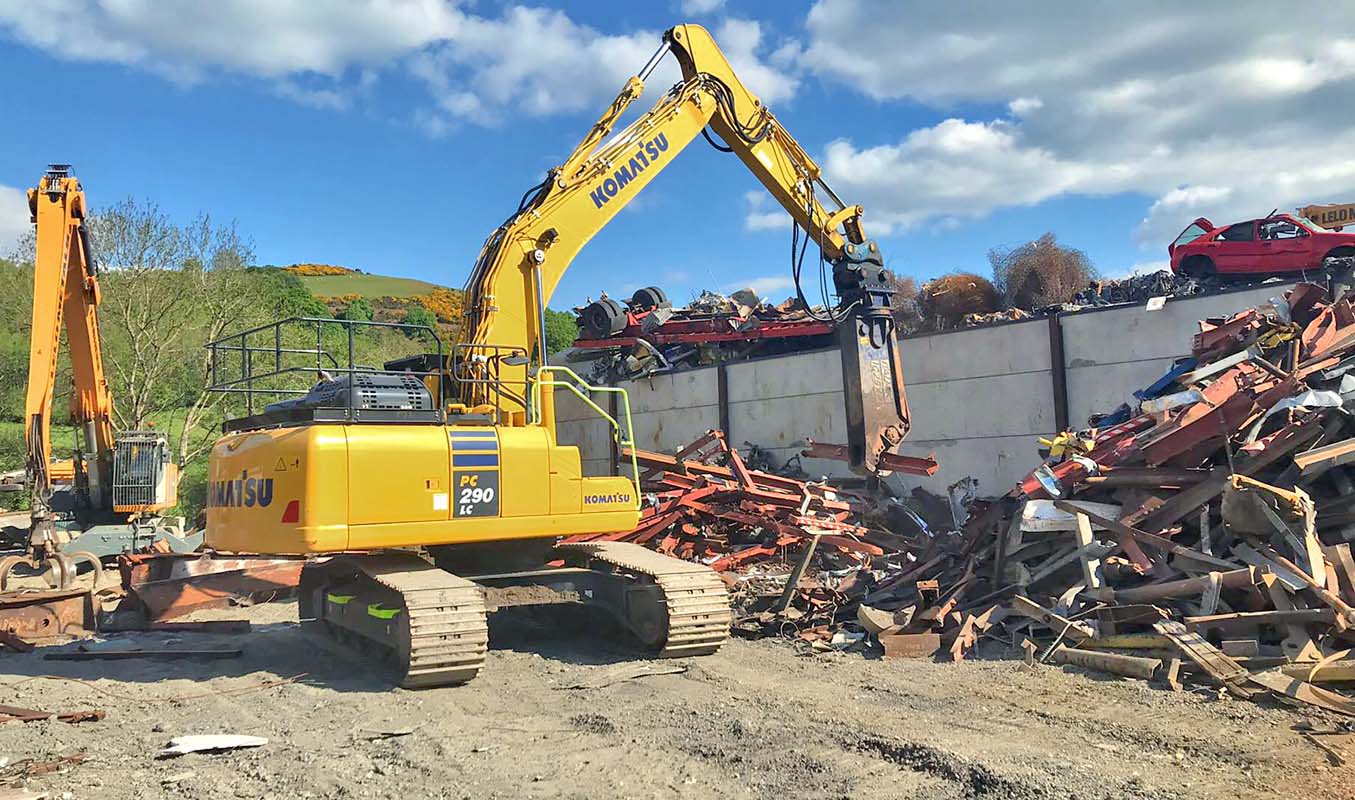

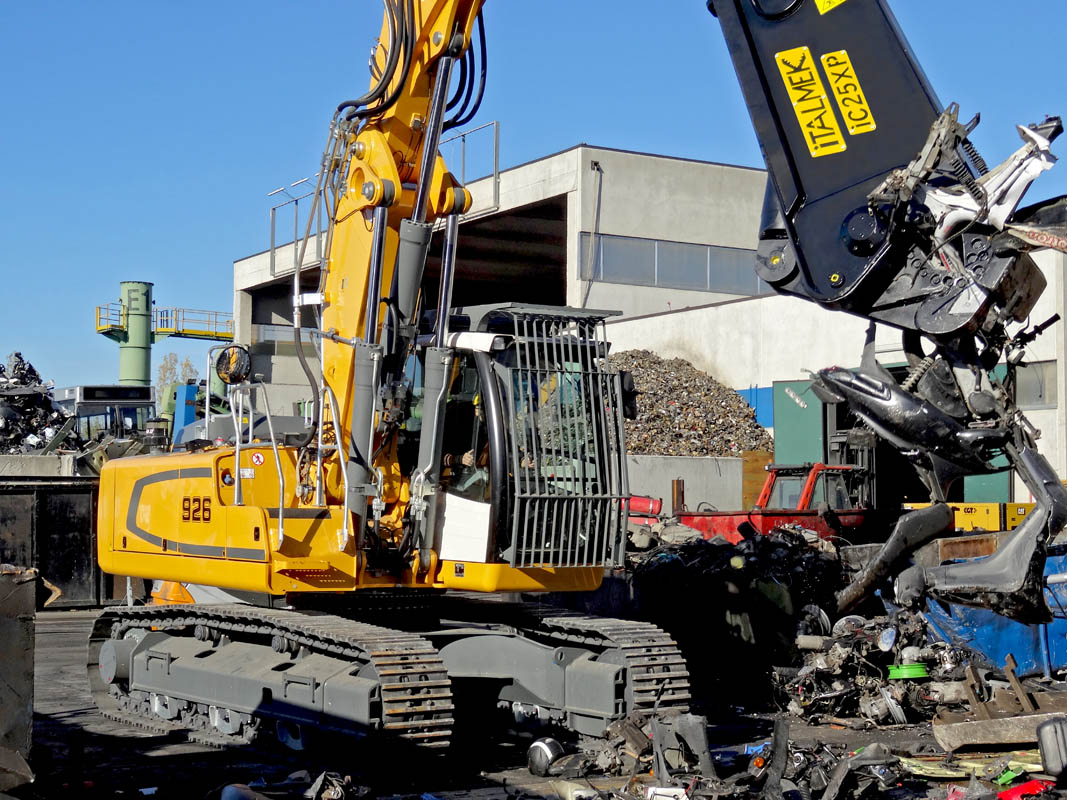

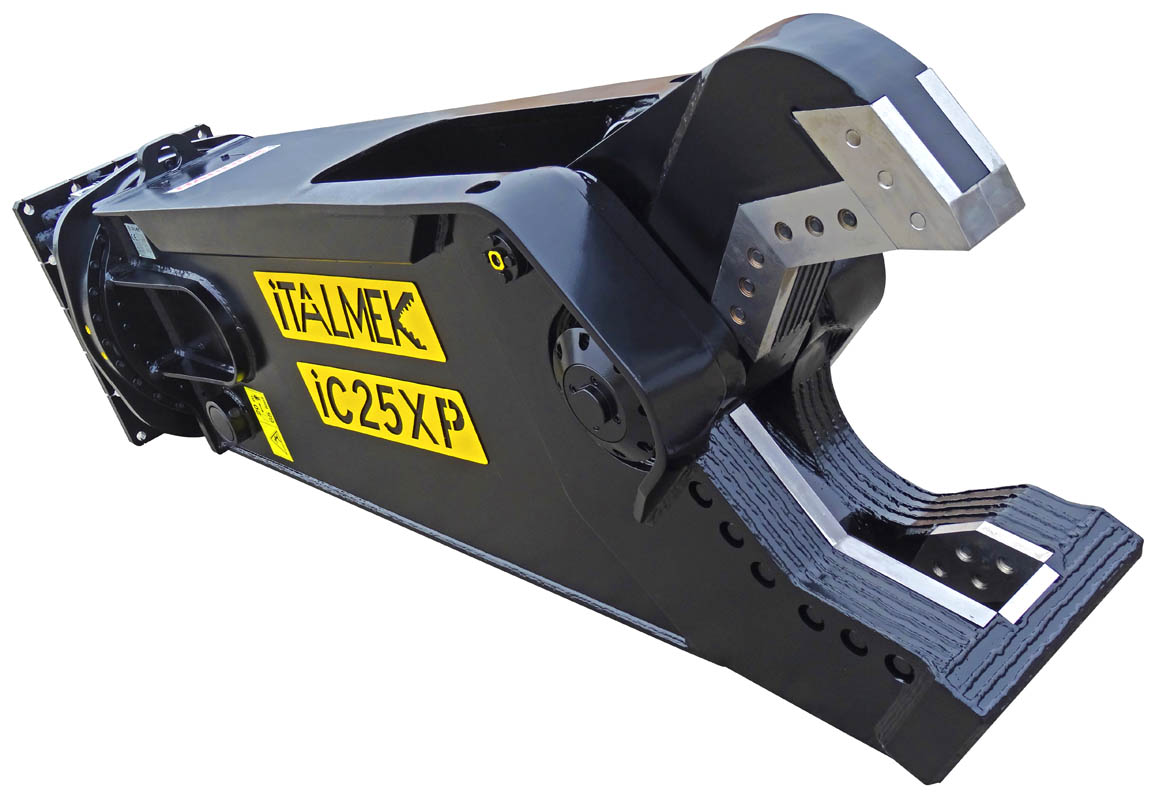

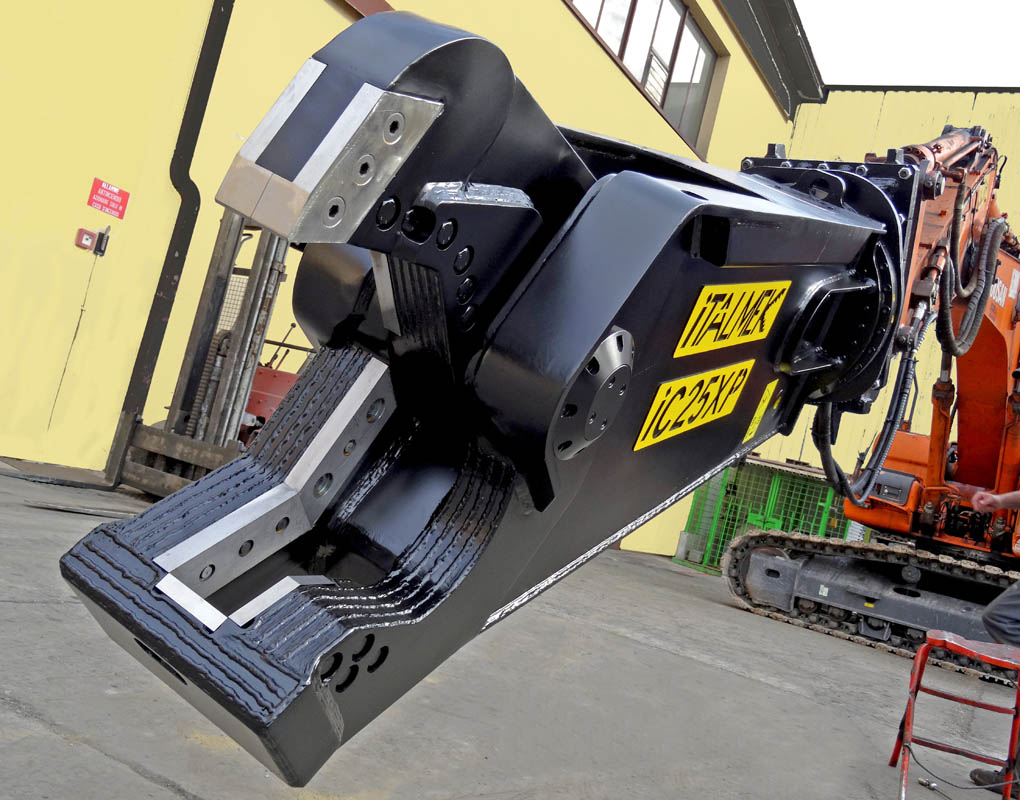

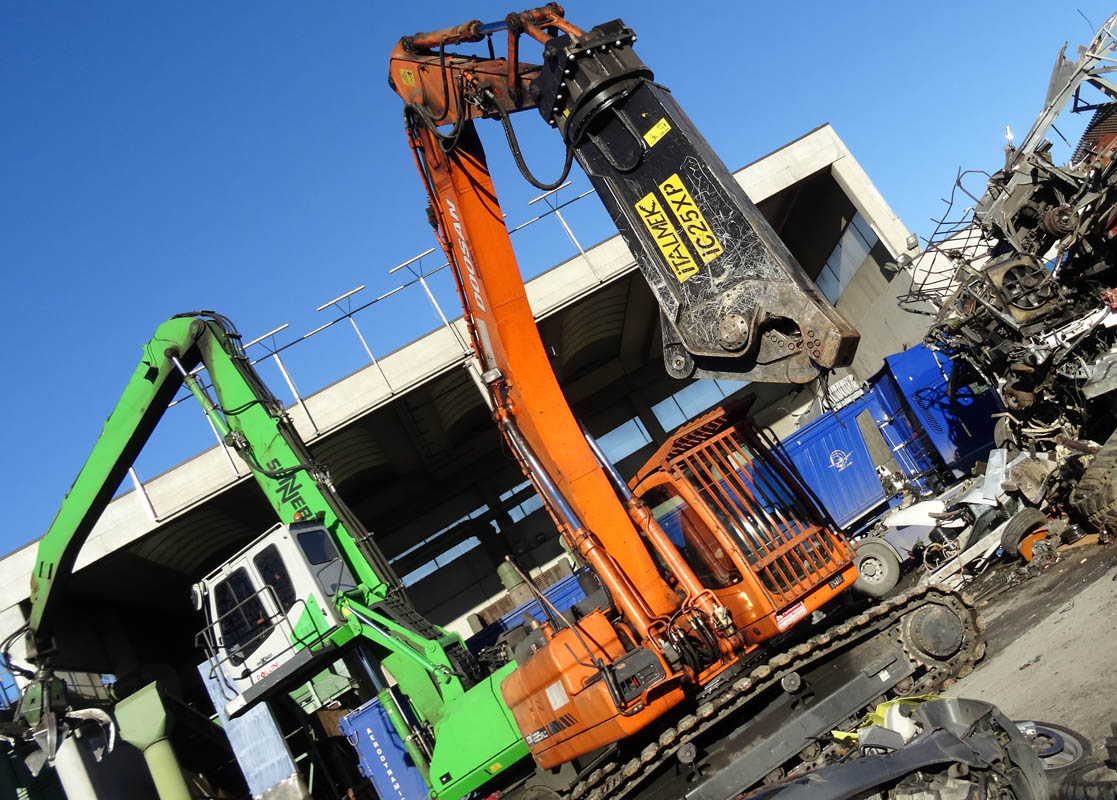

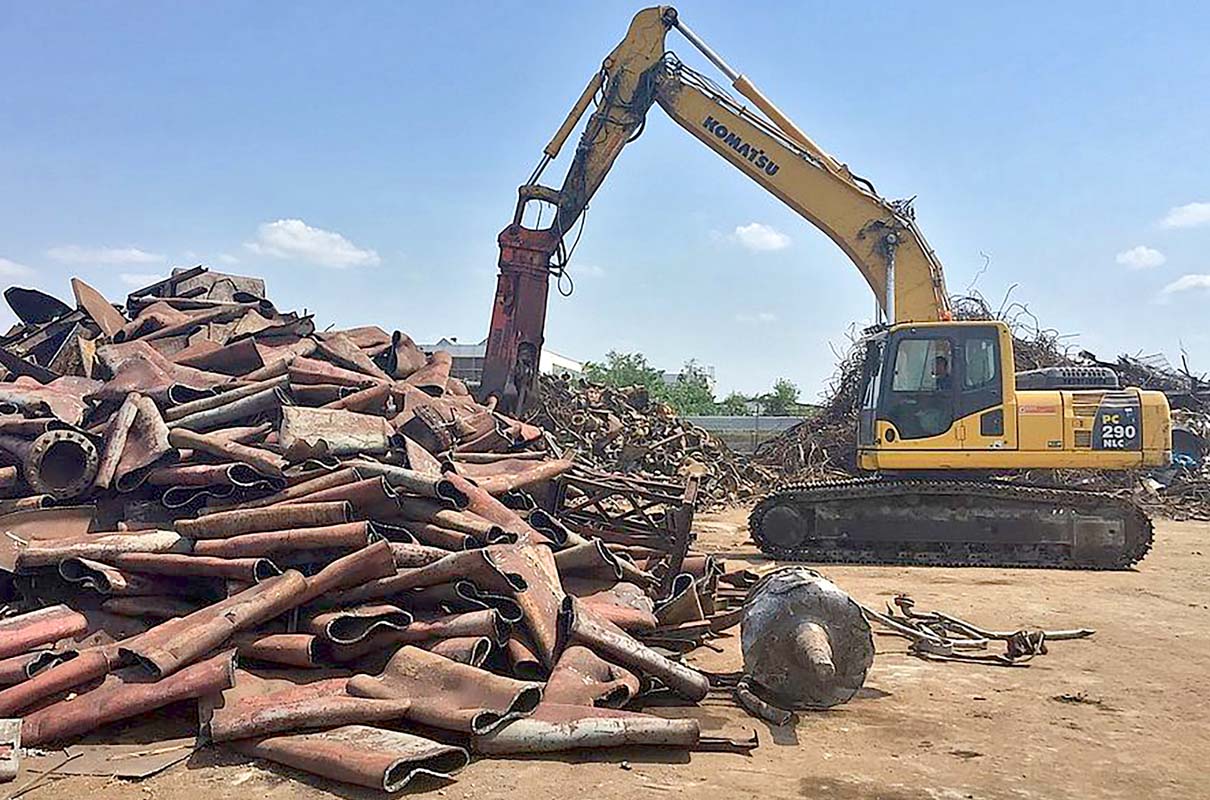

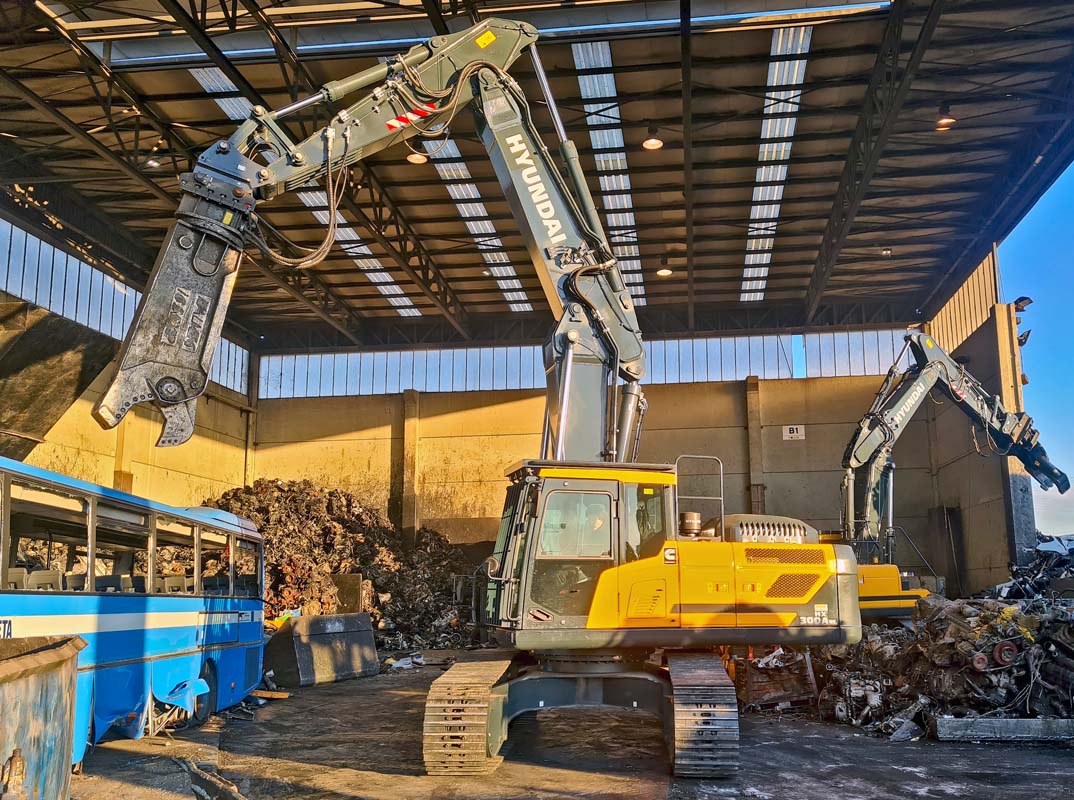

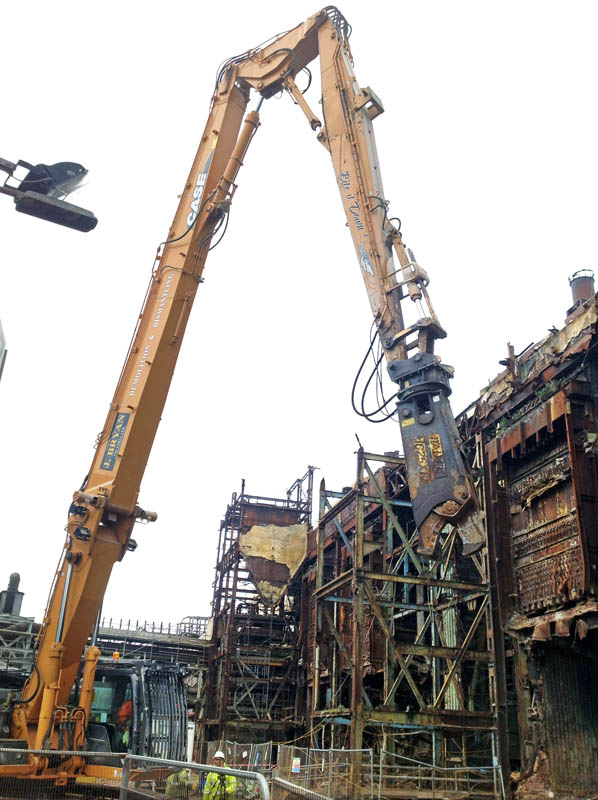

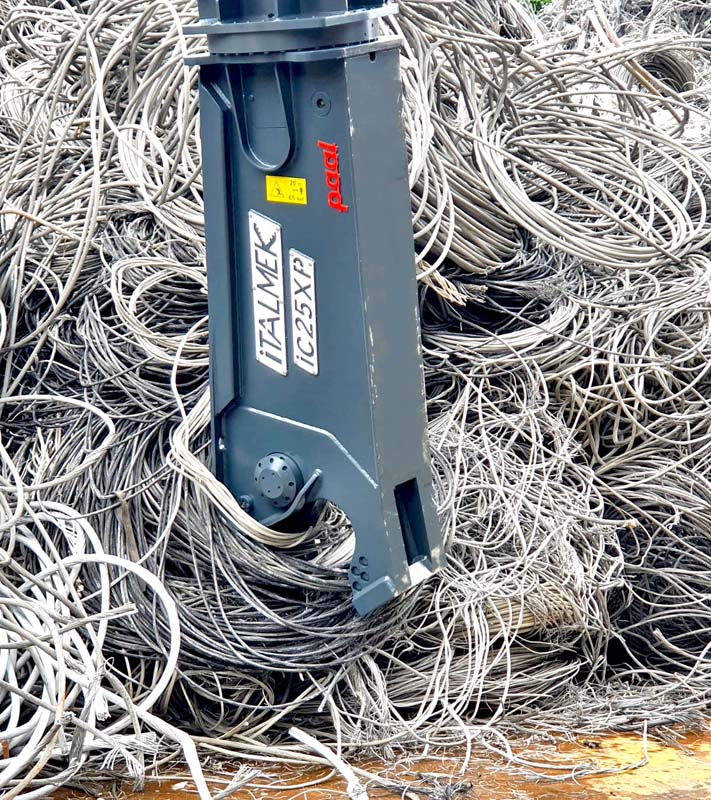

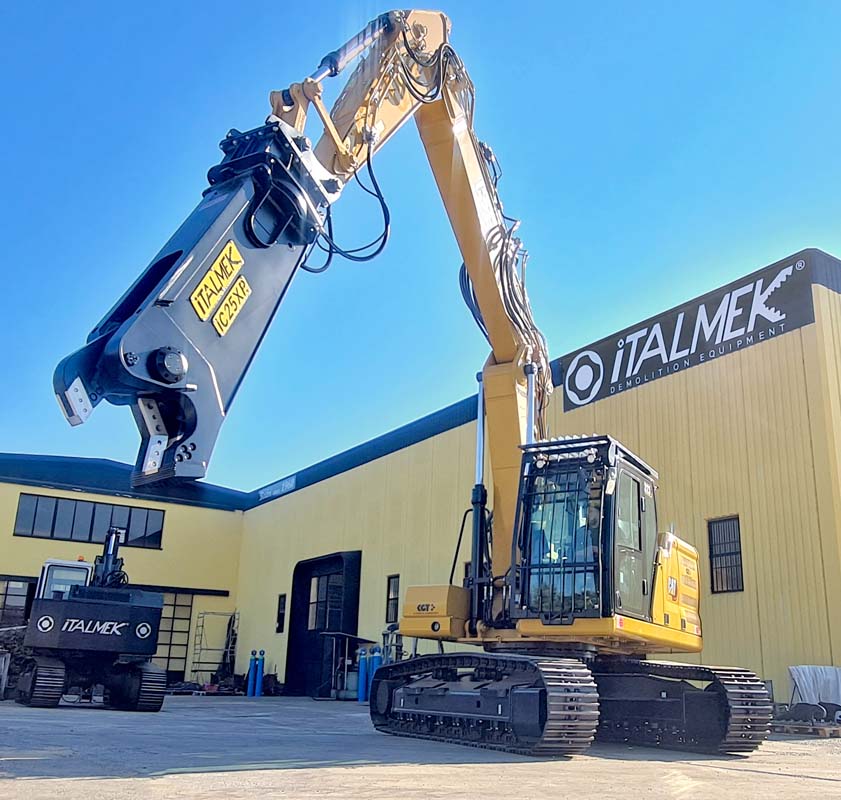

Steel shear IC25 XP

IC25 XP steel shear has a weight of 2.950 kg and a mouth opening of 590 mm. With hydraulic pressure adjusted to 340 bar its cutting capacity is enough to cut a 80 mm full round rod.

Technical data sheet
Weight
kg
2.950
Mouth opening
mm
590
Mouth depth
mm
530
Total Length
mm
2.800
Bucket position
ton
24 - 35
Boom position
ton
16 - 25
Working pressure
bar
340
Working flow
l/m
200 - 300
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
80
Cutting capacity (HEA)
mm
270
Cutting capacity (IPE)
mm
450
