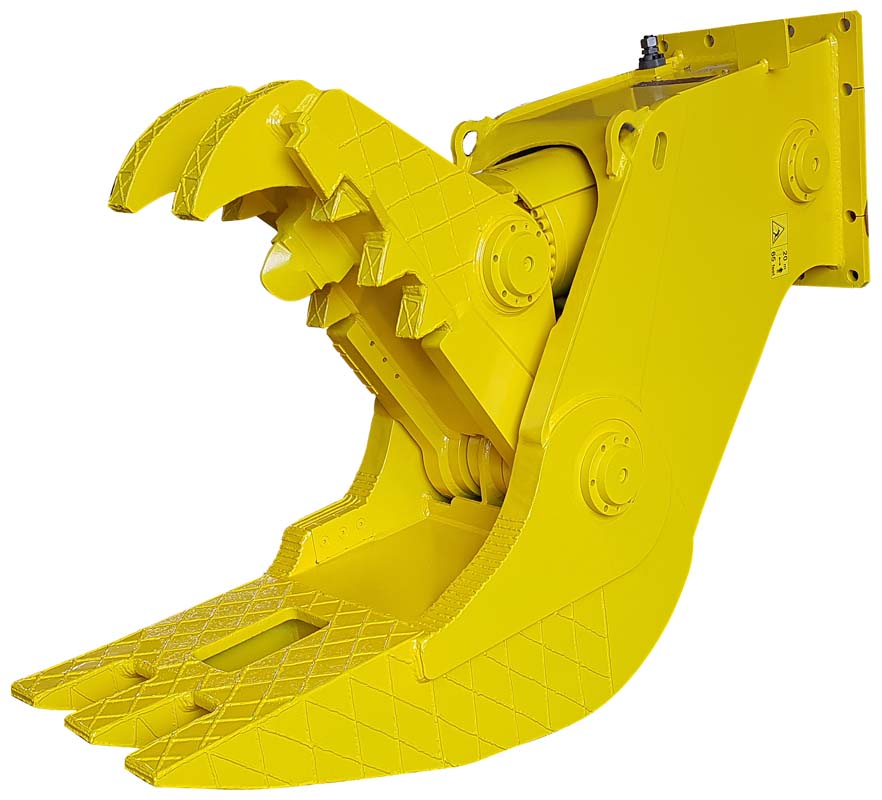

Fixed crushers IDF30

IDF30 fixed crushers has a weight of 3.430 kg, an opening of 1.180 mm and a length of 3.150 mm.

Technical data sheet
Weight
kg
3.430
Mouth opening
mm
1.180
Mouth depth
mm
1.200
Jaw width
mm
600
Total Length
mm
3.150
Bucket position
ton
30 - 40
Working pressure
bar
320
Working flow
l/m
180 - 280
