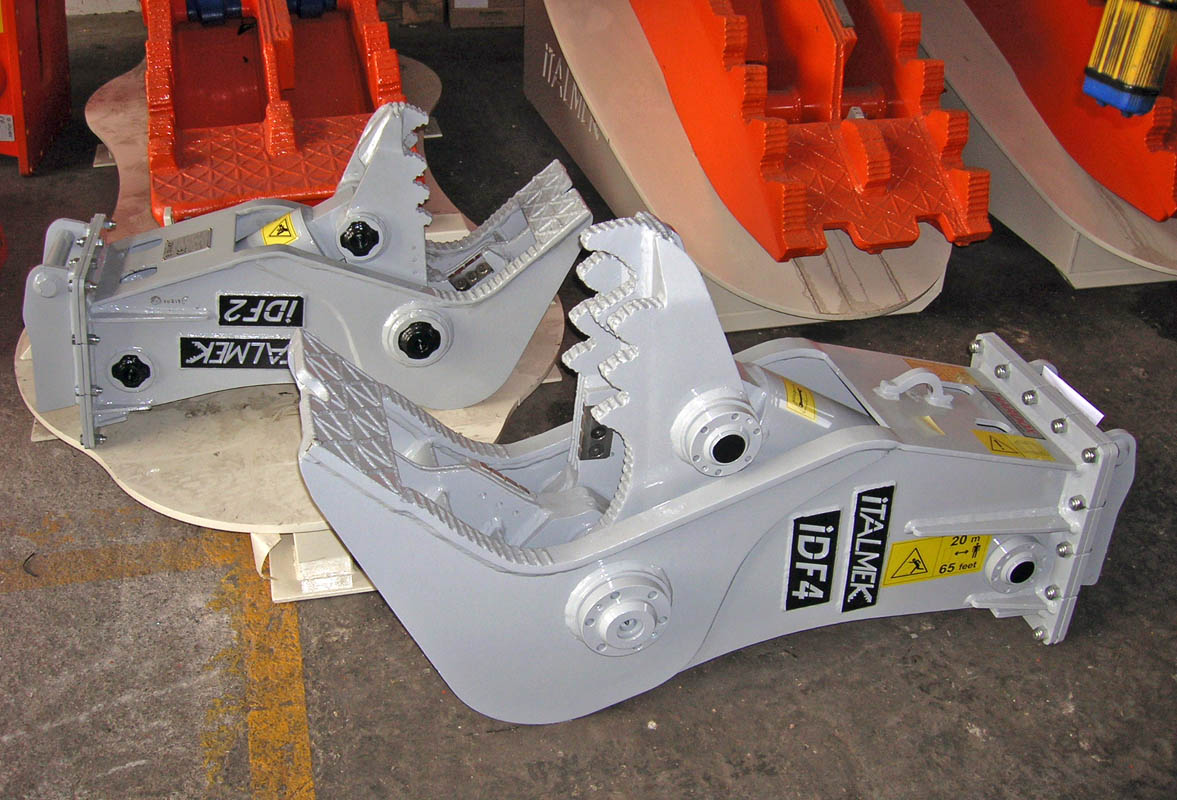

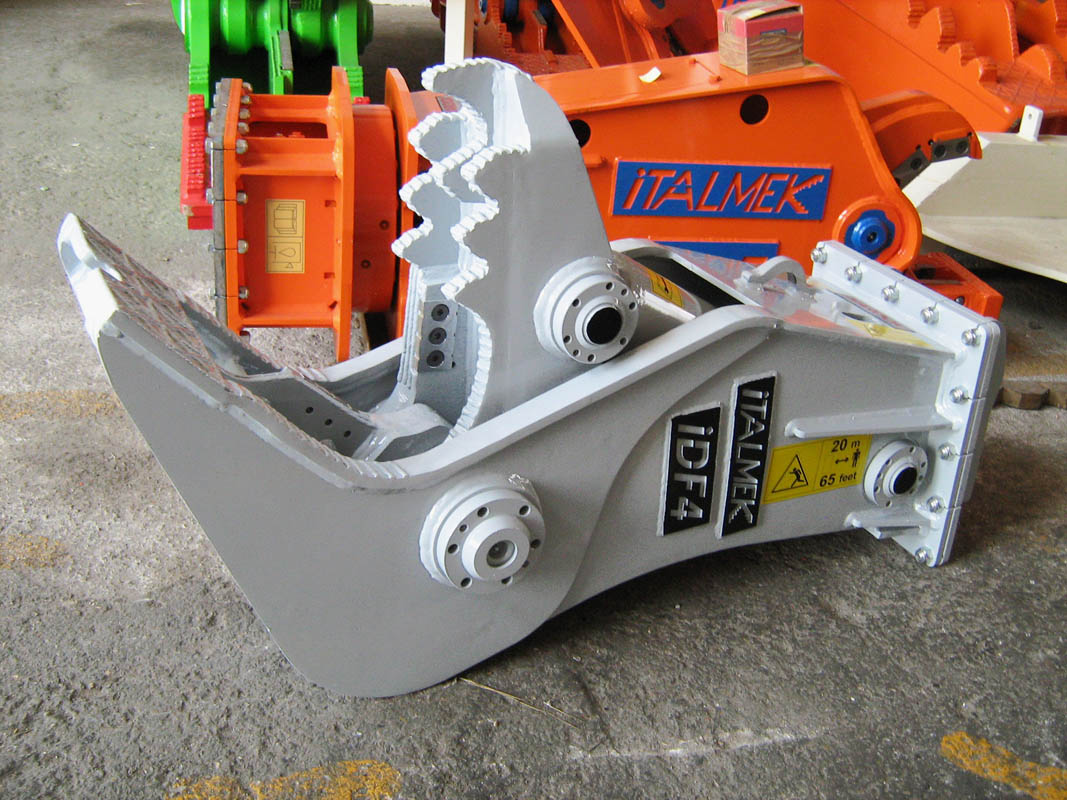

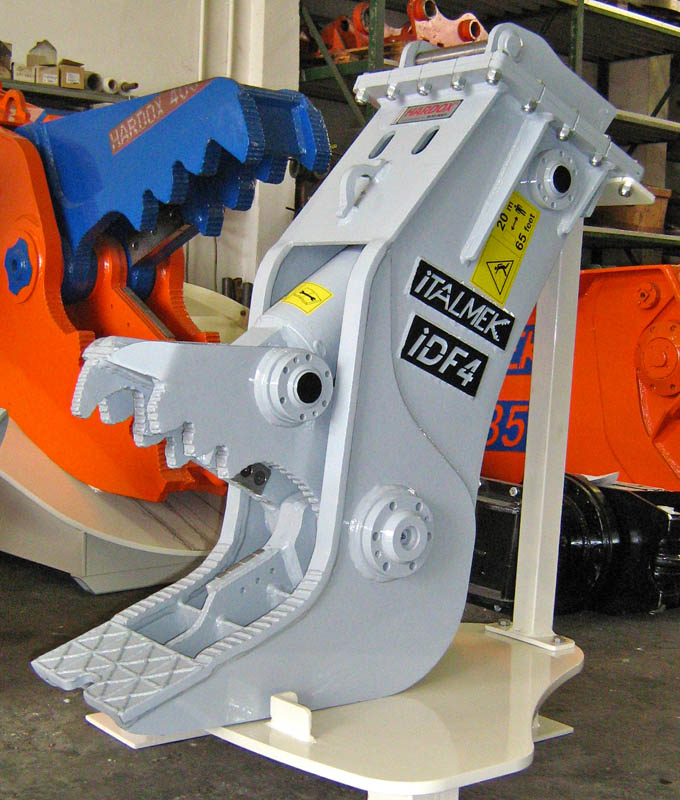

Fixed crushers IDF4

IDF4 fixed crushers has a weight of 420 kg, an opening of 440 mm and a length of 1.200 mm.

Technical data sheet
Weight
kg
420
Mouth opening
mm
440
Mouth depth
mm
460
Jaw width
mm
320
Total Length
mm
1.200
Bucket position
ton
3,5 - 9
Working pressure
bar
300
Working flow
l/m
35 - 80
