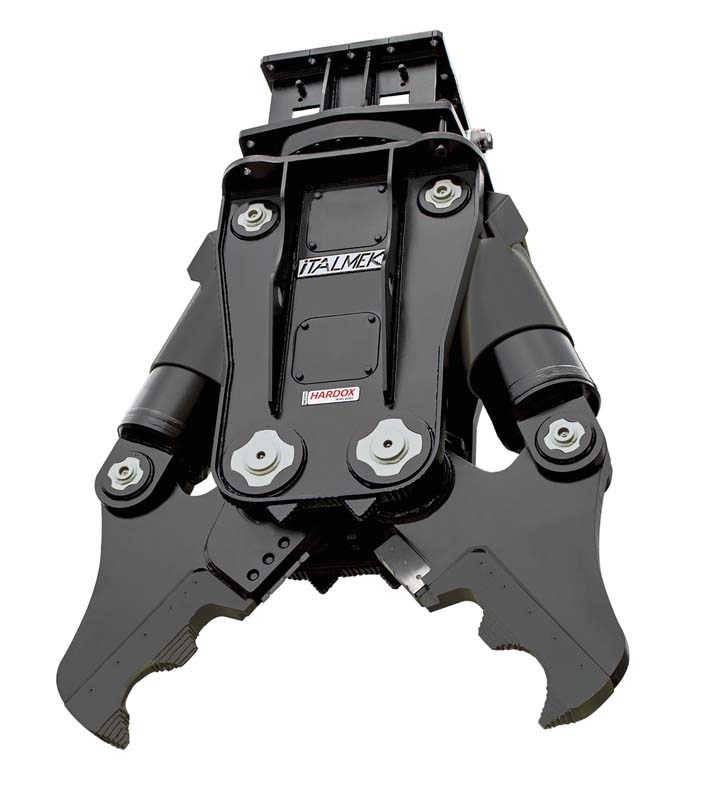

Demolition shear IP35

IP35 hydraulic demolition shear has a weight of 3.650 kg, an opening of 1.270 mm and a length of 2.460 mm. The maximum working pressure is 350 bar.

Technical data sheet
Weight
kg
3.650
Mouth opening
mm
1.270
Total Length
mm
2.460
Bucket position
ton
34 - 50
Working pressure
bar
350
Working flow
l/m
300
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8""
