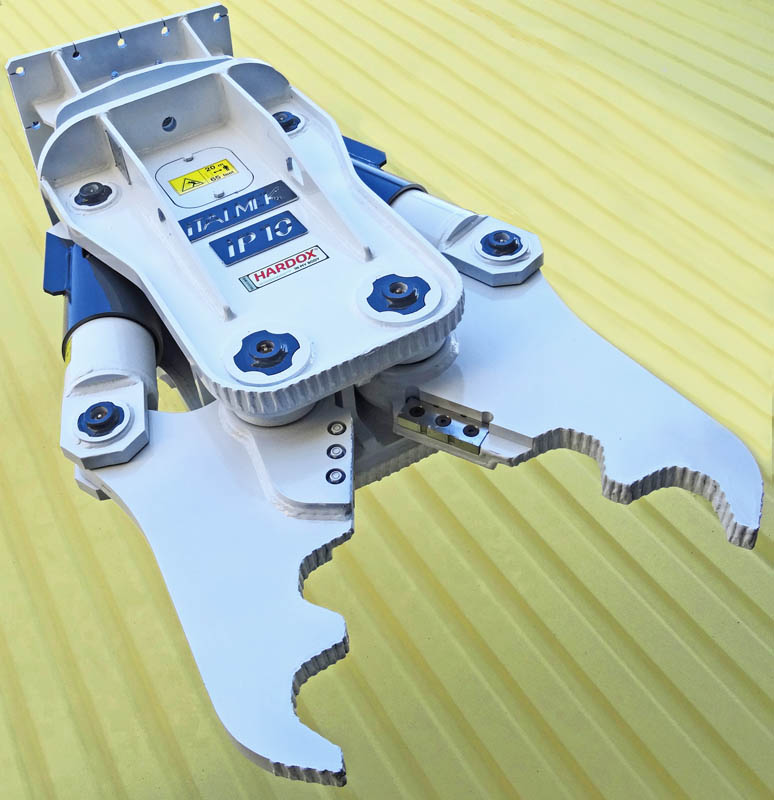

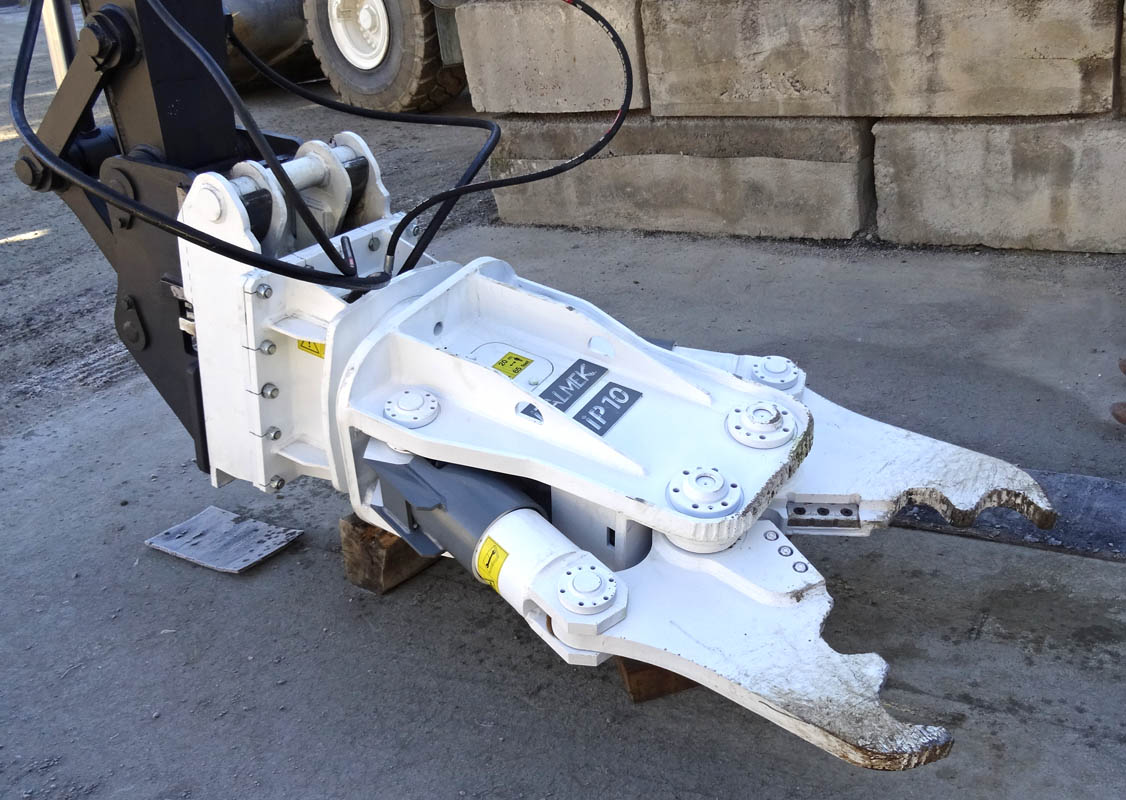

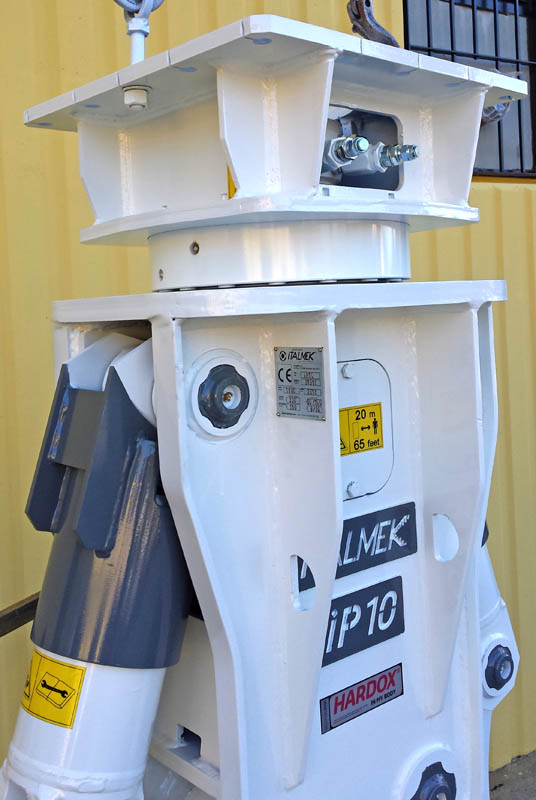

Demolition shear IP10

IP10 demolition shear has a weight of 1.060 kg, an opening of 680 mm and a length of 1.600 mm. The maximum working pressure is 320 bar.

Technical data sheet
Weight
kg
1.060
Mouth opening
mm
680
Total Length
mm
1.600
Bucket position
ton
13 - 15
Working pressure
bar
320
Working flow
l/m
100
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8""
