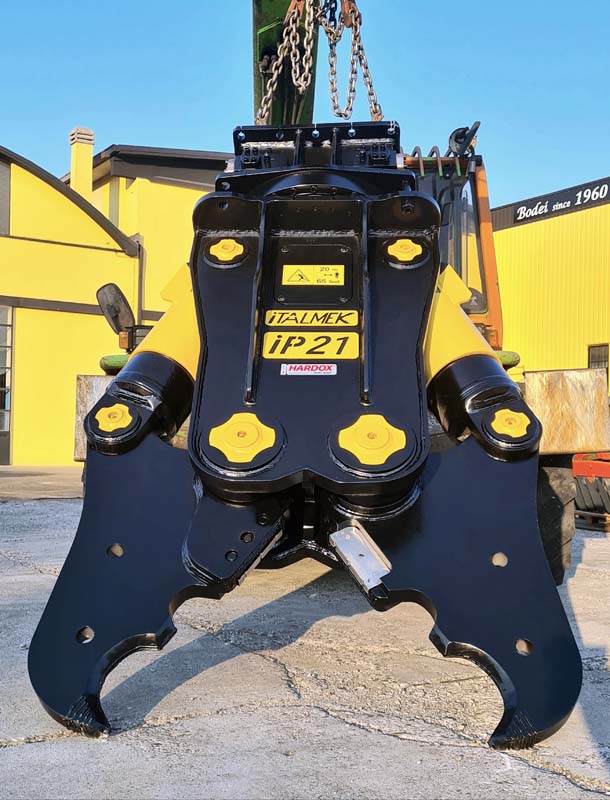

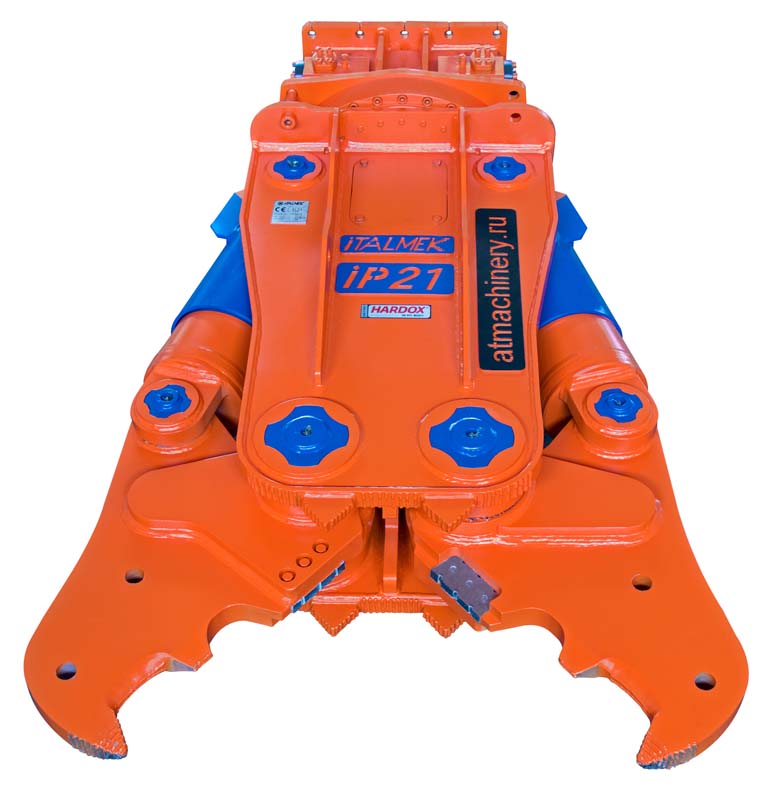

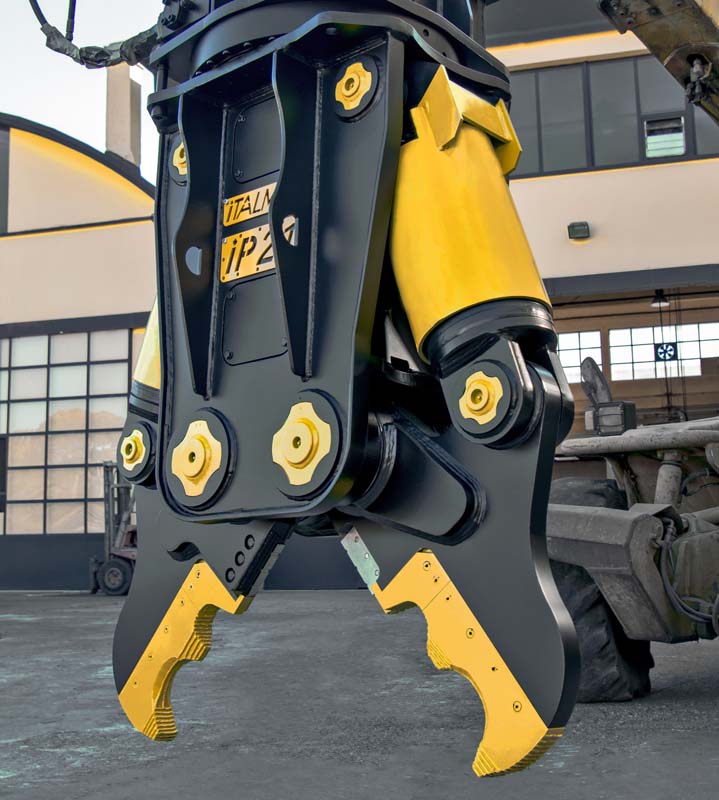

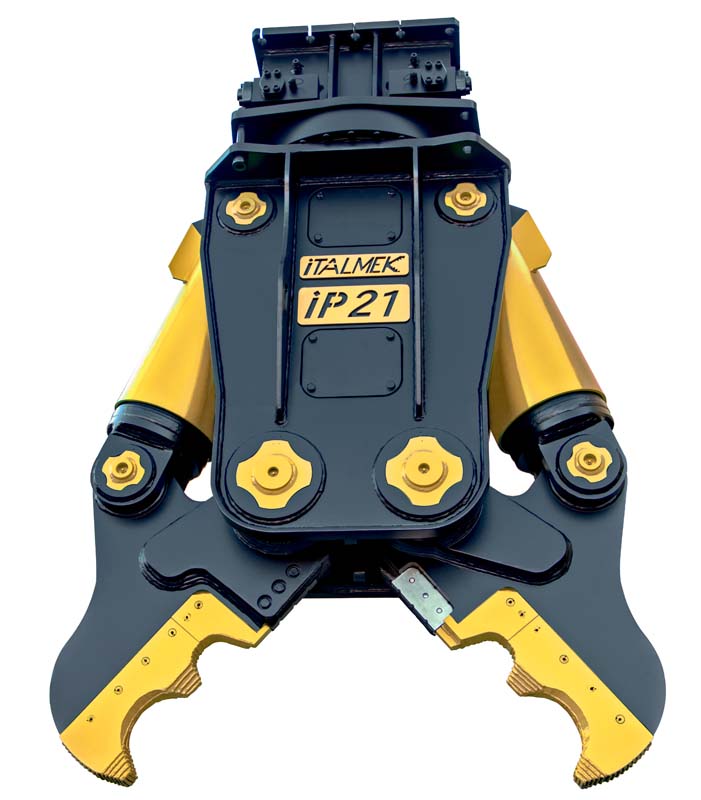

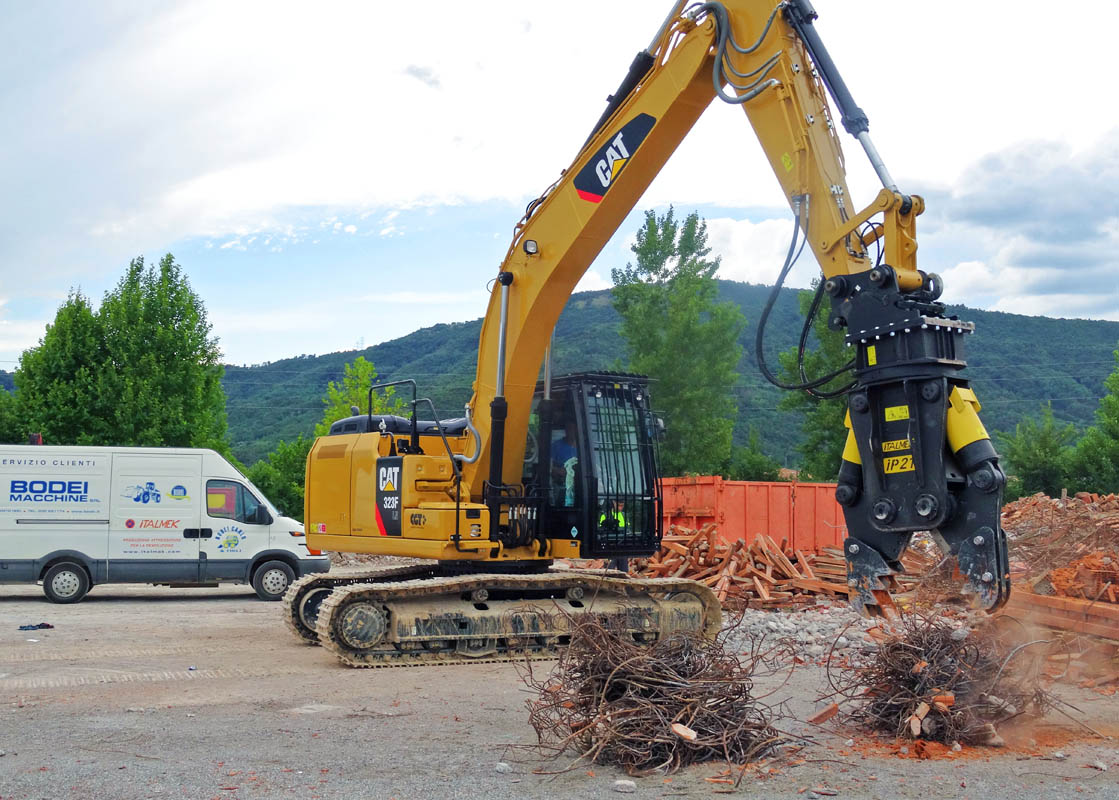

Demolition shear IP21

IP21 hydraulic demolition shear has a weight of 2.050 kg, an opening of 930 mm and a length of 2.150 mm. The maximum working pressure is 340 bar.

Technical data sheet
Weight
kg
2.050
Mouth opening
mm
930
Total Length
mm
2.150
Bucket position
ton
18 - 24
Working pressure
bar
340
Working flow
l/m
150
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8""
