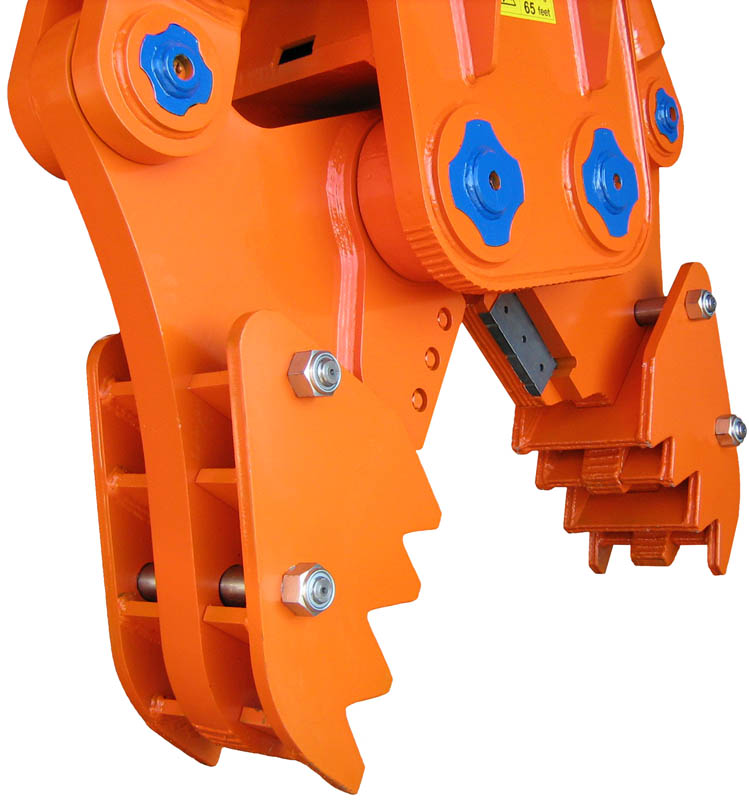

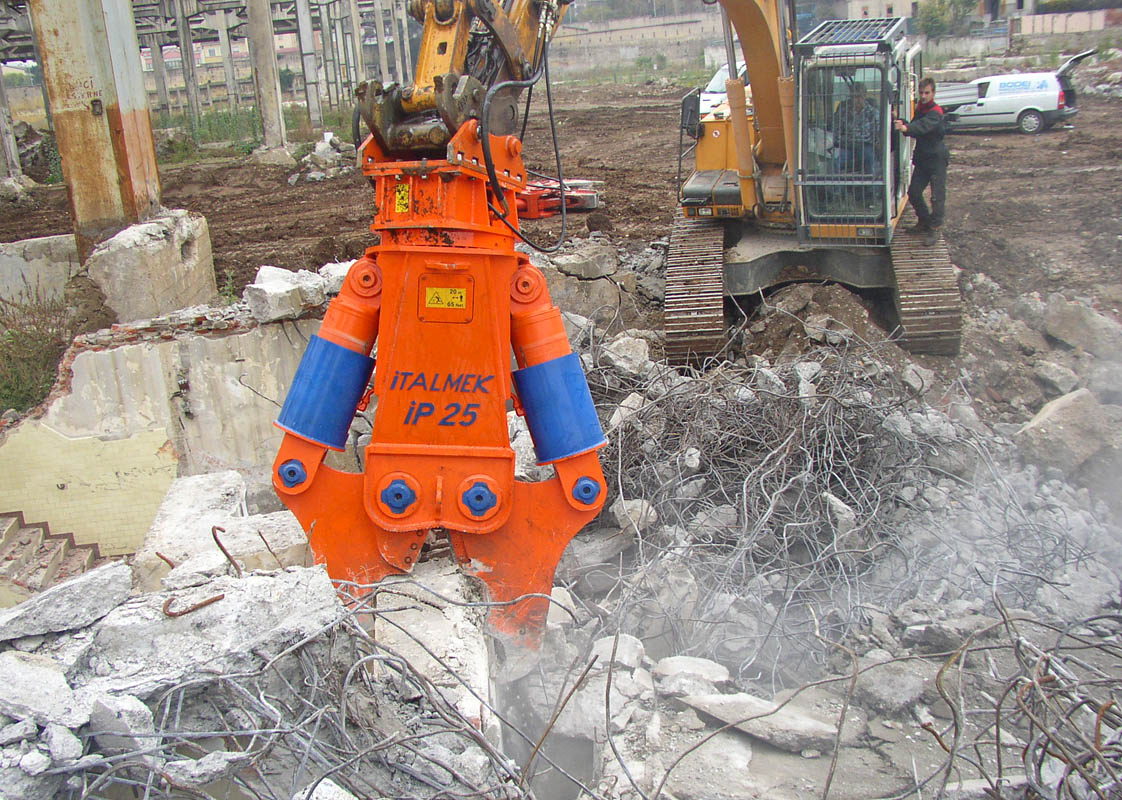

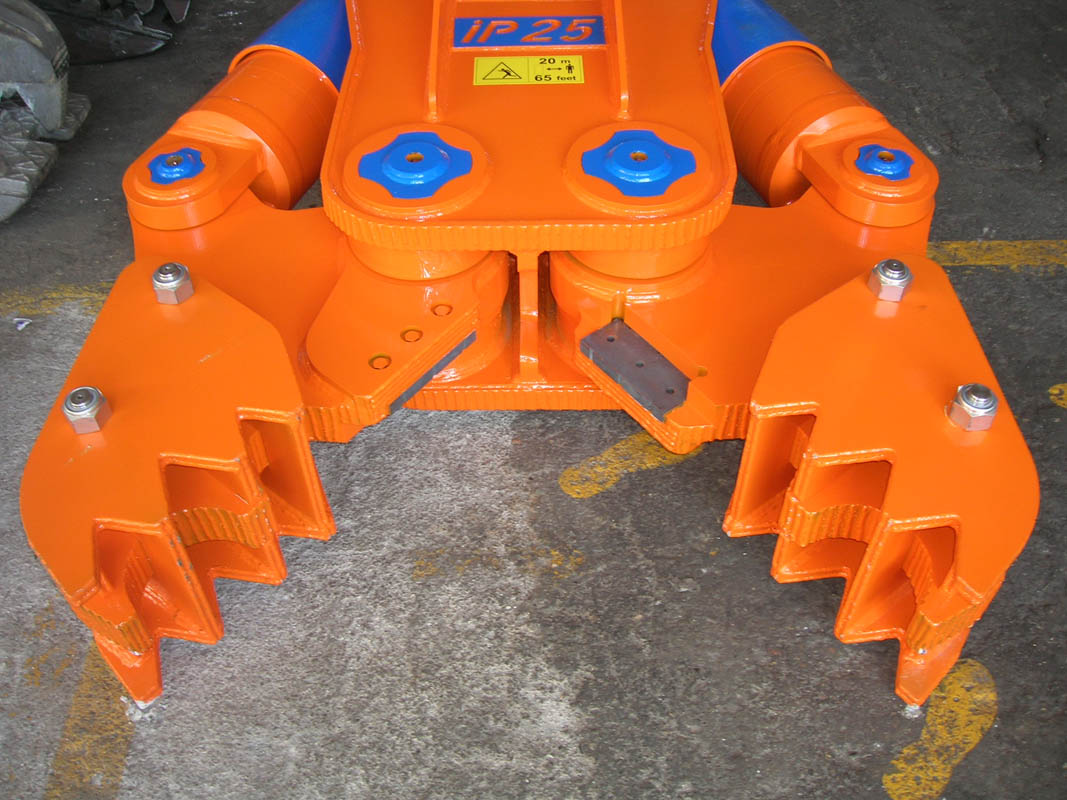

Demolition shear IP25

IP25 demolition shear has a weight of 2.400 kg, an opening of 1.020 mm and a length of 2.250 mm. The maximum working pressure is 340 bar.

Technical data sheet
Weight
kg
2.400
Mouth opening
mm
1.020
Total Length
mm
2.250
Bucket position
ton
18 - 24
Working pressure
bar
340
Working flow
l/m
190
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8""
