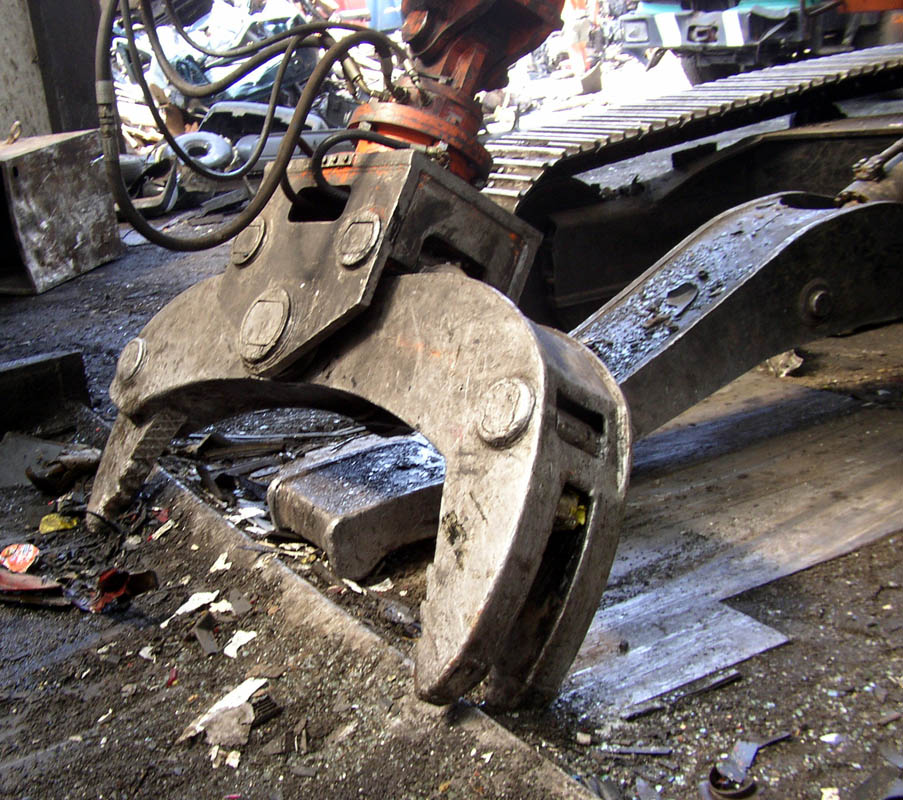

Multipurpose grab IS11

The multipurpose grab IS11 has a weight of 1.150 kg with an aperture of 1.700 mm. The excavator’s weight varies between 12 and 20 tons.

Technical data sheet
Weight
kg
1.150
Mouth opening
mm
1.700
Mouth depth
mm
560
Bucket position
ton
12 - 20
Working pressure
bar
320
Working flow
l/m
100 - 200
