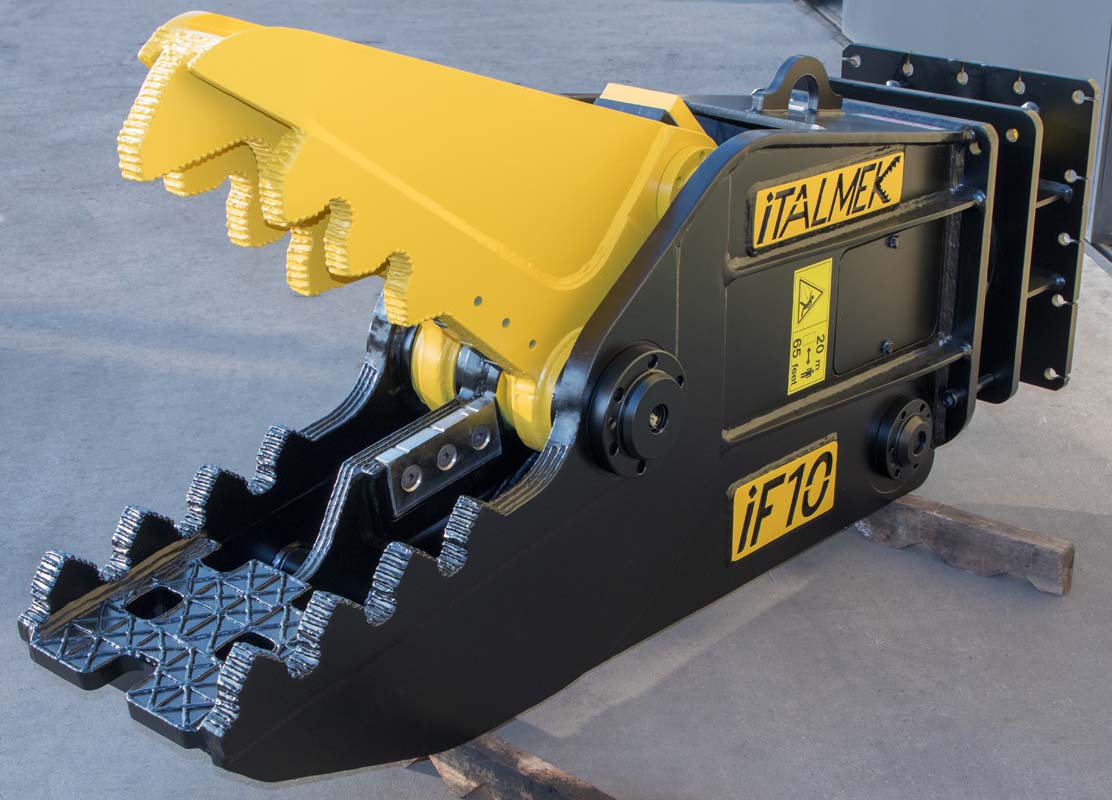

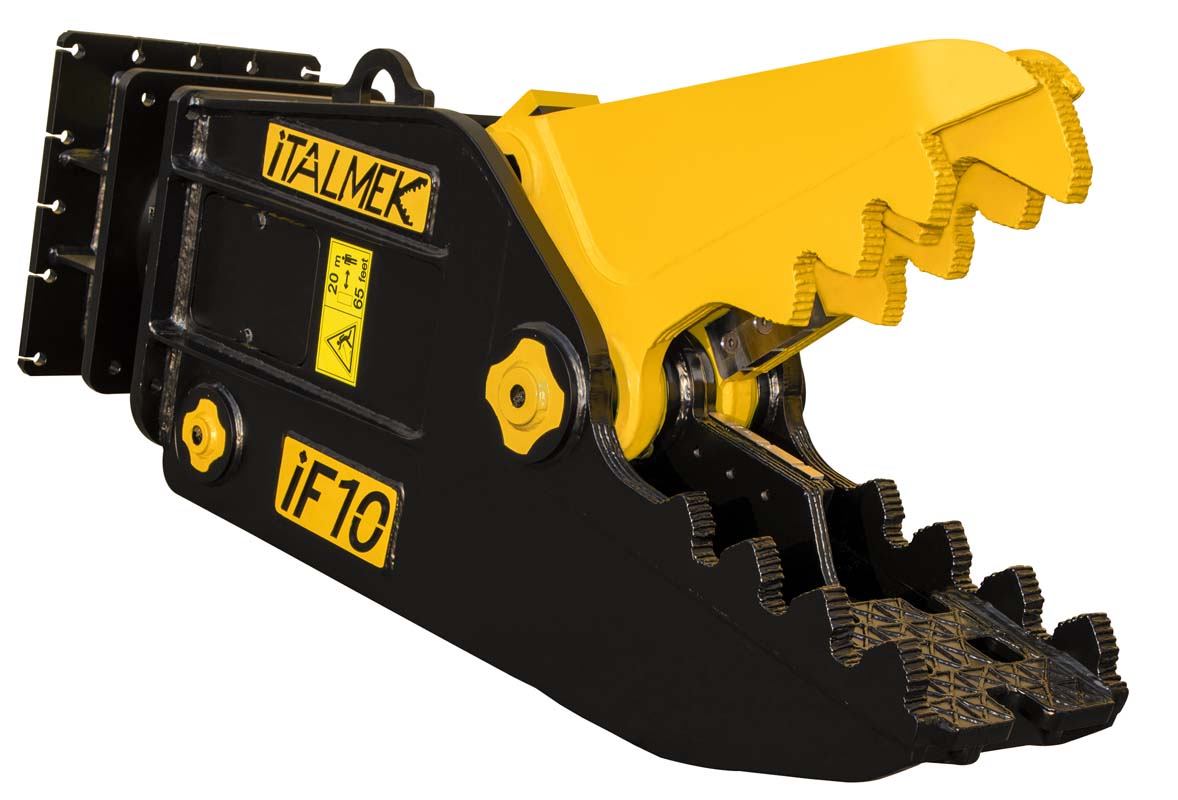

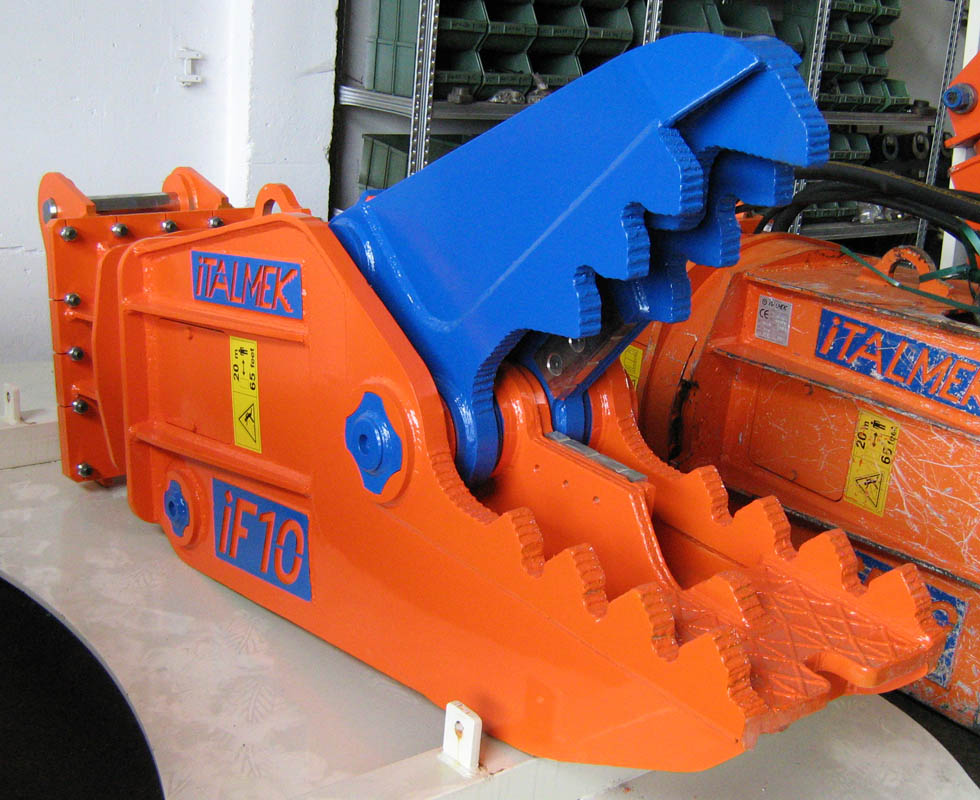

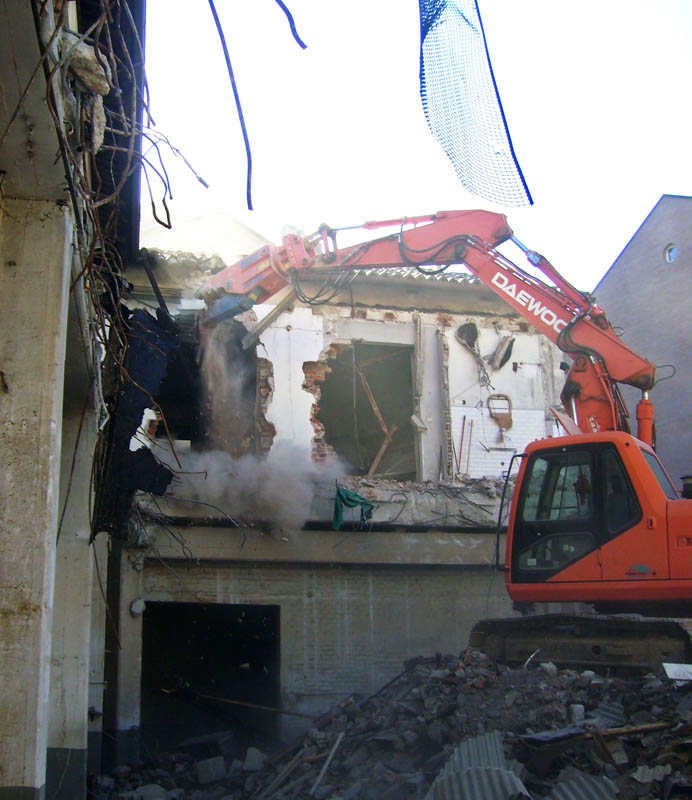

Rotating crusher IF10

IF10 rotating crusher has a weight of 1.150 kg, a mouth opening of 600 mm and a length of 1.650 mm. The maximum hydraulic working pressure is 320 bar.

Technical data sheet
Weight
kg
1.150
Mouth opening
mm
600
Mouth depth
mm
630
Jaw width
mm
400
Total Length
mm
1.650
Bucket position
ton
10 - 16
Working pressure
bar
320
Working flow
l/m
60 - 100
Rotation Pressure
bar
150 - 250
Rotation flow
l/m
8 - 10
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
145
