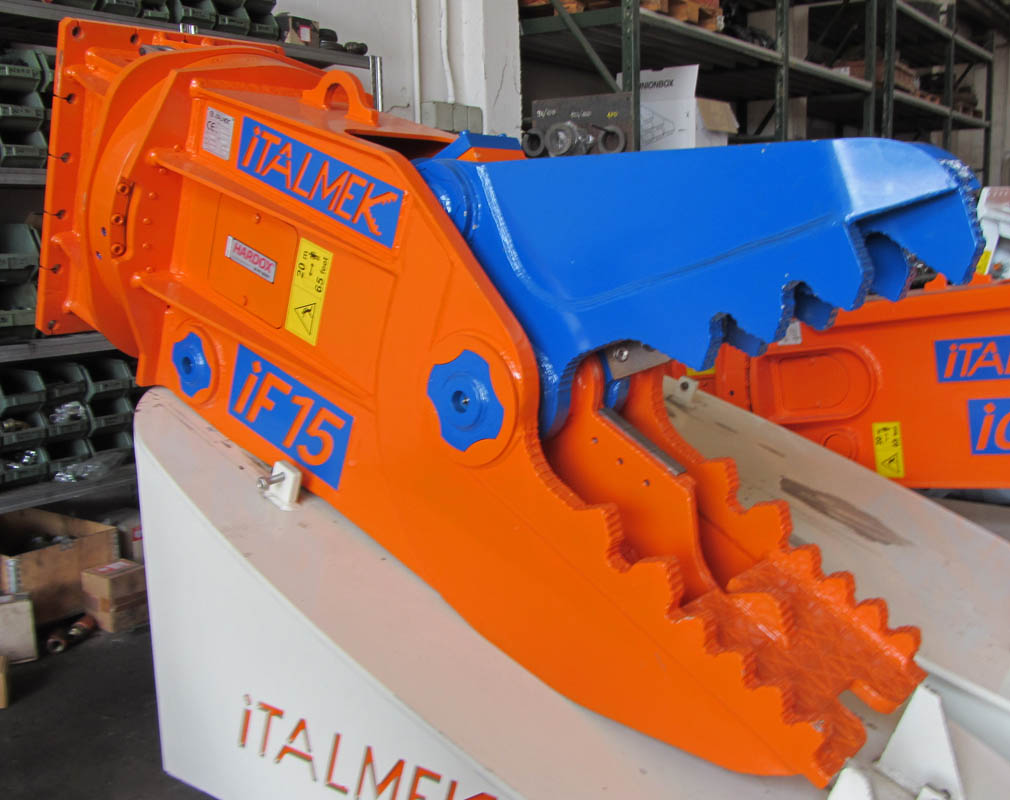

Rotating crusher IF15

IF15 rotating crusher has a weight of 1.700 kg, a mouth opening of 700 mm and a length of 2.000 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
1.700
Mouth opening
mm
700
Mouth depth
mm
730
Jaw width
mm
445
Total Length
mm
2.000
Bucket position
ton
14 - 21
Working pressure
bar
340
Working flow
l/m
150 - 200
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
215
