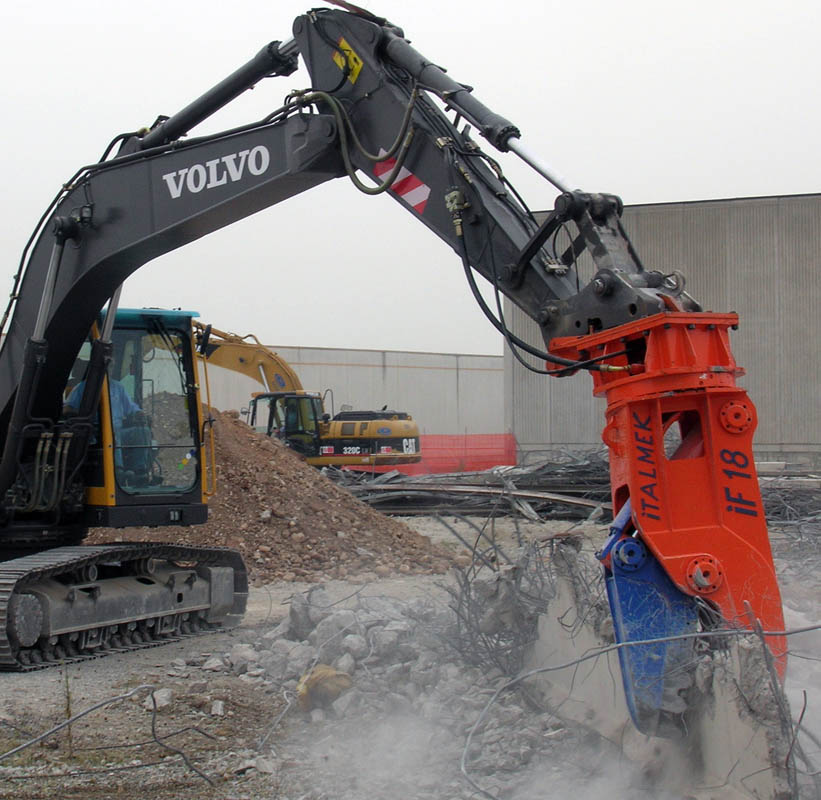

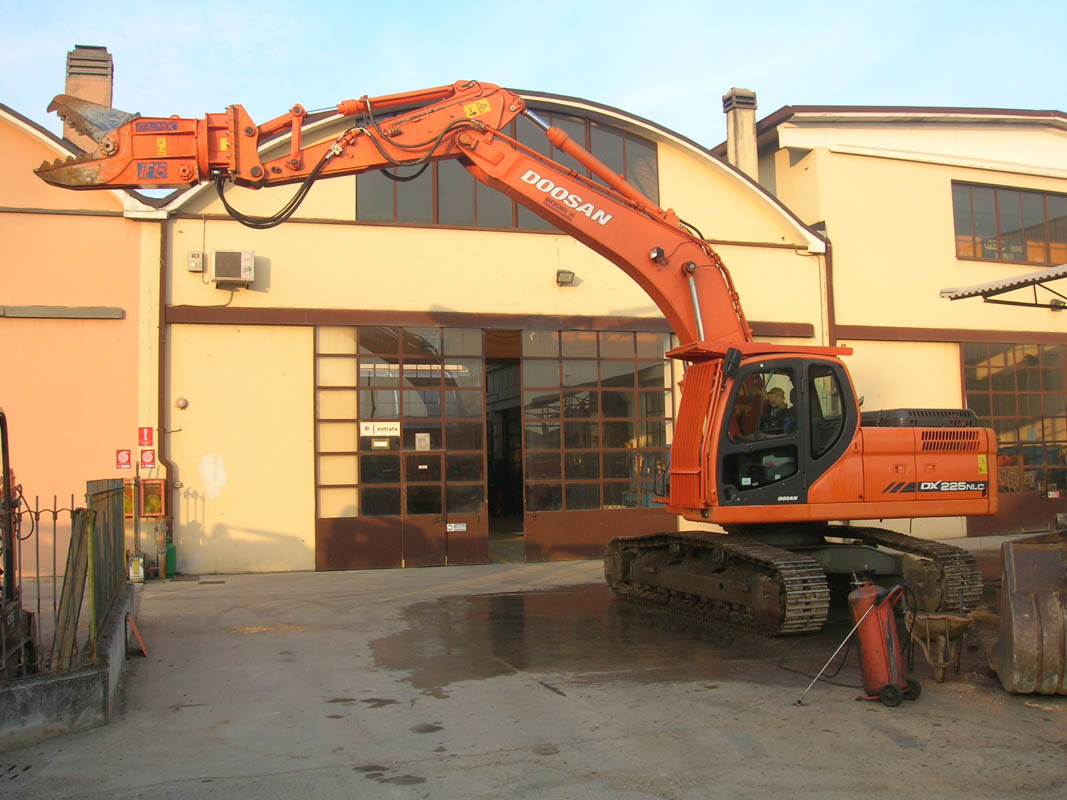

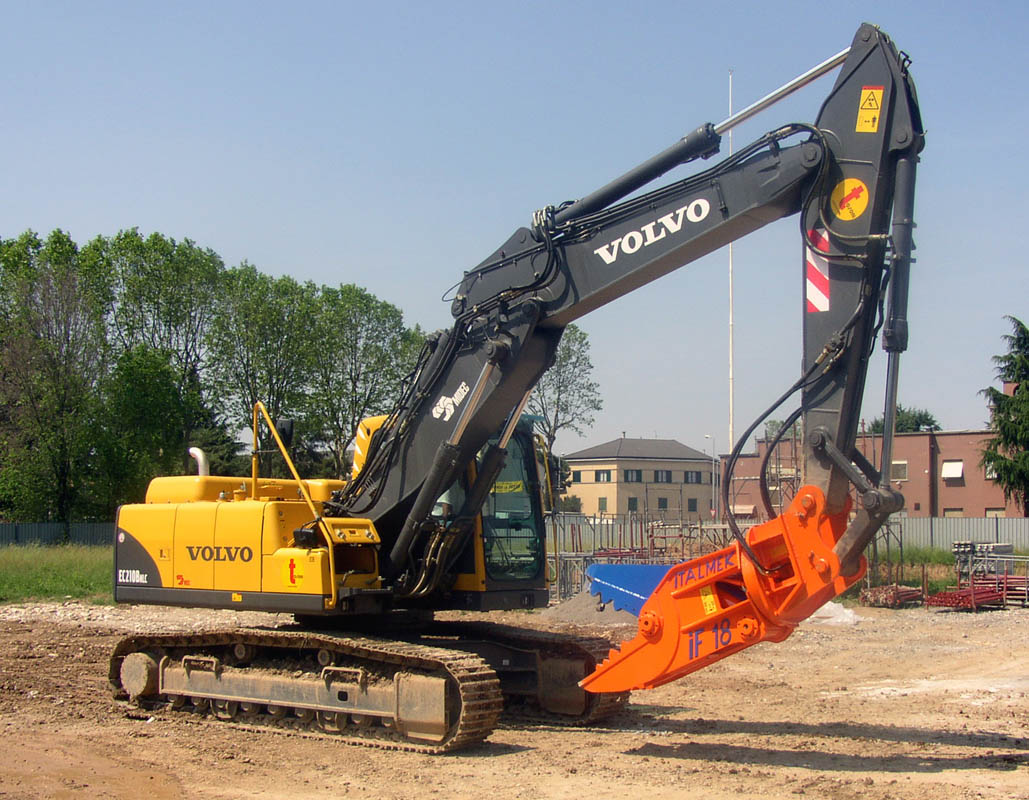

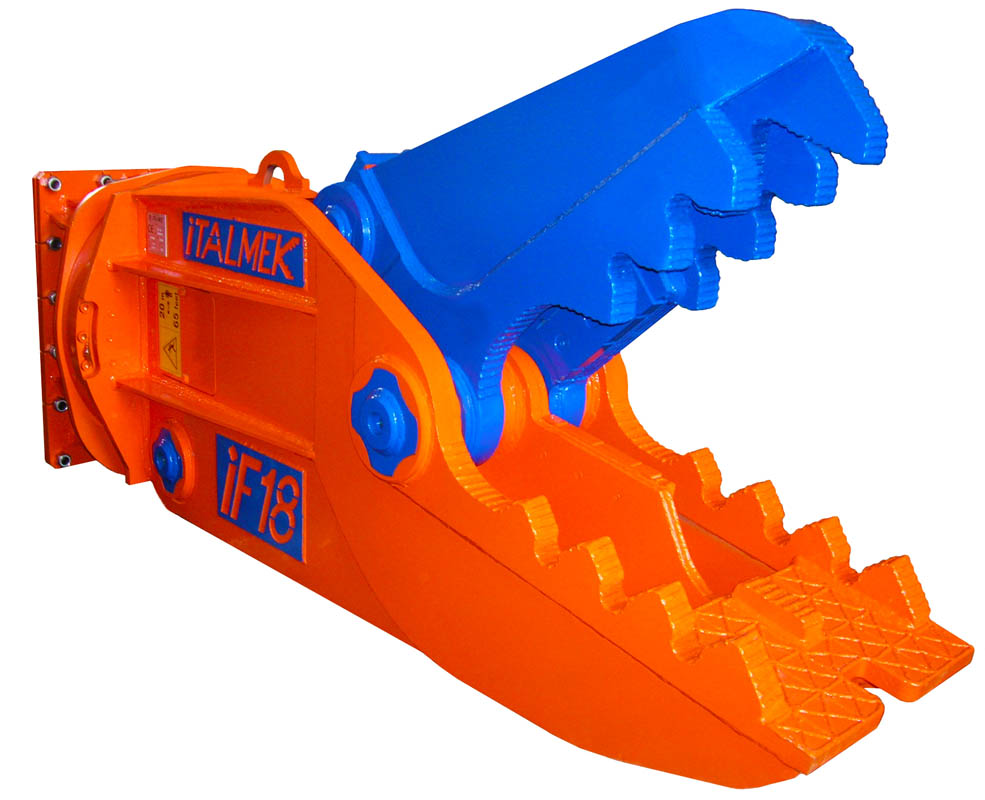

Rotating crusher IF18

IF18 rotating crusher has a weight of 1.950 kg, a mouth opening of 750 mm and a length of 2.220 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
1.950
Mouth opening
mm
750
Mouth depth
mm
780

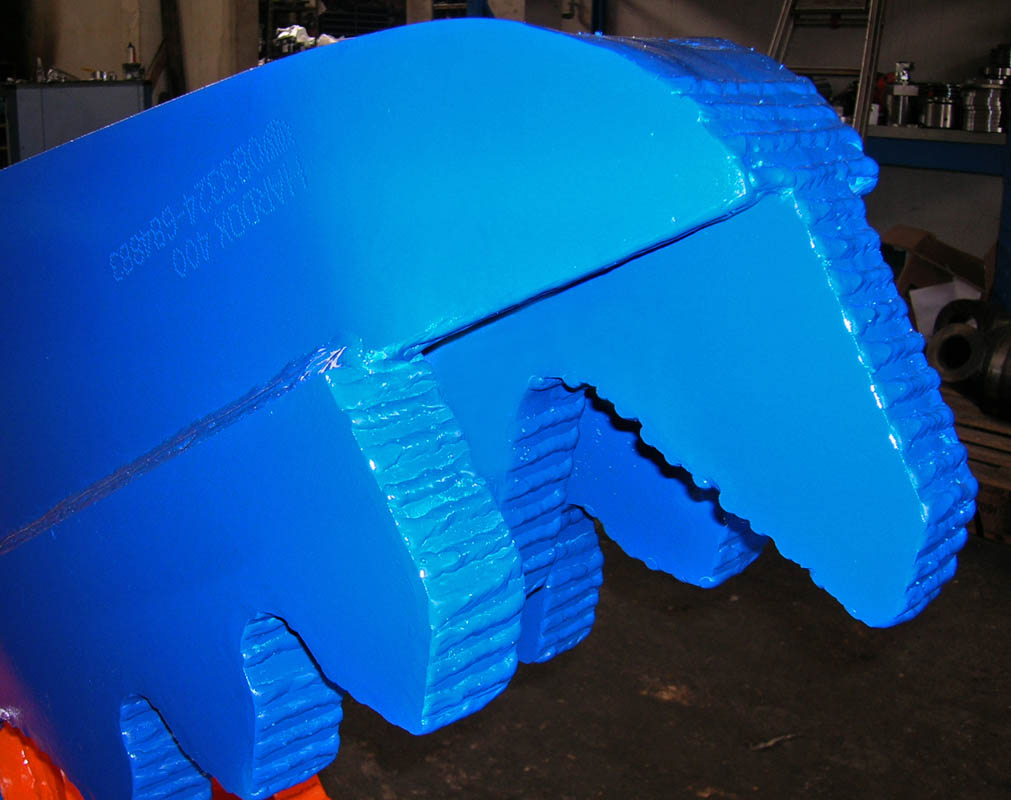

Jaw width
mm
465
Total Length
mm
2.220
Bucket position
ton
16 - 24
Working pressure
bar
340
Working flow
l/m
150 - 220
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
245
