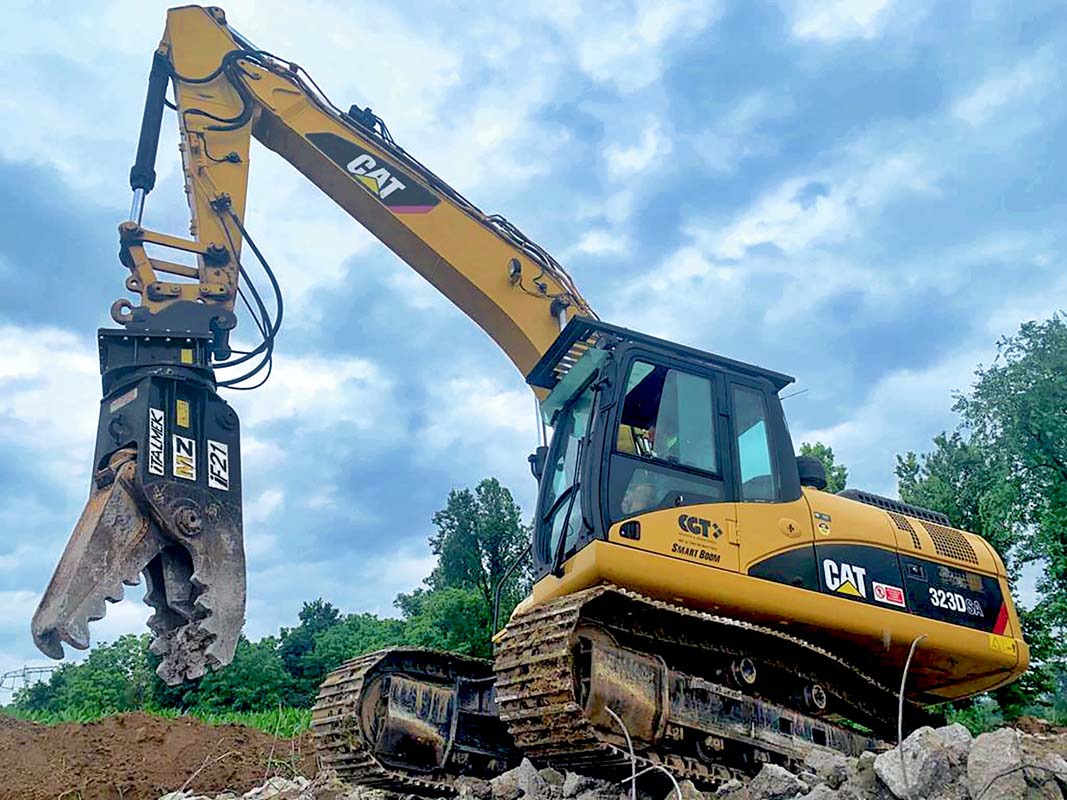

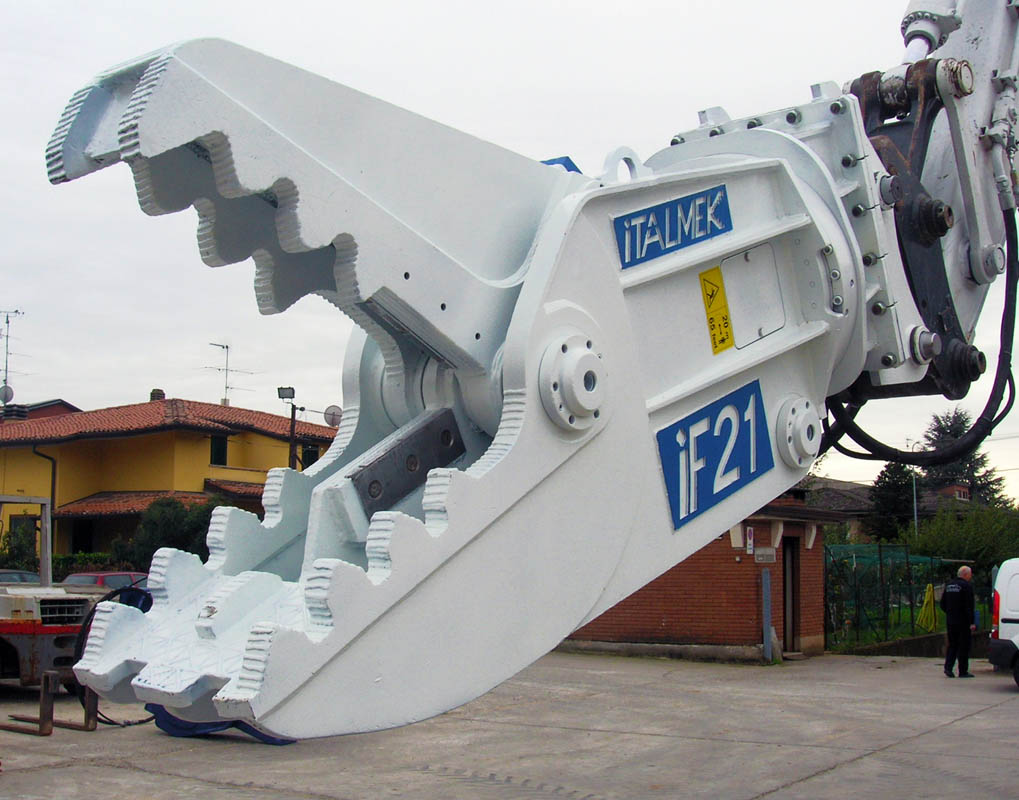

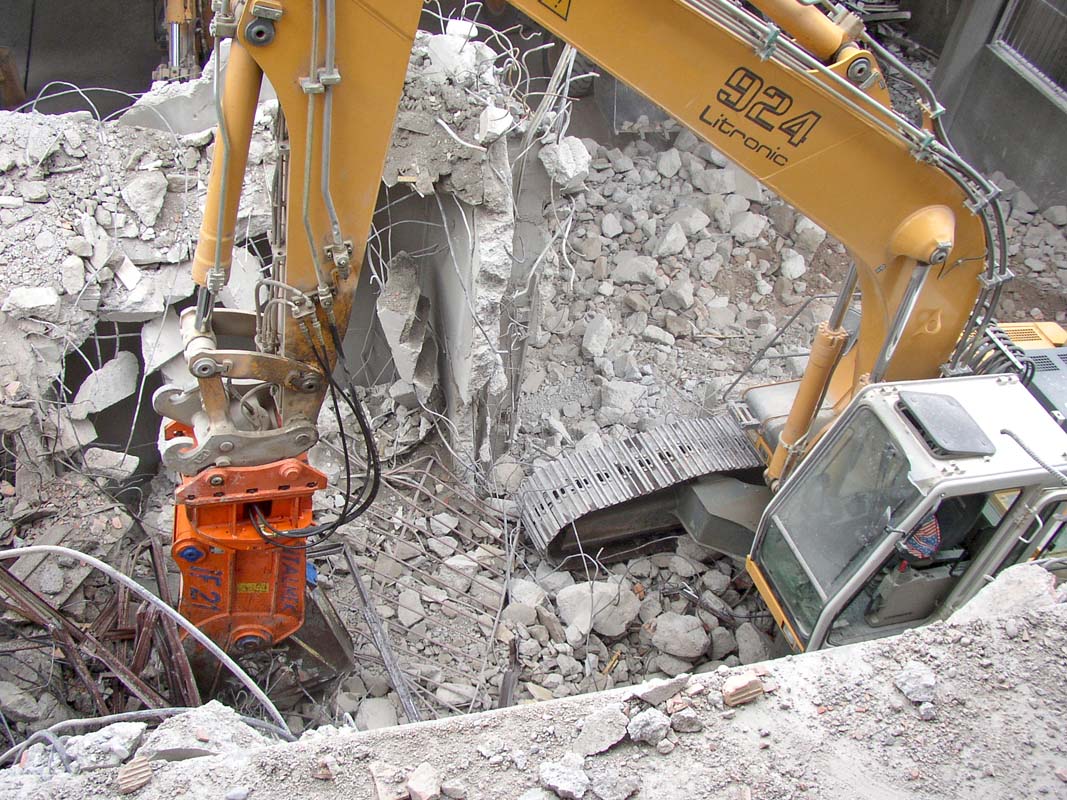

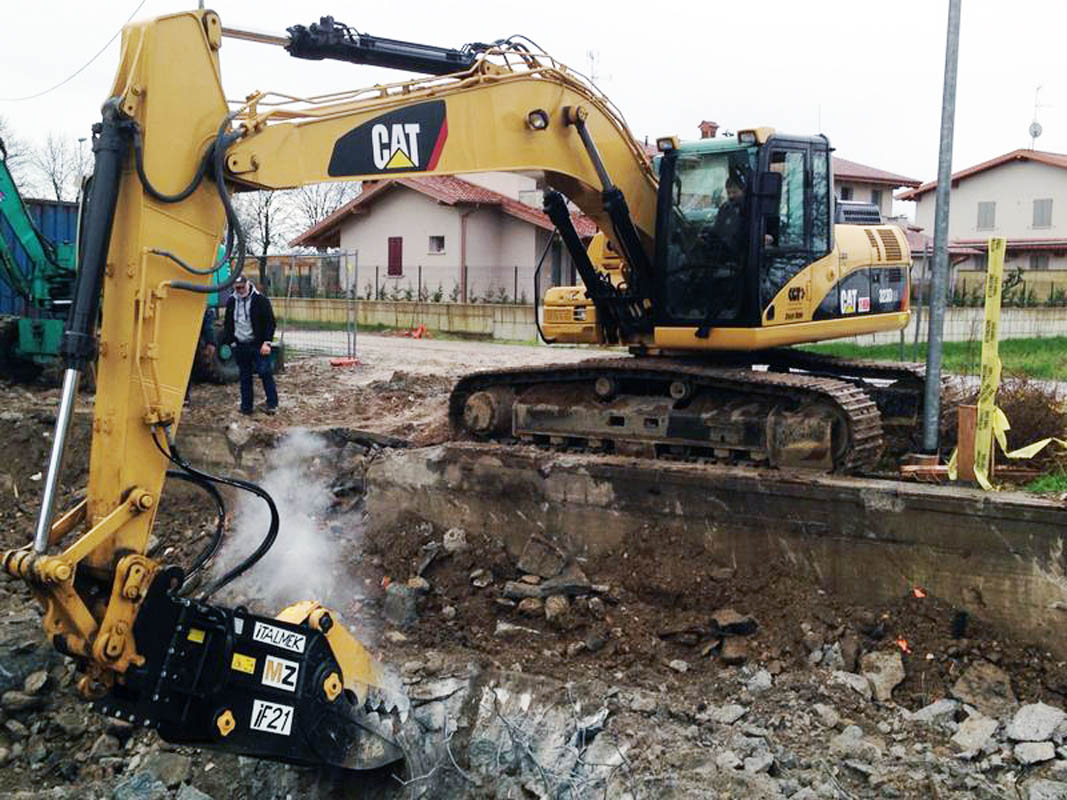

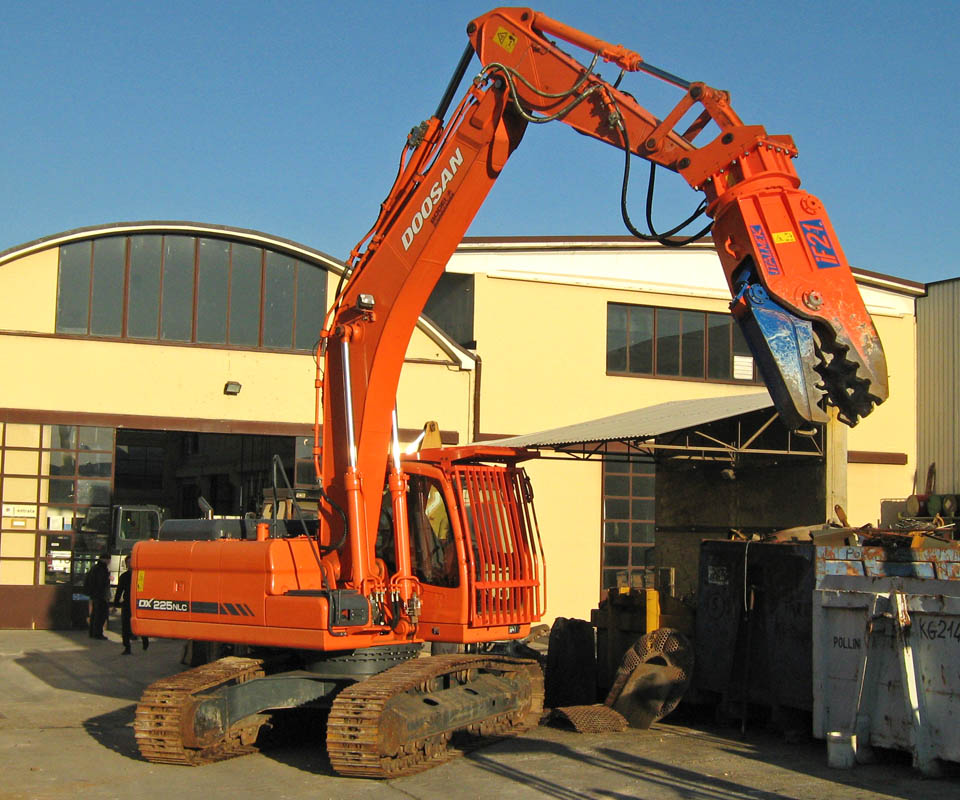

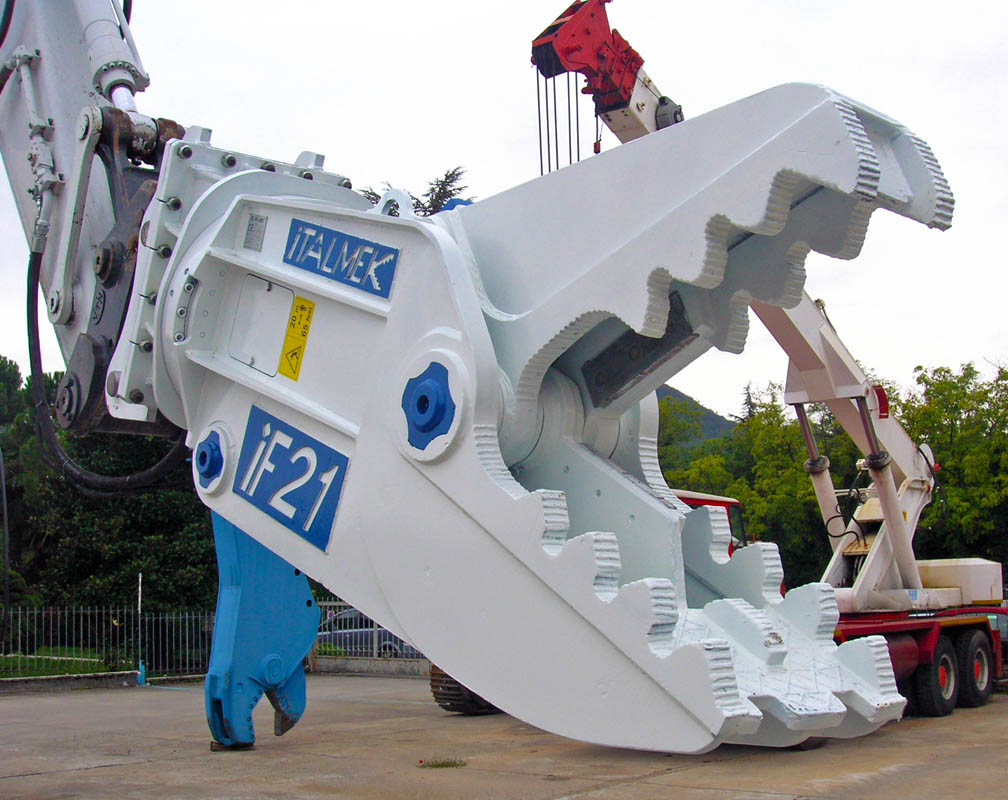

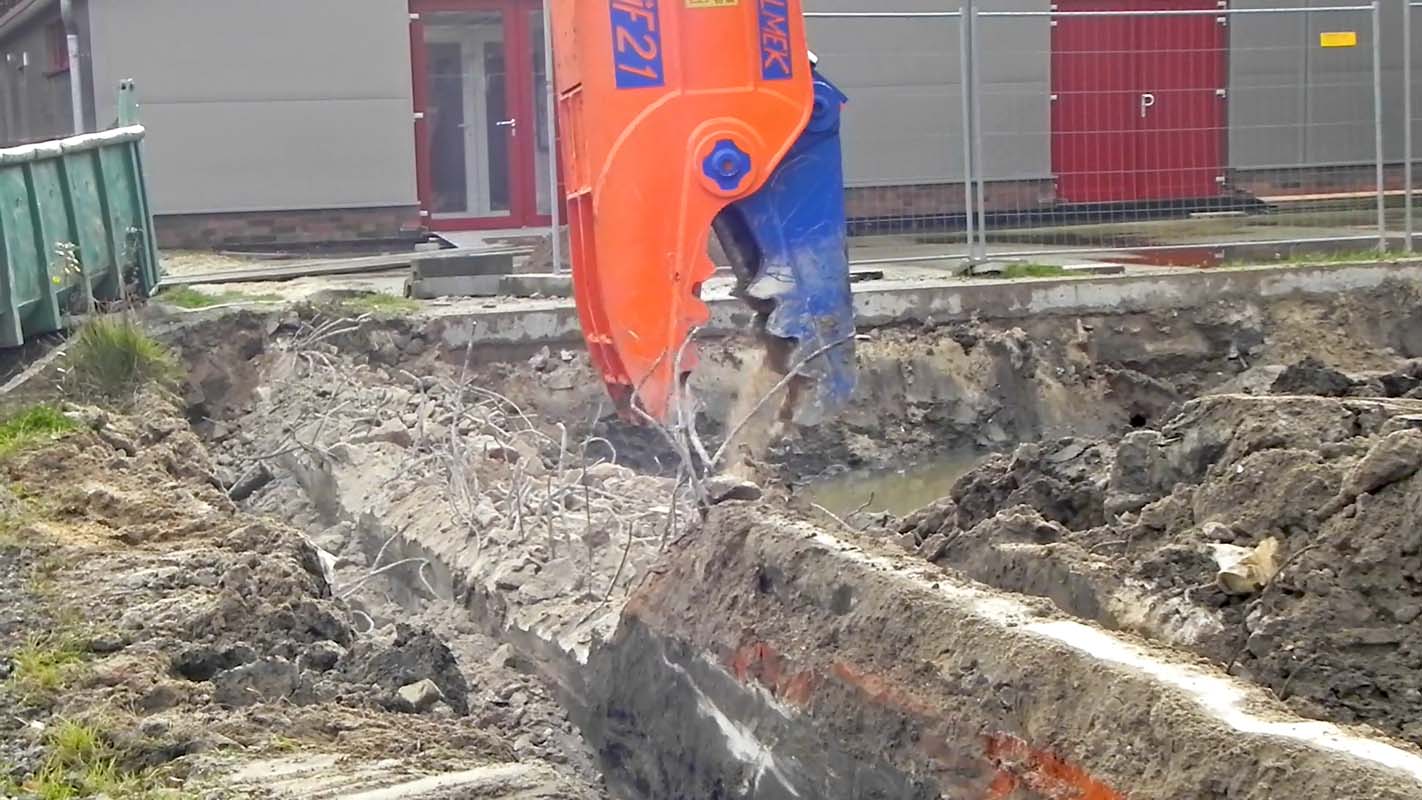

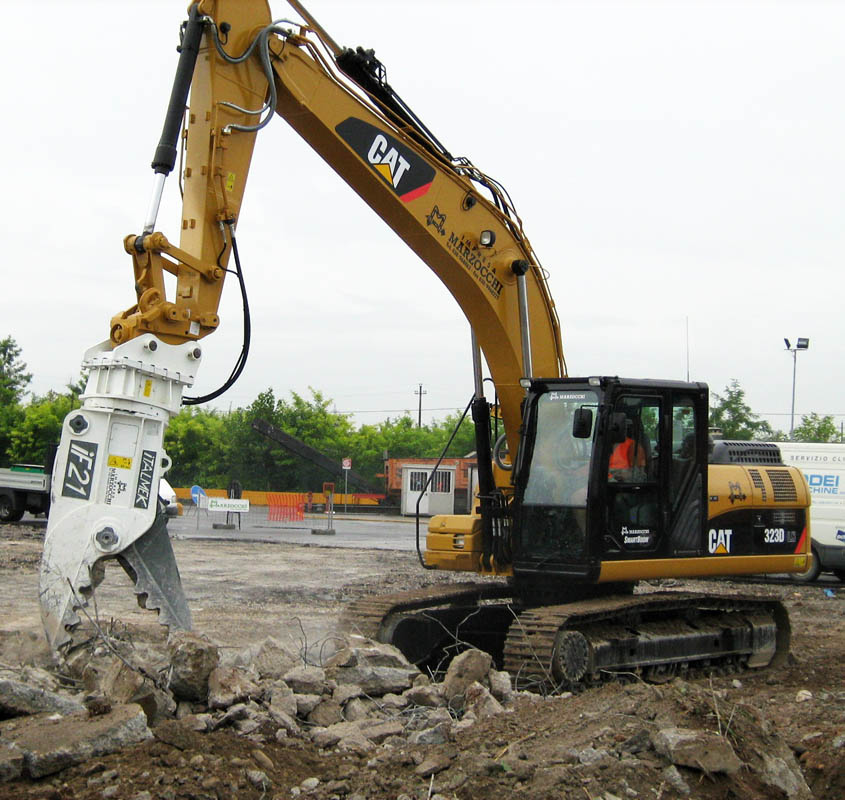

Rotating crusher IF21

IF21 rotating crusher has a weight of 2.300 kg, a mouth opening of 870 mm and a length of 2.340 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
2.300
Mouth opening
mm
870
Mouth depth
mm
850
Jaw width
mm
530
Total Length
mm
2.340
Bucket position
ton
21 - 29
Working pressure
bar
340
Working flow
l/m
180 - 250
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
270
