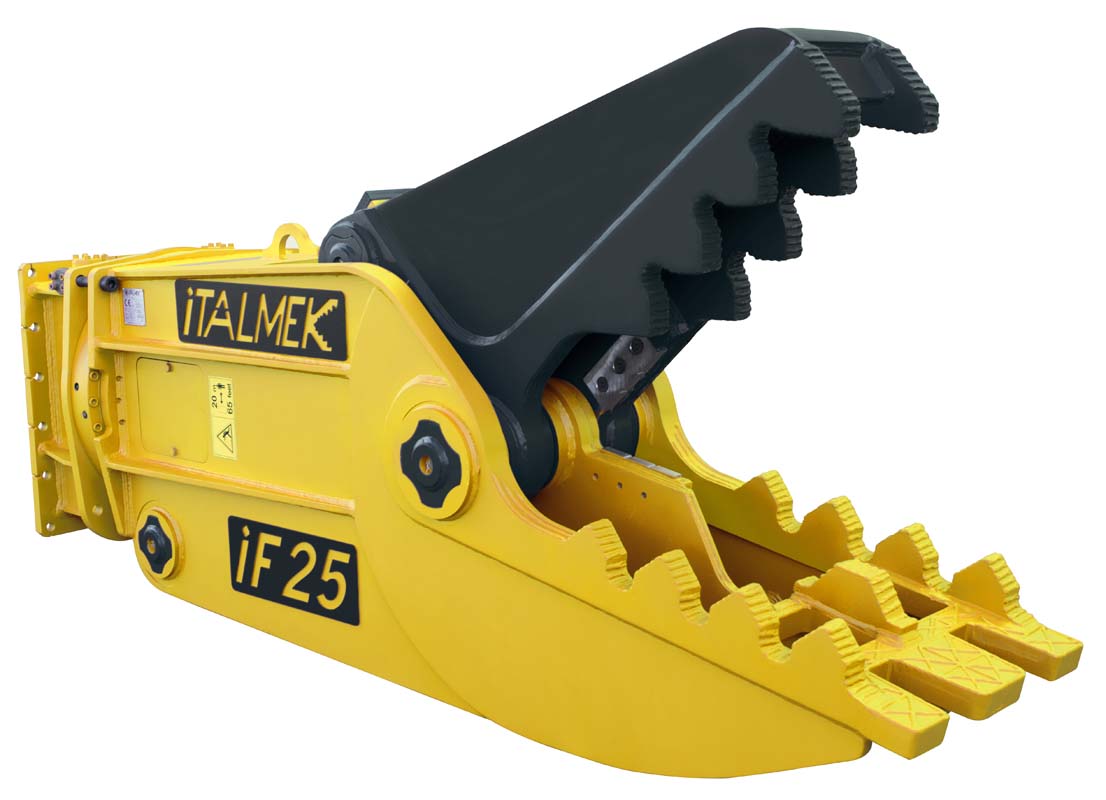

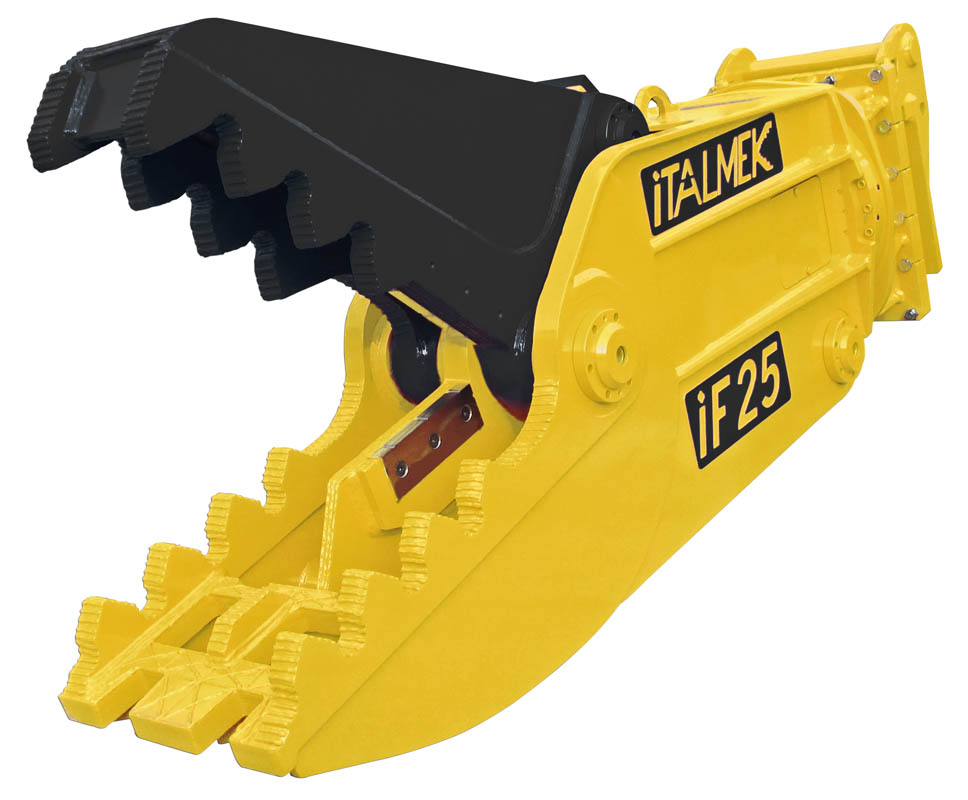

Rotating crusher IF25

IF25 rotating crusher has a weight of 2.900 kg, a mouth opening of 960 mm and a length of 2.650 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
2.900
Mouth opening
mm
960
Mouth depth
mm
940
Jaw width
mm
620
Total Length
mm
2.650
Bucket position
ton
27 - 35
Working pressure
bar
340
Working flow
l/m
200 - 300
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
370
