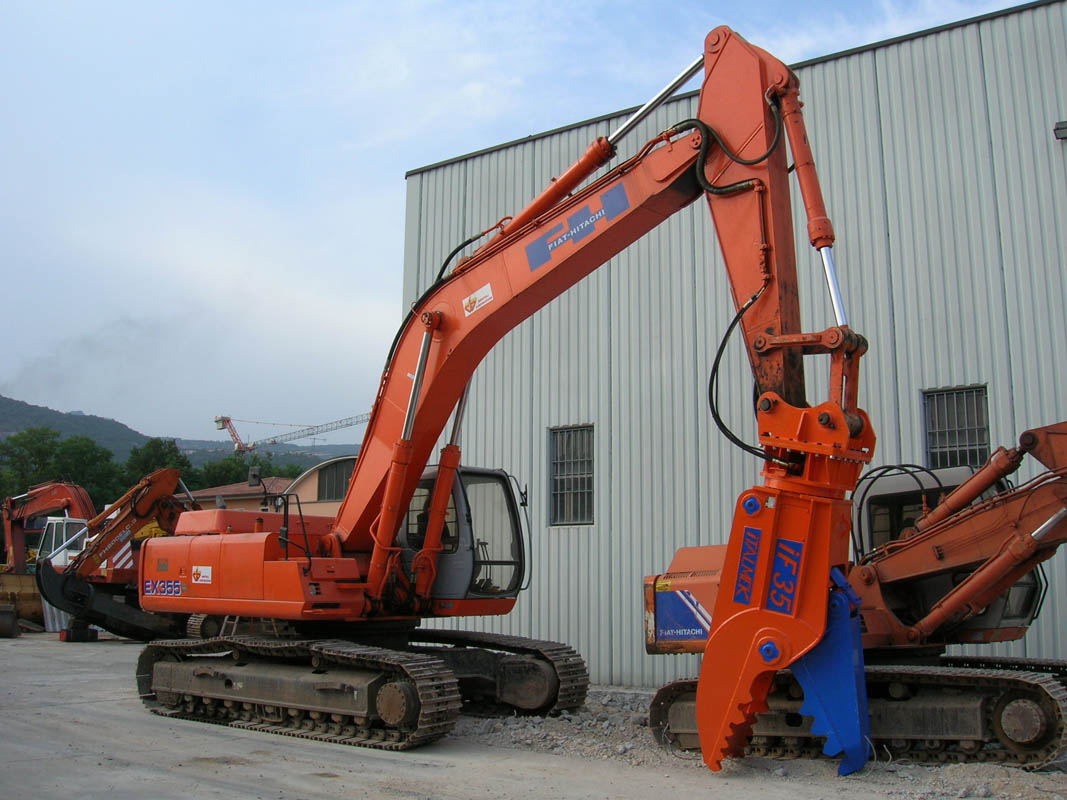

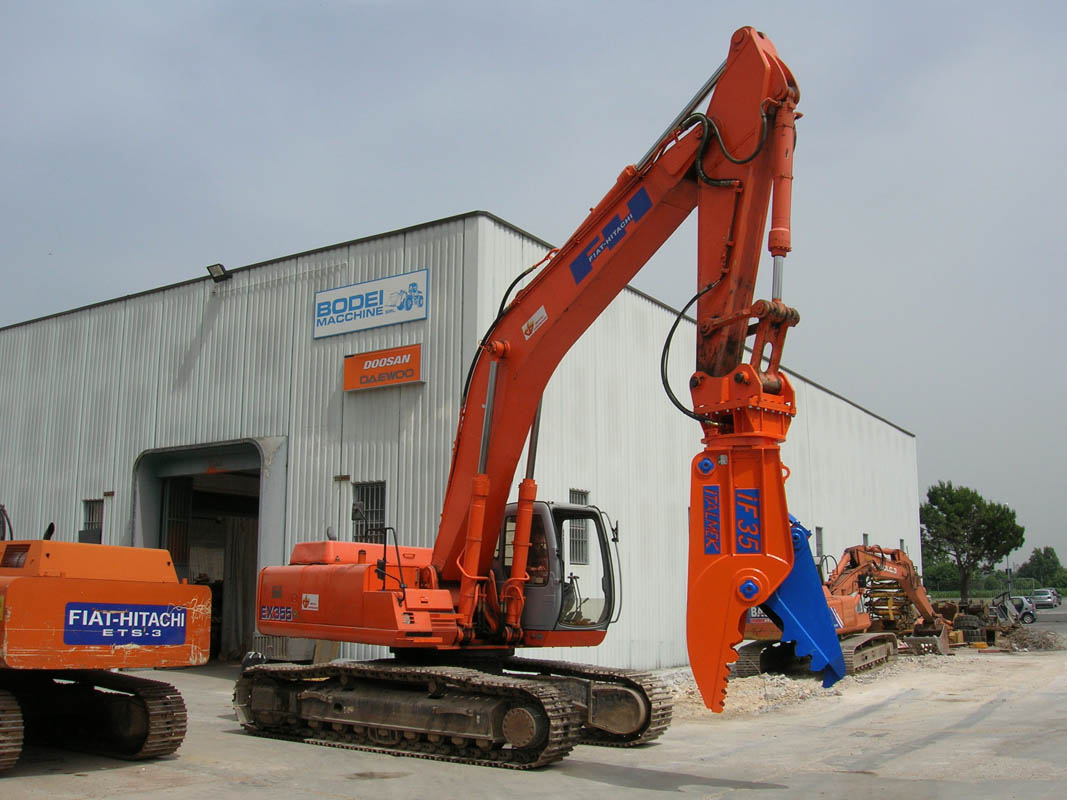

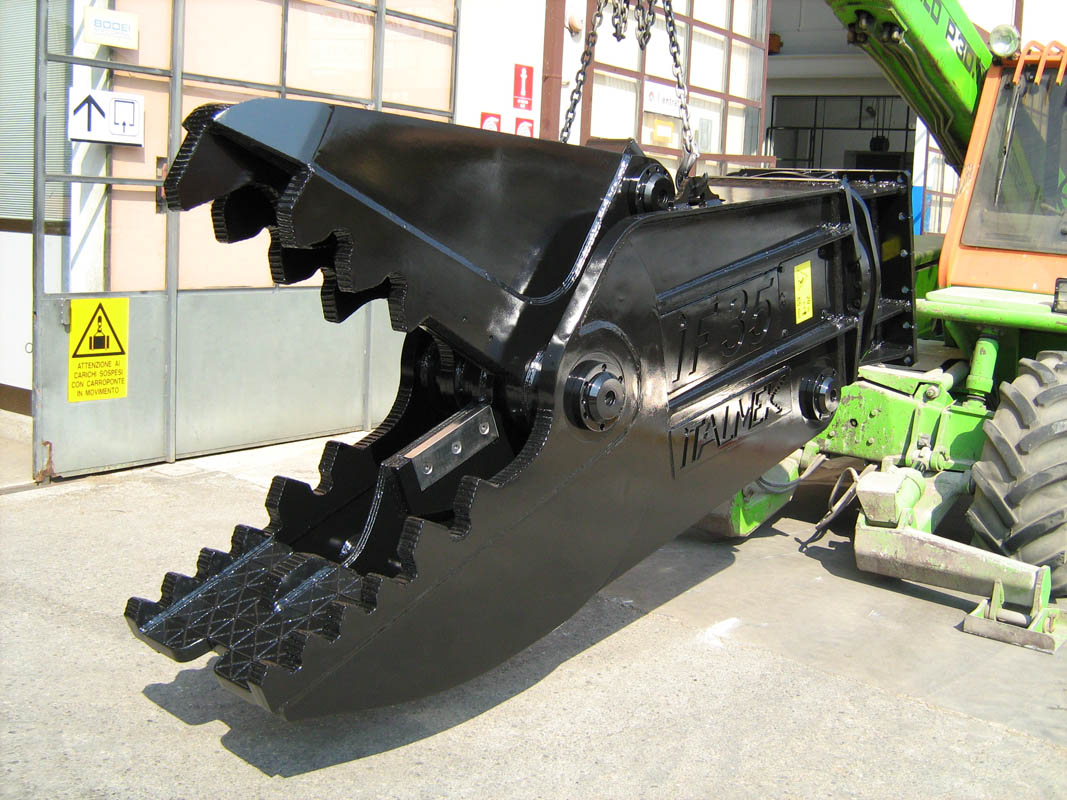

Rotating crusher IF35

IF35 rotating crusher has a weight of 3.600 kg, a mouth opening of 1.070 mm and a length of 2.700 mm. The maximum hydraulic working pressure is 350 bar.

Technical data sheet
Weight
kg
3.600
Mouth opening
mm
1.070
Mouth depth
mm
1.040
Jaw width
mm
640
Total Length
mm
2.700
Bucket position
ton
32 - 45
Working pressure
bar
350
Working flow
l/m
230 - 330
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
450
