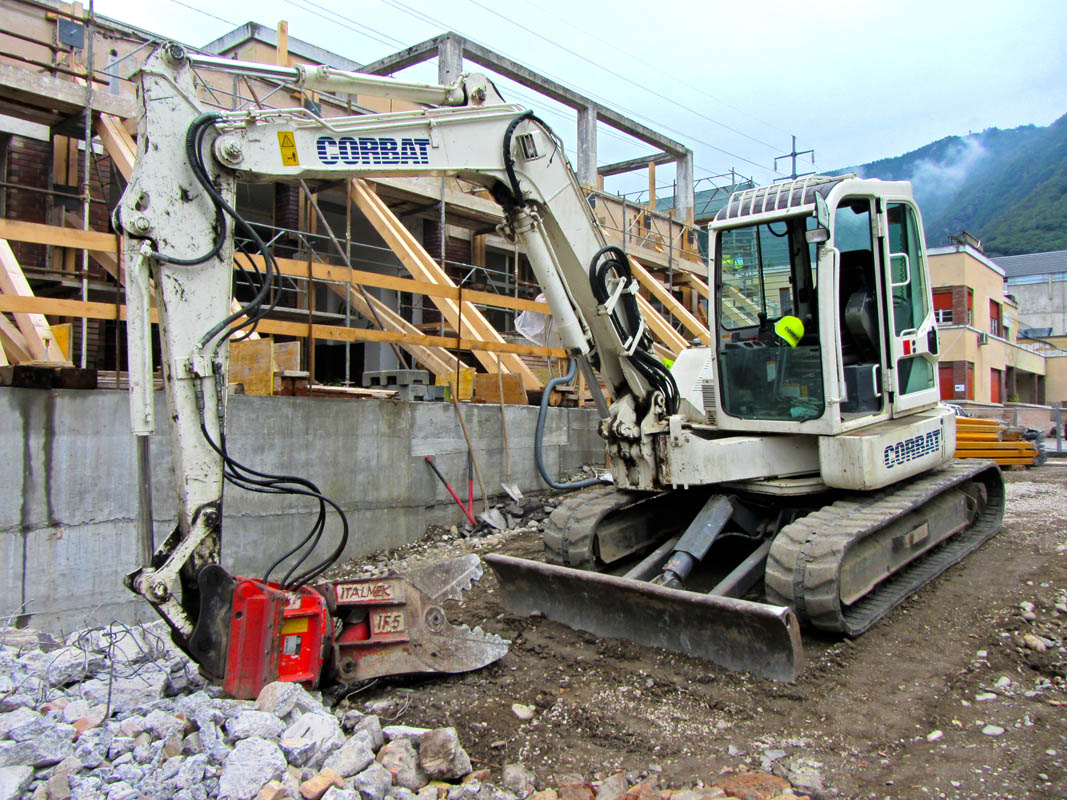

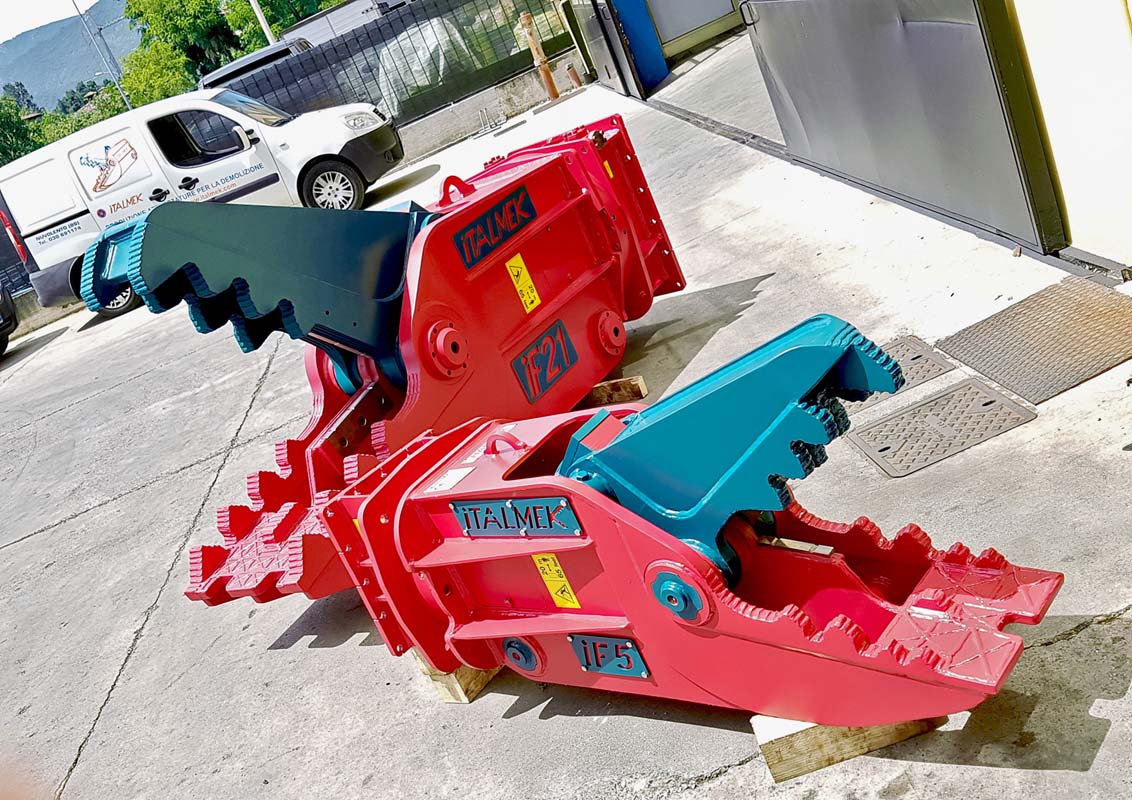

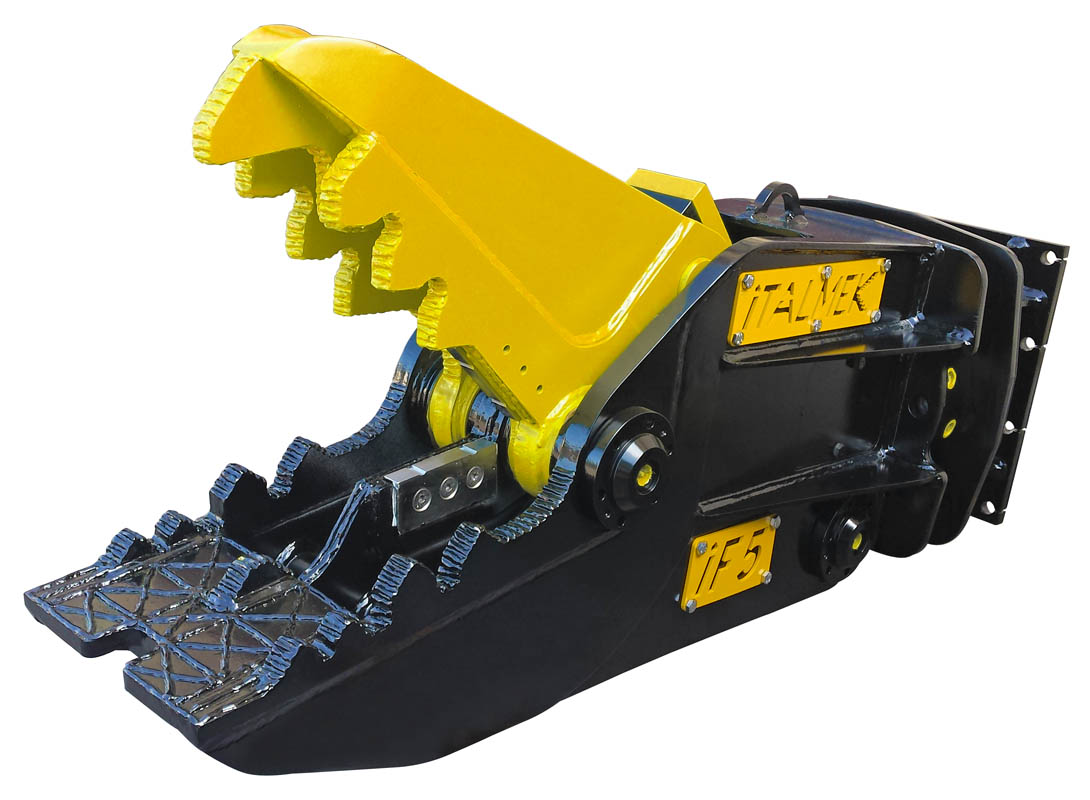

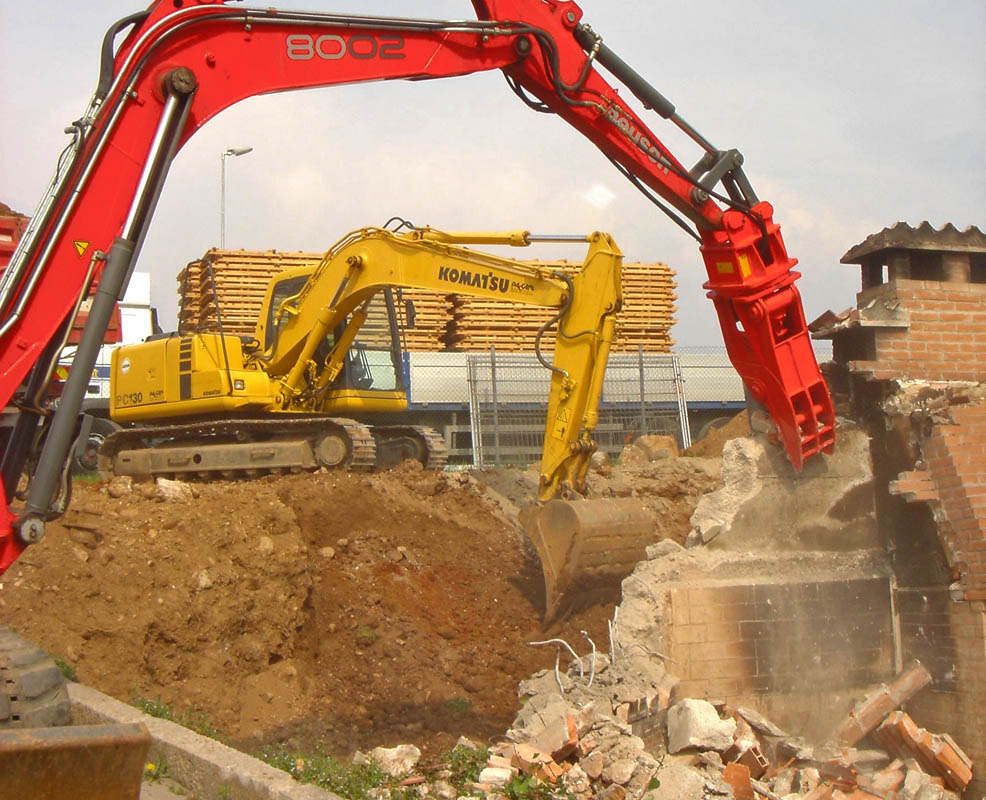

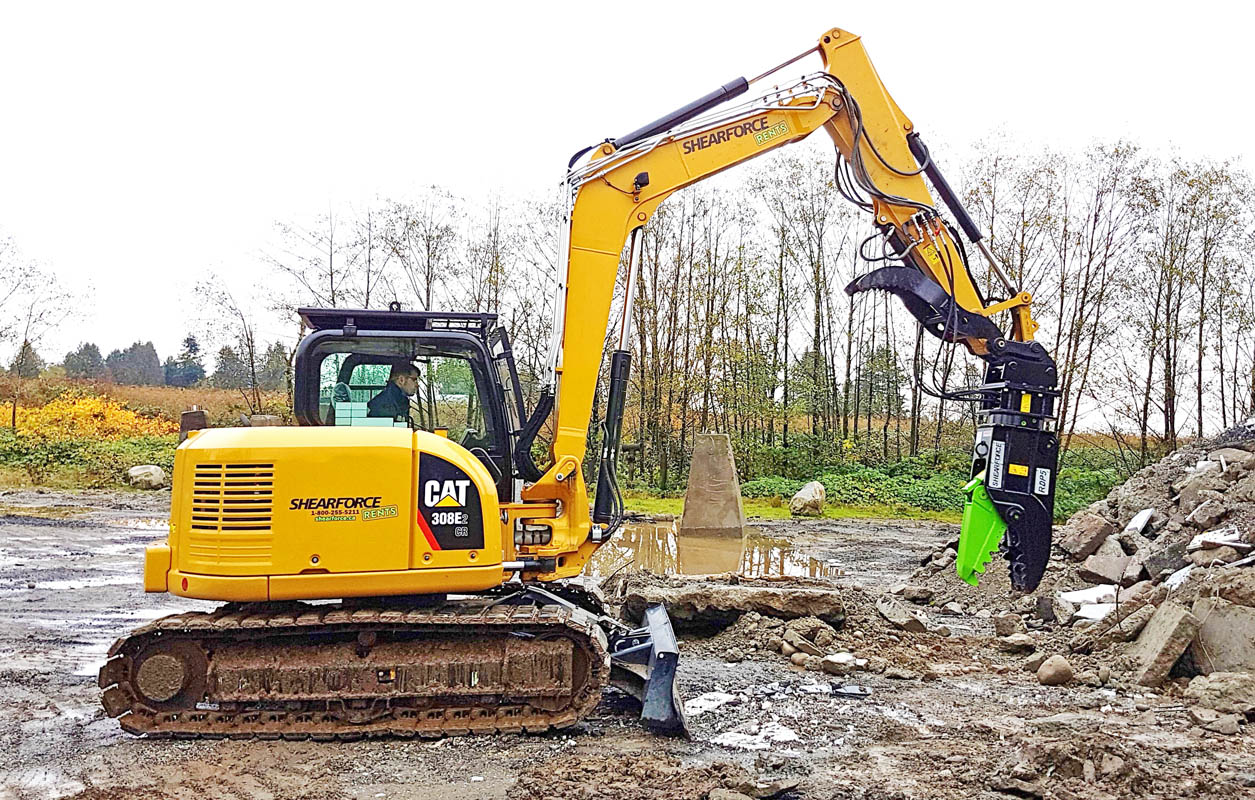

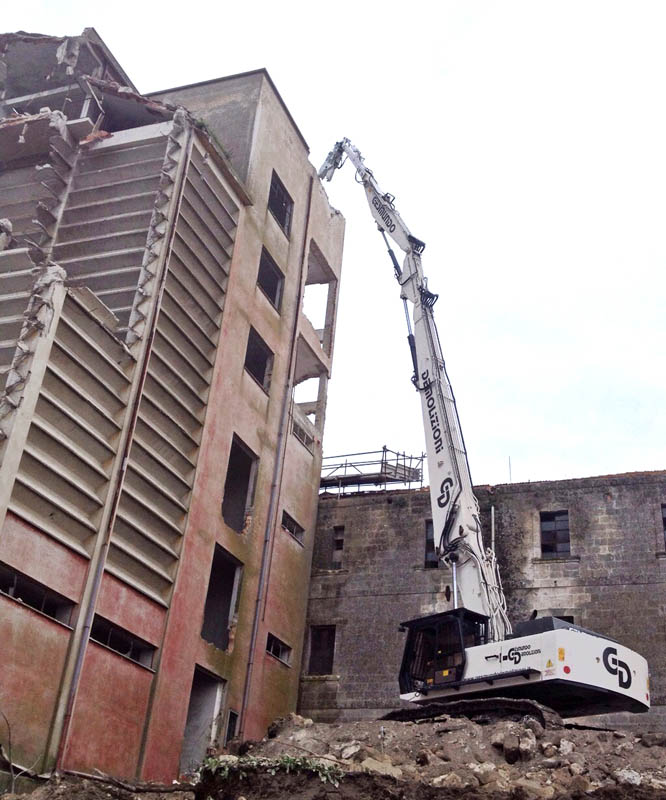

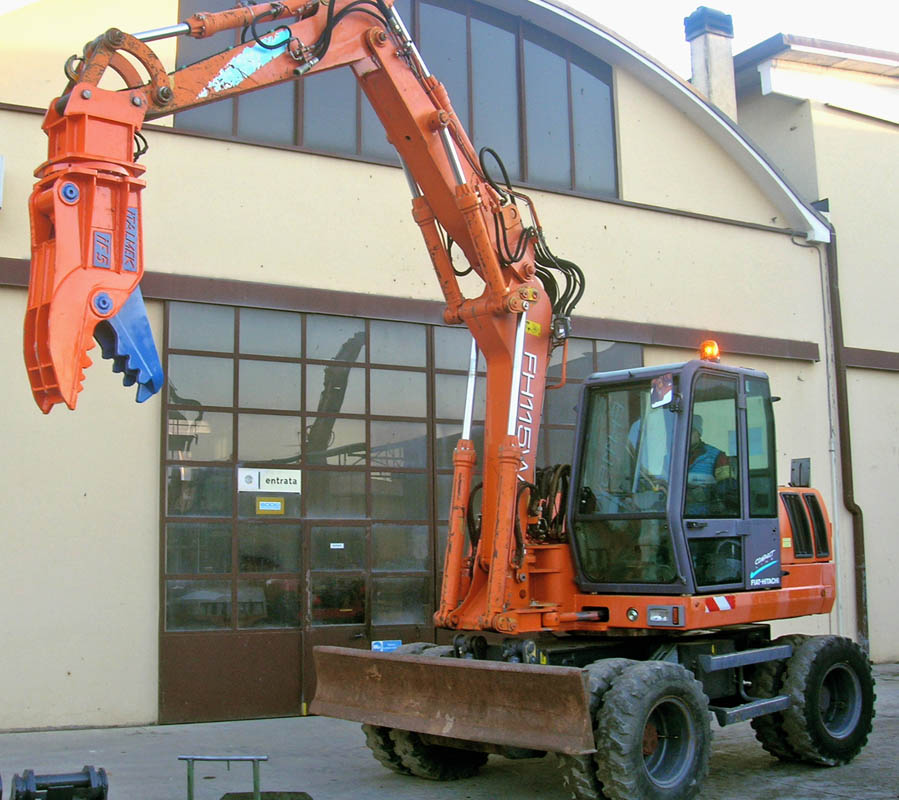

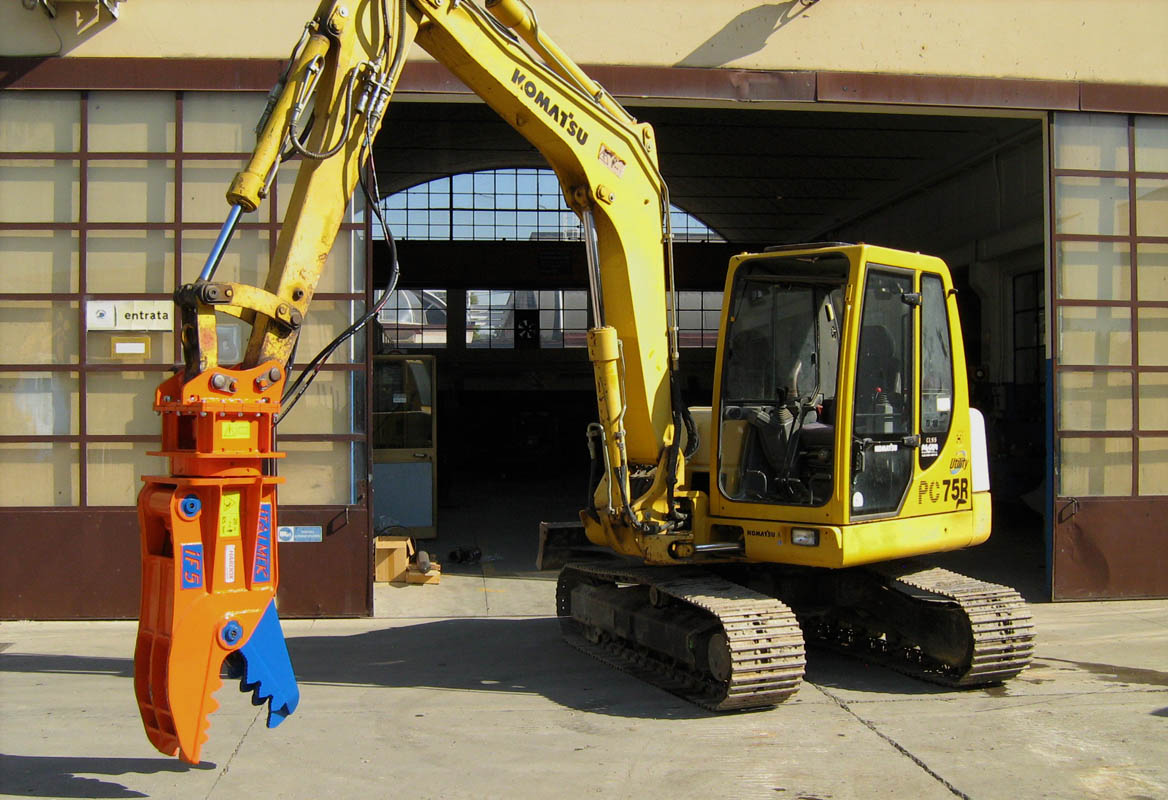

Rotating crusher IF5

IF5 rotating crusher has a weight of 650 kg, a mouth opening of 470 mm and a length of 1.500 mm. The maximum hydraulic working pressure is 300 bar.

Technical data sheet
Weight
kg
650
Mouth opening
mm
470
Mouth depth
mm
510
Jaw width
mm
320
Total Length
mm
1.500
Bucket position
ton
5 - 12
Working pressure
bar
300
Working flow
l/m
50 - 100
Rotation Pressure
bar
150 - 250
Rotation flow
l/m
8 - 10
Connection
SAE 6000
BSP F 1/2"
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
90
