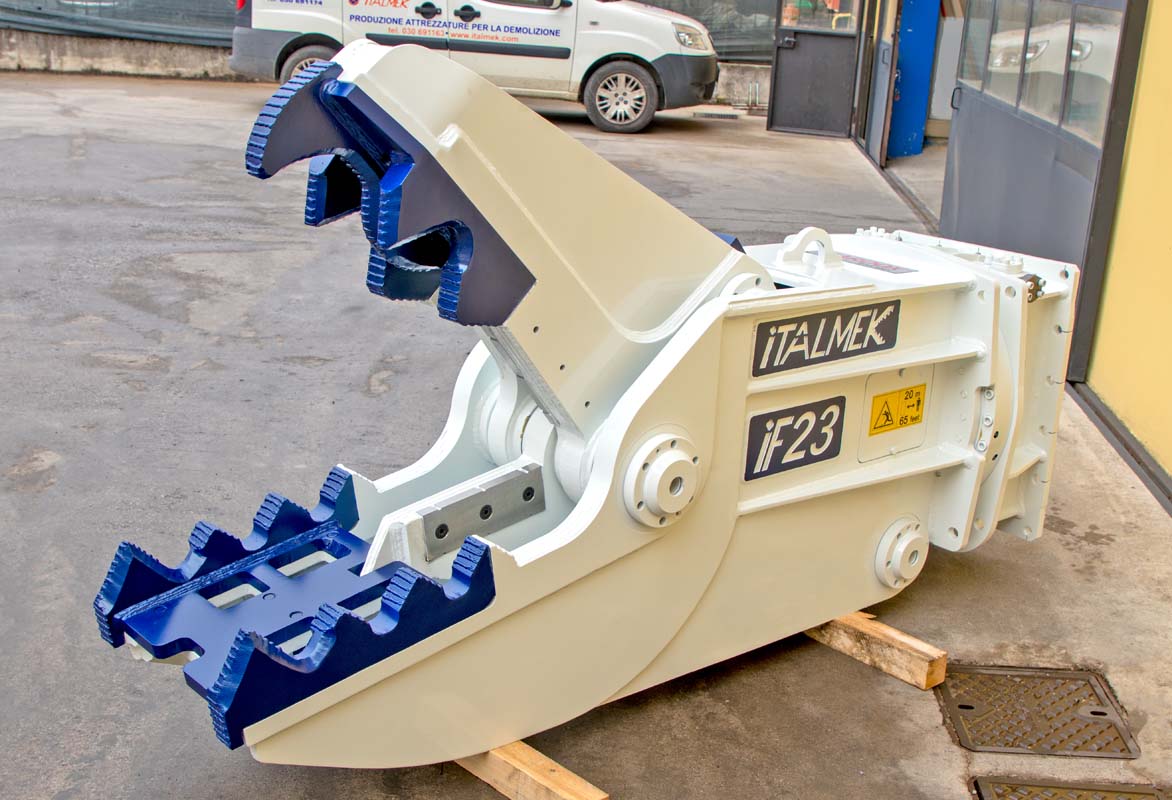

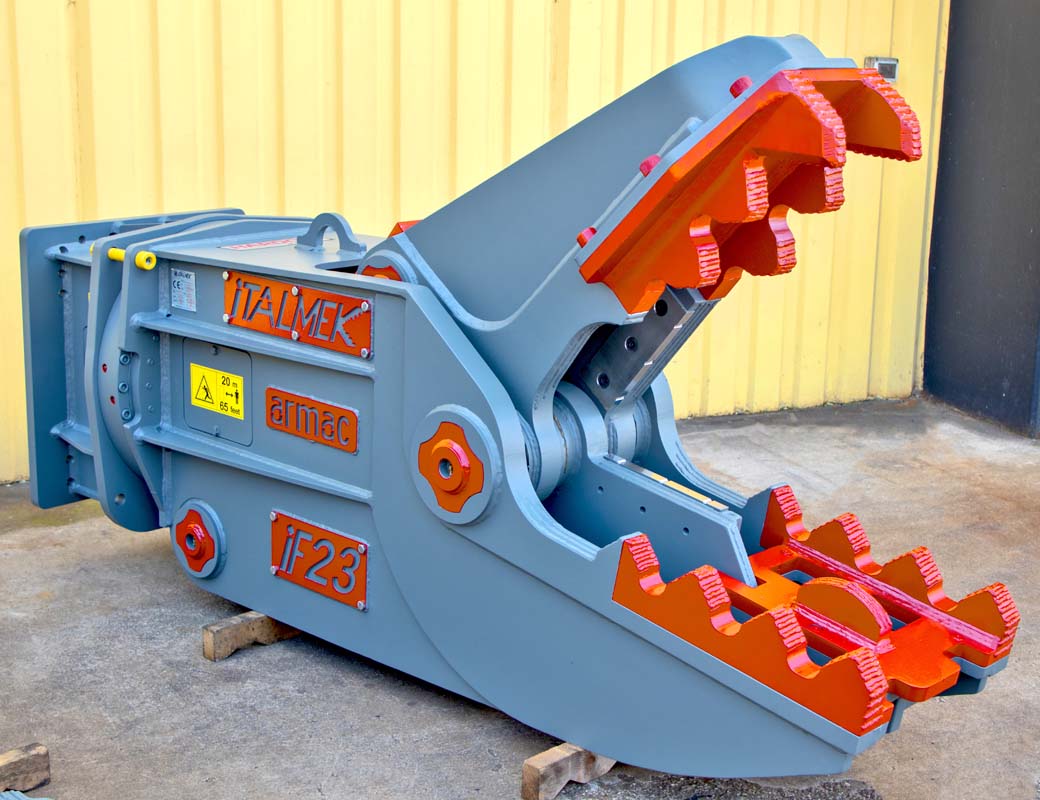

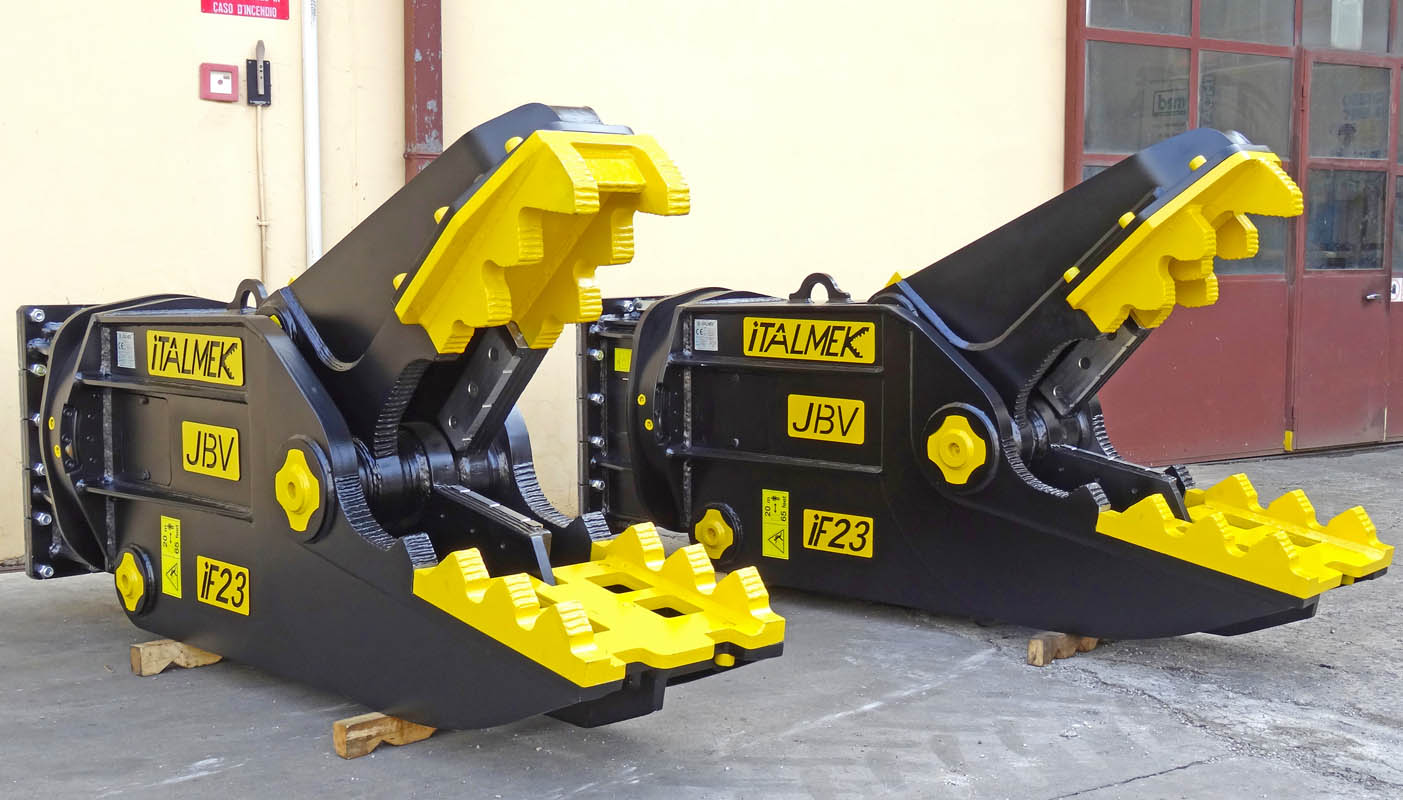

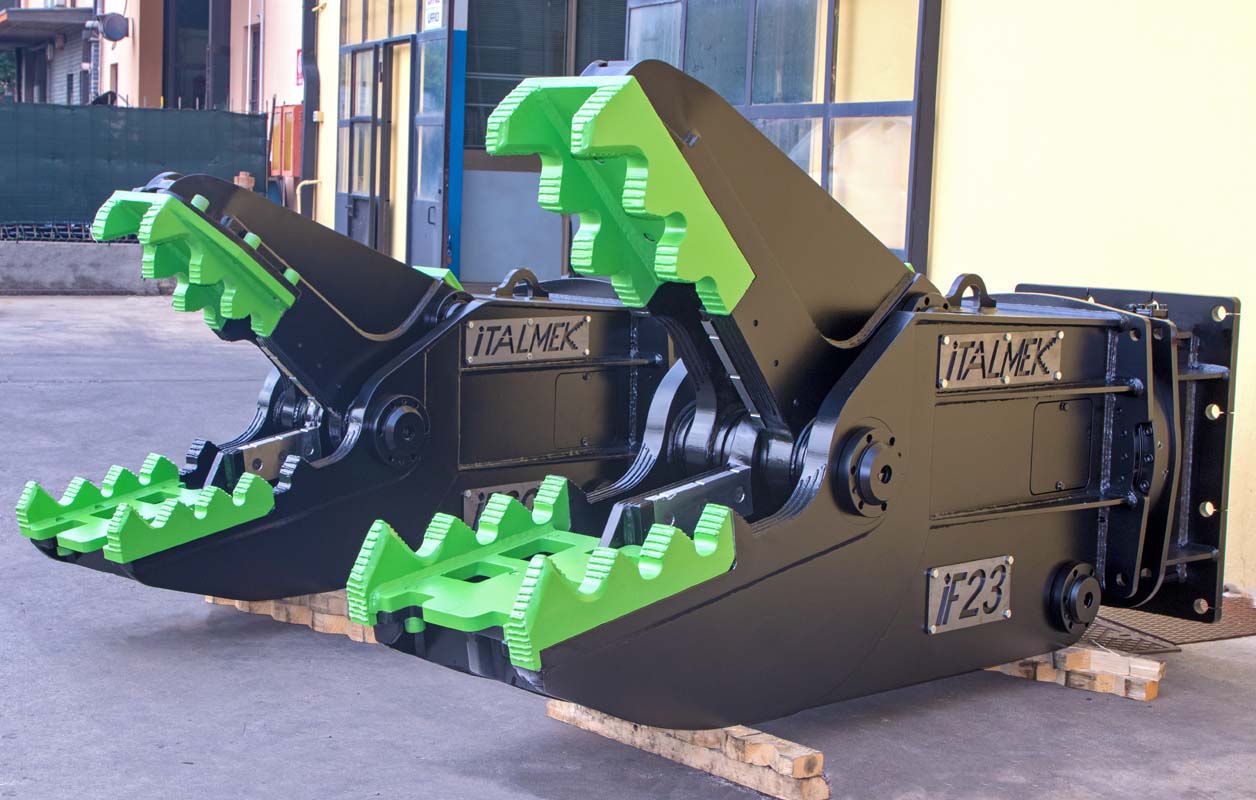

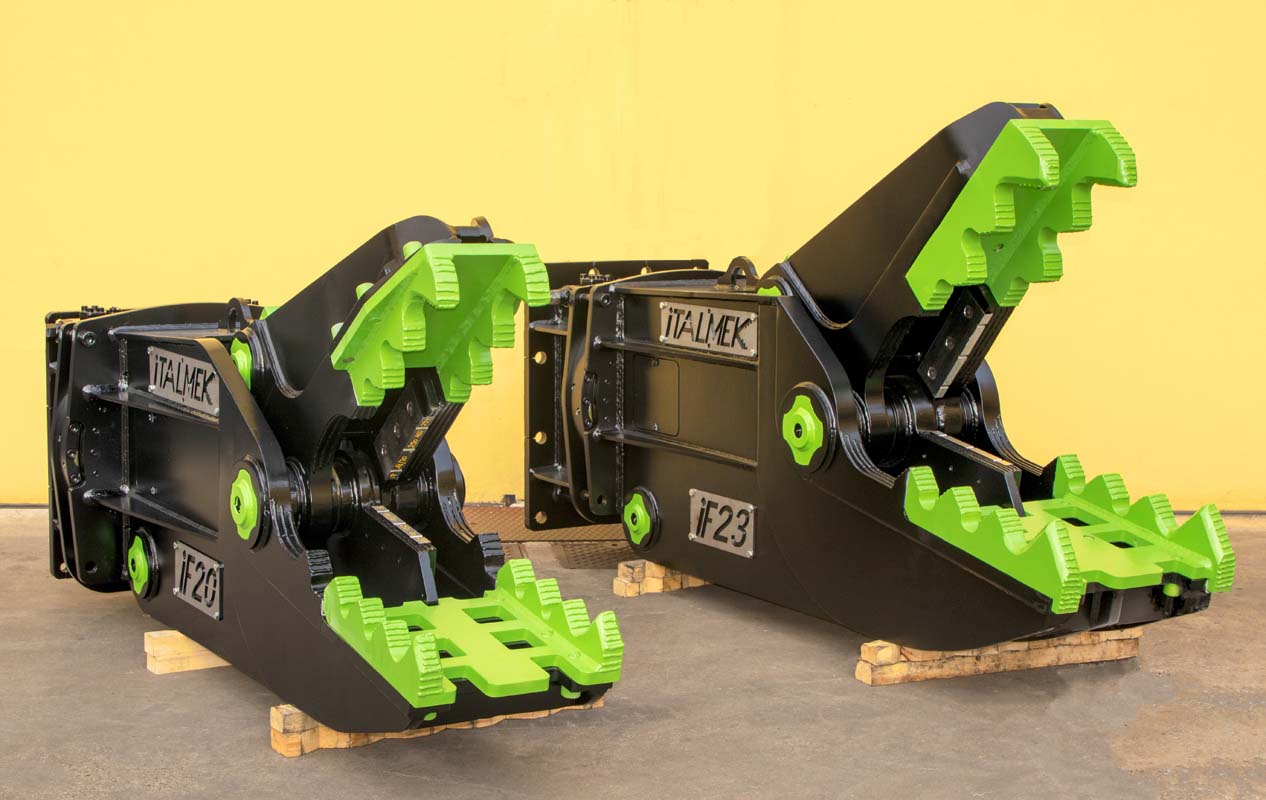

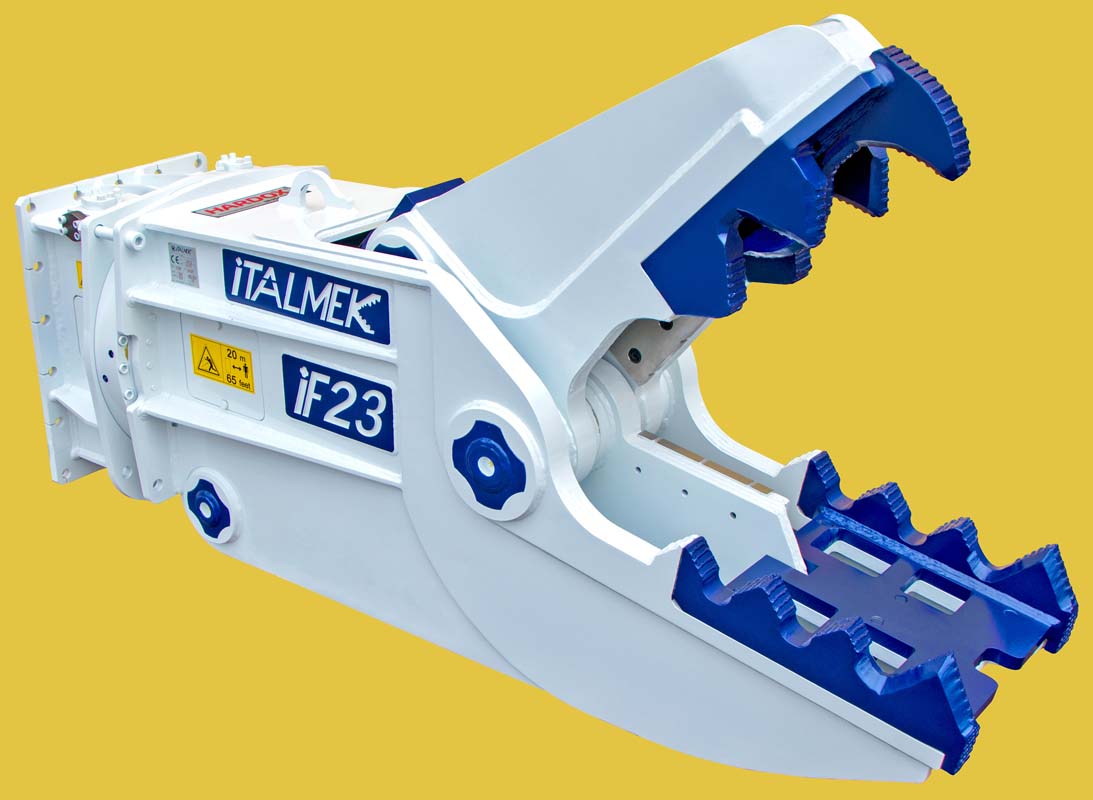

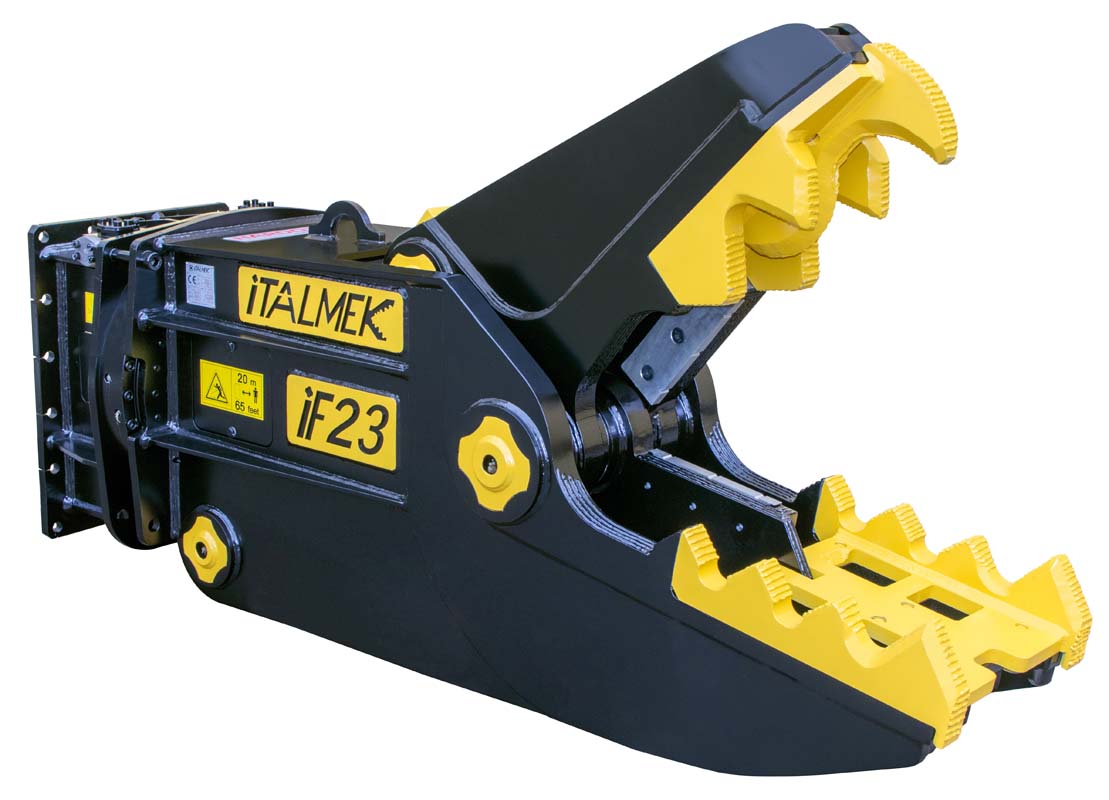

Rotating crusher IF23

IF23 rotating crusher has a weight of 2.500 kg, a mouth opening of 900 mm and a length of 2.370 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
2.500
Mouth opening
mm
900
Mouth depth
mm
850
Jaw width
mm
540
Total Length
mm
2.370
Bucket position
ton
23 - 32
Working pressure
bar
340
Working flow
l/m
180 - 250
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
270
Power on tip
ton
135
