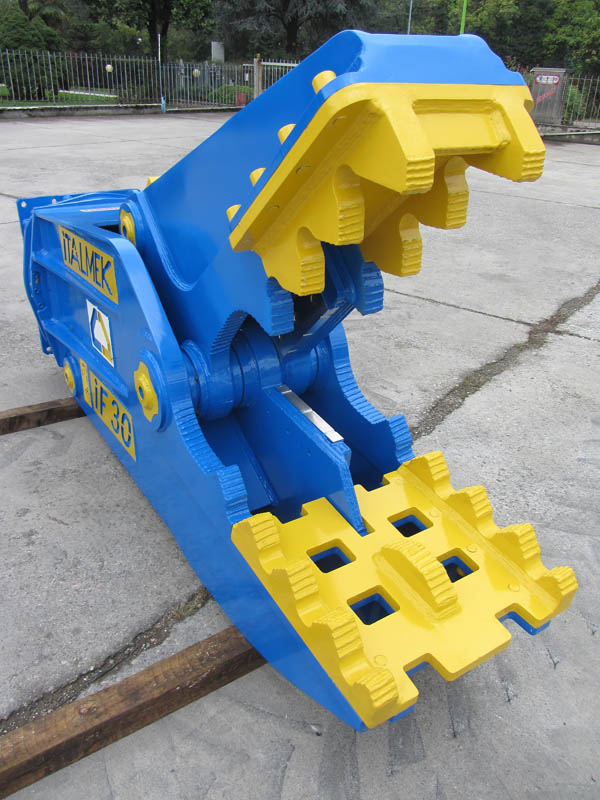

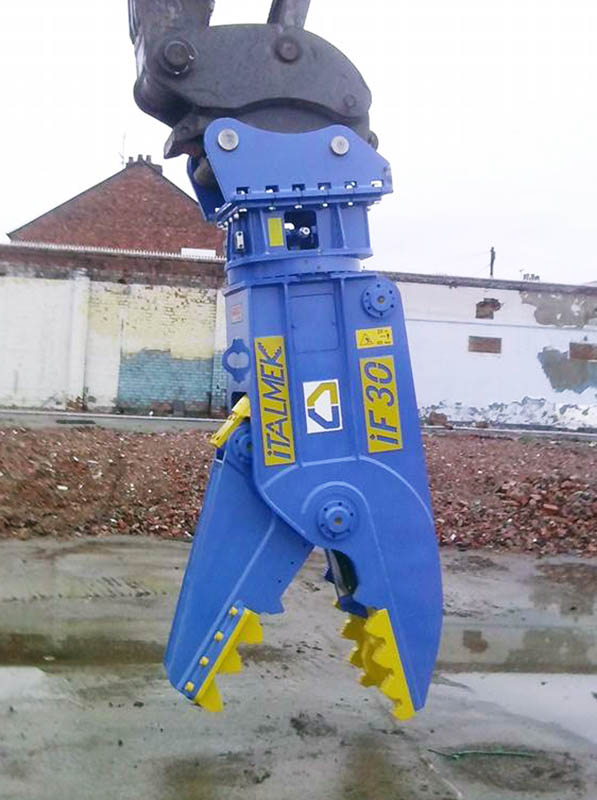

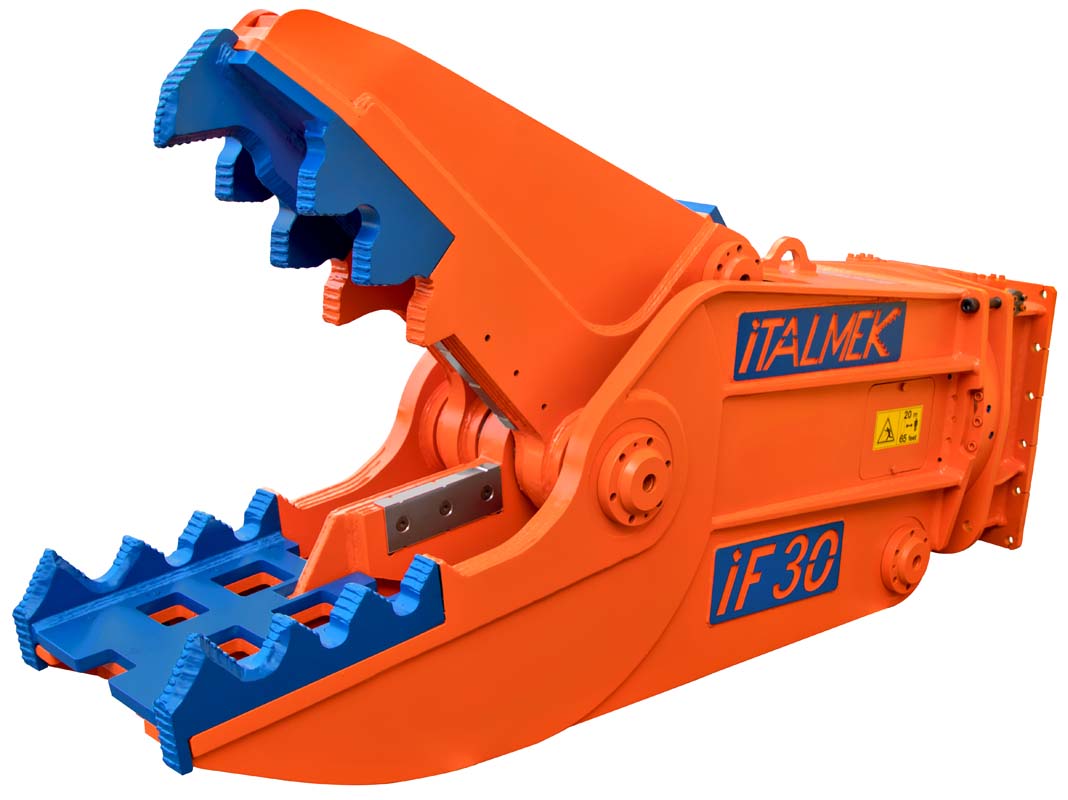

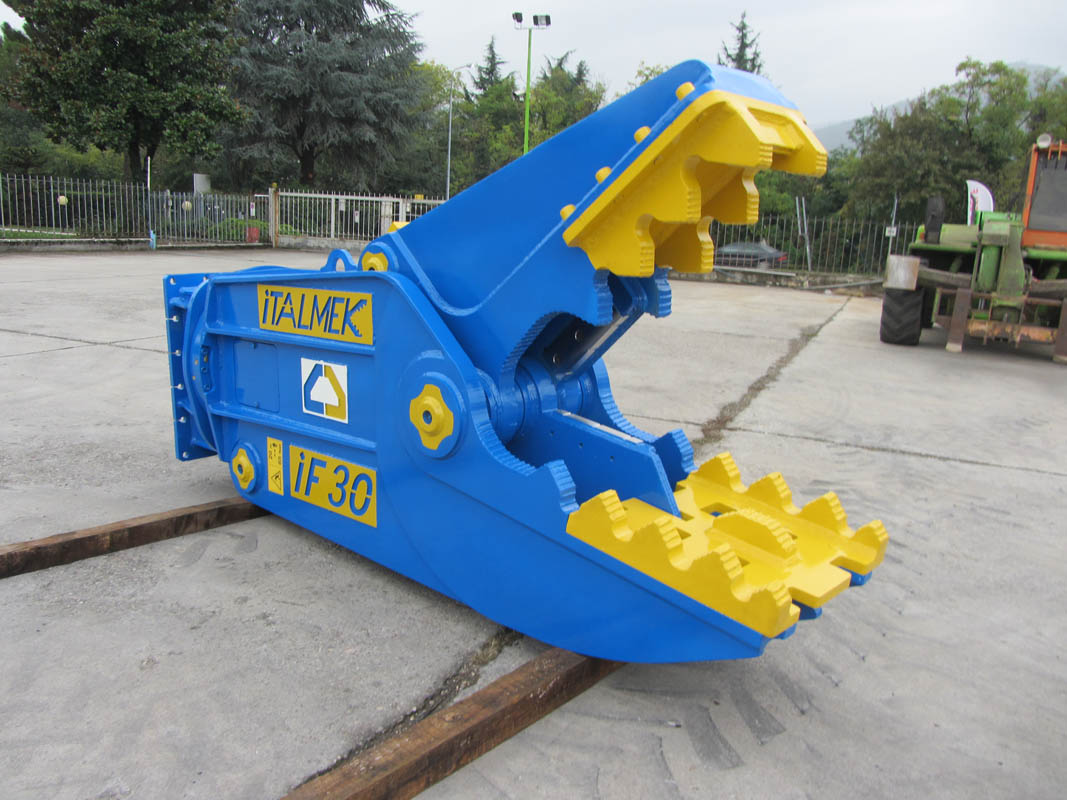

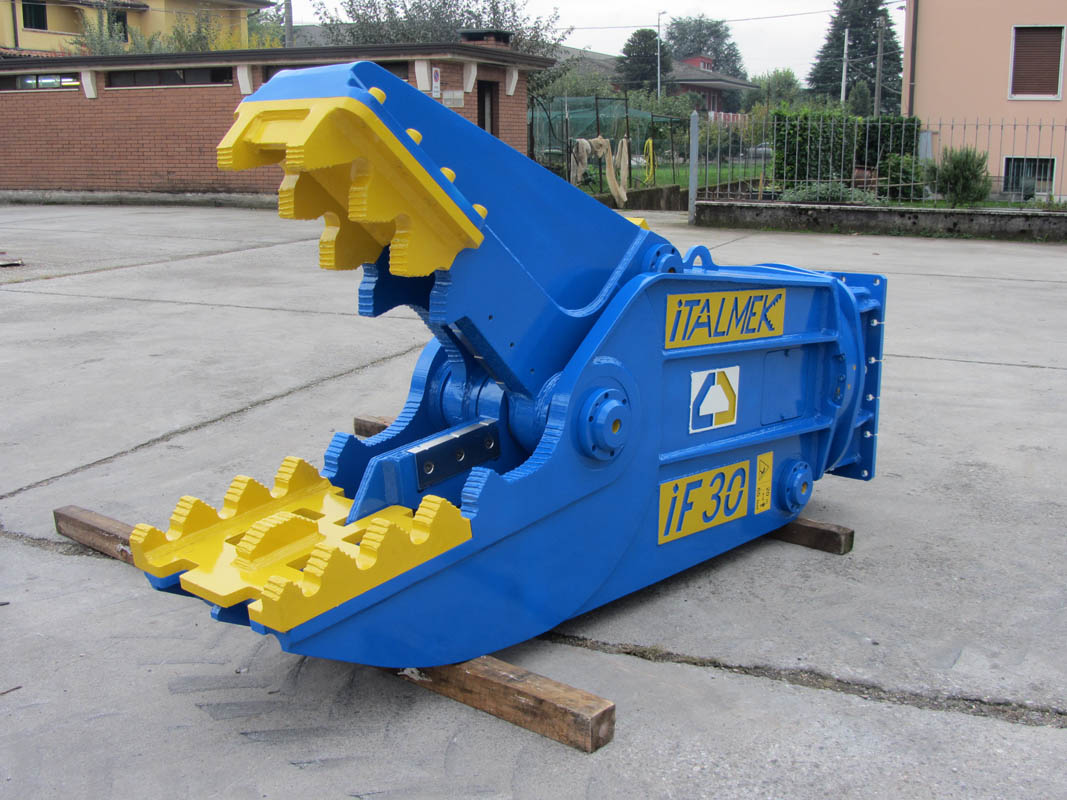

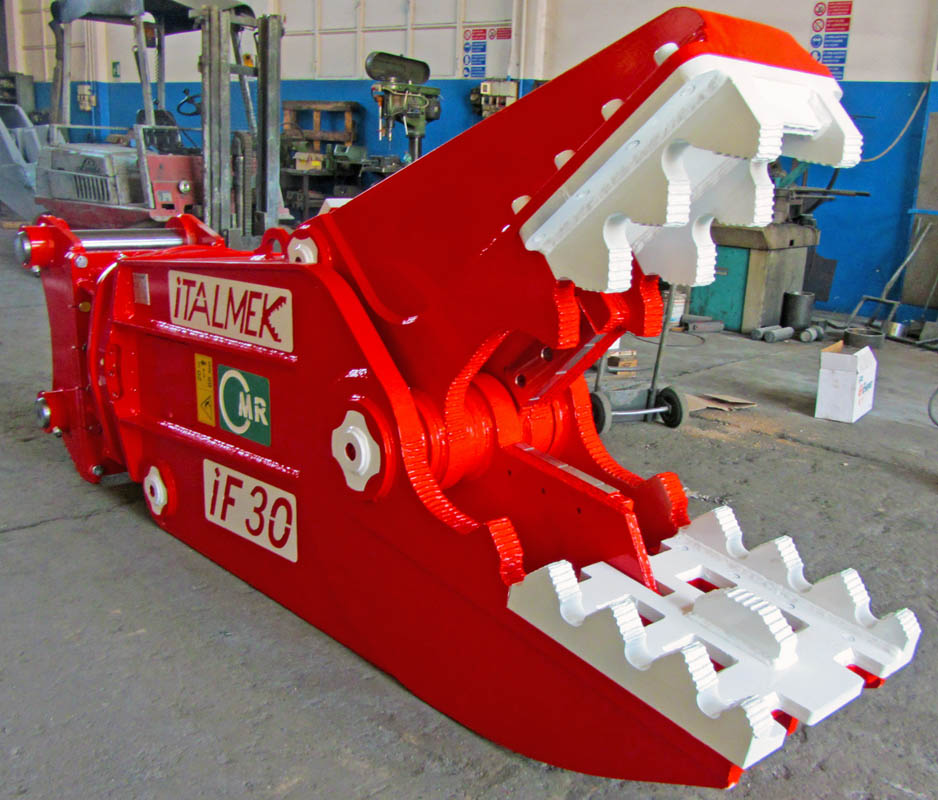

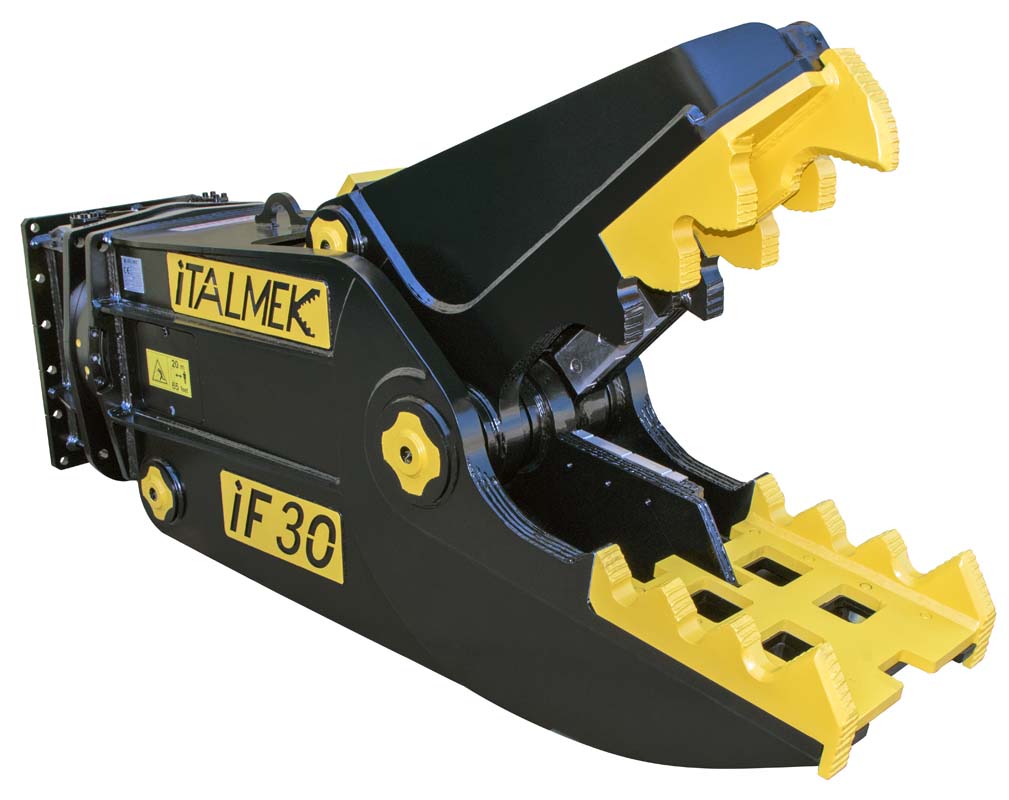

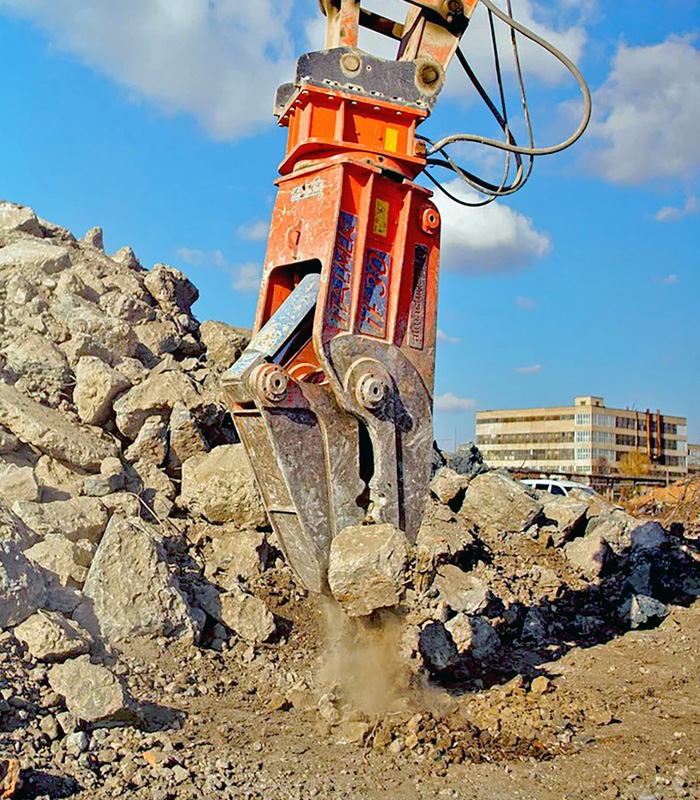

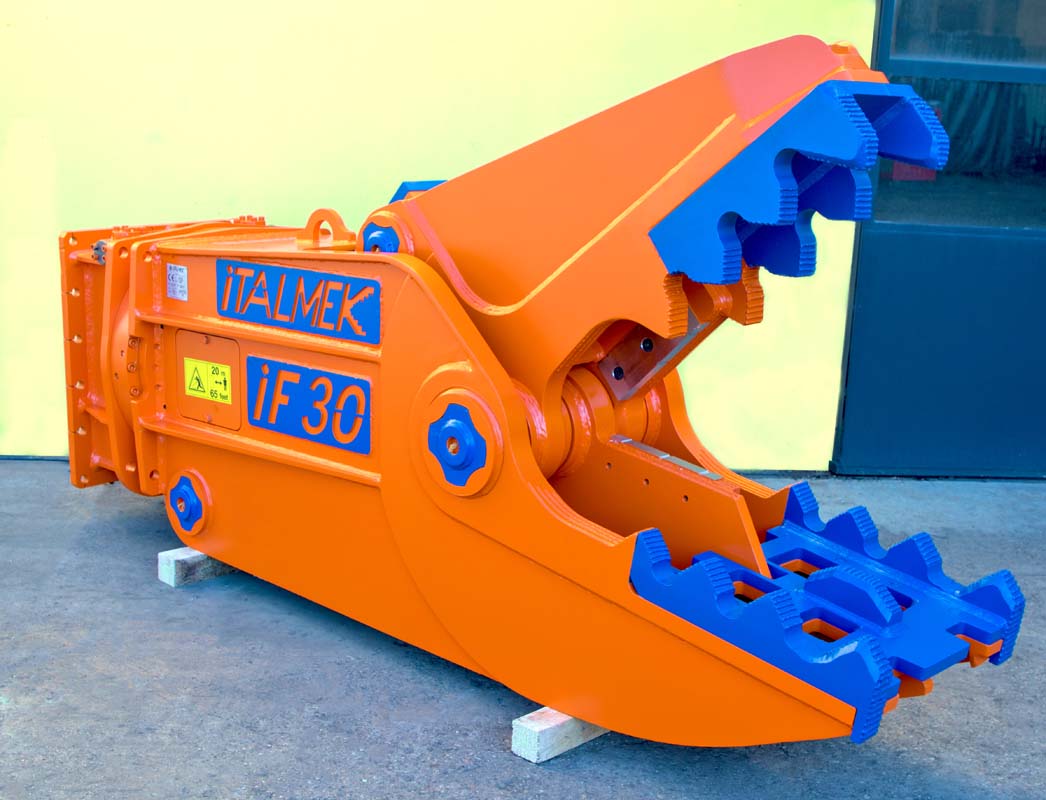

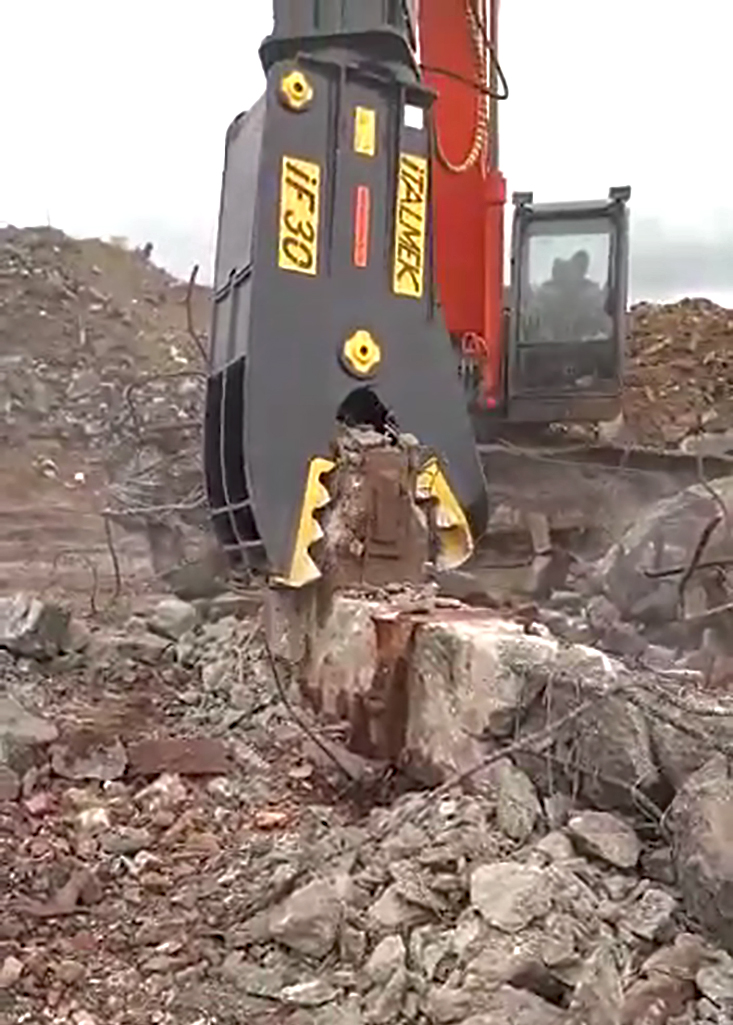

Rotating crusher IF30

IF30 rotating crusher has a weight of 3.100 kg, a mouth opening of 990 mm and a length of 2.650 mm. The maximum hydraulic working pressure is 340 bar.

Technical data sheet
Weight
kg
3.100
Mouth opening
mm
990
Mouth depth
mm
940
Jaw width
mm
630
Total Length
mm
2.650
Bucket position
ton
28 - 38
Working pressure
bar
340
Working flow
l/m
200 - 300
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
370
Power on tip
ton
150
