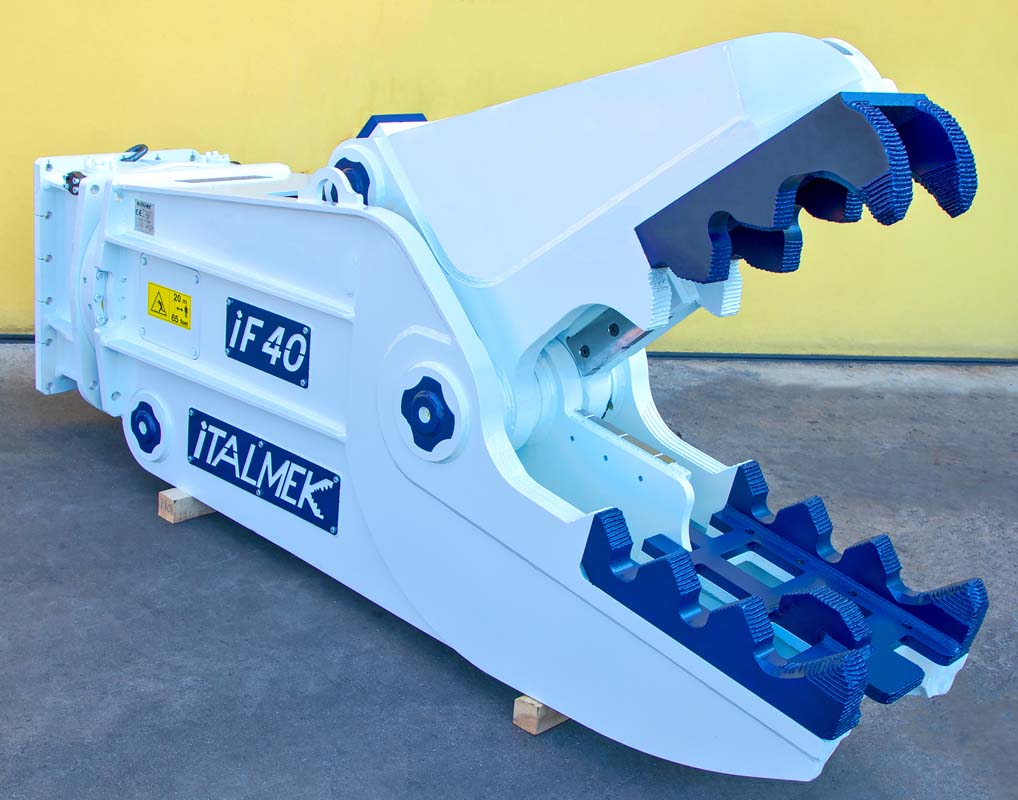

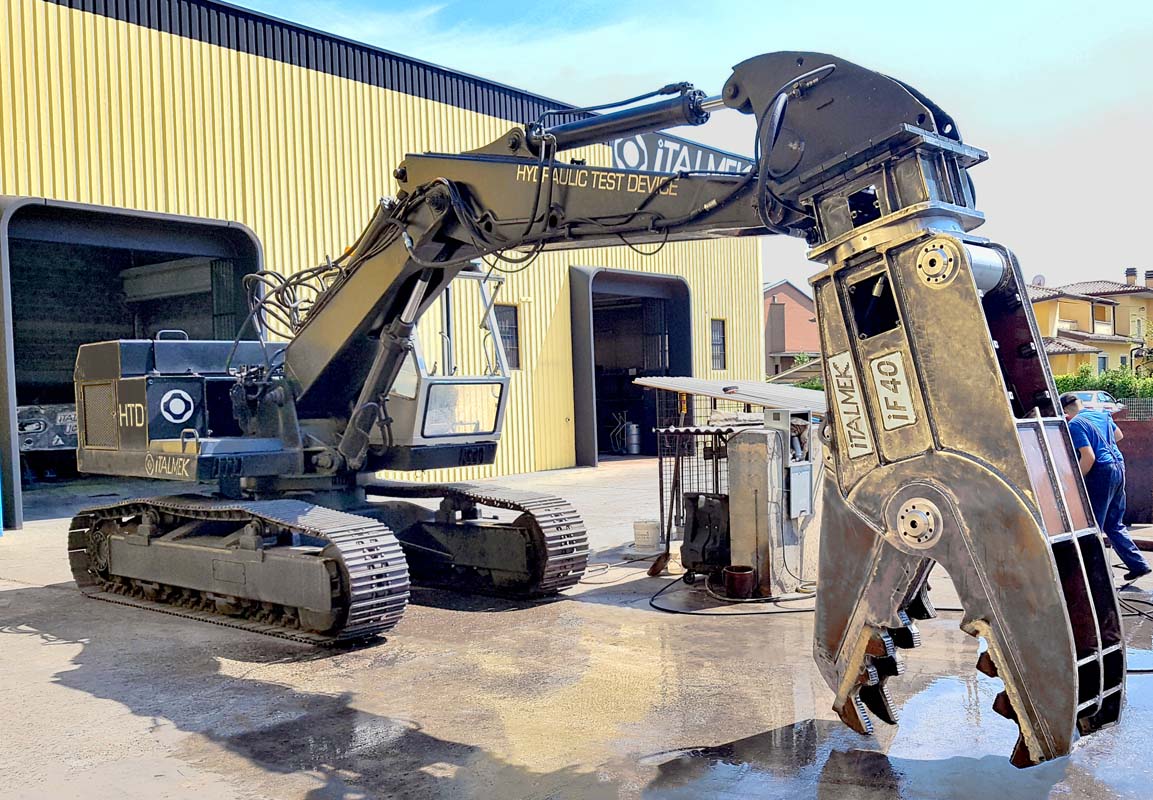

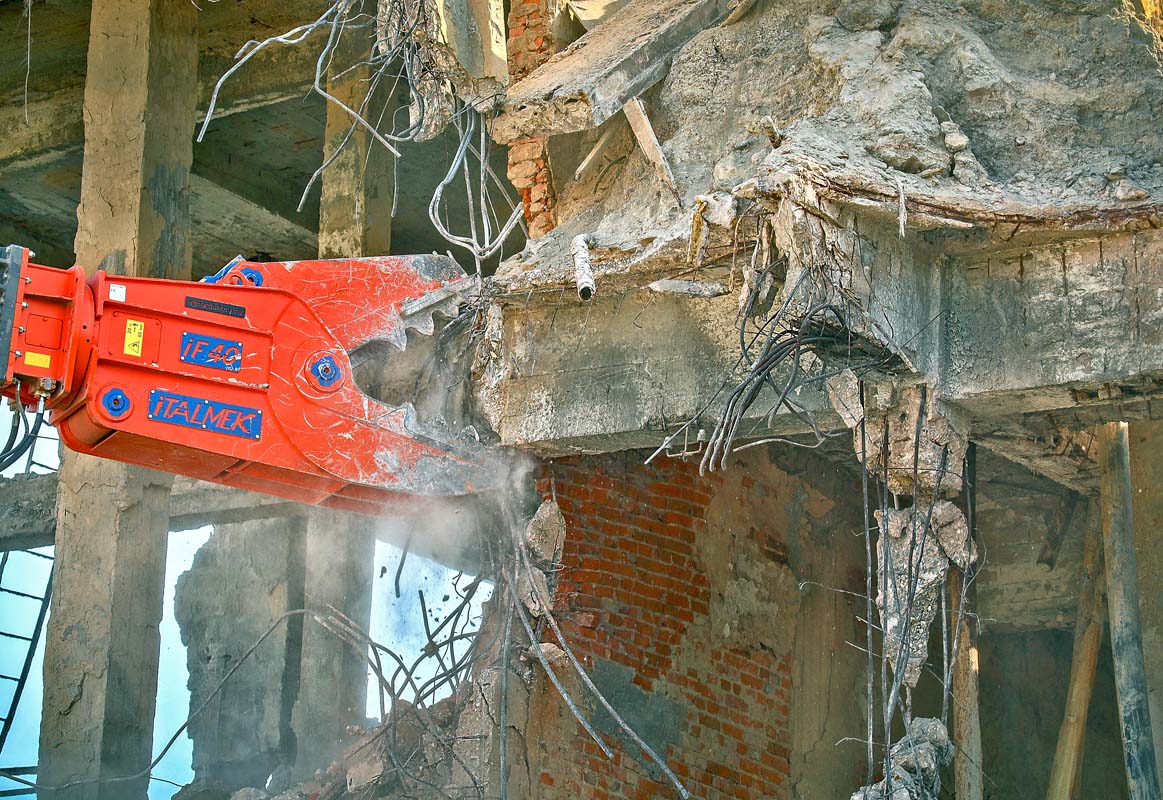

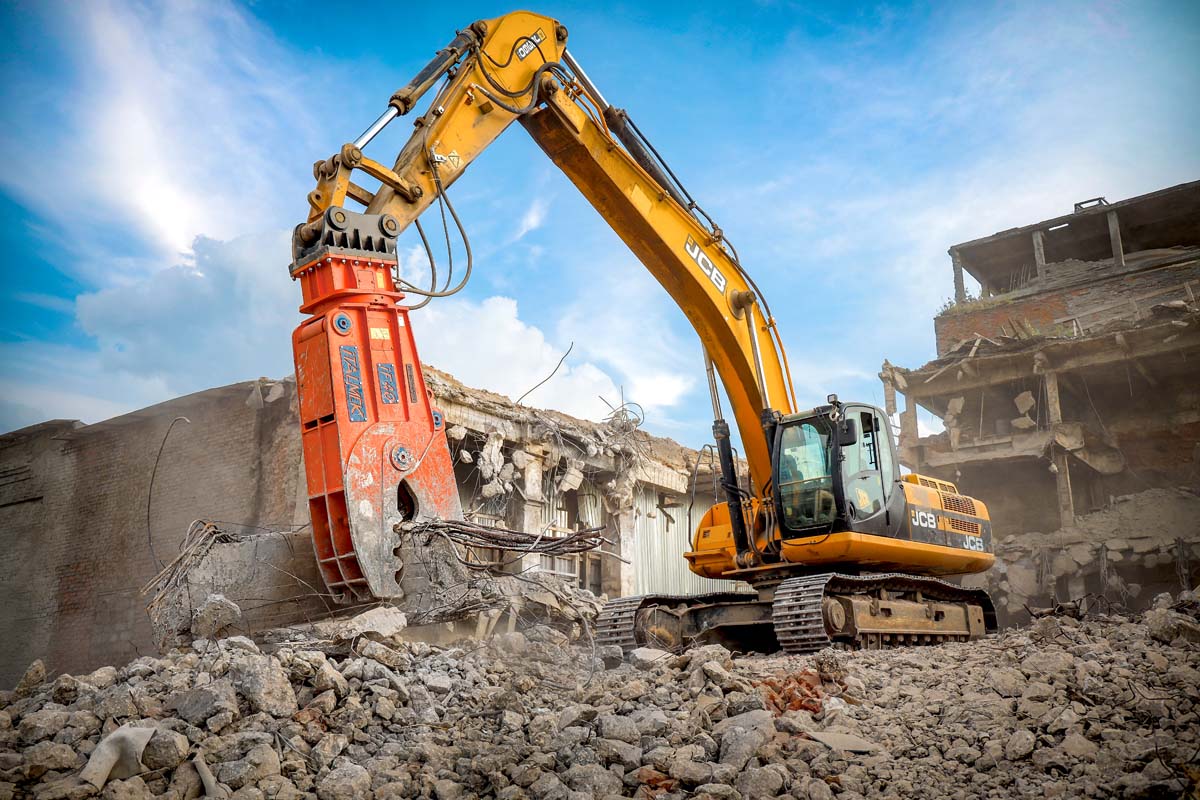

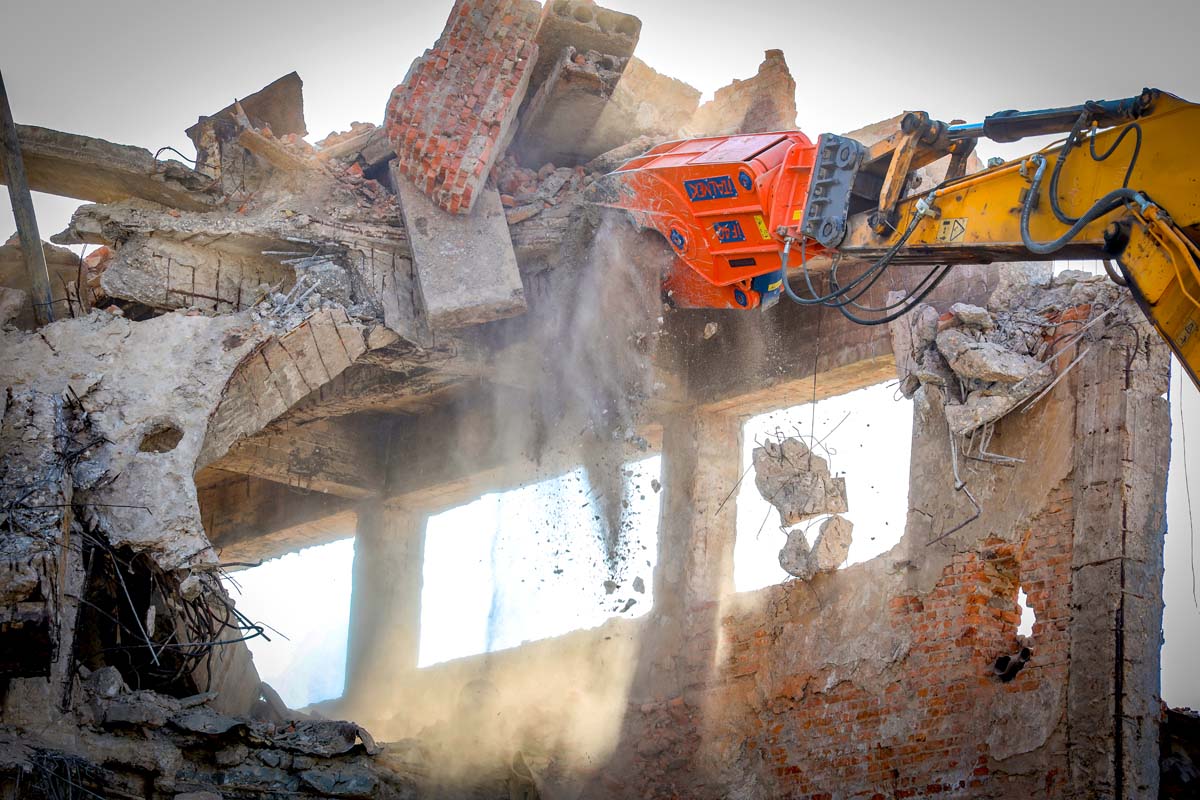

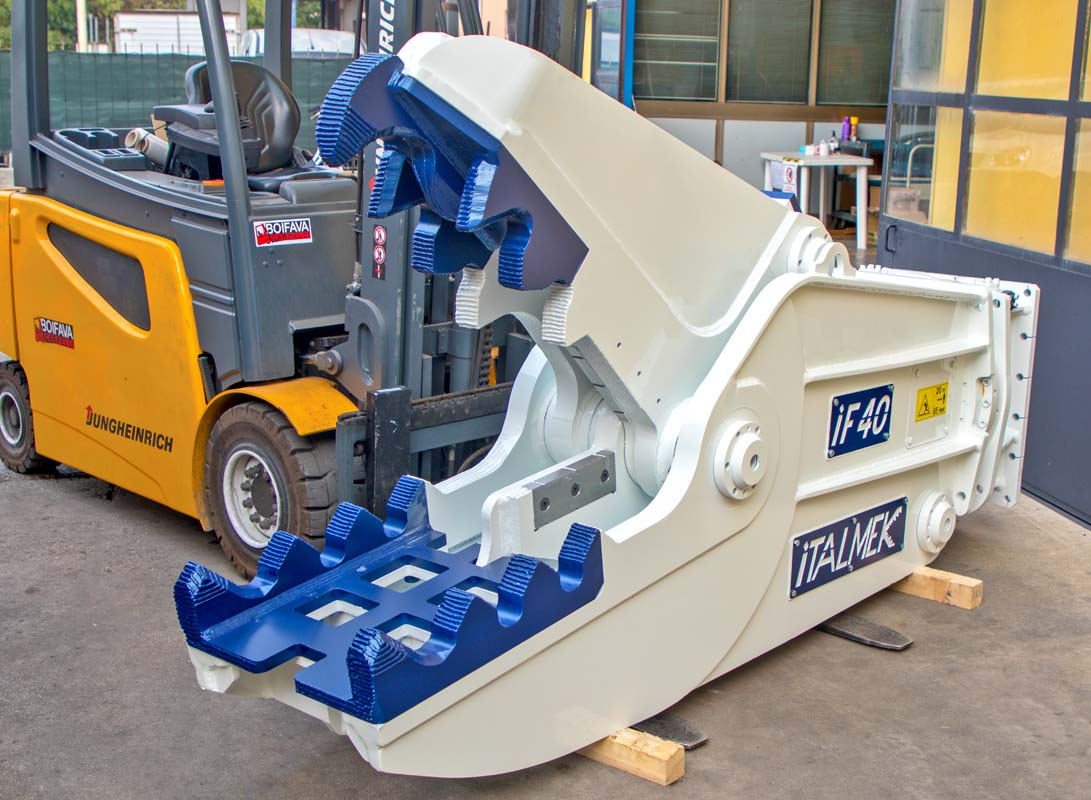

Rotating crusher IF40

IF40 rotating crusher has a weight of 4.000 kg, a mouth opening of 1.080 mm and a length of 2.700 mm. The maximum hydraulic working pressure is 350 bar.

Technical data sheet
Weight
kg
4.000
Mouth opening
mm
1.080
Mouth depth
mm
1.050
Jaw width
mm
640
Total Length
mm
2.700
Bucket position
ton
33 - 45
Working pressure
bar
350
Working flow
l/m
230 - 330
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
450
Power on tip
ton
185
