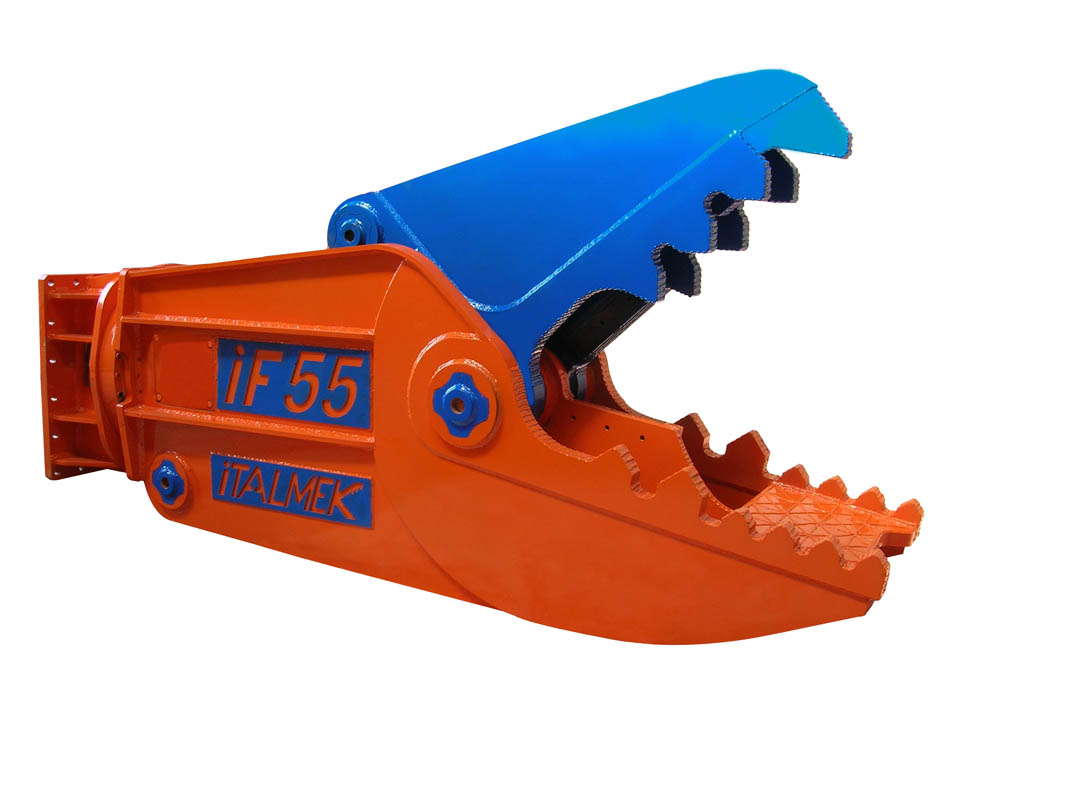

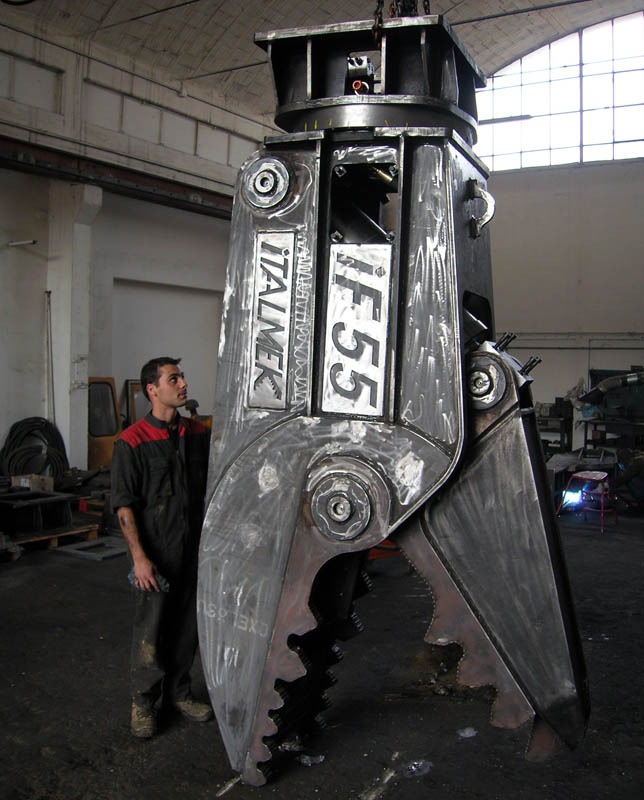

Rotating crusher IF55

IF55 rotating crusher has a weight of 5.400 kg, a mouth opening of 1.190 mm and a length of 3.050 mm. The maximum hydraulic working pressure is 350 bar.

Technical data sheet
Weight
kg
5.400
Mouth opening
mm
1.230
Mouth depth
mm
1.190
Jaw width
mm
720
Total Length
mm
3.050
Bucket position
ton
45 - 65
Working pressure
bar
350
Working flow
l/m
300 - 400
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 1/4 90°
Connection (BSP)
BSP (Gas)
F 3/8"
Power on blade
ton
530
