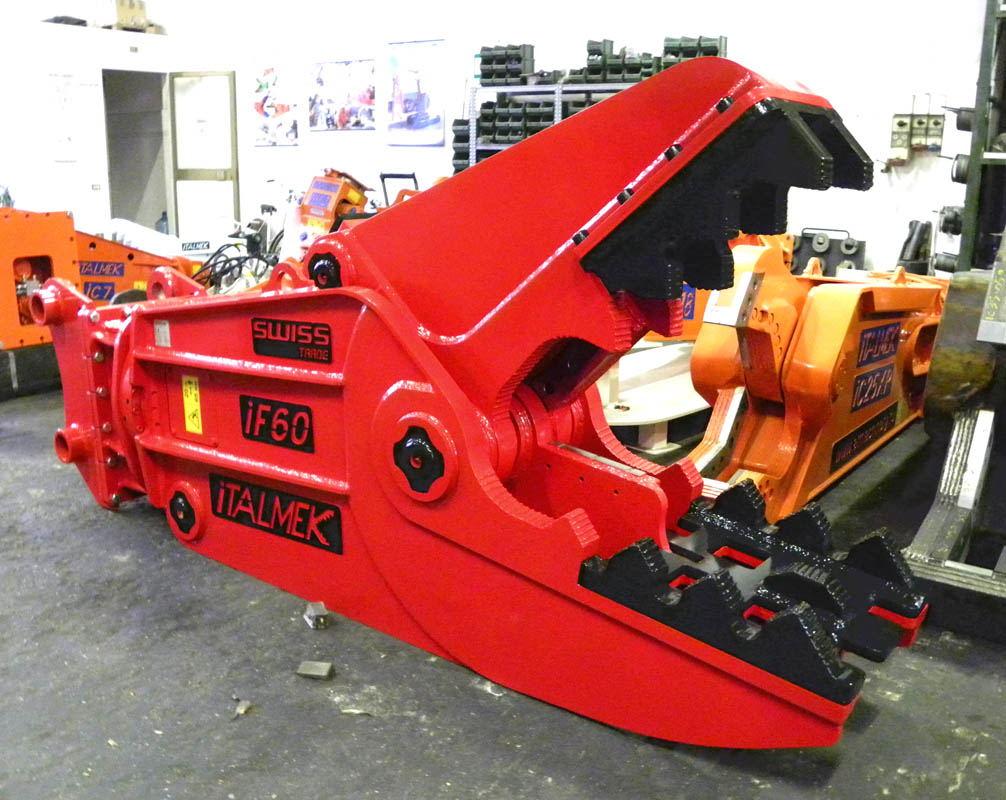

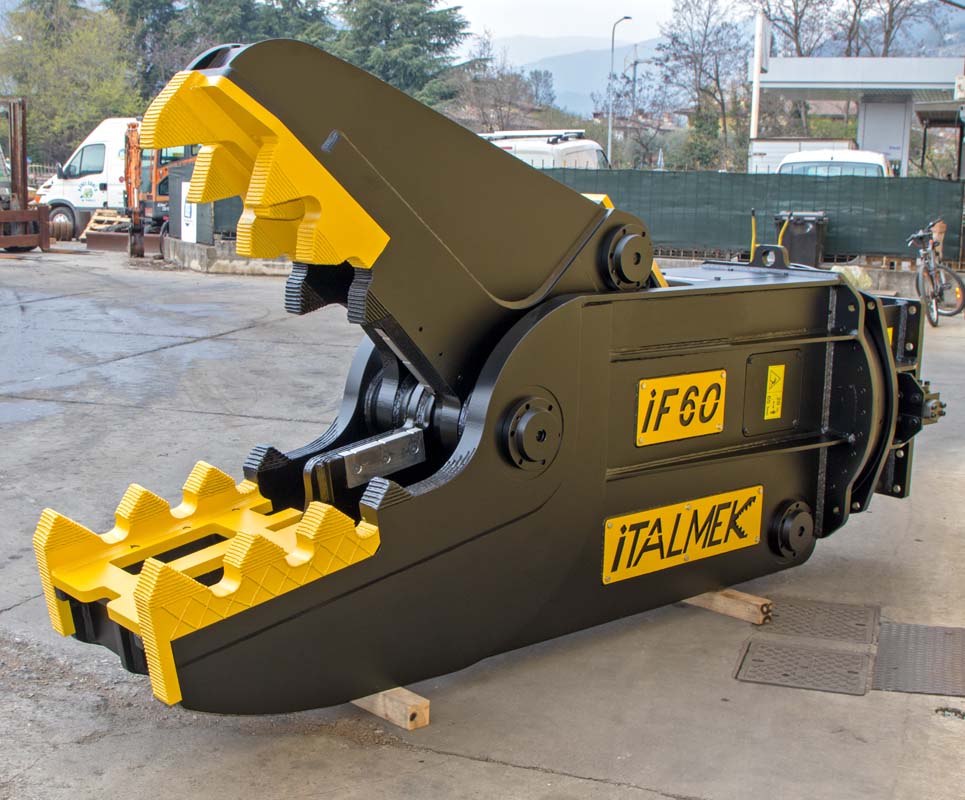

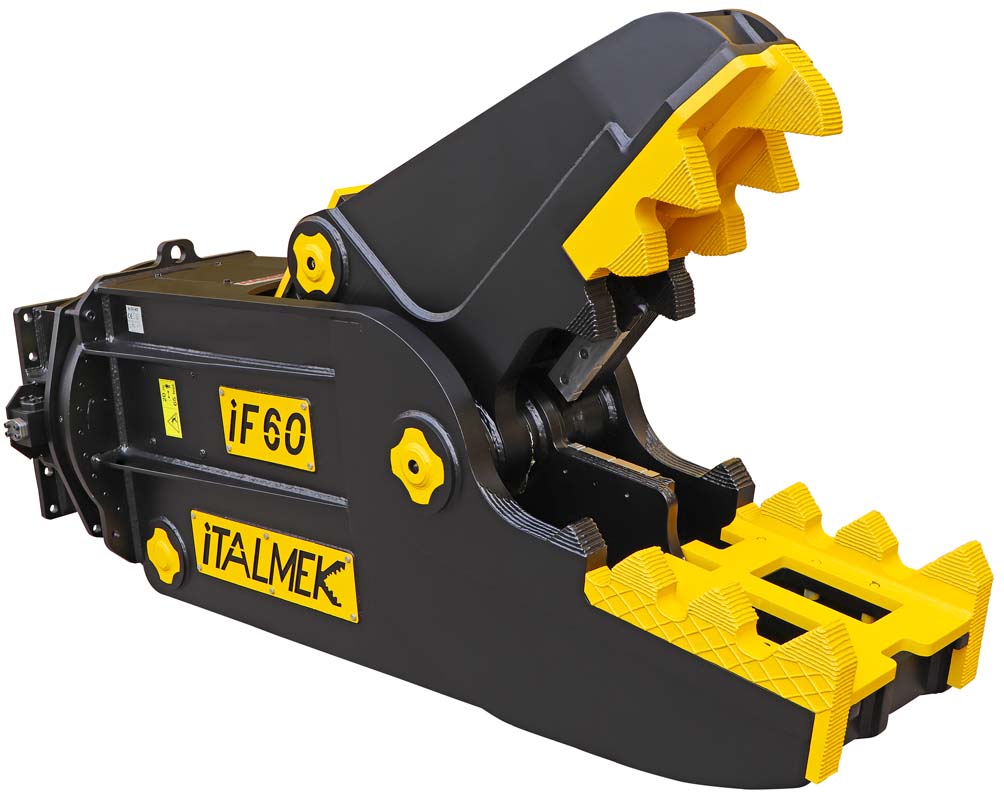

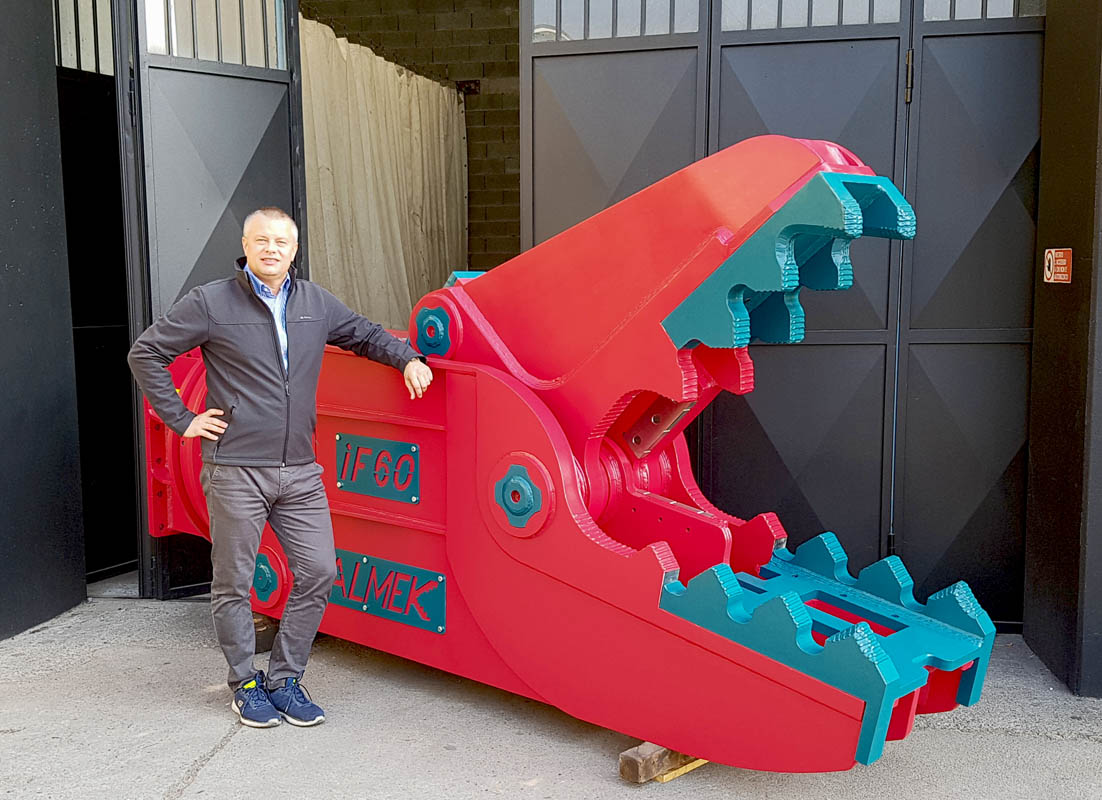

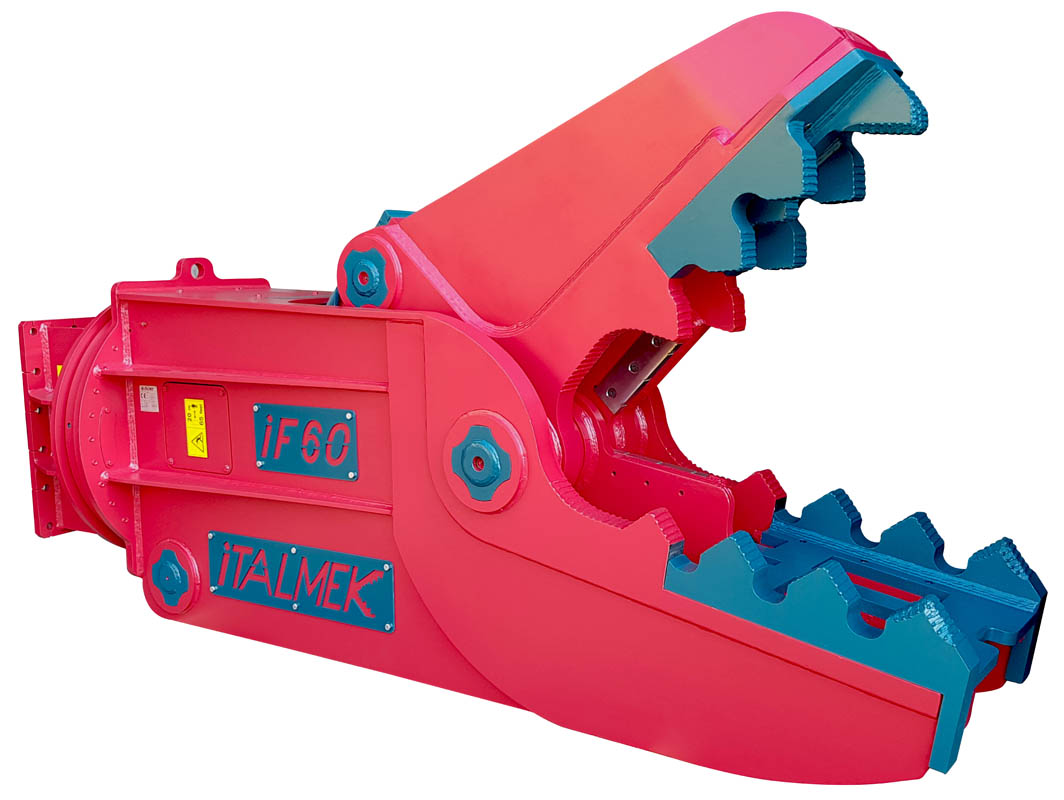

Rotating crushers IF60

IF60 rotating crusher has a weight of 5.500 kg, a mouth opening of 1.230 mm and a length of 3.050 mm. The maximum hydraulic working pressure is 350 bar.

Technical data sheet
Weight
kg
5.500
Mouth opening
mm
1.230
Mouth depth
mm
1.190

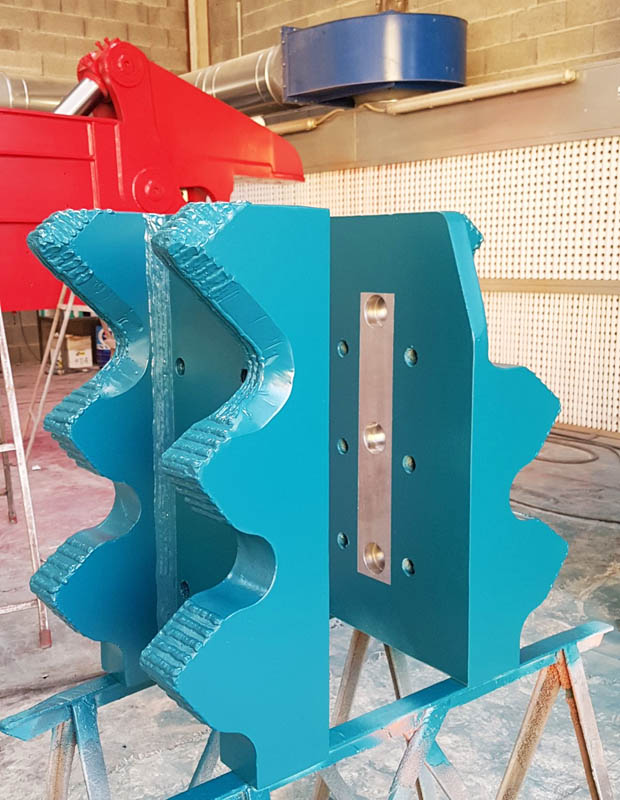

Jaw width
mm
700
Total Length
mm
3.050
Bucket position
ton
45 - 65
Working pressure
bar
350
Working flow
l/m
300 - 400
Rotation Pressure
bar
210
Rotation flow
l/m
70
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 1/2"
Power on blade
ton
530
Power on tip
ton
215
