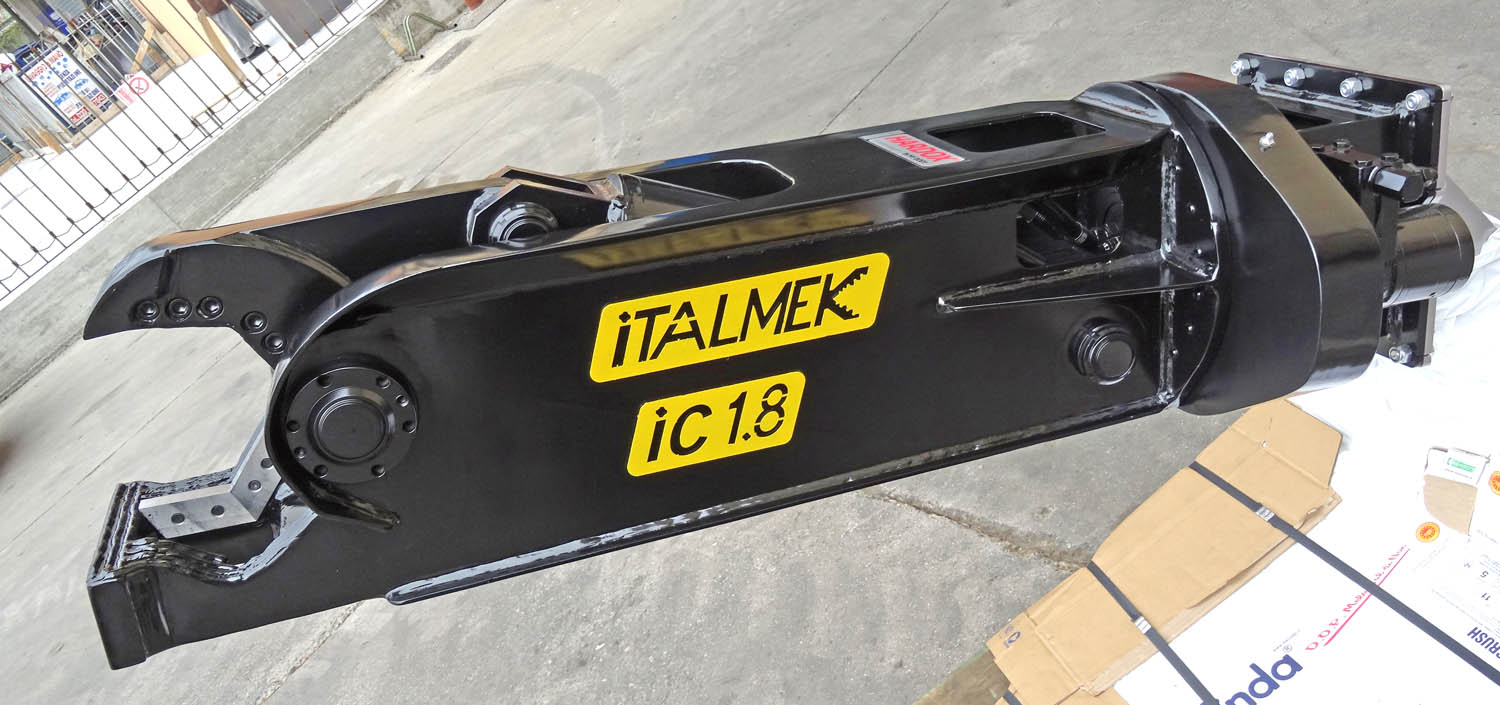

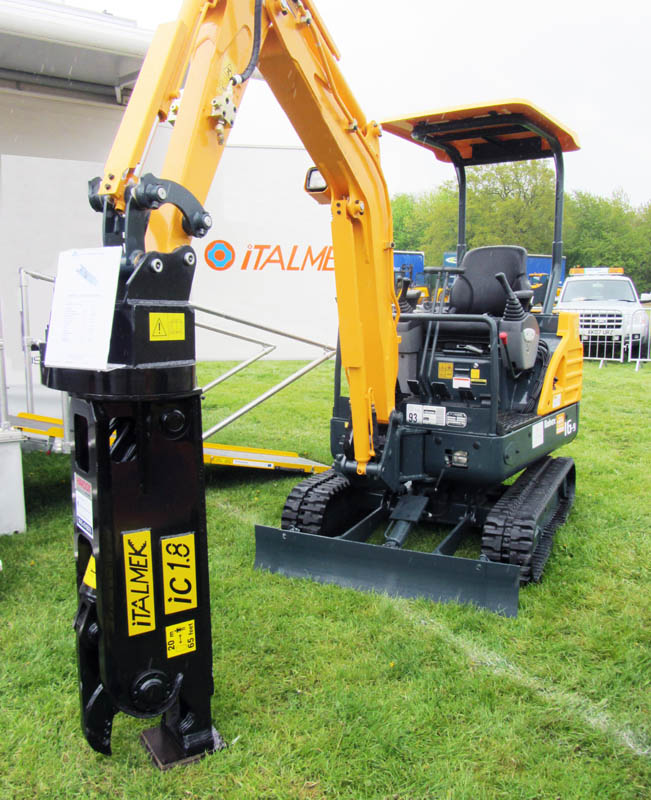

Steel shear IC1.8

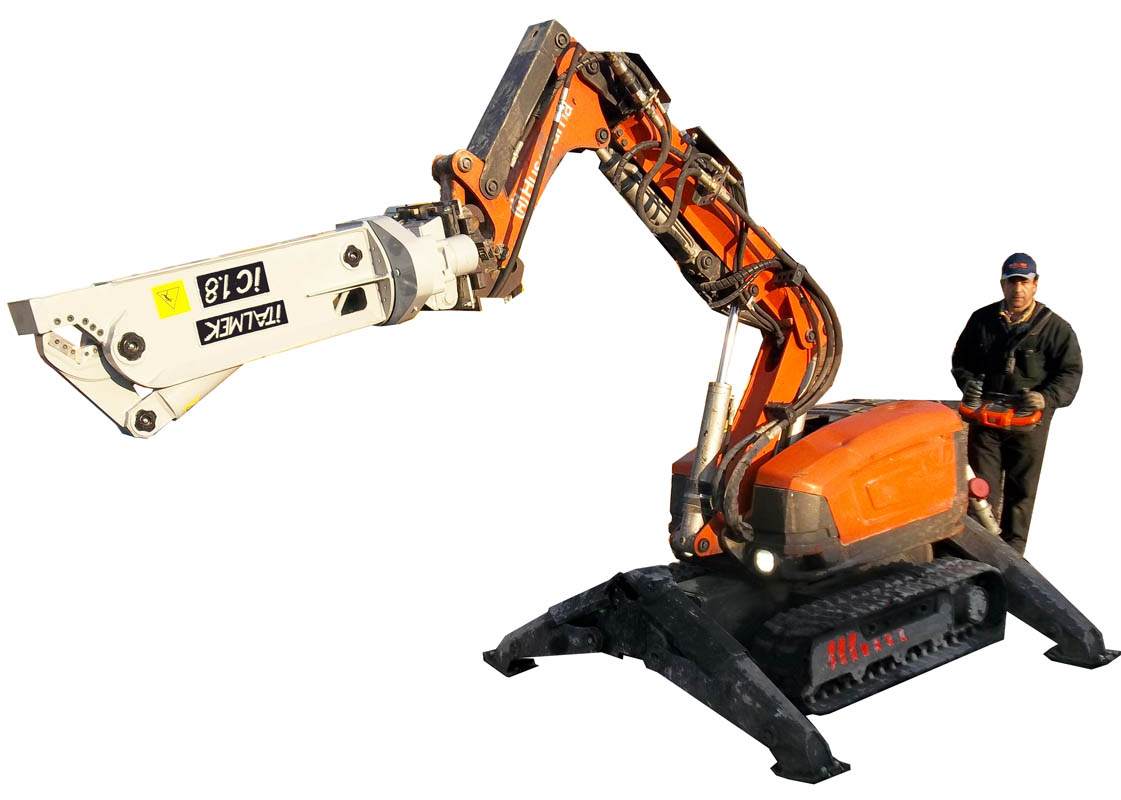

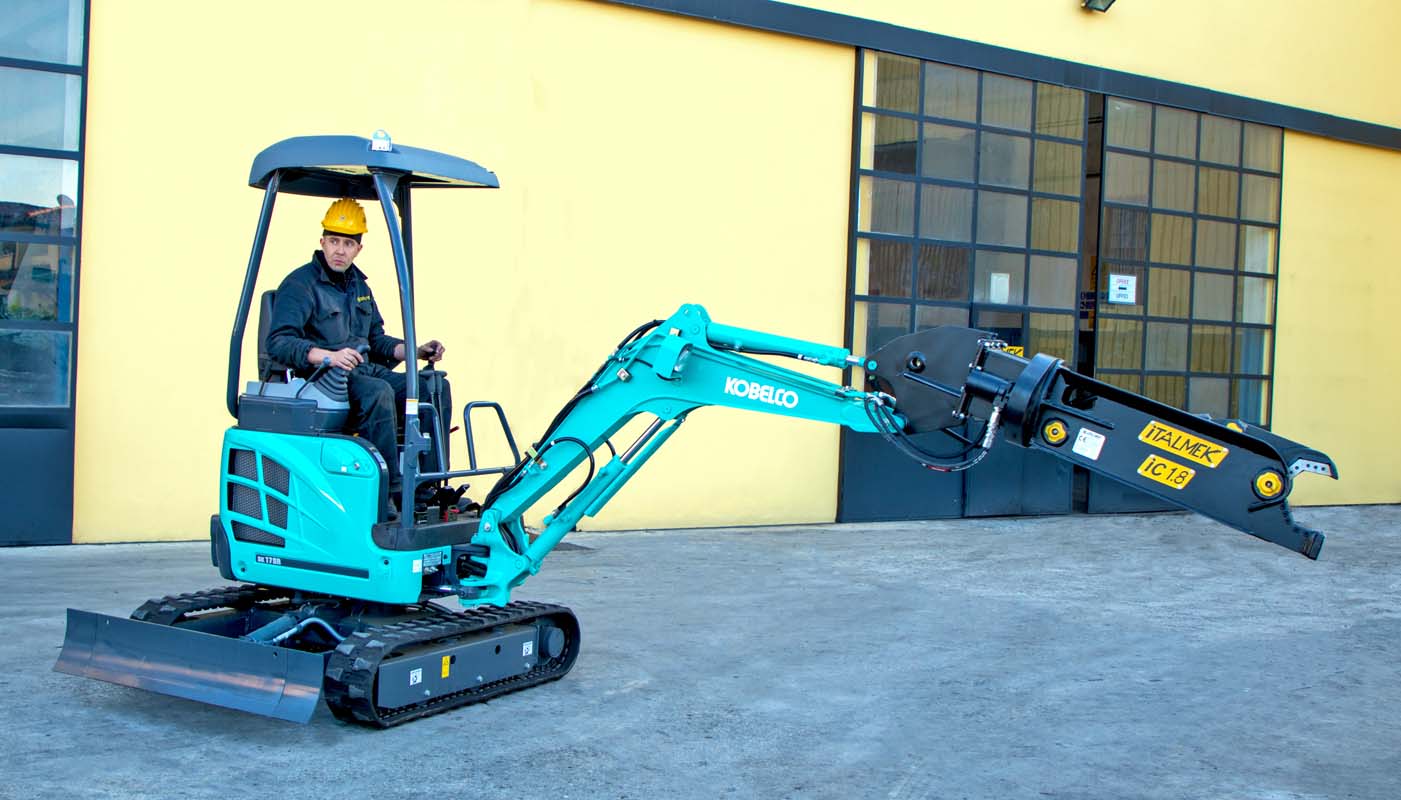

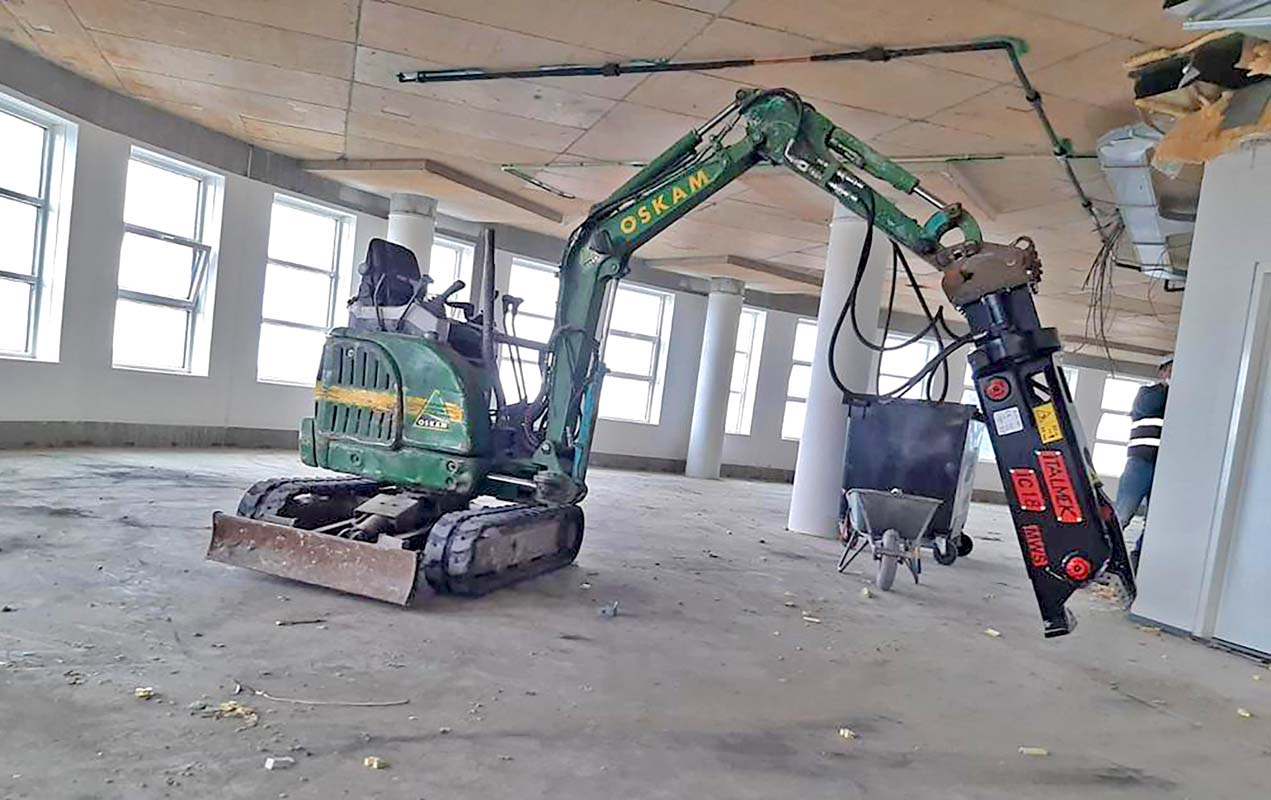

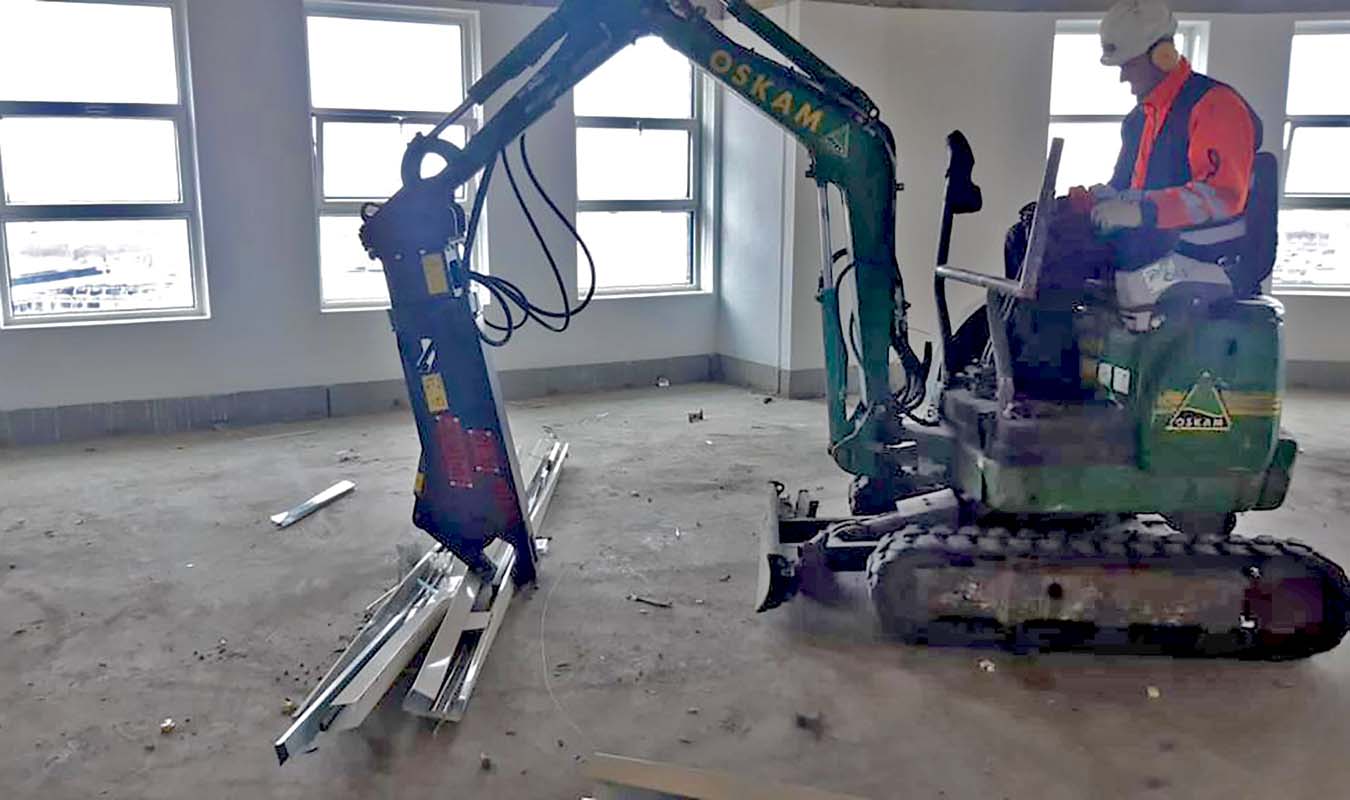

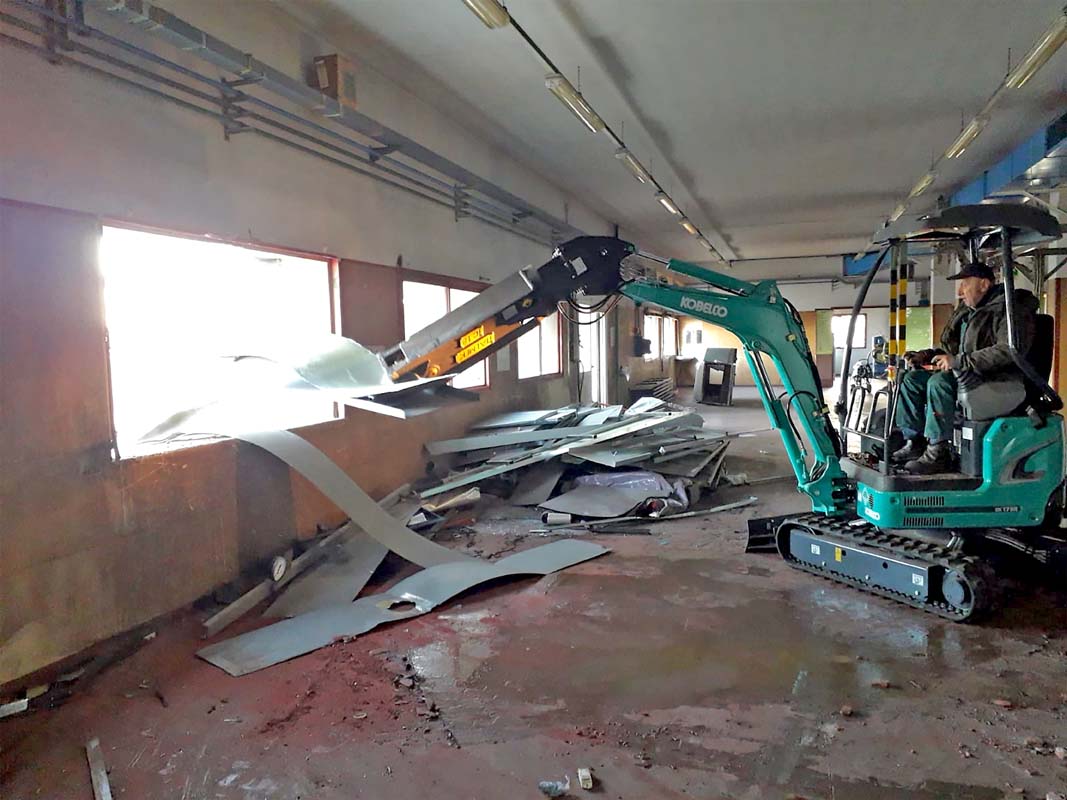

Dedicated to mini excavators and robots, IC1.8 shear can cut a round iron full of 30 mm with hydraulic pressure to 200 bar. It can work with pressures up to 250 bar.

Technical data sheet
Weight
kg
215
Mouth opening
mm
200
Mouth depth
mm
185
Total Length
mm
1.280
Bucket position
ton
2 - 4
Boom position
ton
0,8 - 2
Working pressure
bar
200 - 250
Working flow
l/m
20 - 80
Rotation Pressure
bar
130
Rotation flow
l/m
5 - 8

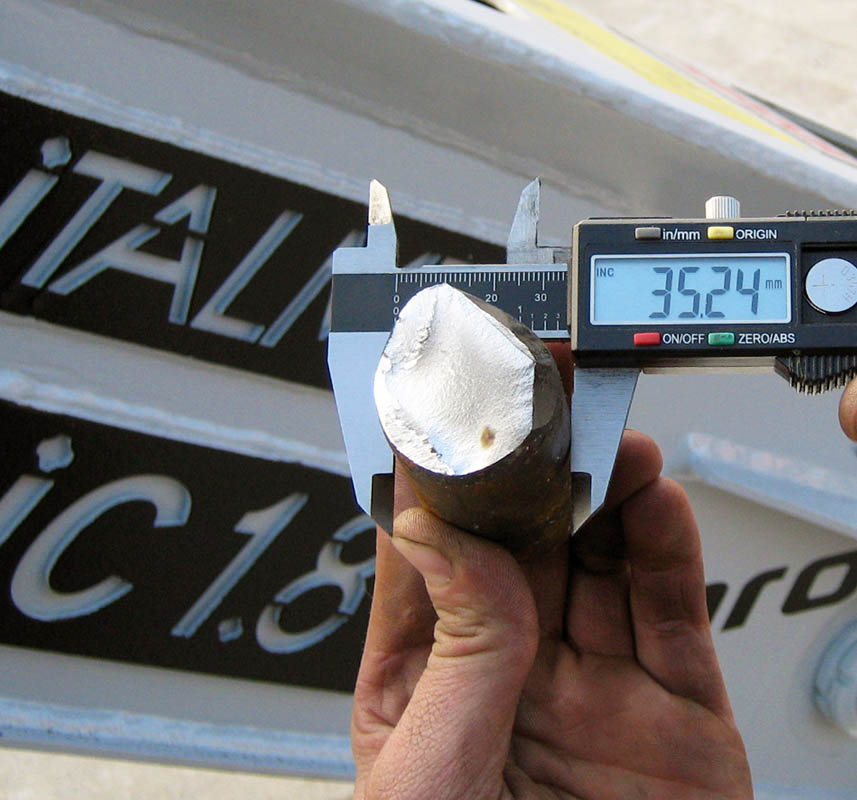

Cutting capacity
mm
30

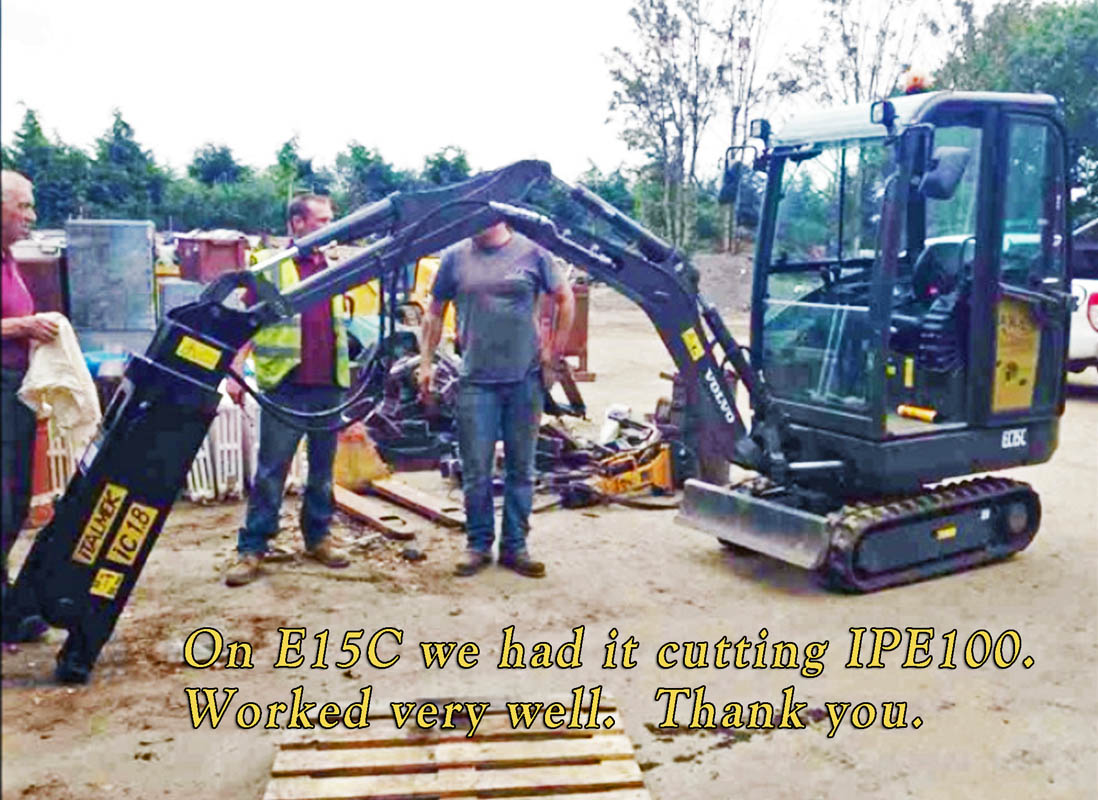

Cutting capacity (IPE)
mm
120
