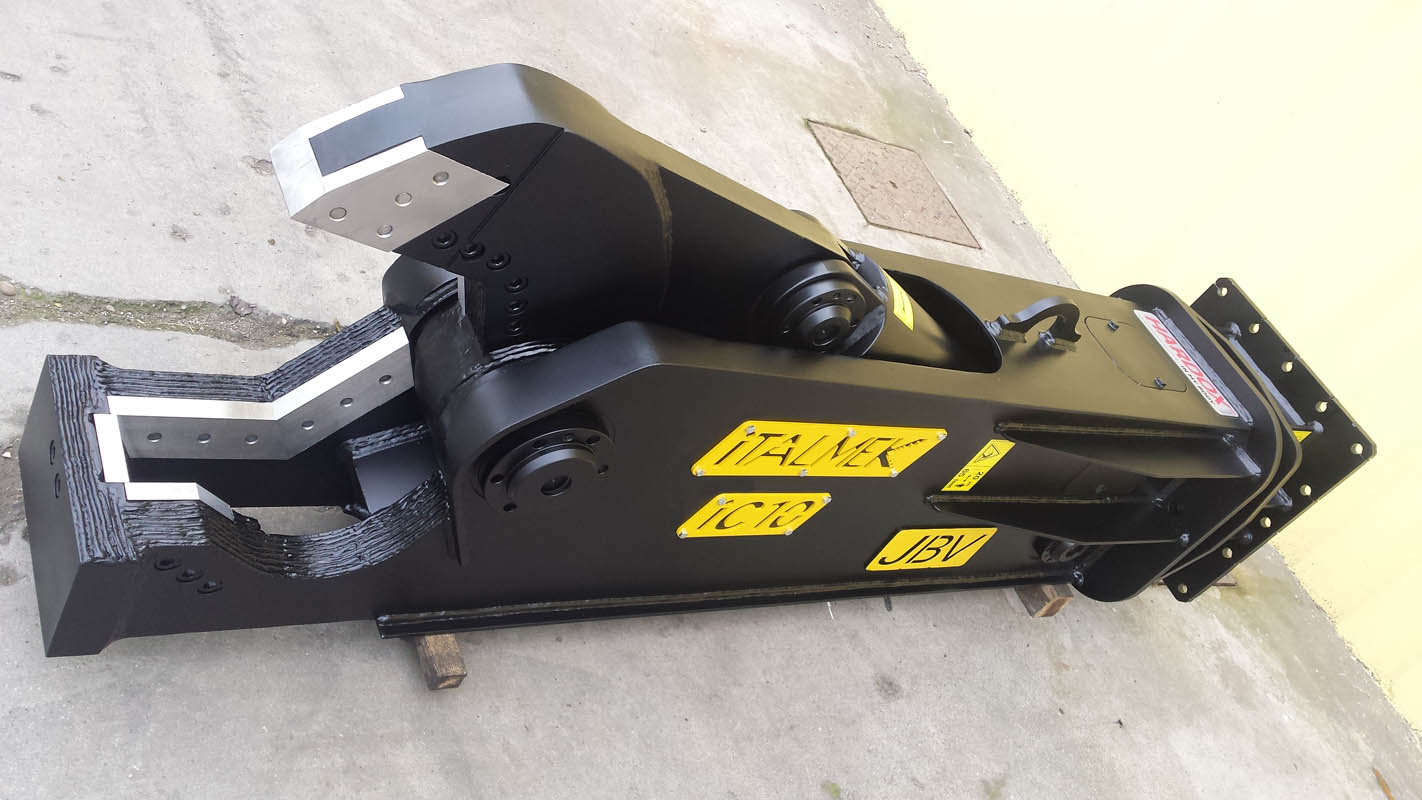

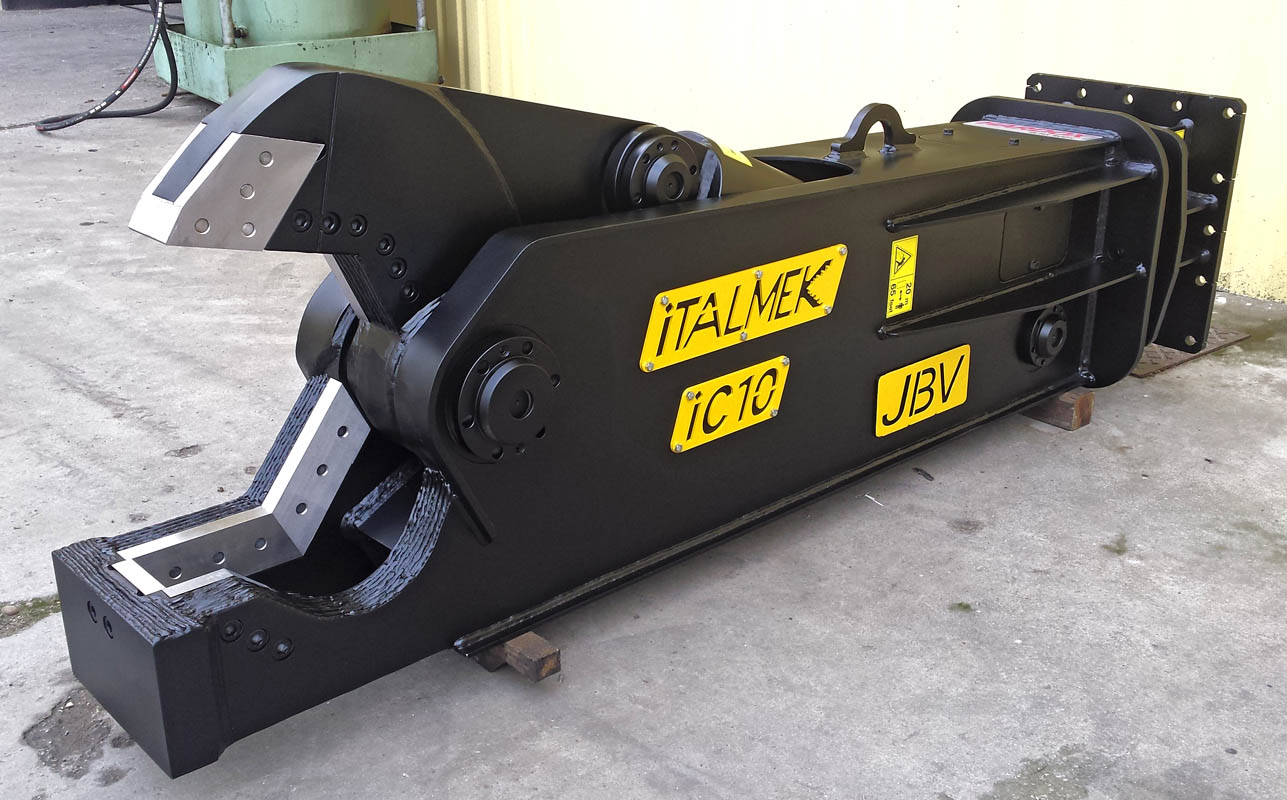

Steel shear IC10

iTALMEK IC10 is the best shear for mini and midi excavators on the market. Lightweight and powerful, with hydraulic pressure set at 300 bar it cuts a full iron rod of 55 mm.

Technical data sheet
Weight
kg
1.250
Mouth opening
mm
430
Mouth depth
mm
380
Total Length
mm
2.350
Bucket position
ton
12 - 17
Boom position
ton
7 - 13
Working pressure
bar
300
Working flow
l/m
50 - 100
Rotation Pressure
bar
150 - 250
Rotation flow
l/m
8 - 10
Cutting capacity
mm
55

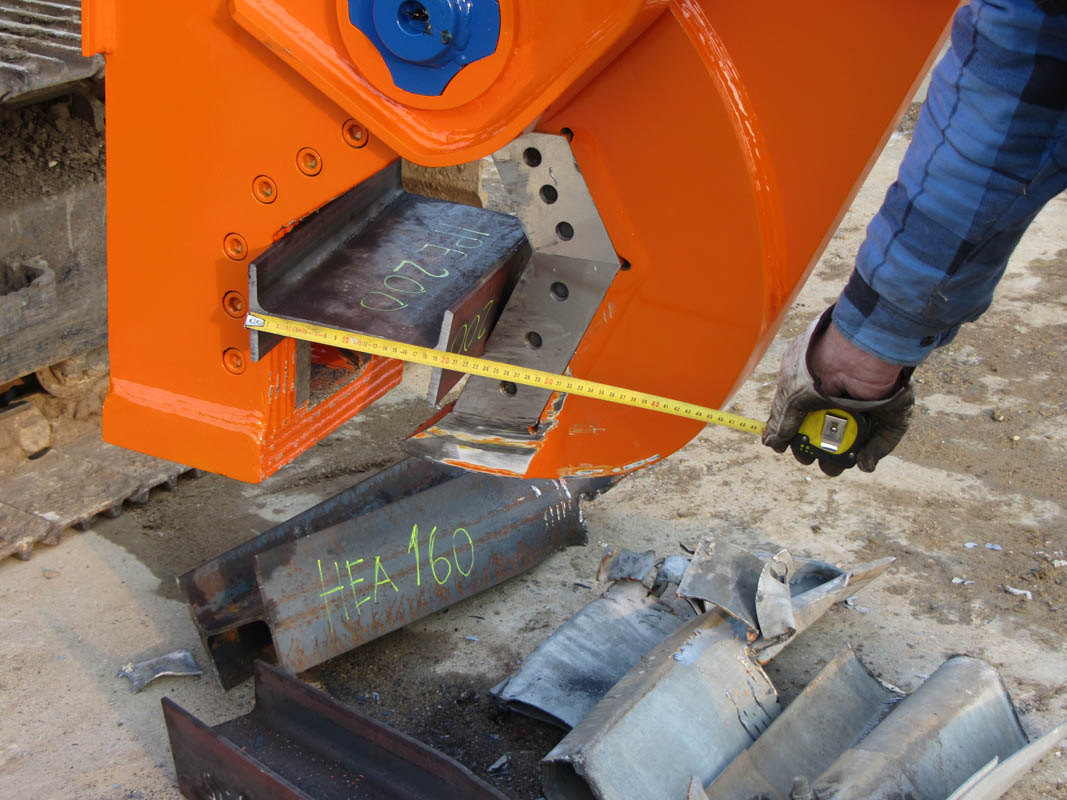

Cutting capacity (HEA)
mm
160
Cutting capacity (IPE)
mm
220
