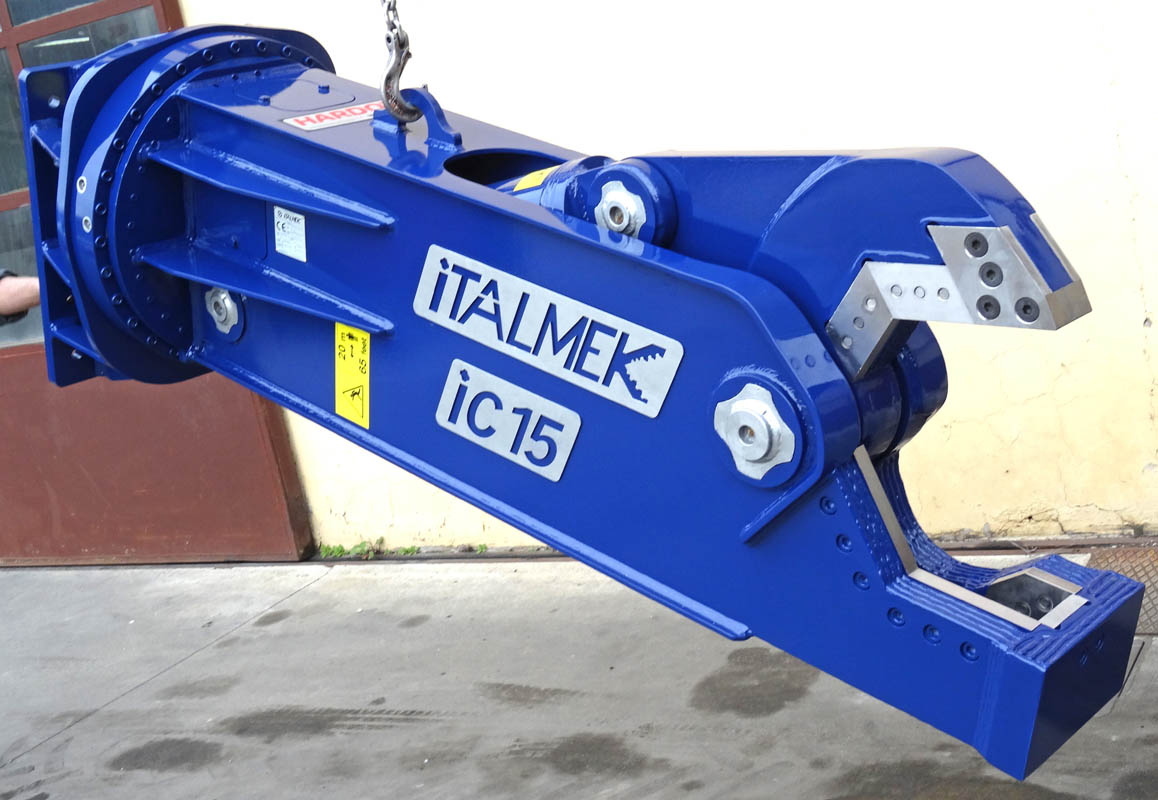

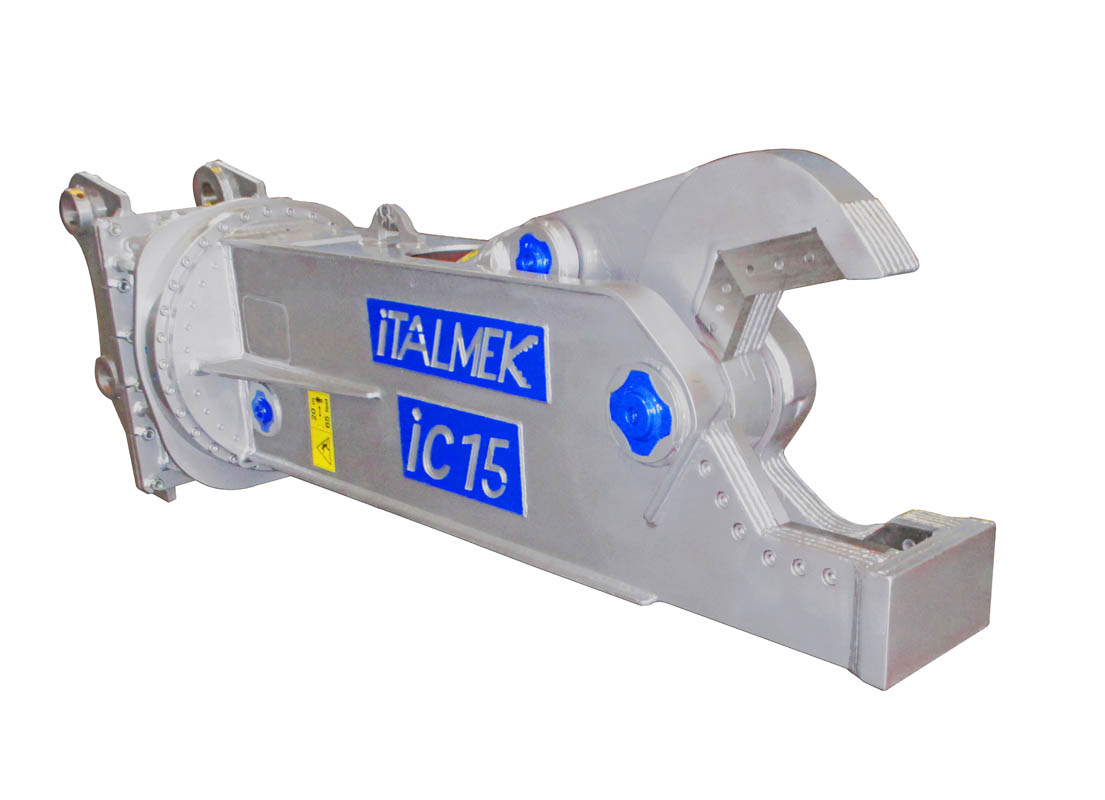

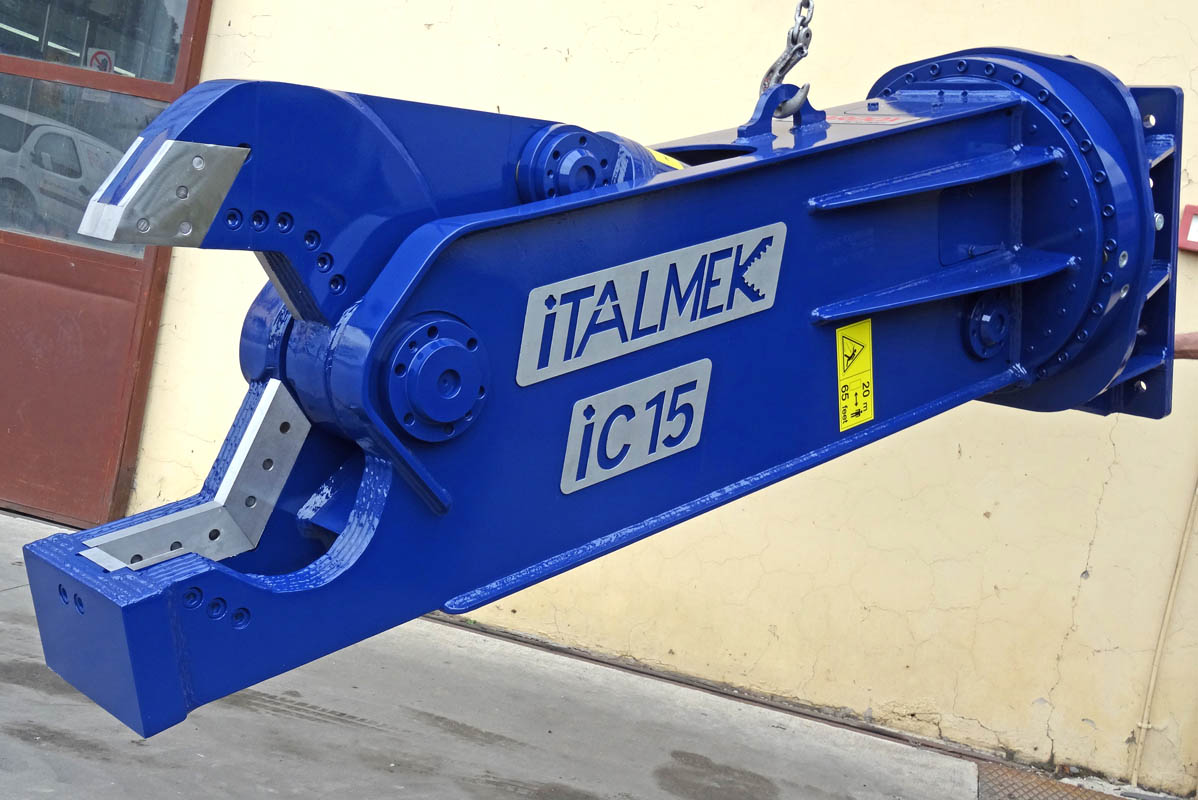

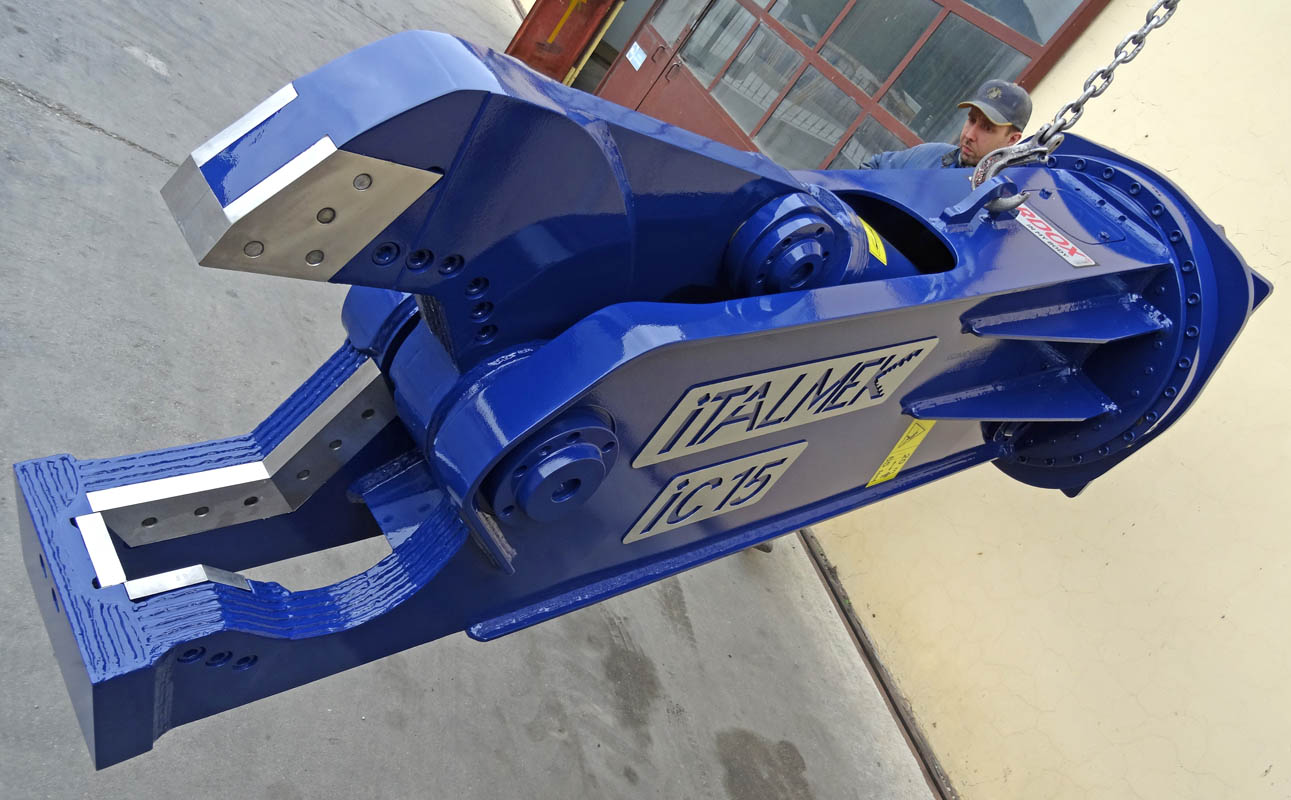

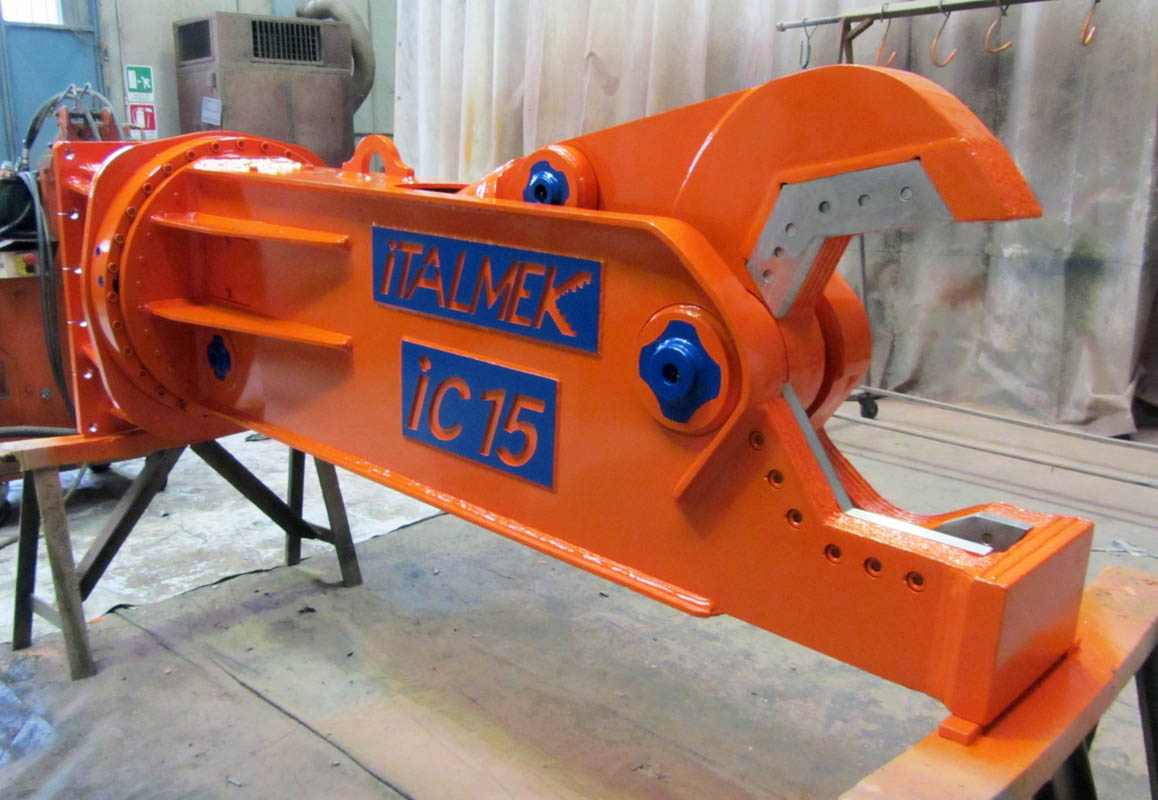

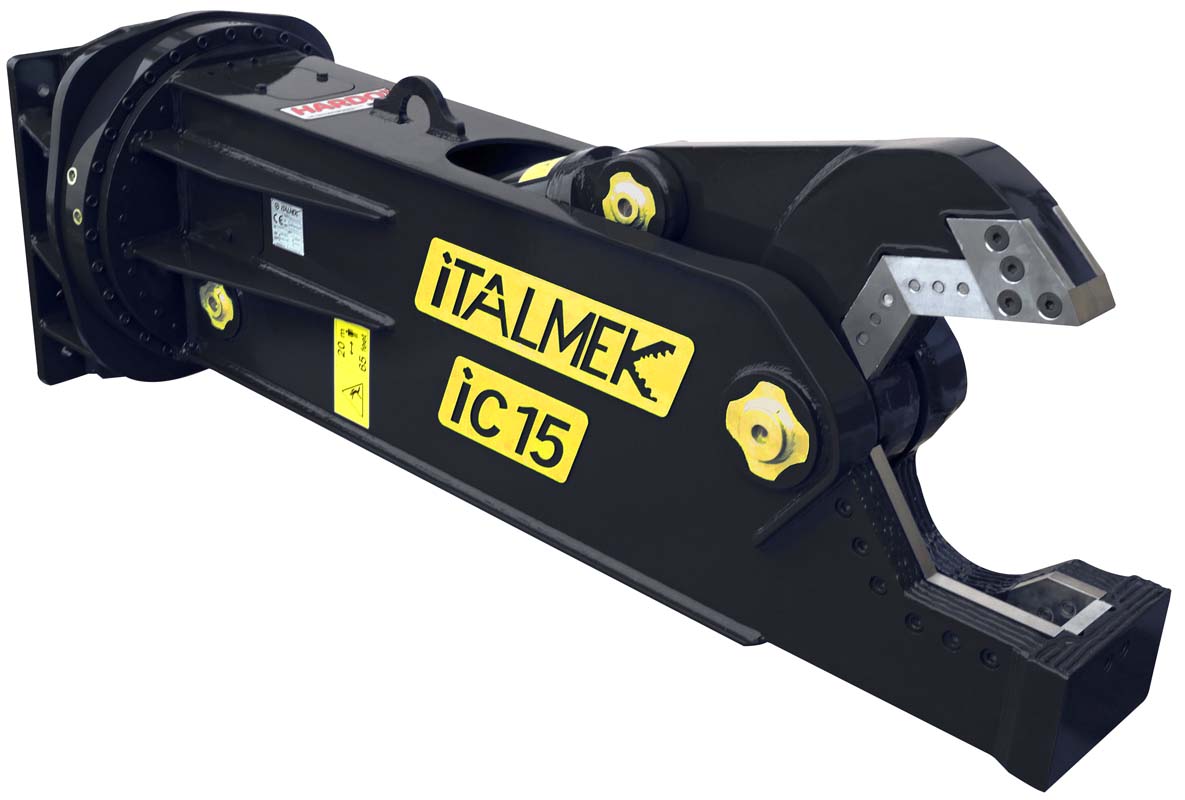

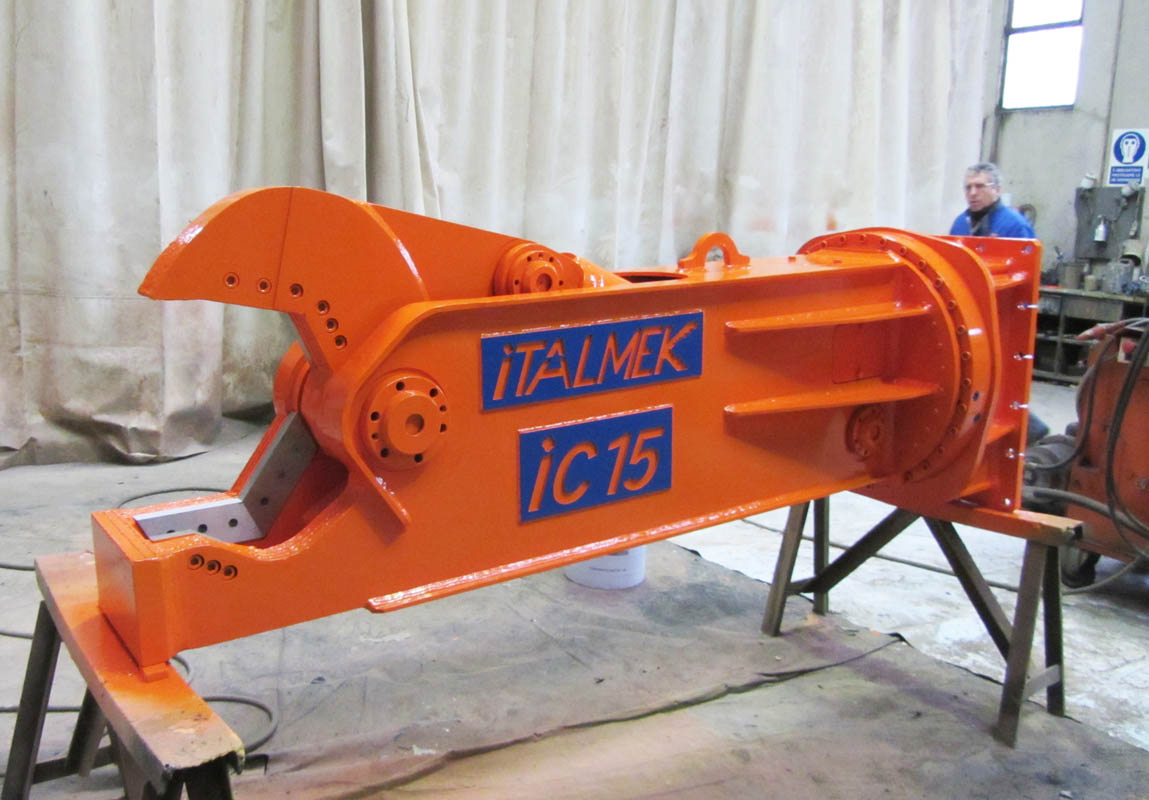

Steel shear IC15

Technical data sheet
Weight
kg
1.650

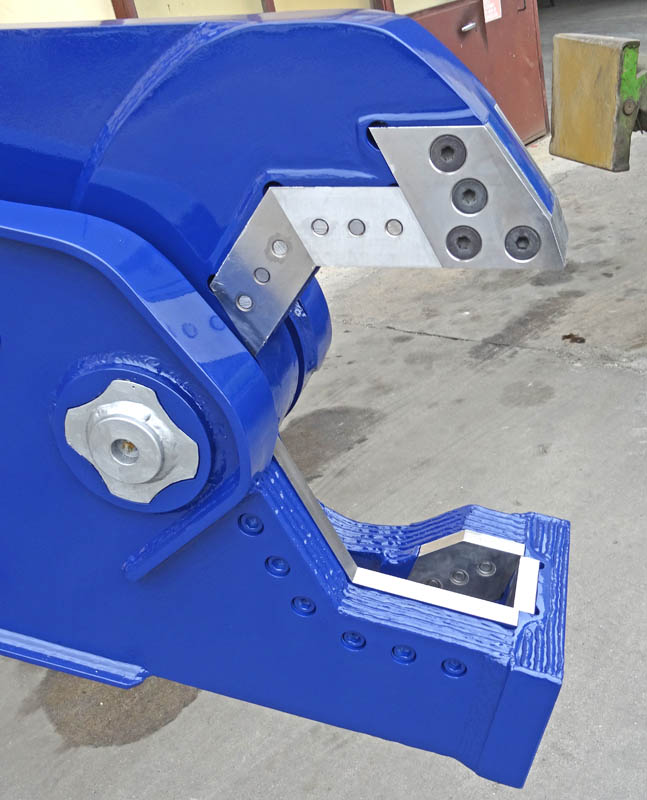

Mouth opening
mm
450
Mouth depth
mm
400
Total Length
mm
2.400
Bucket position
ton
14 - 23
Boom position
ton
9 - 15
Working pressure
bar
320
Working flow
l/m
150 - 200
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
60
Cutting capacity (HEA)
mm
170
Cutting capacity (IPE)
mm
240
