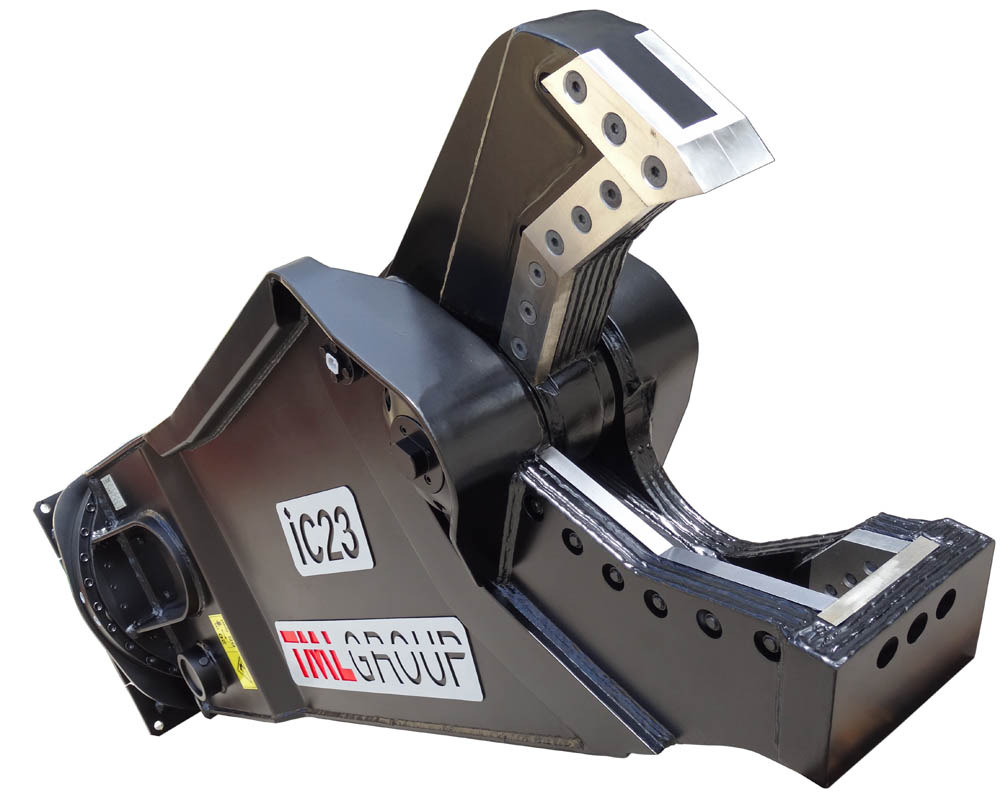

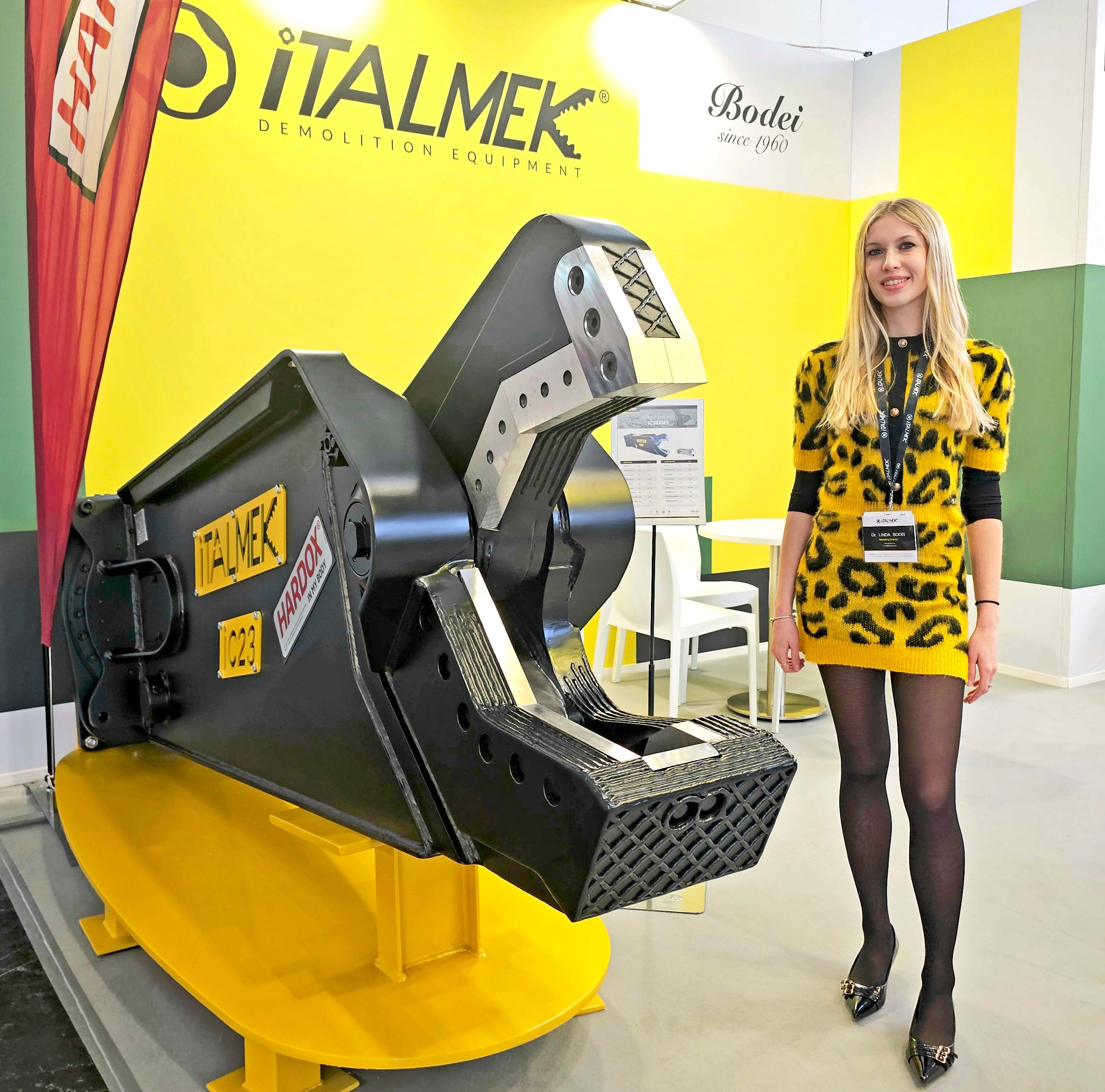

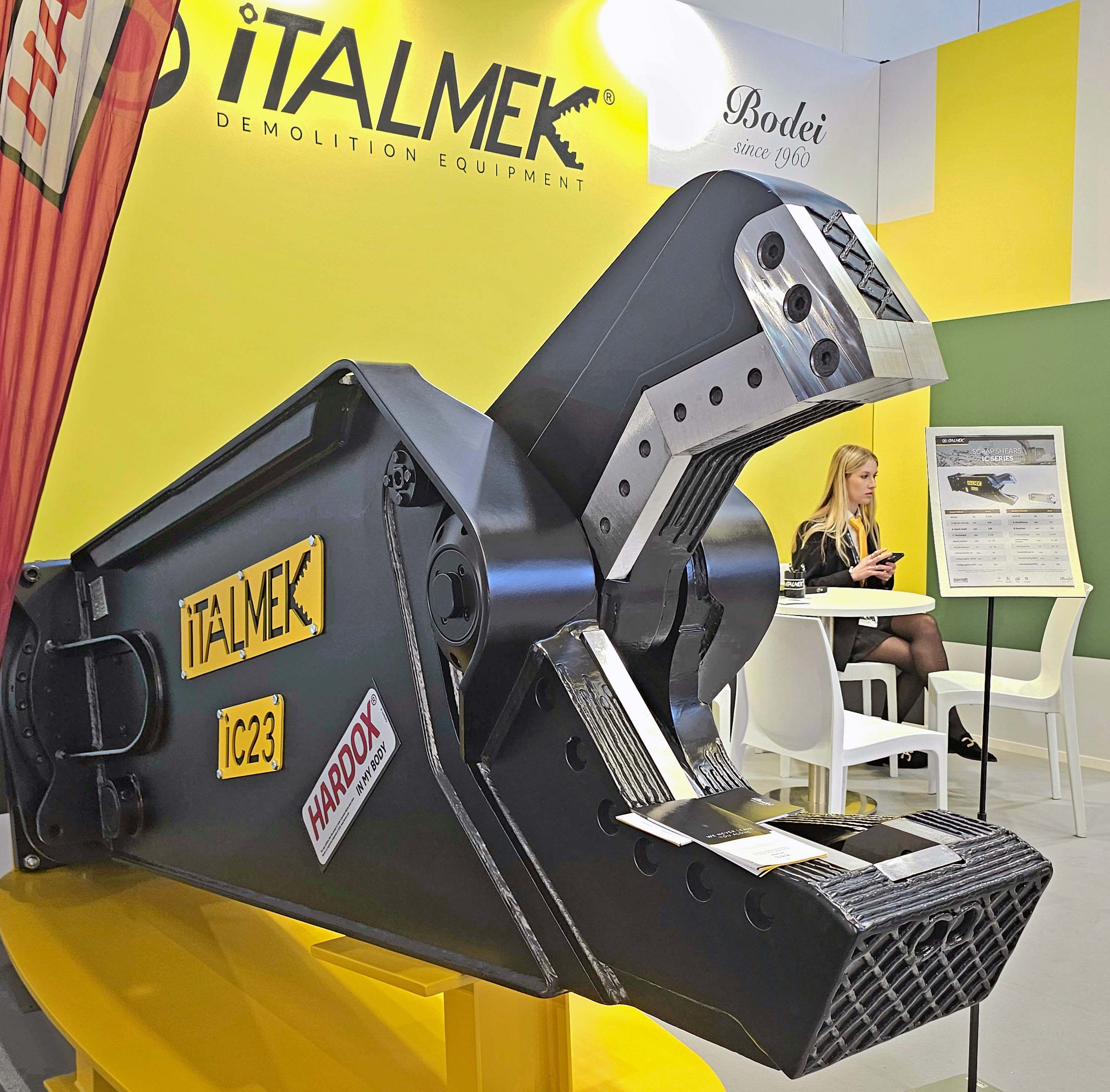

Steel shear IC23

IC23 steel shear is suitable for the demolition of medium / big size metal elements. The shear IC23 has a weight of 2.350 kg and a mouth opening of 550 mm. With hydraulic pressure adjusted to 340 bar its cutting capacity is enough to cut a 70 mm full round rod.

Technical data sheet
Weight
kg
2.350
Mouth opening
mm
550
Mouth depth
mm
500
Total Length
mm
2.720
Bucket position
ton
20 - 28
Boom position
ton
12 - 20
Working pressure
bar
340
Working flow
l/m
150 - 250
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
70
Cutting capacity (HEA)
mm
220
Cutting capacity (IPE)
mm
330
