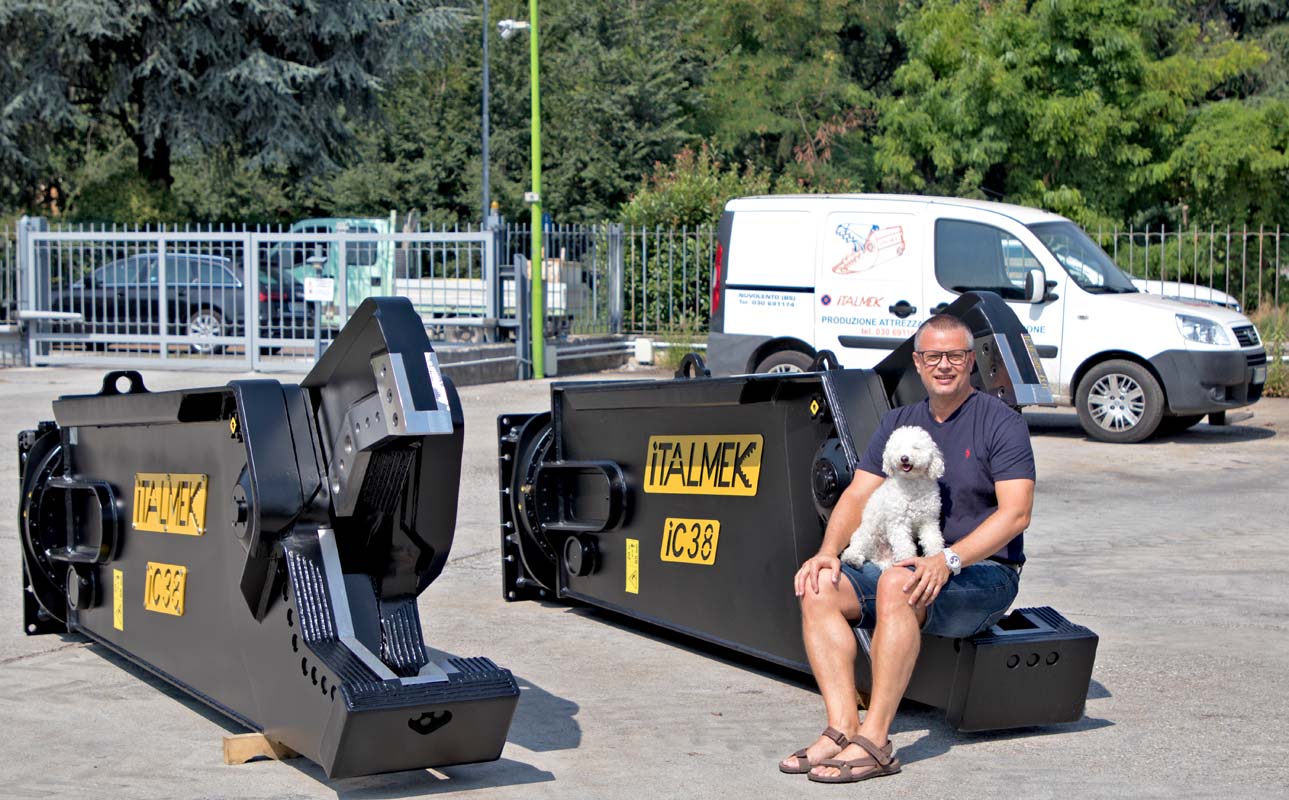

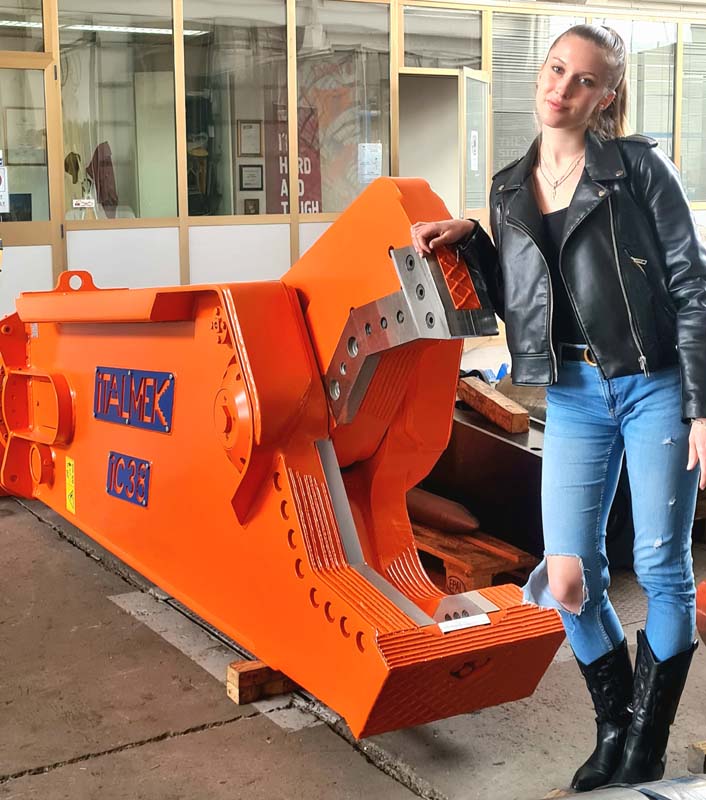

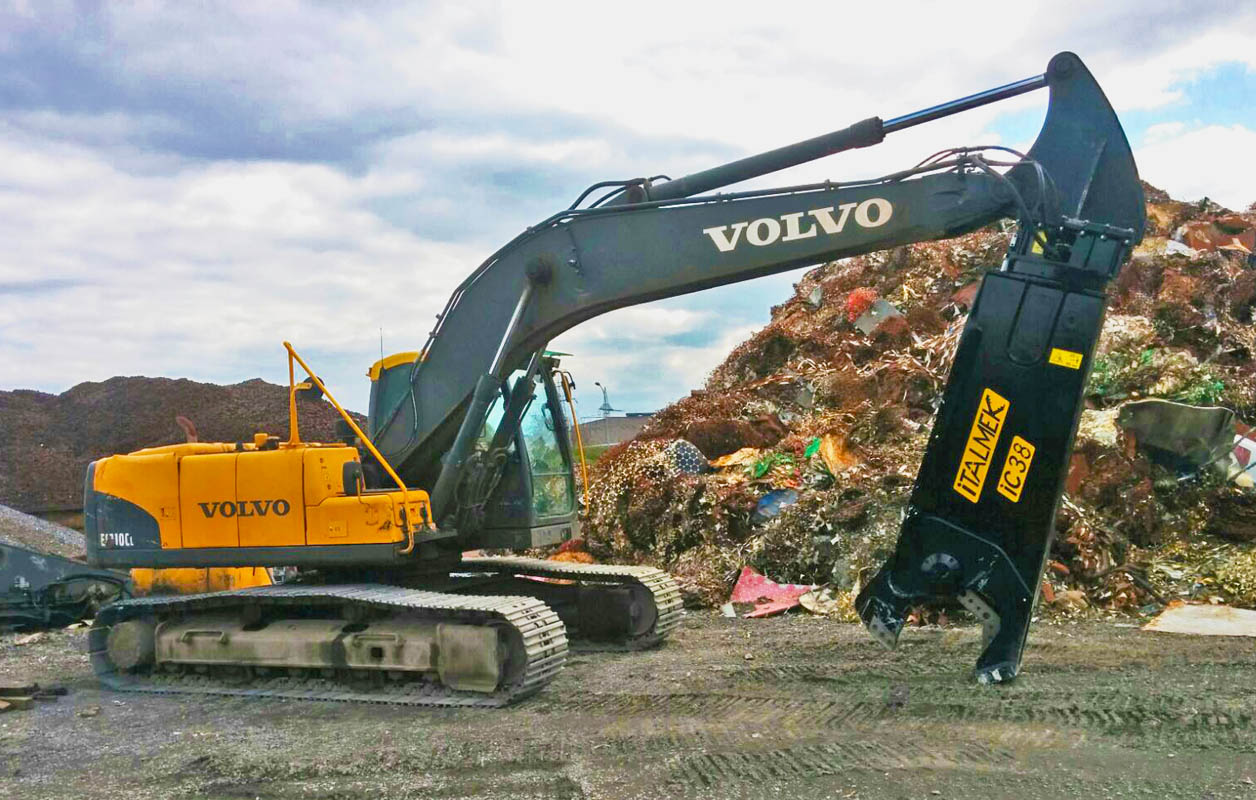

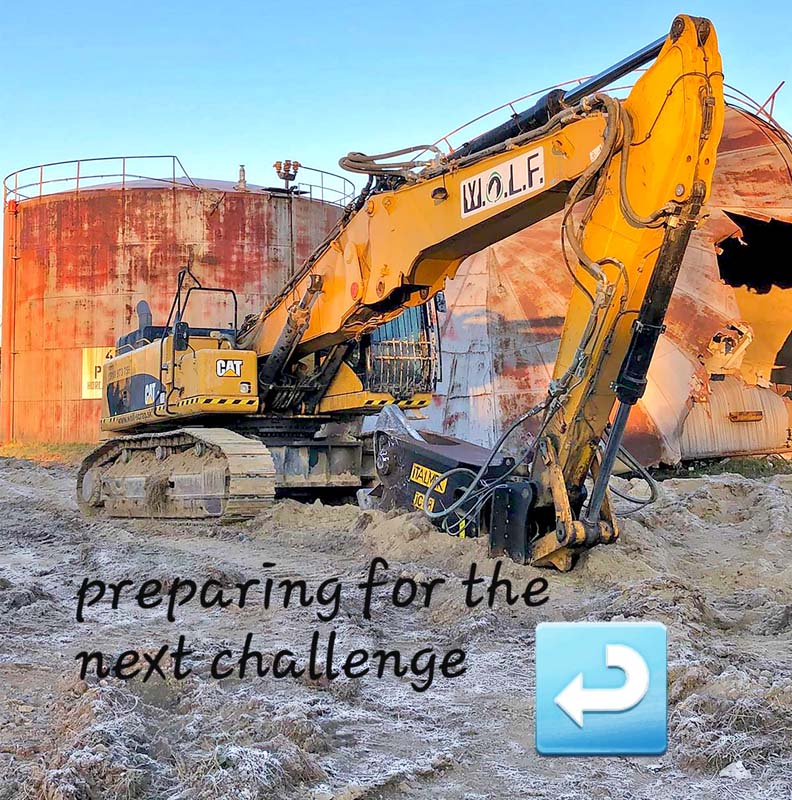

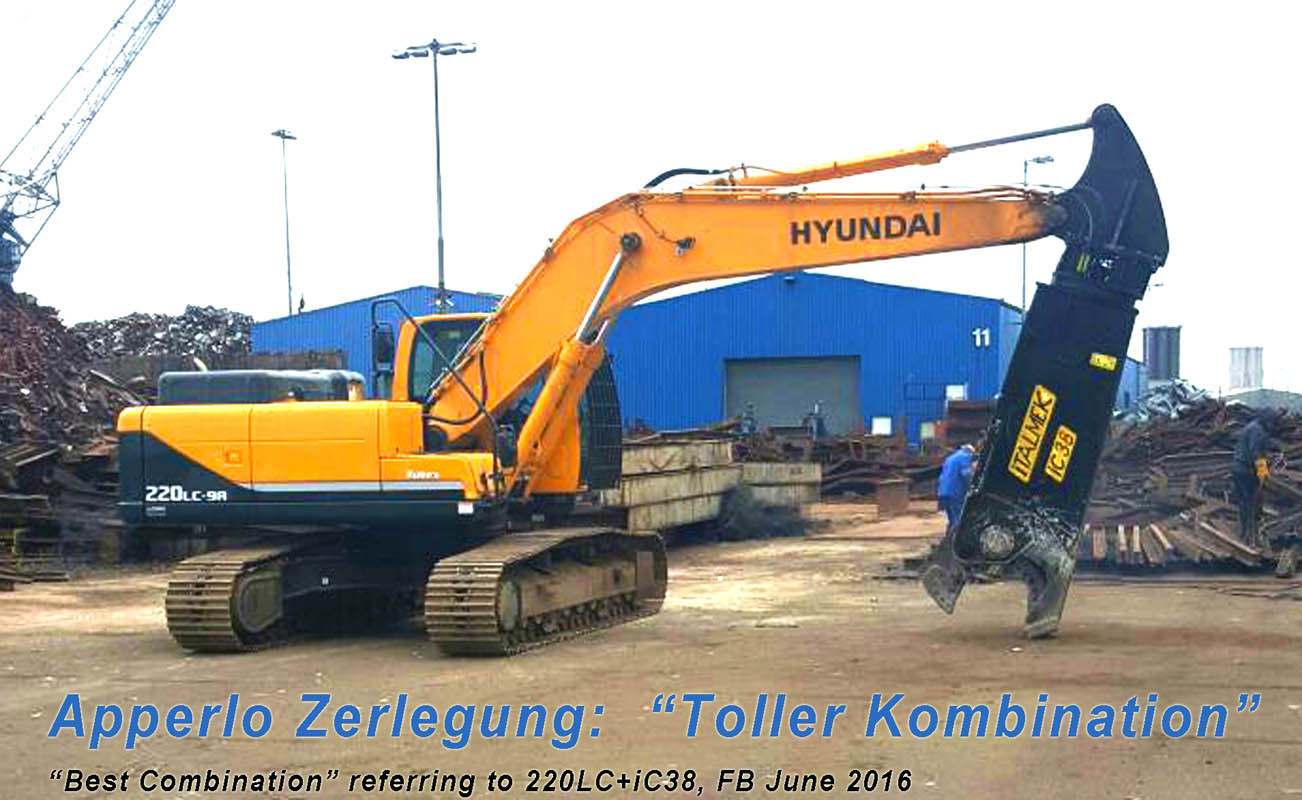

Steel shear IC38

IC38 steel shear has a weight of 3.800 kg and a mouth opening of 700 mm. With hydraulic pressure adjusted to 350 bar its cutting capacity is enough to cut a 90 mm full round rod.

Technical data sheet
Weight
kg
3.800
Mouth opening
mm
700
Mouth depth
mm
630
Total Length
mm
3.200
Bucket position
ton
32 - 47
Boom position
ton
22 - 32
Working pressure
bar
350
Working flow
l/m
230 - 350
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
90
Cutting capacity (HEA)
mm
320
Cutting capacity (IPE)
mm
550
