The steel shear iC54 has a weight of 5.750 kg, a mouth opening of 795 mm and a length of 3.700 mm. With hydraulic pressure adjusted to 350 bar its cutting capacity is enough to cut a 110 mm full round rod.
Technical data sheet
Weight
kg
5.750
Working pressure
bar
350
Total Length
mm
3.700
Mouth opening
mm
795

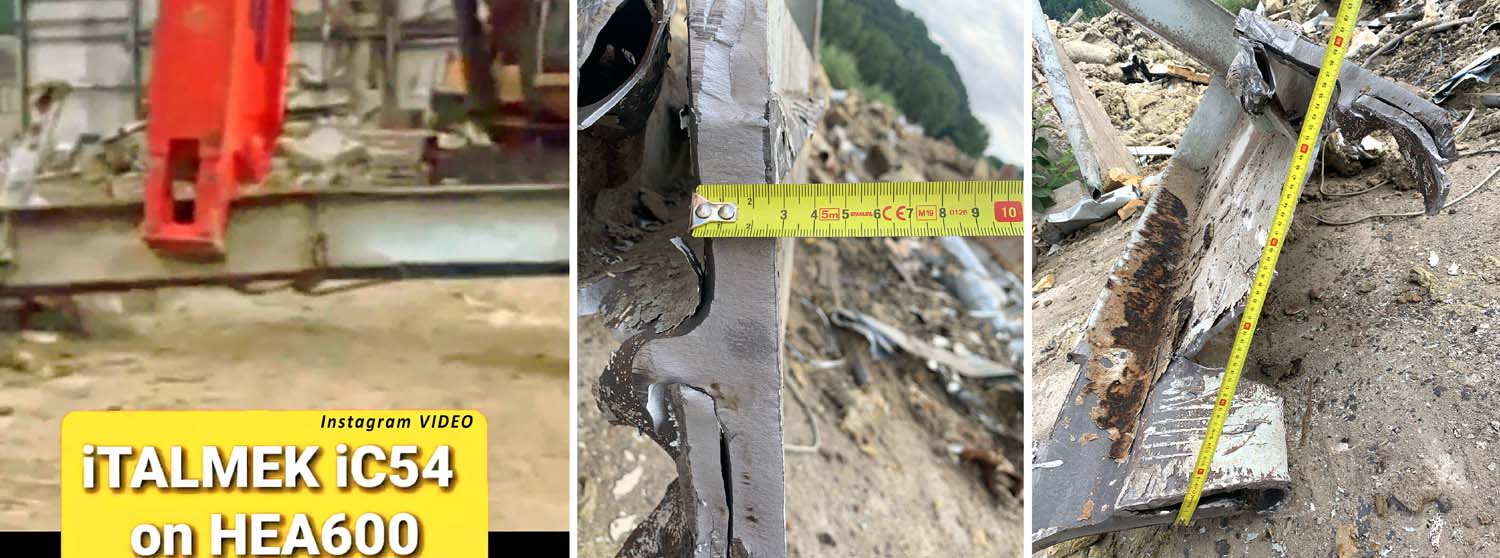

Cutting capacity (IPE)
mm
600
Cutting capacity (HEA)
mm
360
Cutting capacity
mm
110
Bucket position
ton
46 - 65
Boom position
ton
30 - 42
Mouth depth
mm
760
Rotation flow
l/m
30
Rotation Pressure
bar
110
Working flow
l/m
270 - 400
