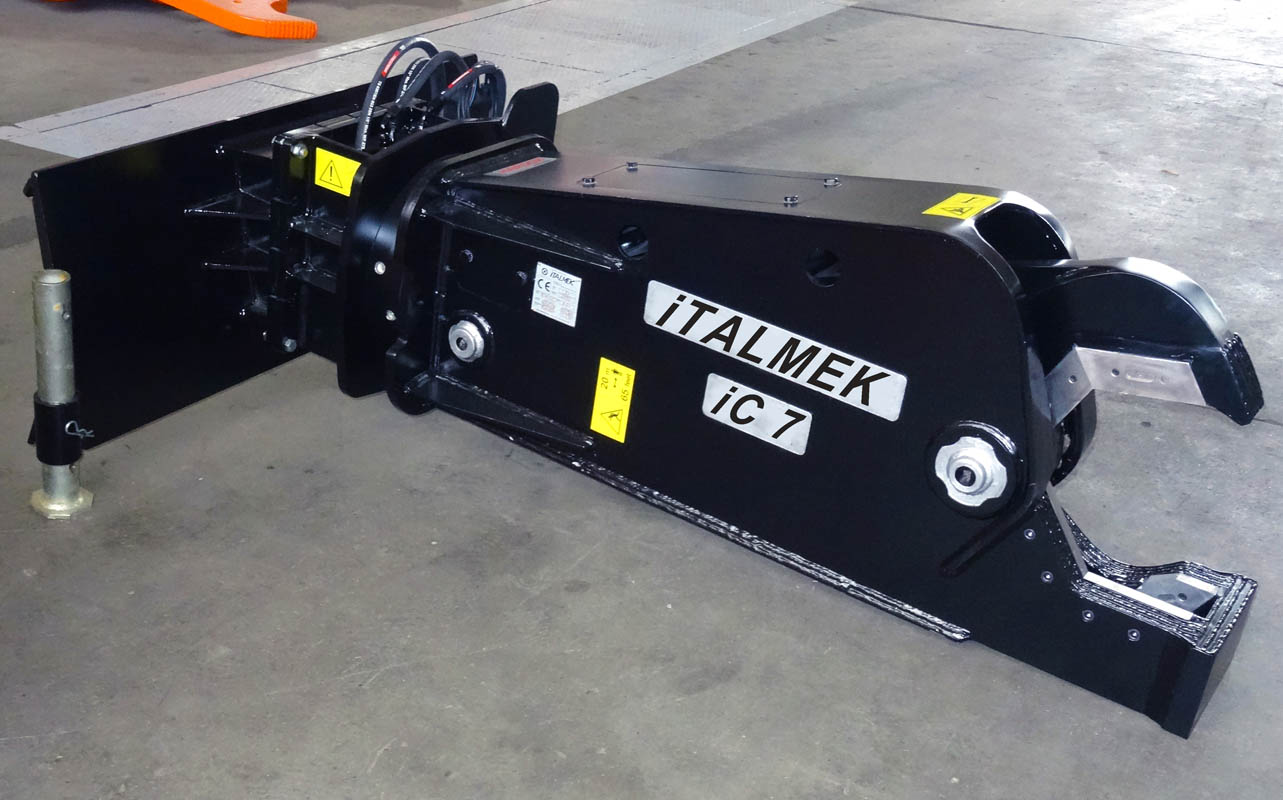

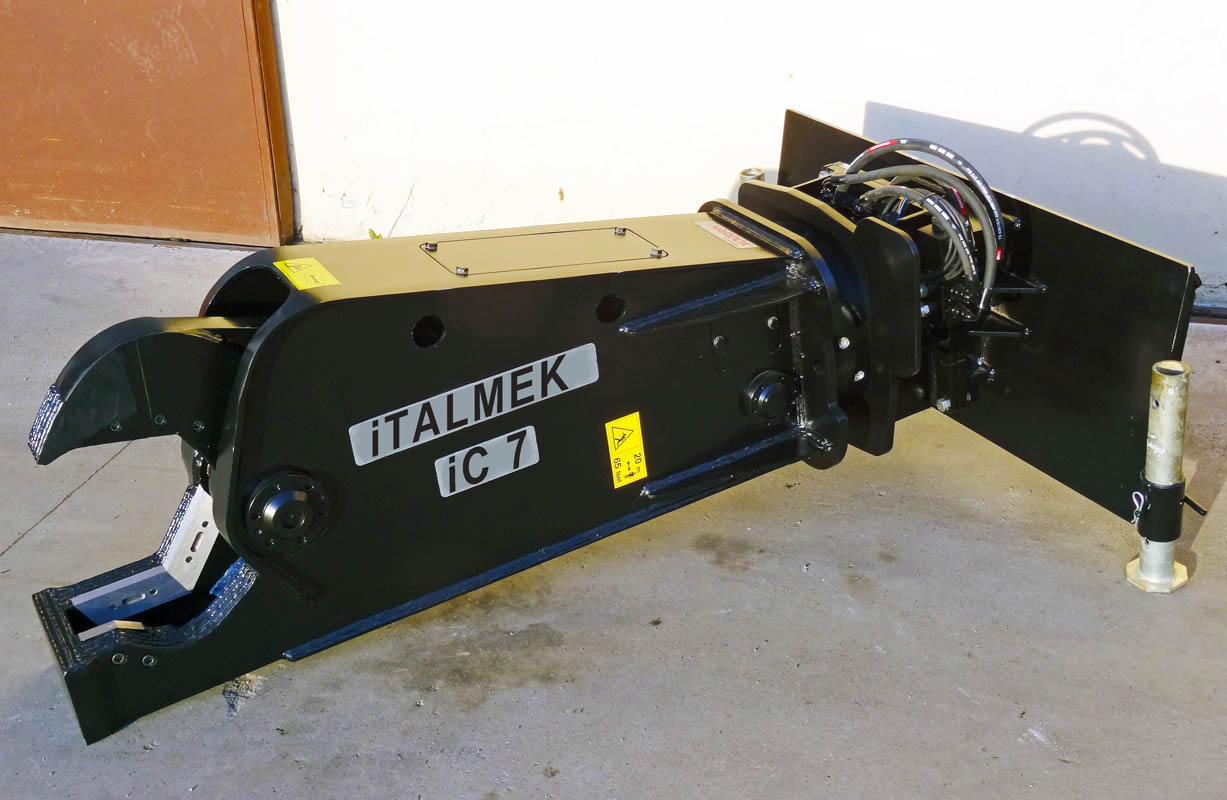

Steel shear IC7

Technical data sheet
Weight
kg
730
Mouth opening
mm
340
Mouth depth
mm
310
Total Length
mm
1.750
Bucket position
ton
7 - 14
Boom position
ton
3.5 - 7
Working pressure
bar
280 - 300
Working flow
l/m
50 - 100
Rotation Pressure
bar
150 - 250
Rotation flow
l/m
8 - 10
Cutting capacity
mm
45
Cutting capacity (HEA)
mm
120
Cutting capacity (IPE)
mm
200
