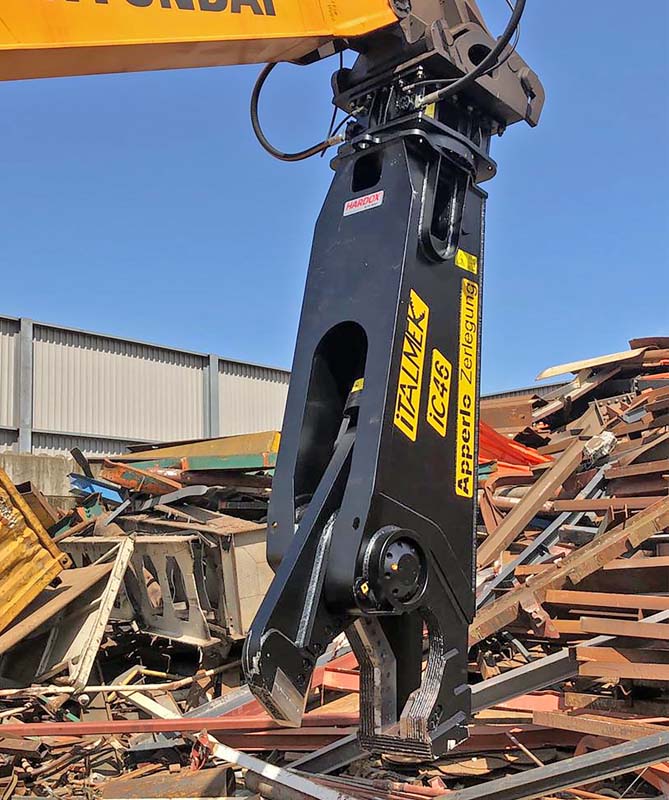

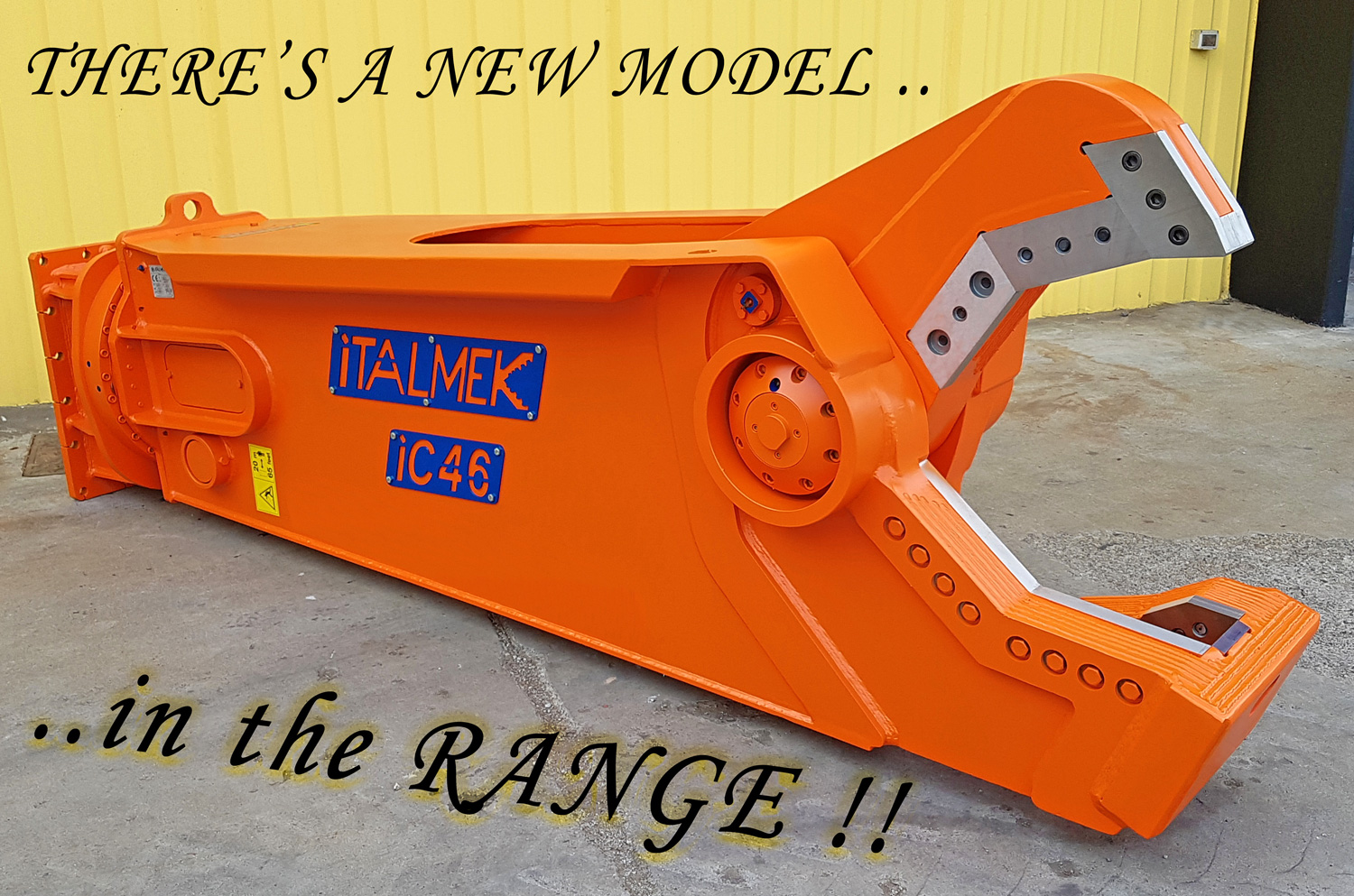

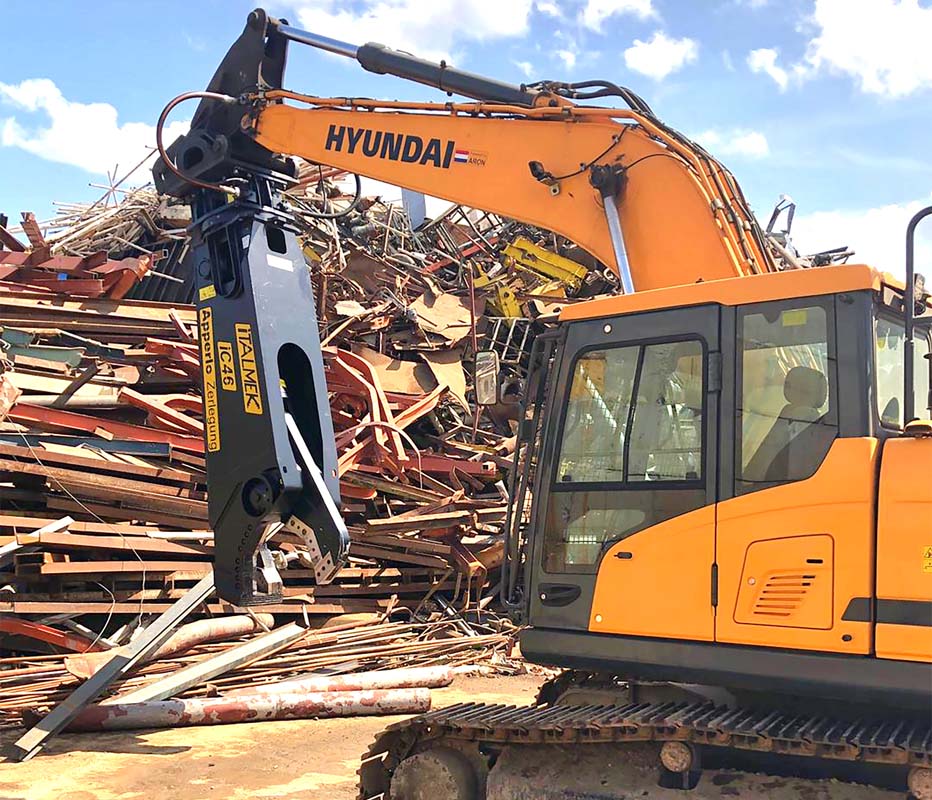

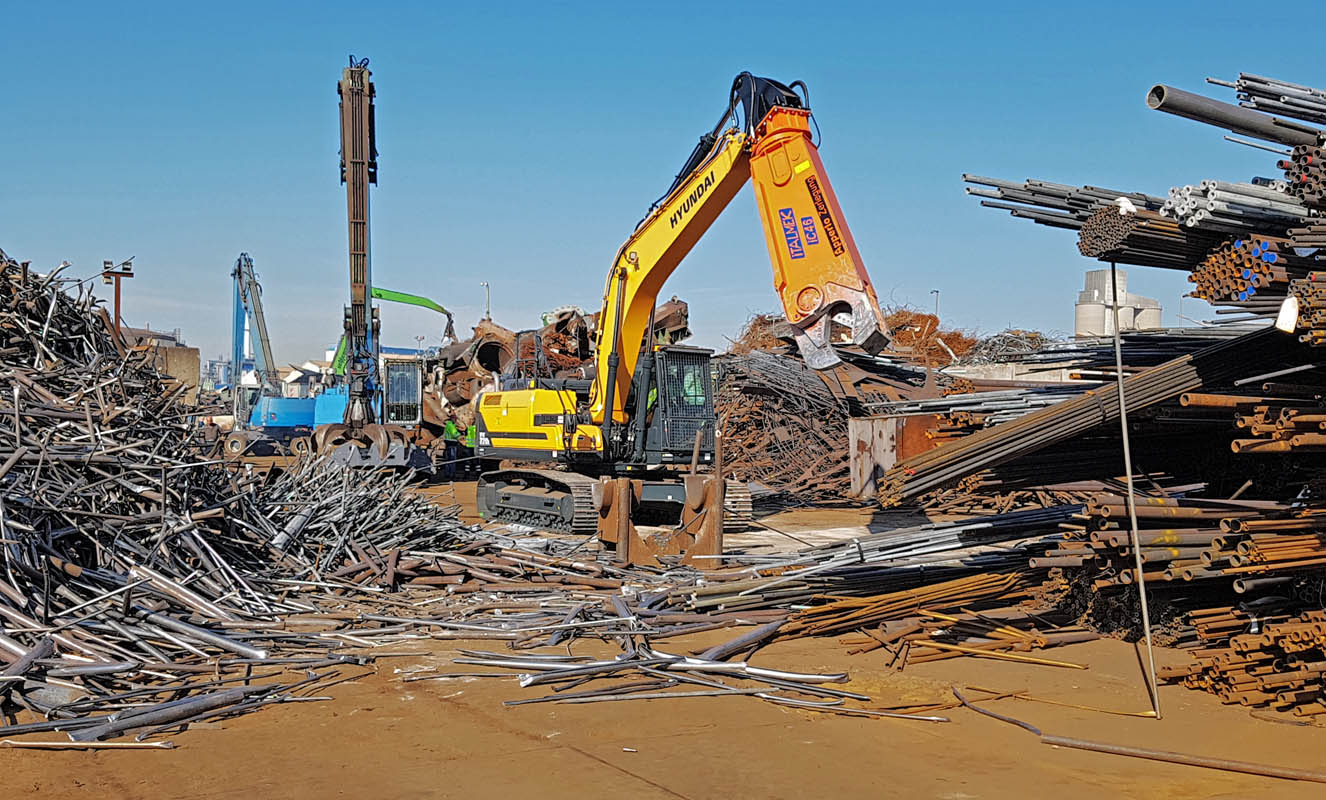

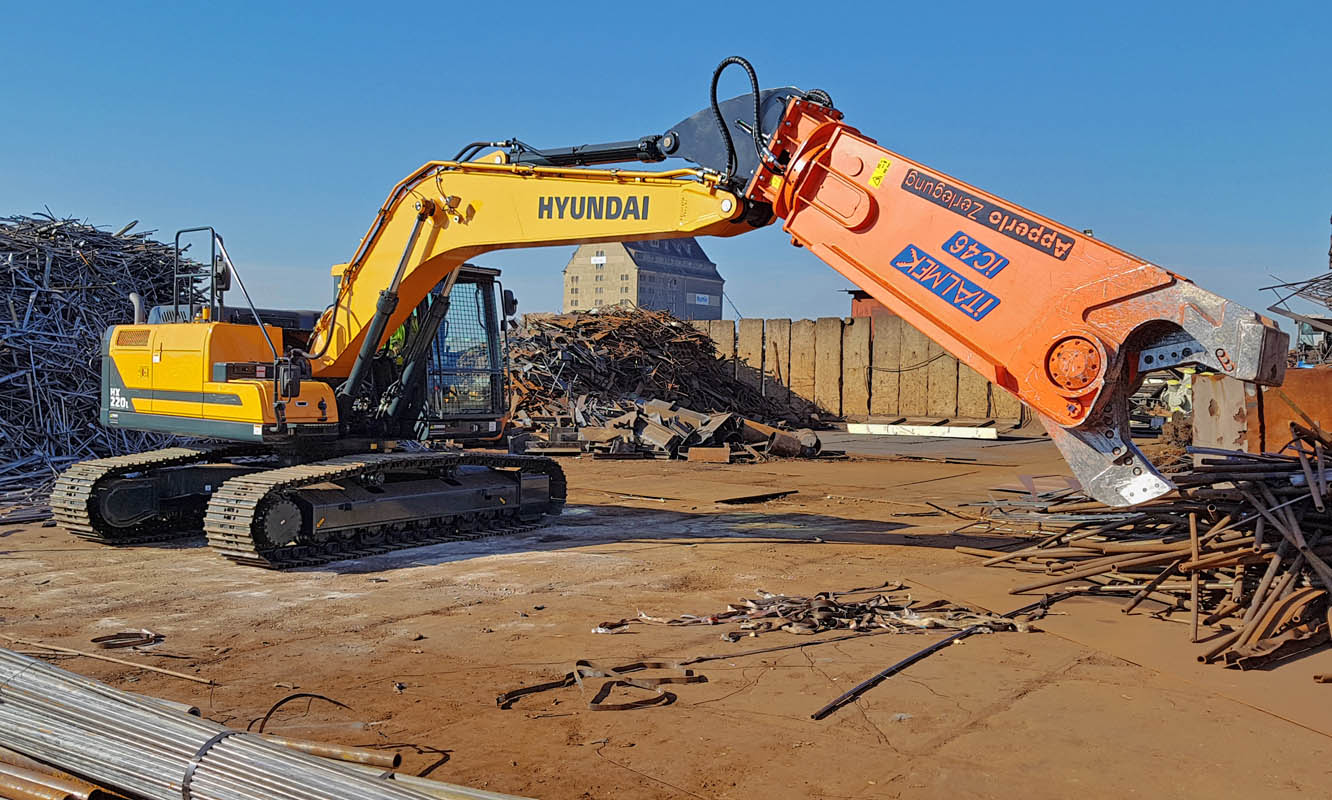

Steel shear IC46

The cutting power in the pure state!
After two years of great performance on material with large dimensions and thicknesses, the IC46 steel dedicated shear has been officially included in the Italmek wide range. Its cutting power is impressive.

Technical data sheet
Weight
kg
4450
Mouth opening
mm
750
Mouth depth
mm
710
Total Length
mm
3500
Bucket position
ton
42-52
Boom position
ton
26-36
Working pressure
bar
350
Working flow
l/m
250 - 370
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
100
Cutting capacity (HEA)
mm

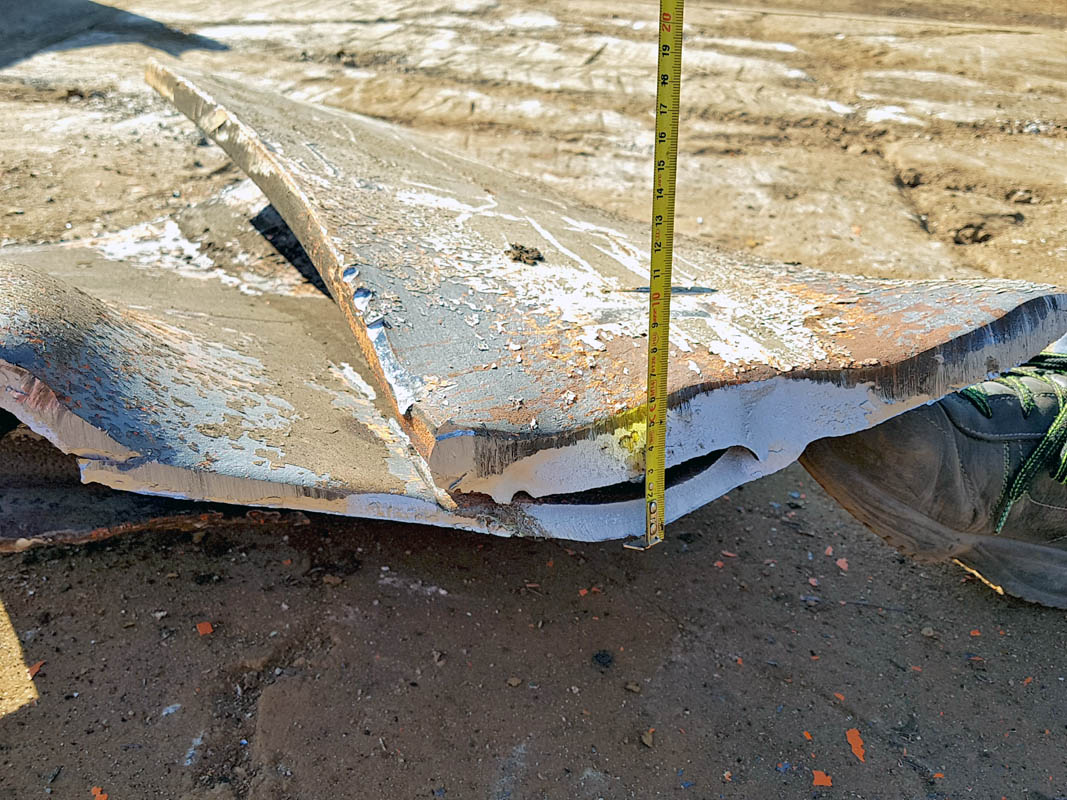

340
Cutting capacity (IPE)
mm
600
