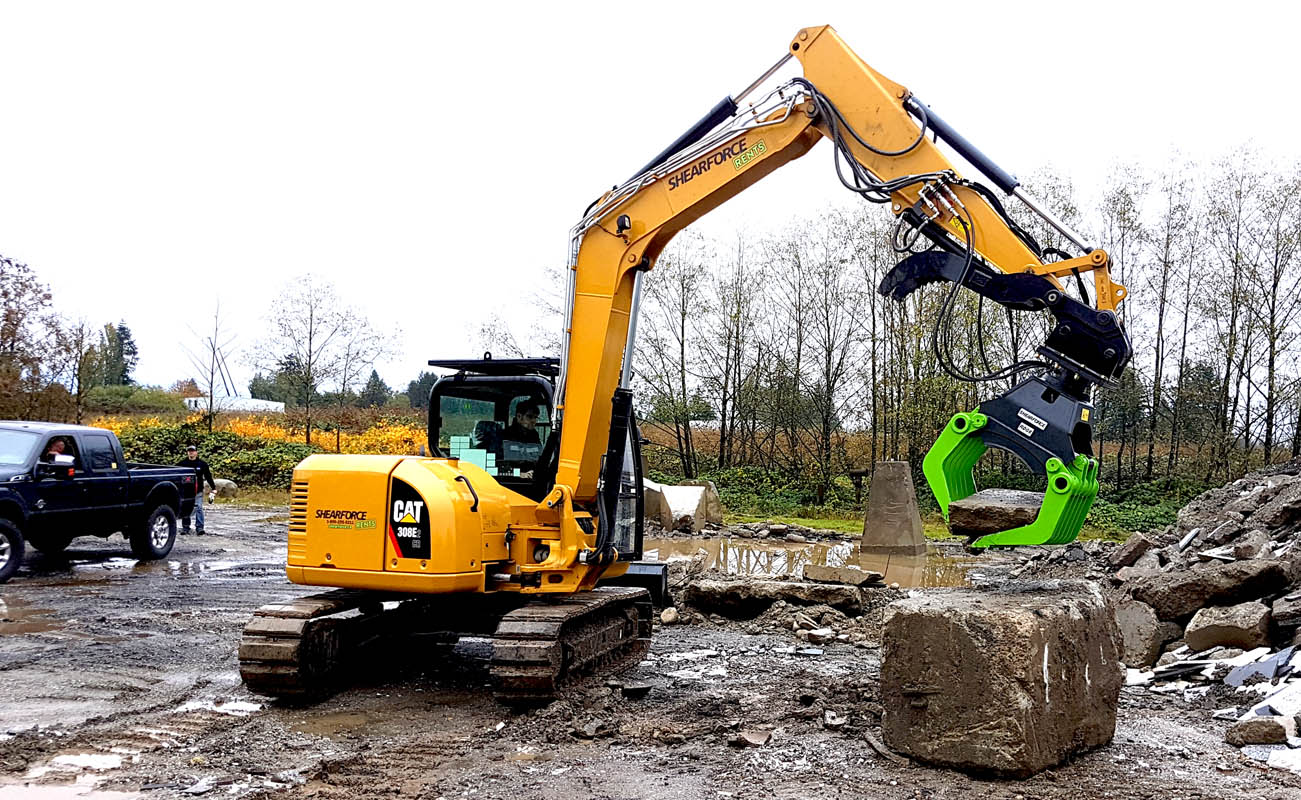

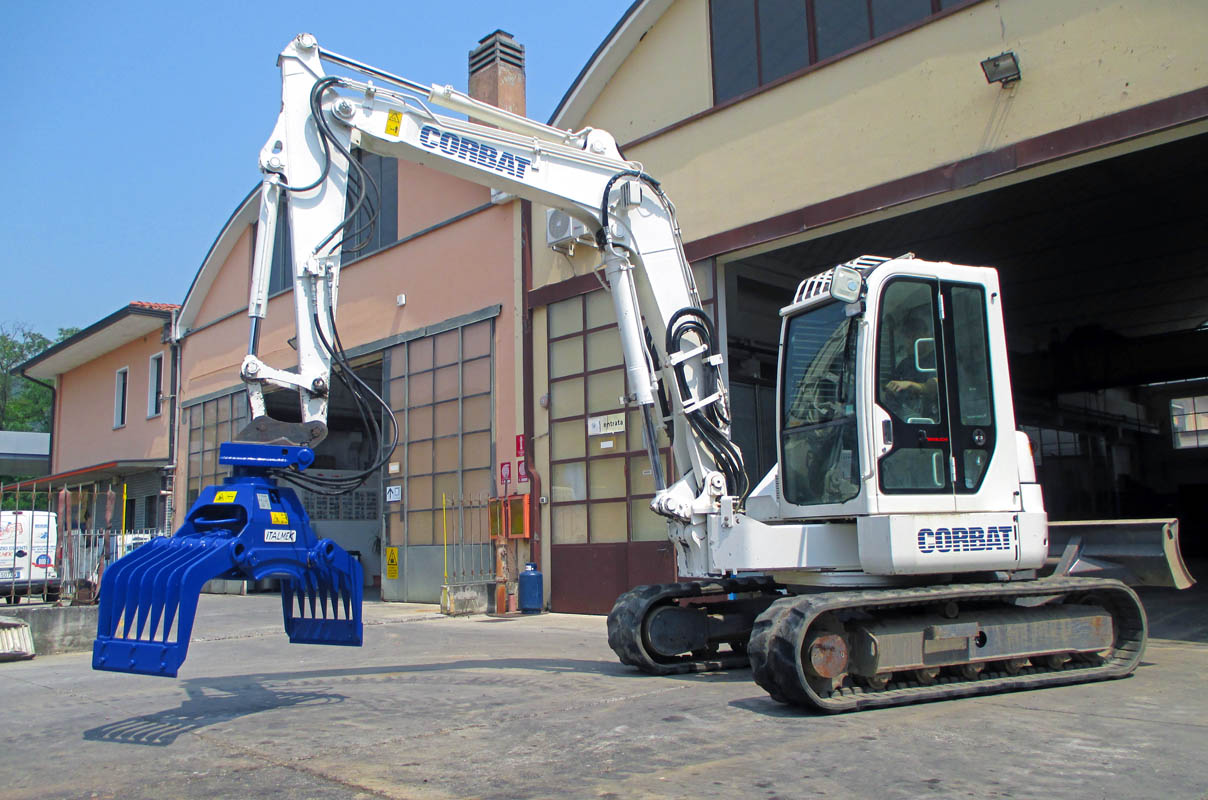

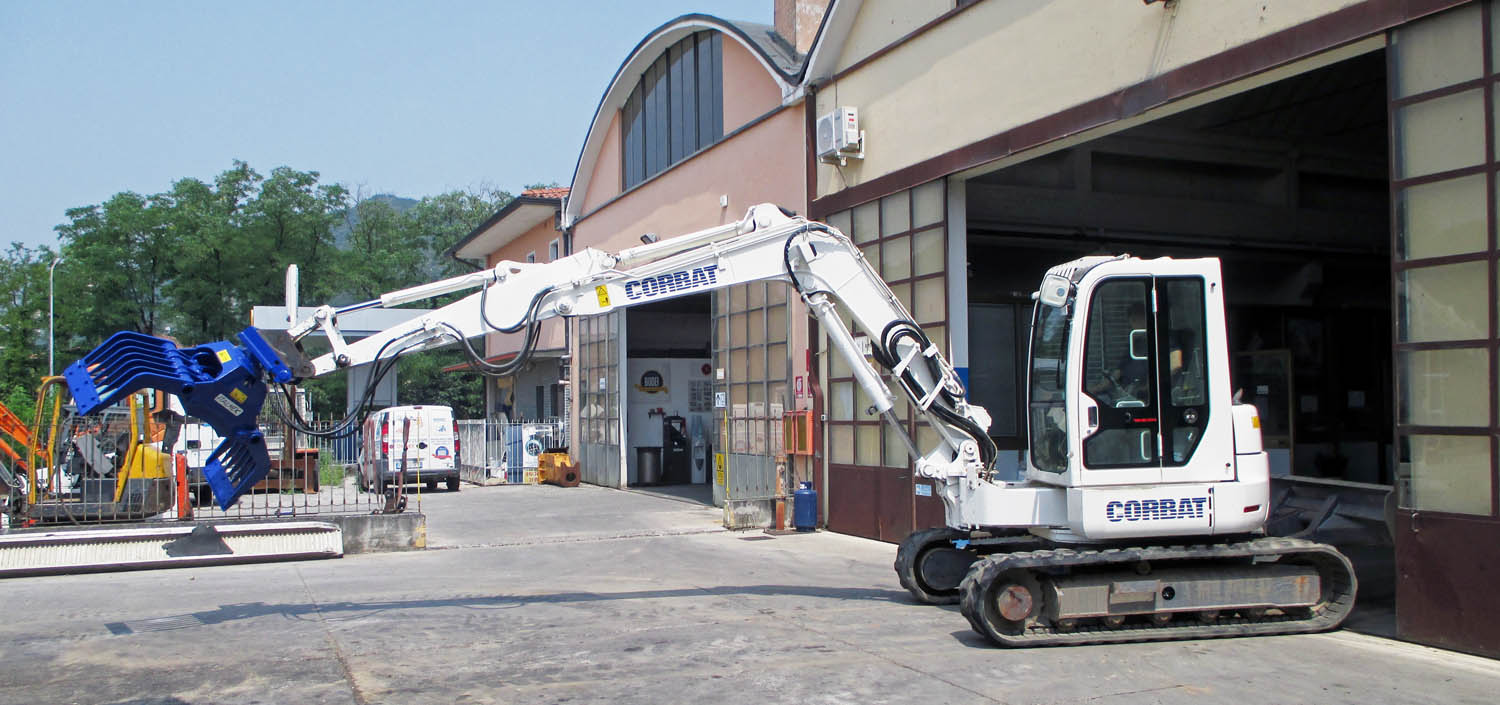

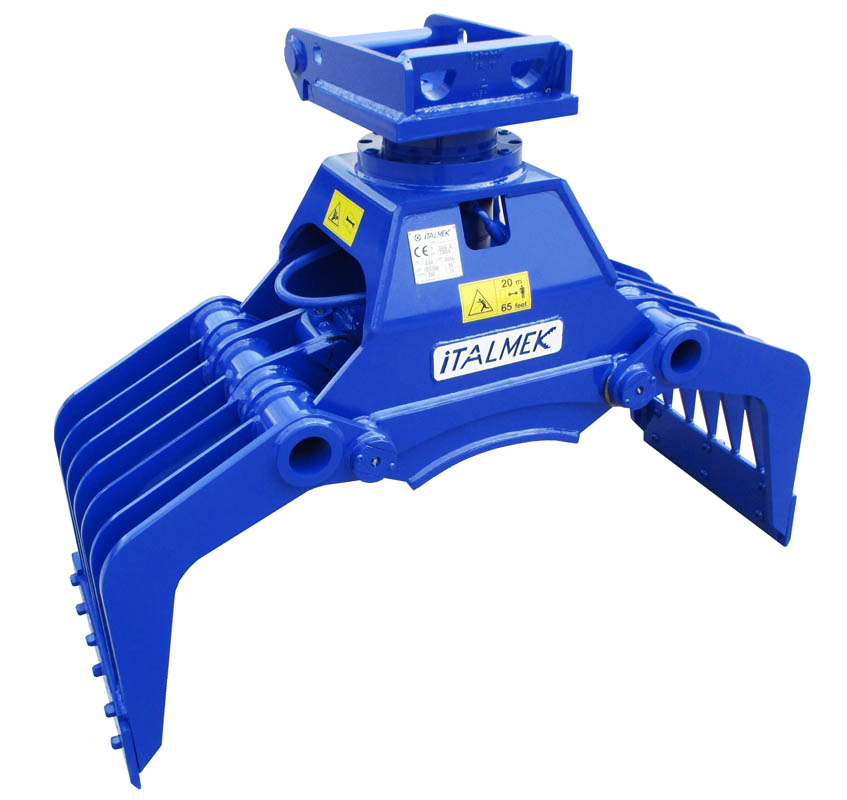

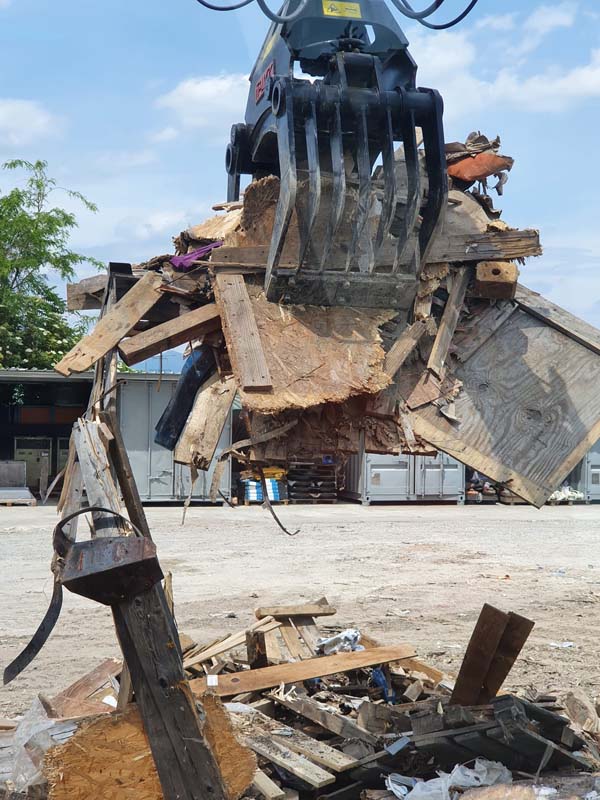

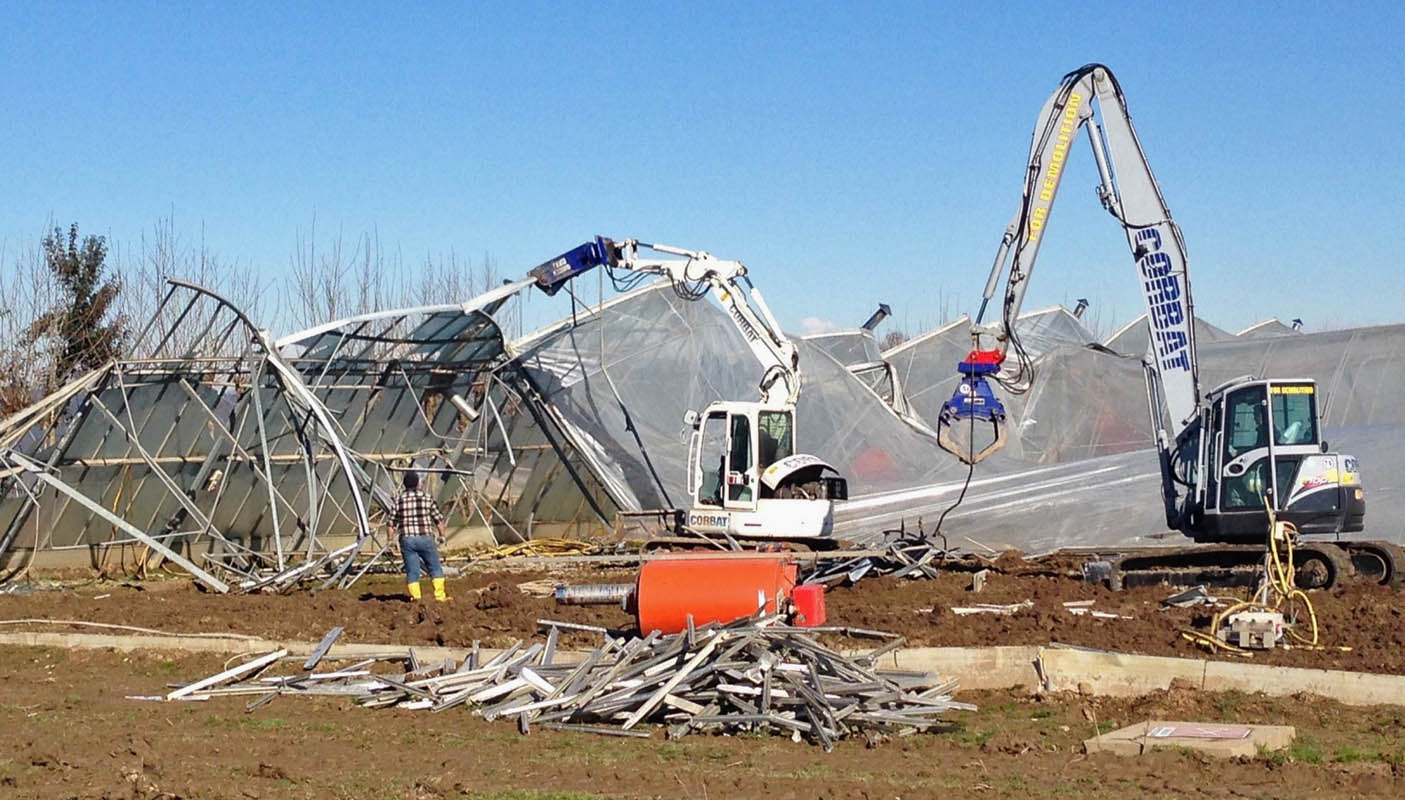

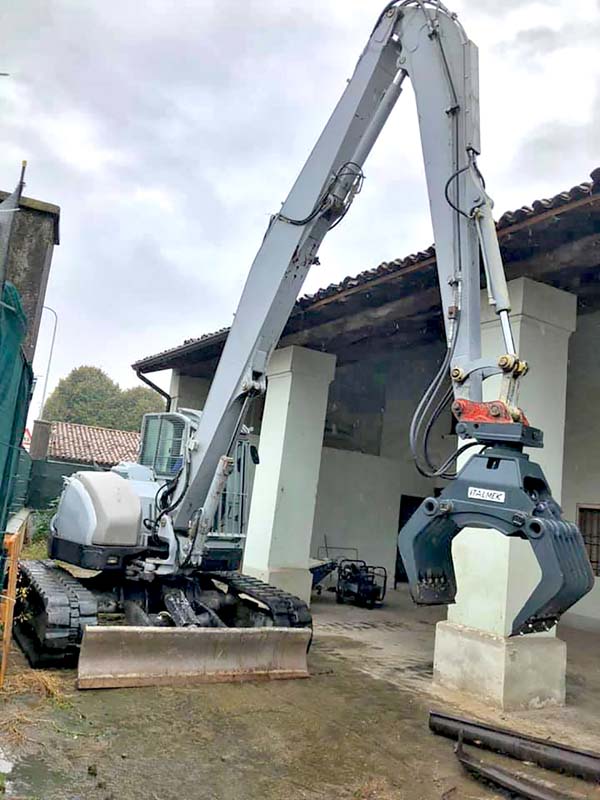

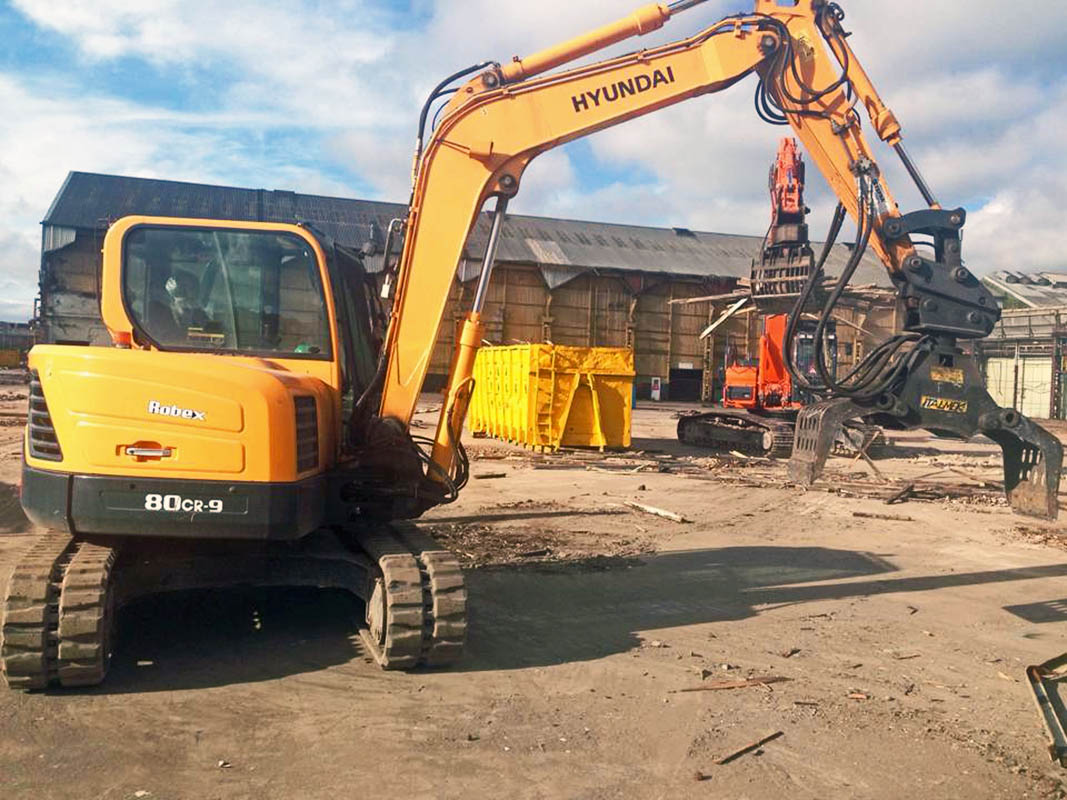

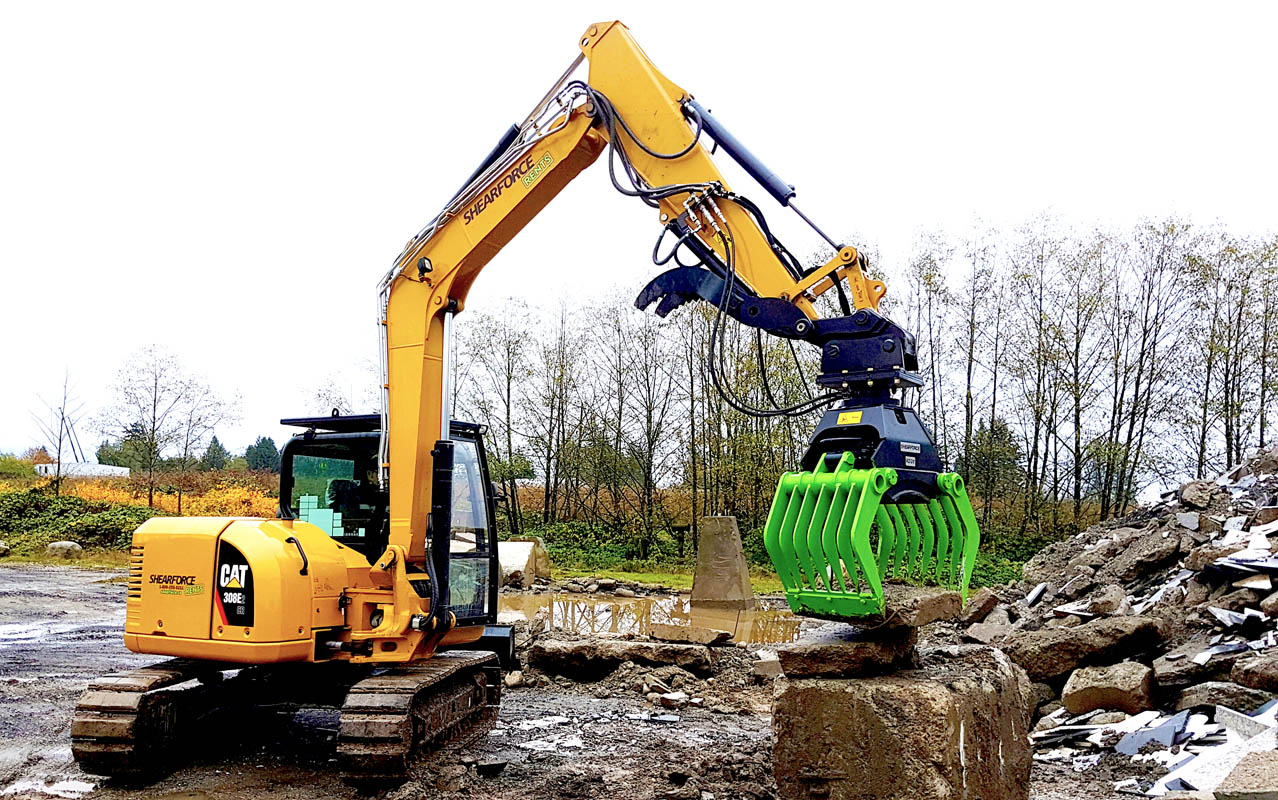

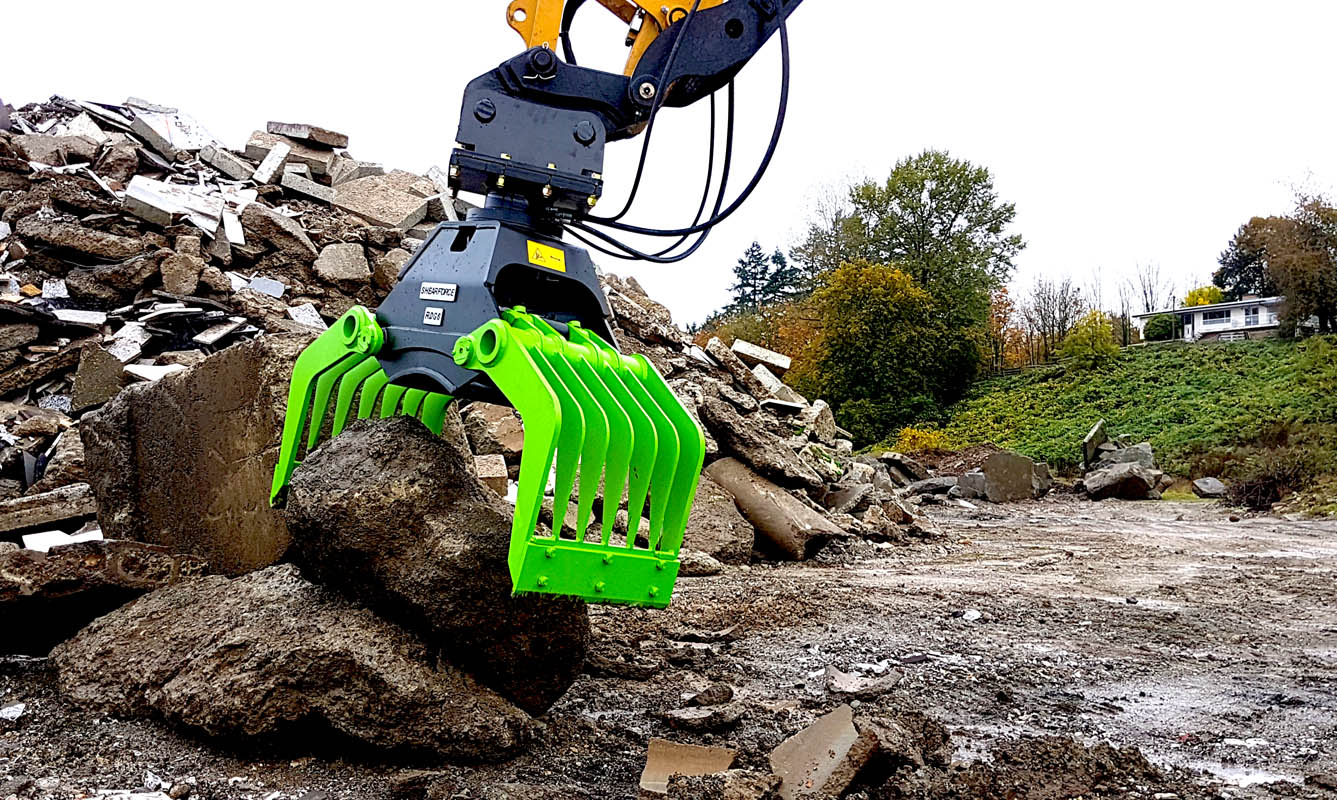

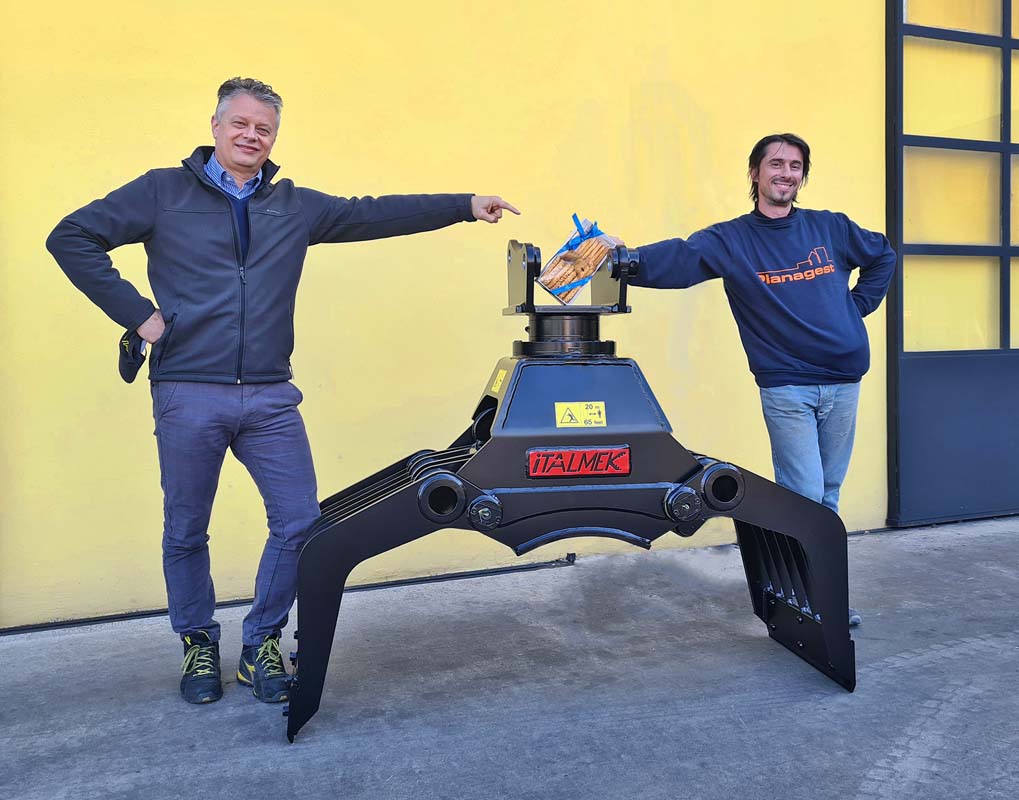

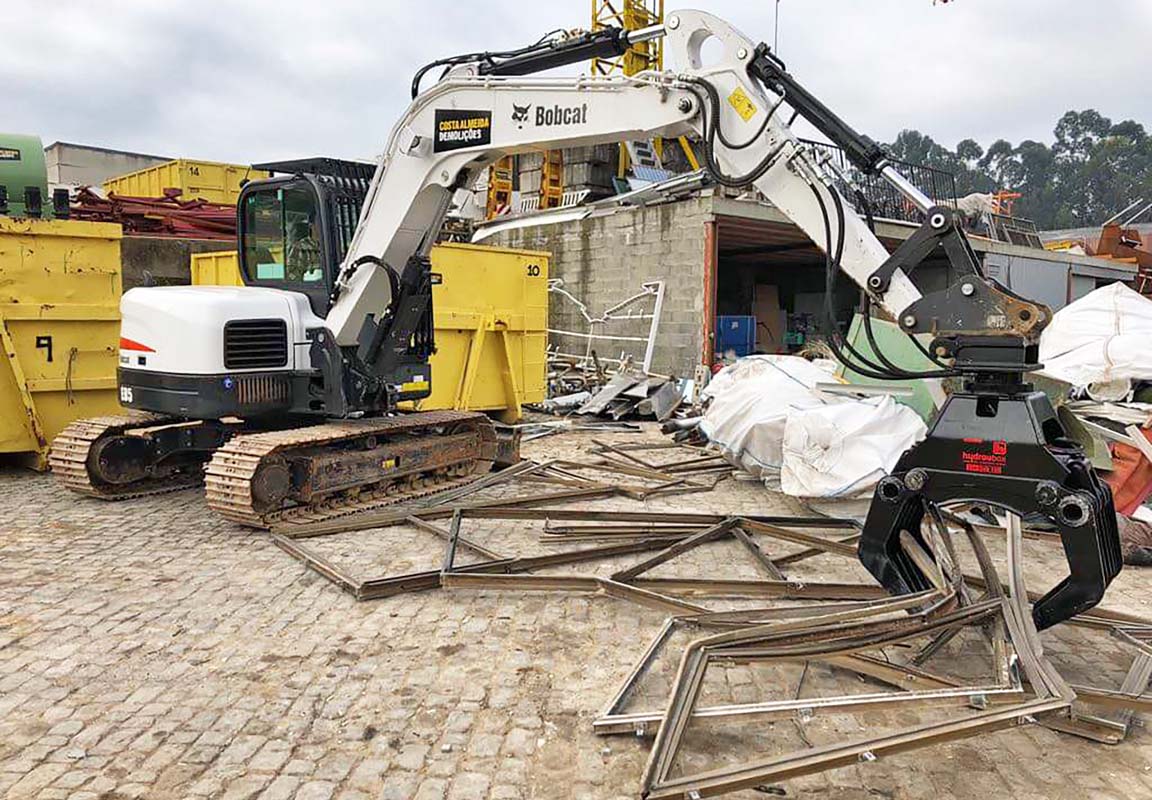

Demolition sorting grab IDG6

IDG6 demolition sorting grab has a weight of 500 kg and a mouth opening of 1.500 mm. The maxim hydraulic working pressure is 250-300 bar.

Technical data sheet
Weight
kg
500
Mouth opening
mm
1.500
Height
mm
1.080
Jaw width
mm
550
Bucket position
ton
6 - 10
Capacity
m3
0,120
Working pressure
bar
250 - 300
Working flow
l/m
60
Blade force
kg
2.100
Rotation Pressure
bar
180 - 200
Rotation flow
l/m
40
