Demolition Sorting
IDG range

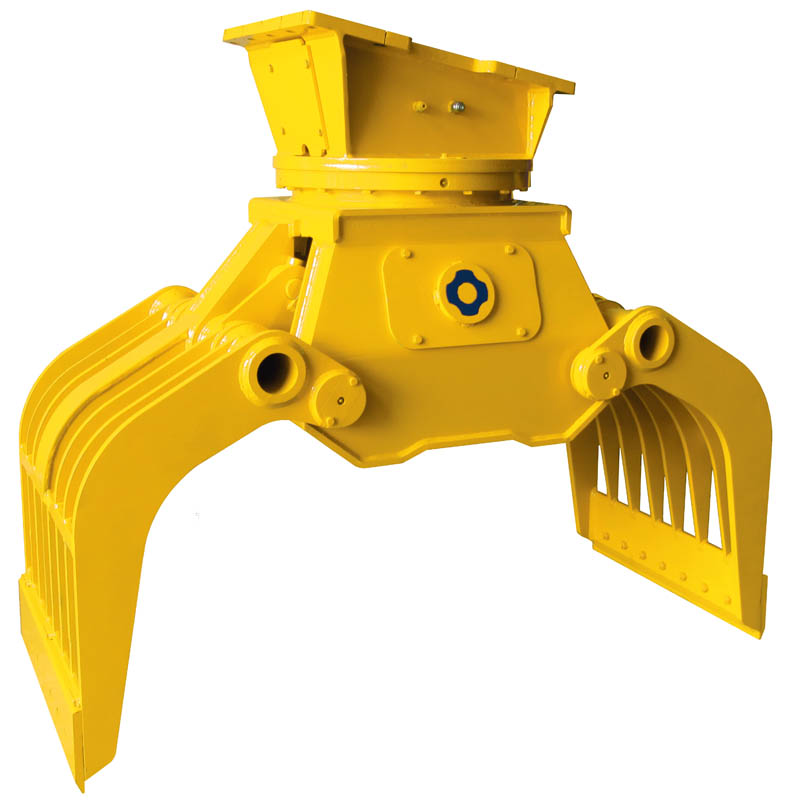

The iTALMEK IDG range of demolition sorting grabs have been designed primarily for demolishing brick structures, and handling/sorting woods and metals. At this purpose the IDG range has been equipped with one oversized central hydraulic cylinder and a load holding valve which secures the load if the oil pressure is cut off. Hydraulic rotation is provided by hydraulic motors with integrated shock valves.
- Its versatility will allow separation of materials as well as a wide range of other applications. For these reasons the IDG range also has the option to choose between various different types and shapes of clam shells.
- Extreme simplicity for maintenance, thanks to the good size of side and top panels.

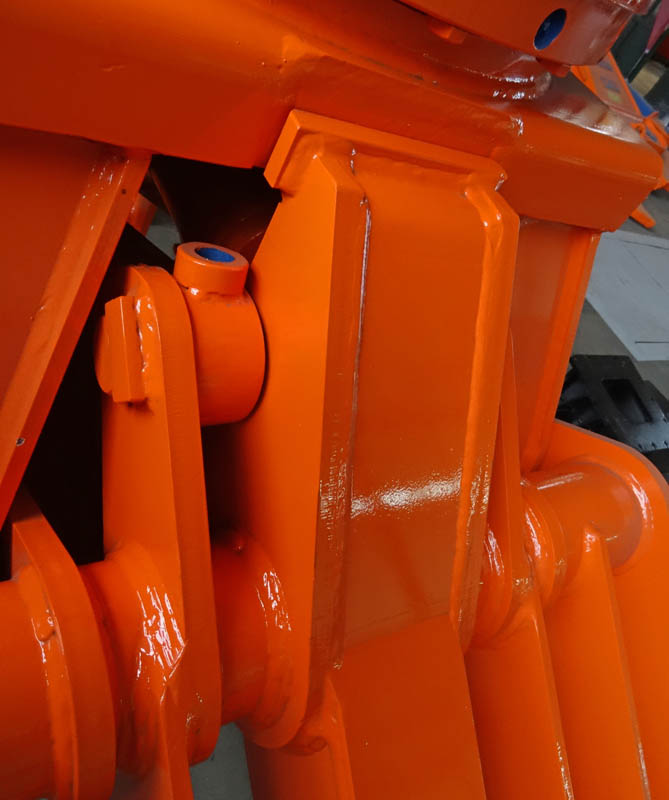

The robust shells, completely made in HARDOX ®, have central end stops in opening and reversible bolted blades.

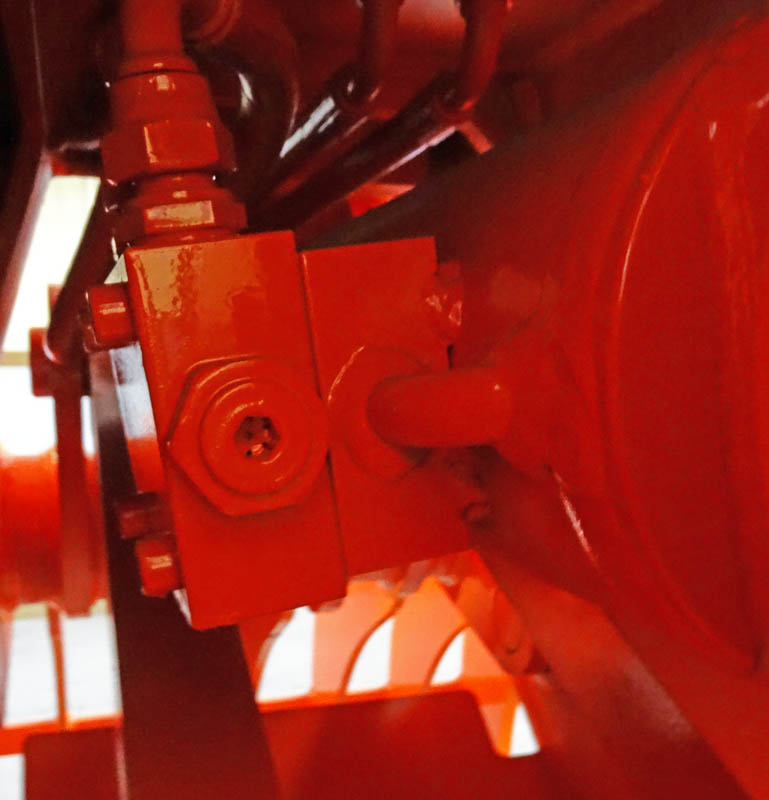

The IDG range has been equipped with one oversized central hydraulic cylinder and a load holding valve which secures the load if the oil pressure is cut off.

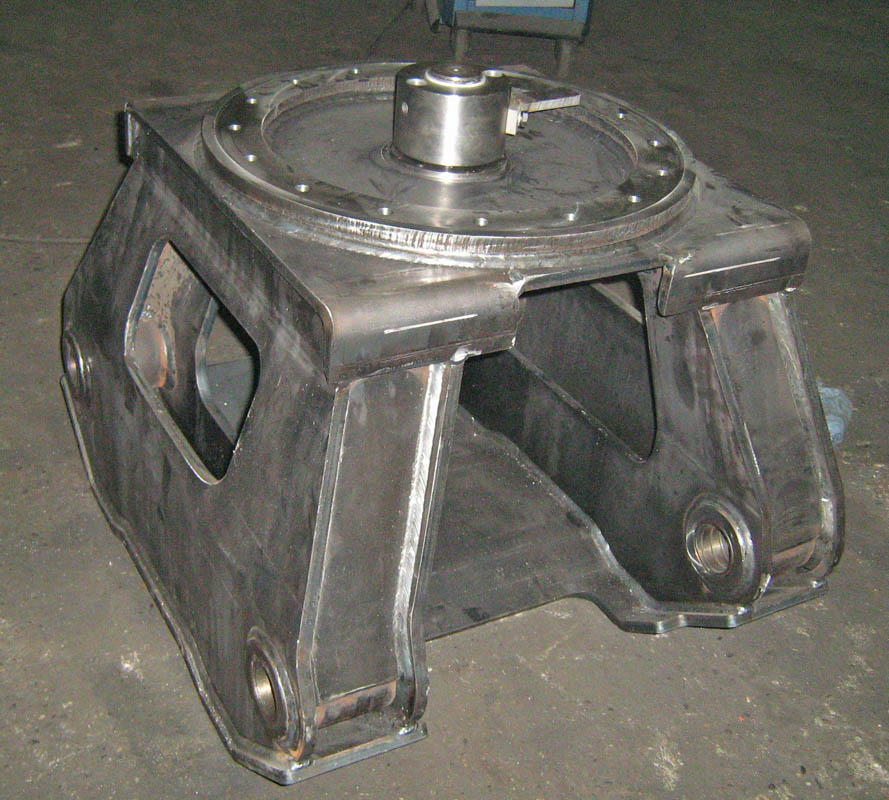

The bigger models, starting with IDG12 have been designed with a heavy duty double walled frame with wide pivot points, hardened pins, bushing for greasing and dust seals.
