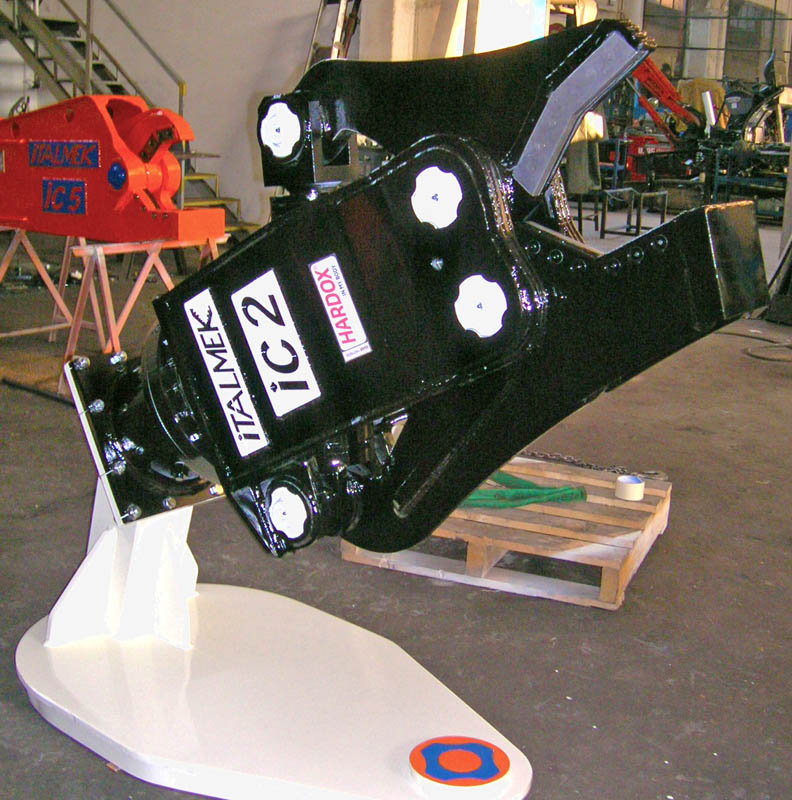

Steel shear IC2

Technical data sheet
Weight
kg
470
Mouth opening
mm
240
Mouth depth
mm
283
Total Length
mm
1300

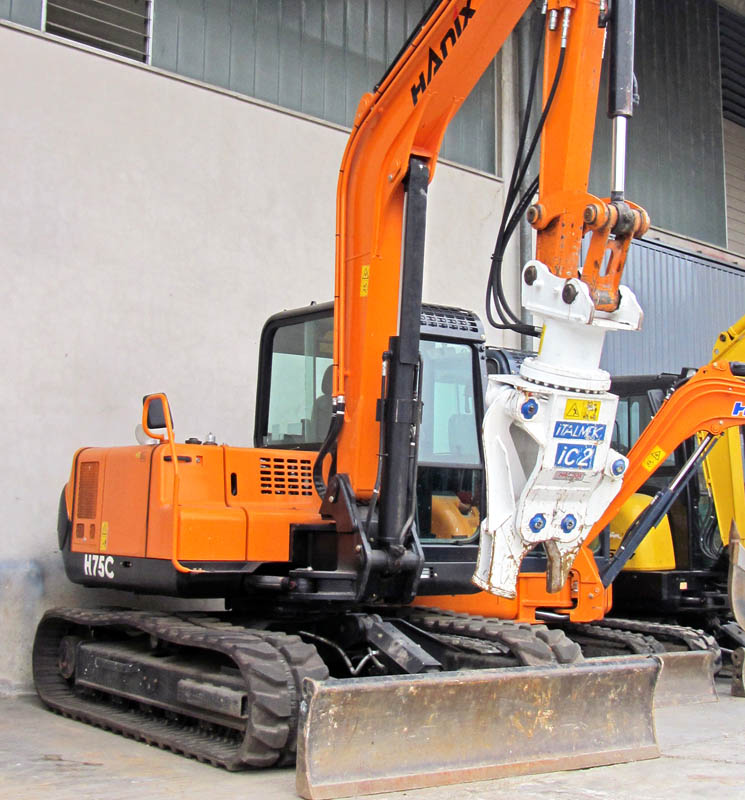

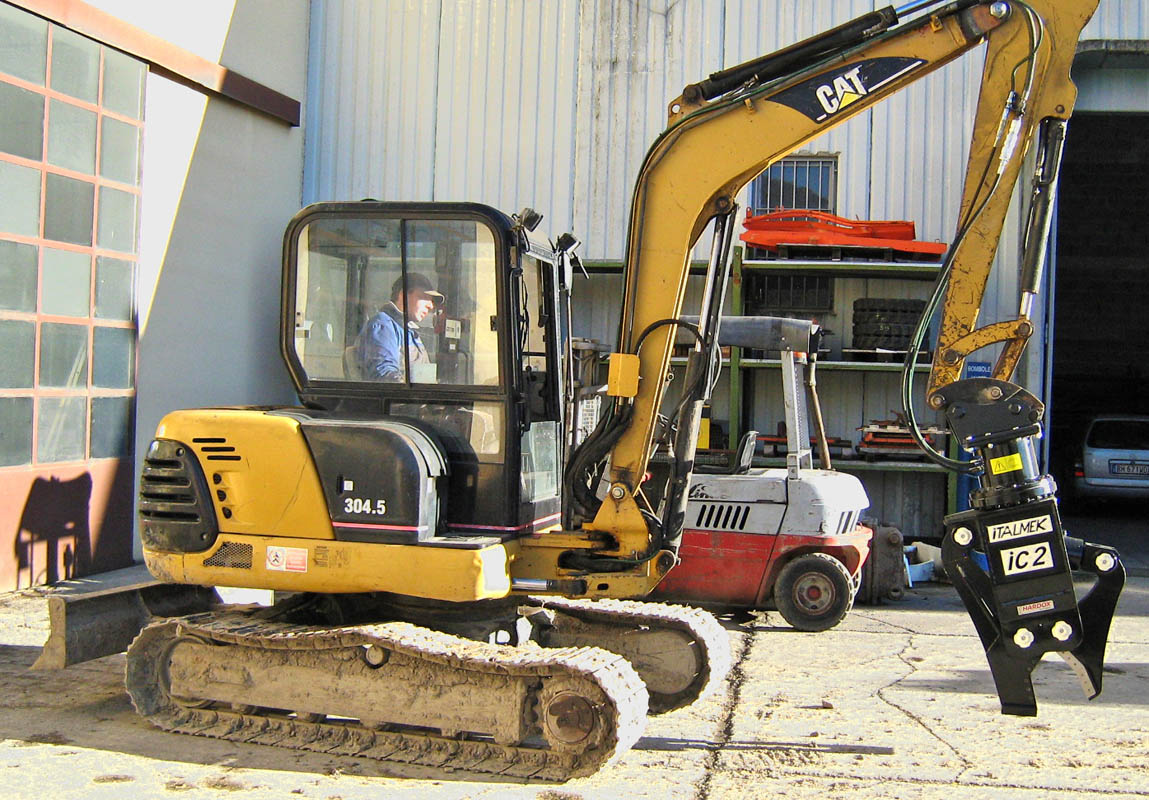

Bucket position
ton
3,5 - 7

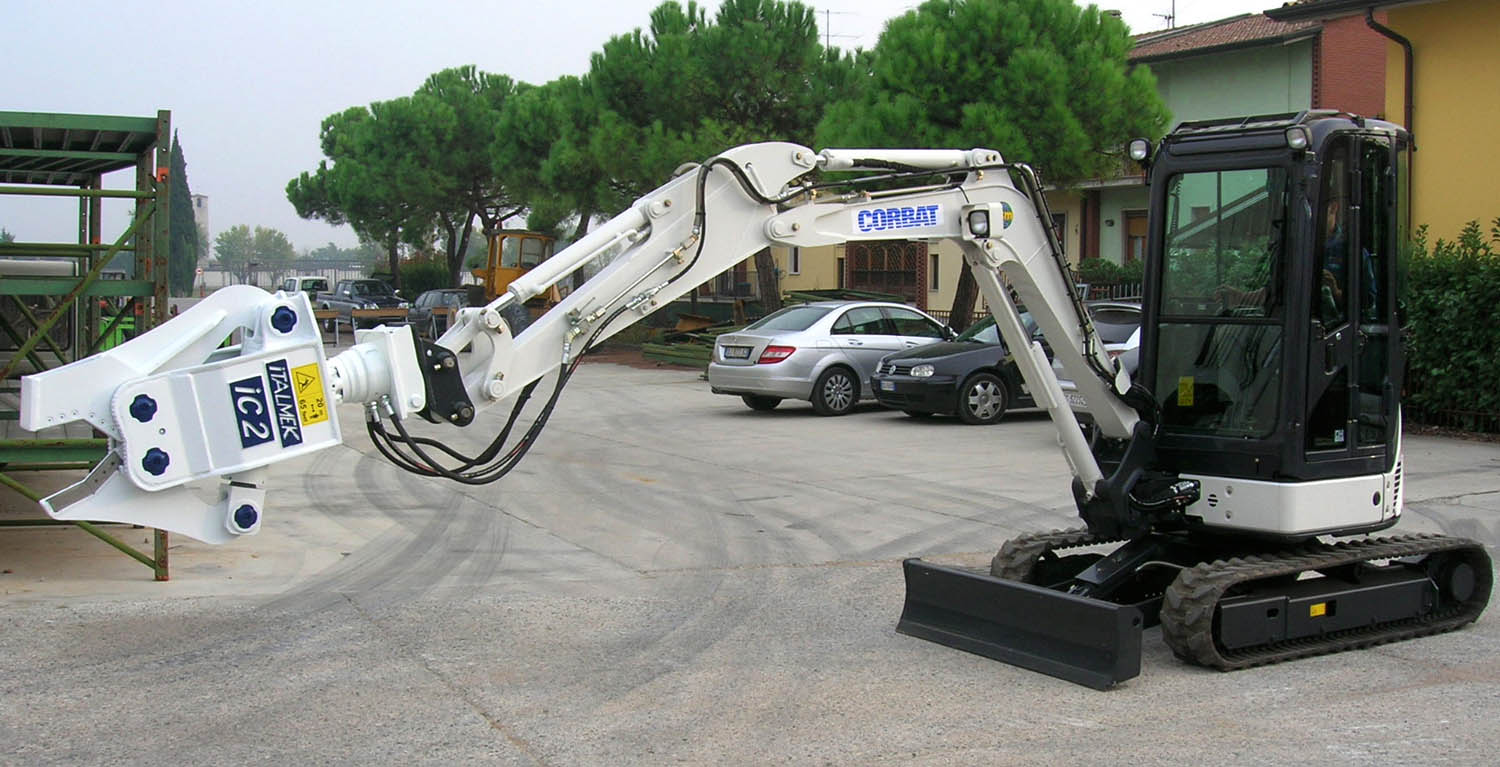

Boom position
ton
1,5 - 3
Working pressure
bar
210 - 280
Working flow
l/m
50 - 100
Rotation Pressure
bar
150 - 250
Rotation flow
l/m
8 - 10

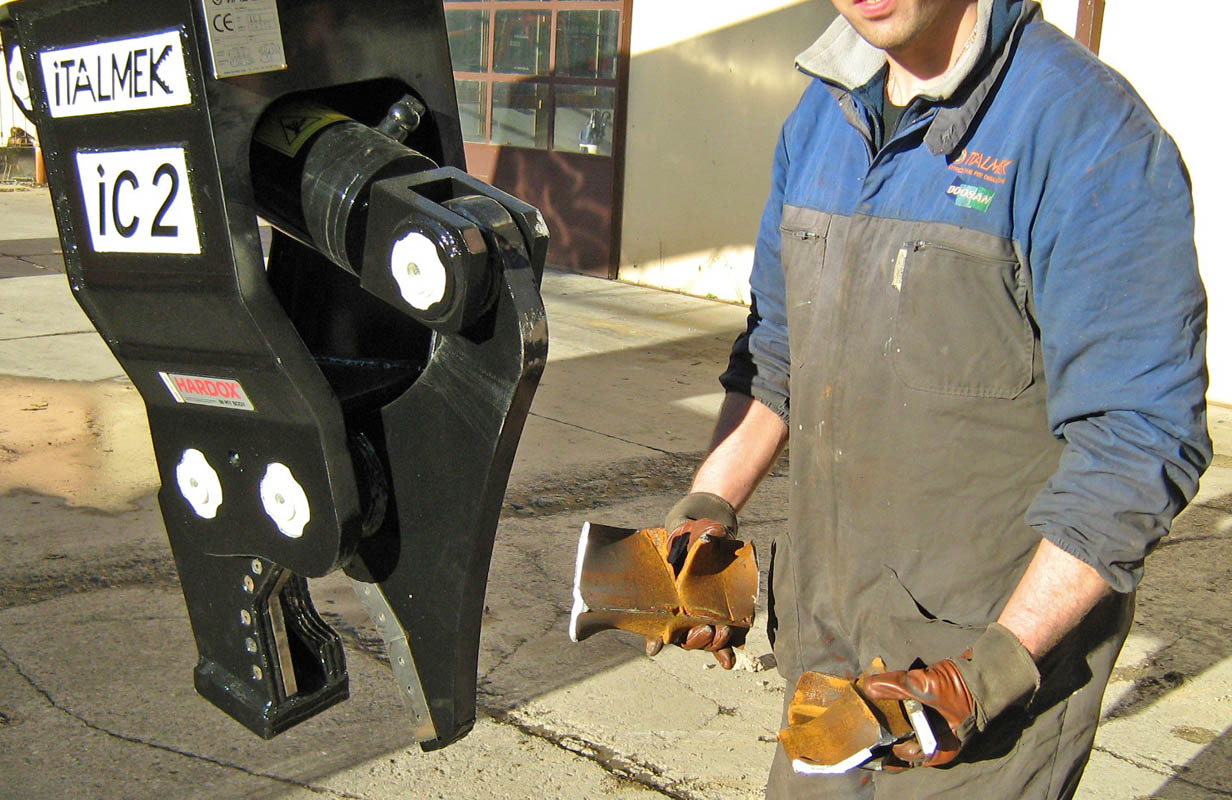

Cutting capacity
mm
30

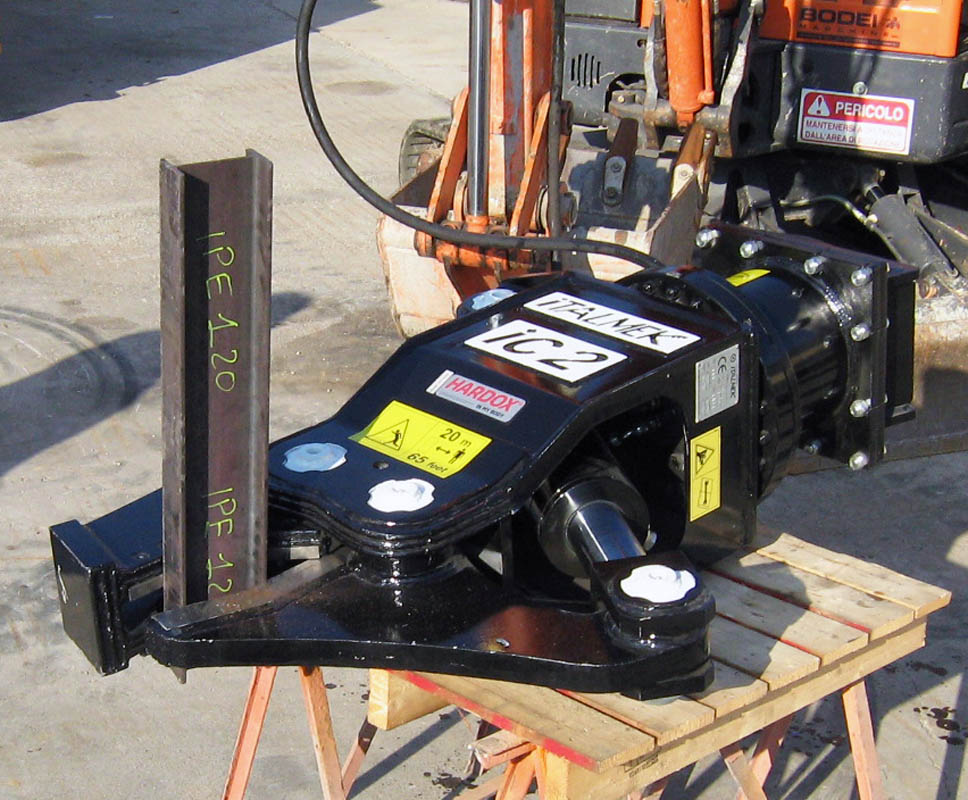

Cutting capacity (IPE)
mm
120
