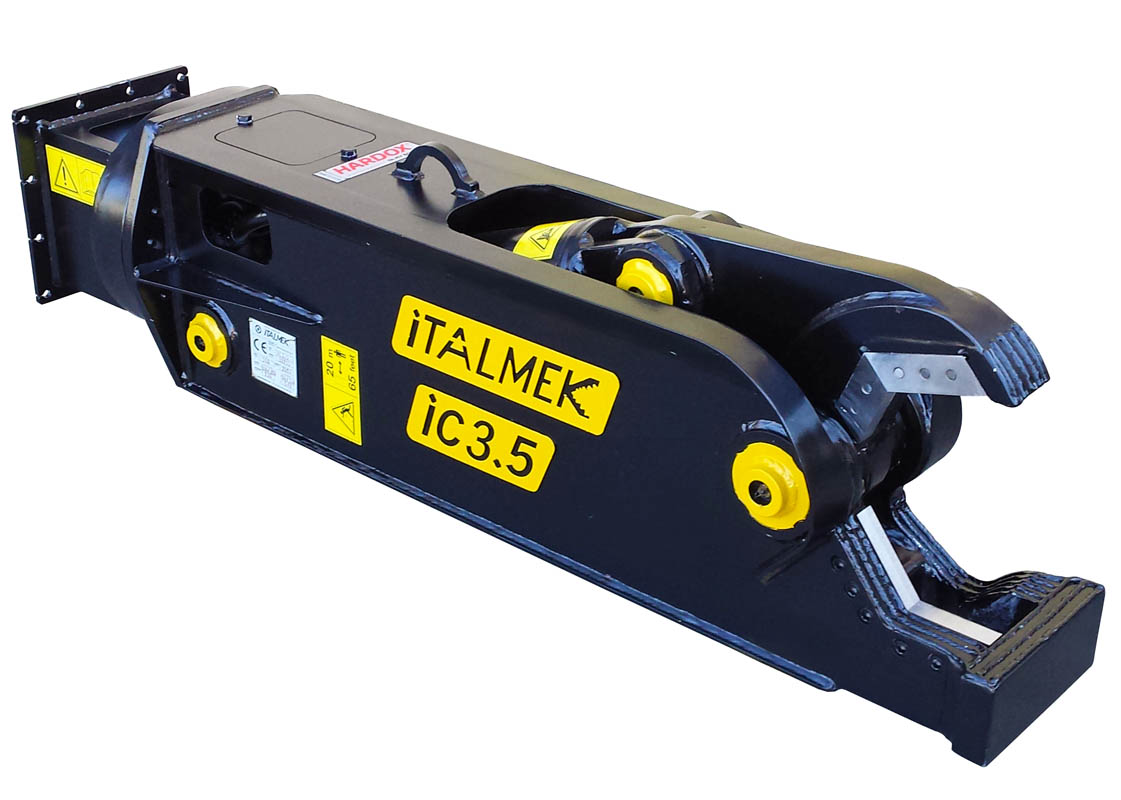

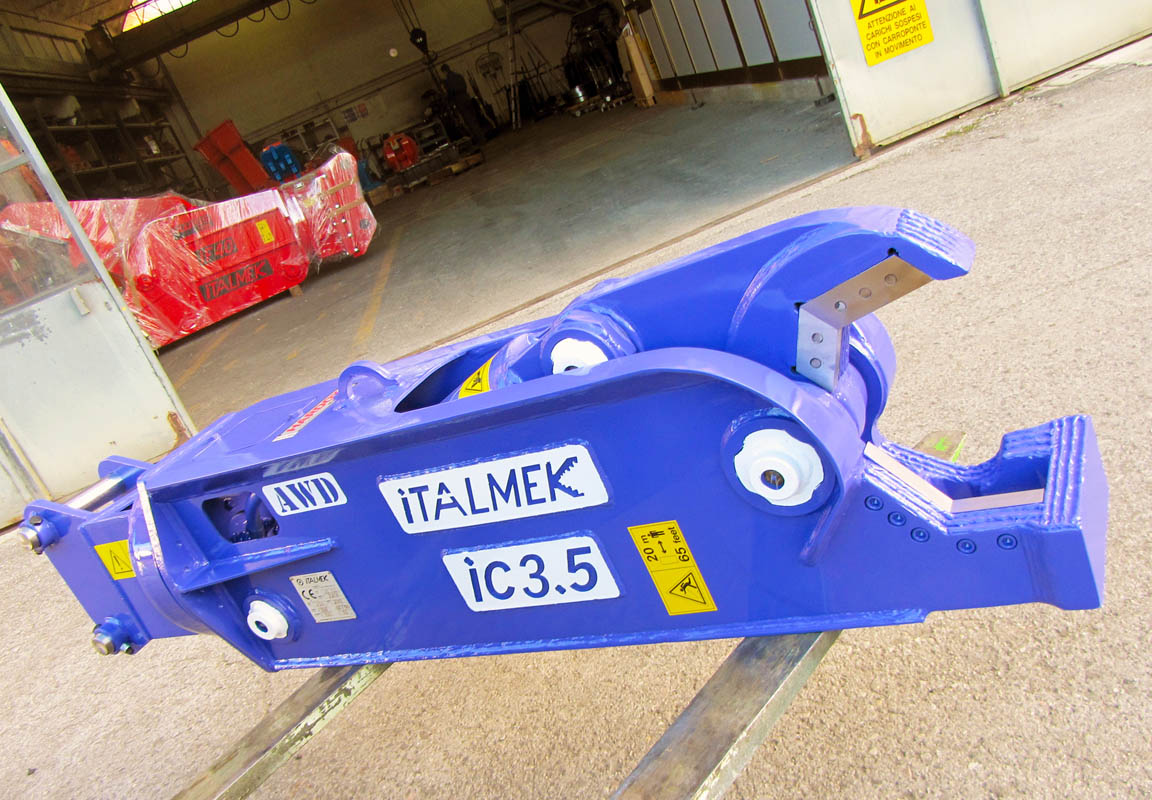

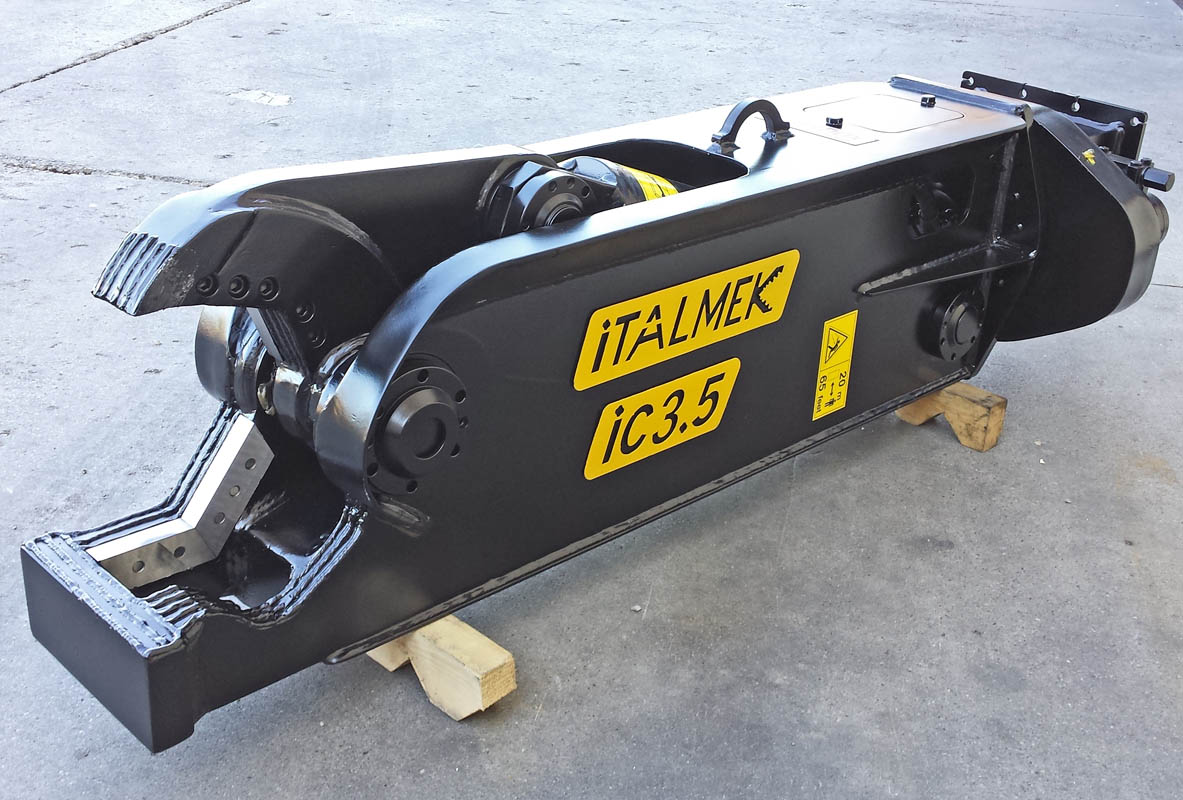

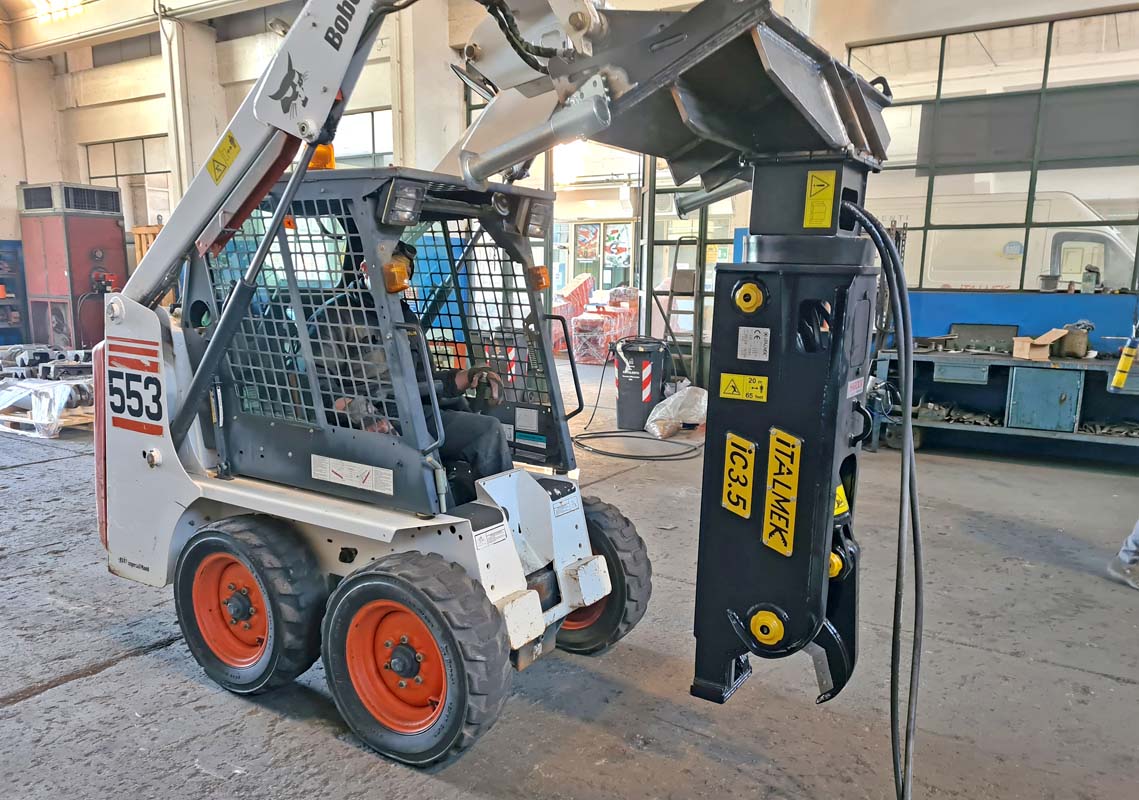

Steel shear IC3.5

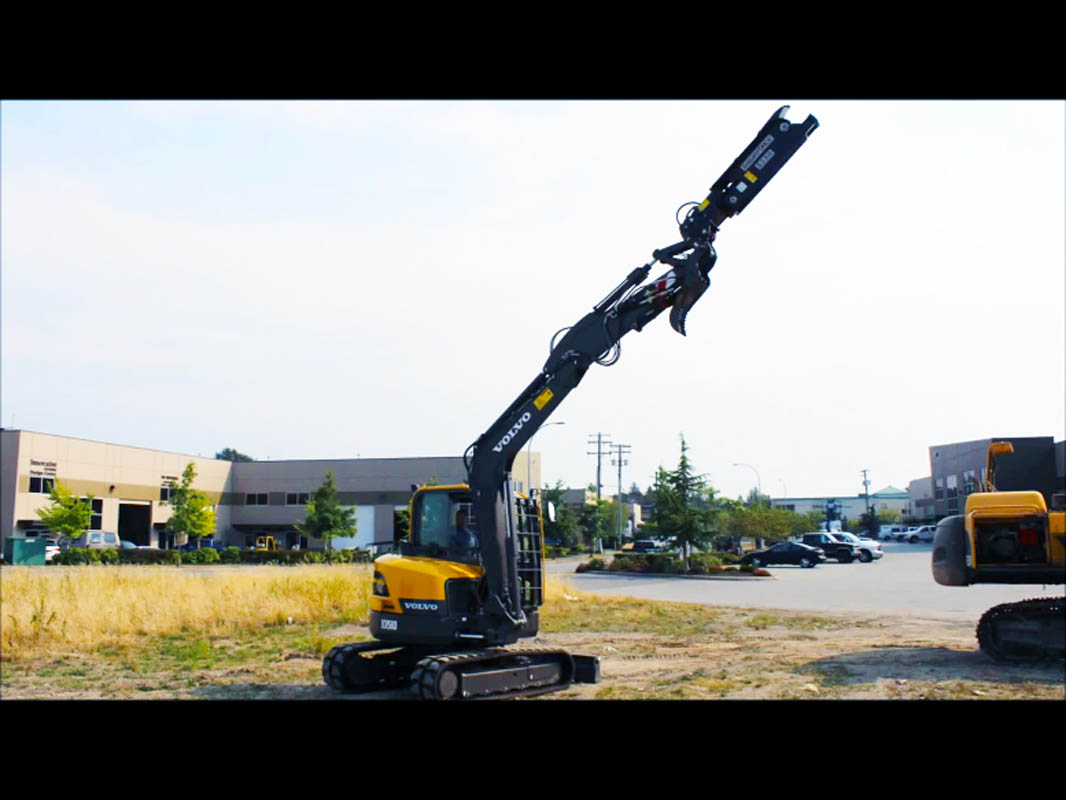

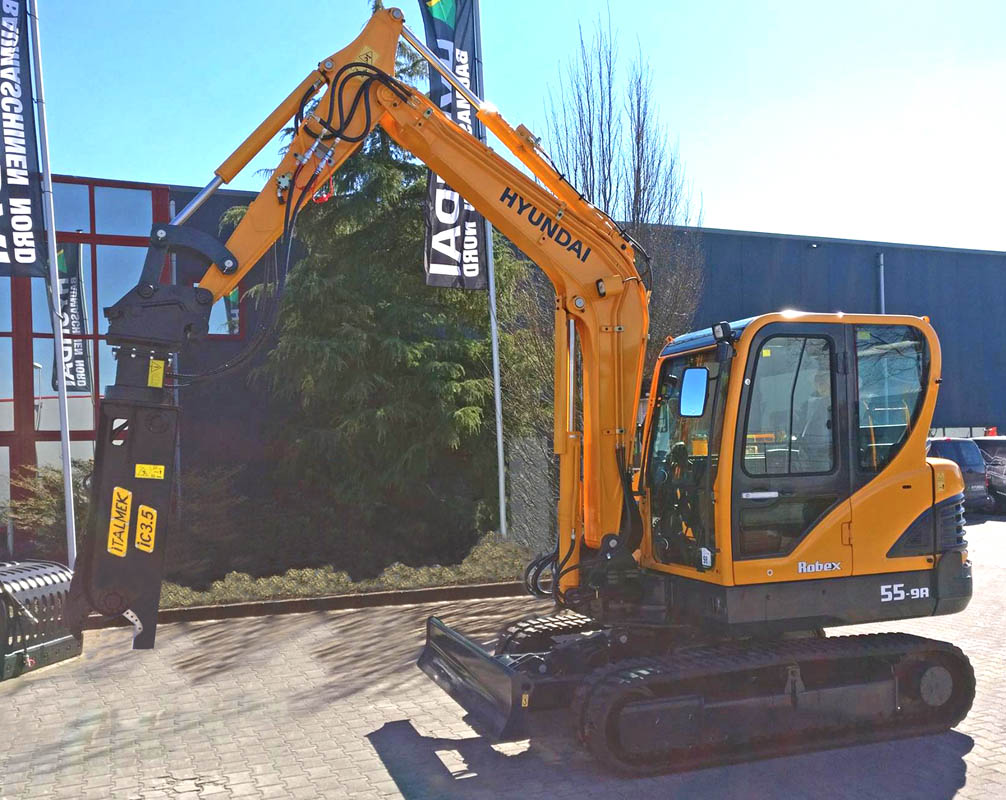

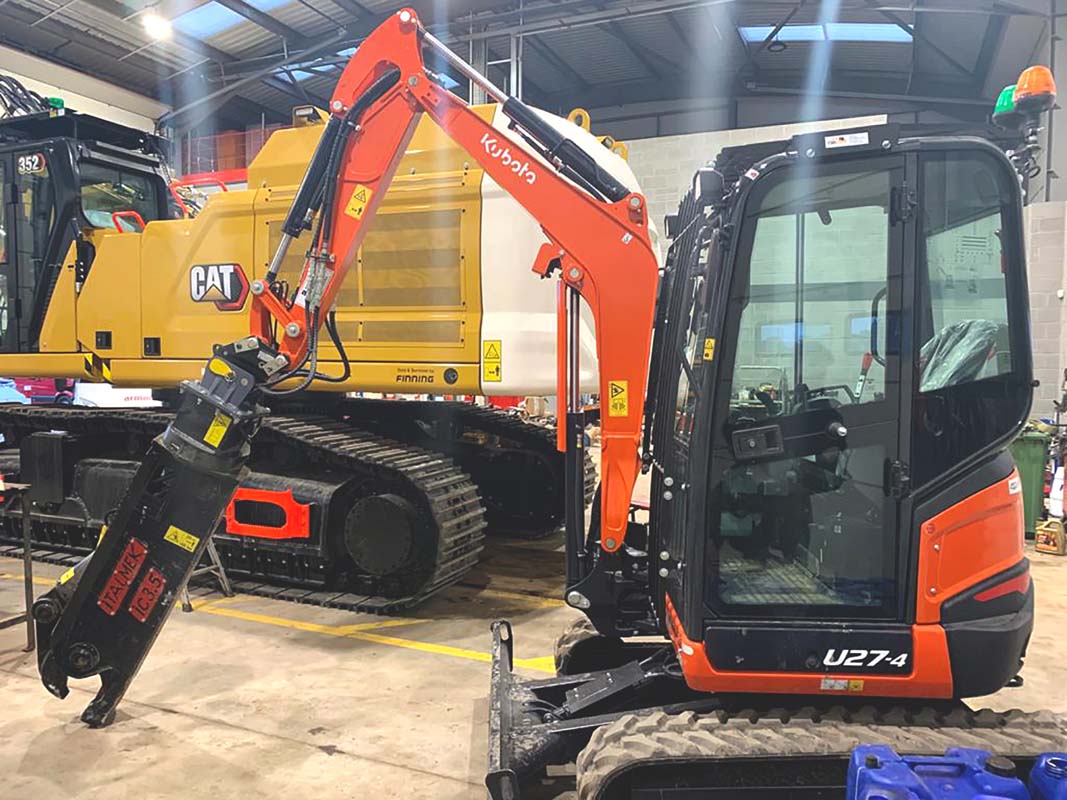

IC3.5 steel shear can be mounted on mini-excavators from 3 to 6 tons of weight. With pressure to 227 bar, it cuts full size iron rods 35mm.
Technical data sheet
Weight
kg
350
Mouth opening
mm
270
Mouth depth
mm
240
Total Length
mm
1.550
Bucket position
ton
3 - 6
Boom position
ton
1,5 - 3
Working pressure
bar
200 - 250
Working flow
l/m
50 - 100
Rotation Pressure
bar
130
Rotation flow
l/m
5 - 8

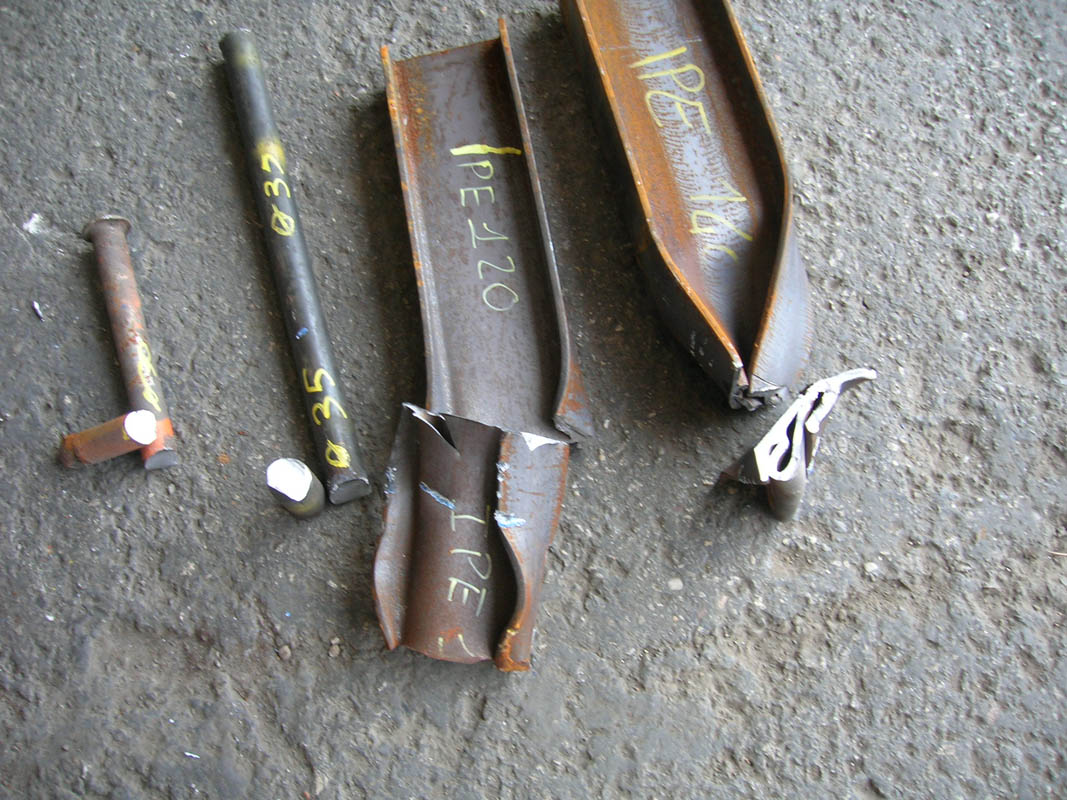

Cutting capacity
mm
35

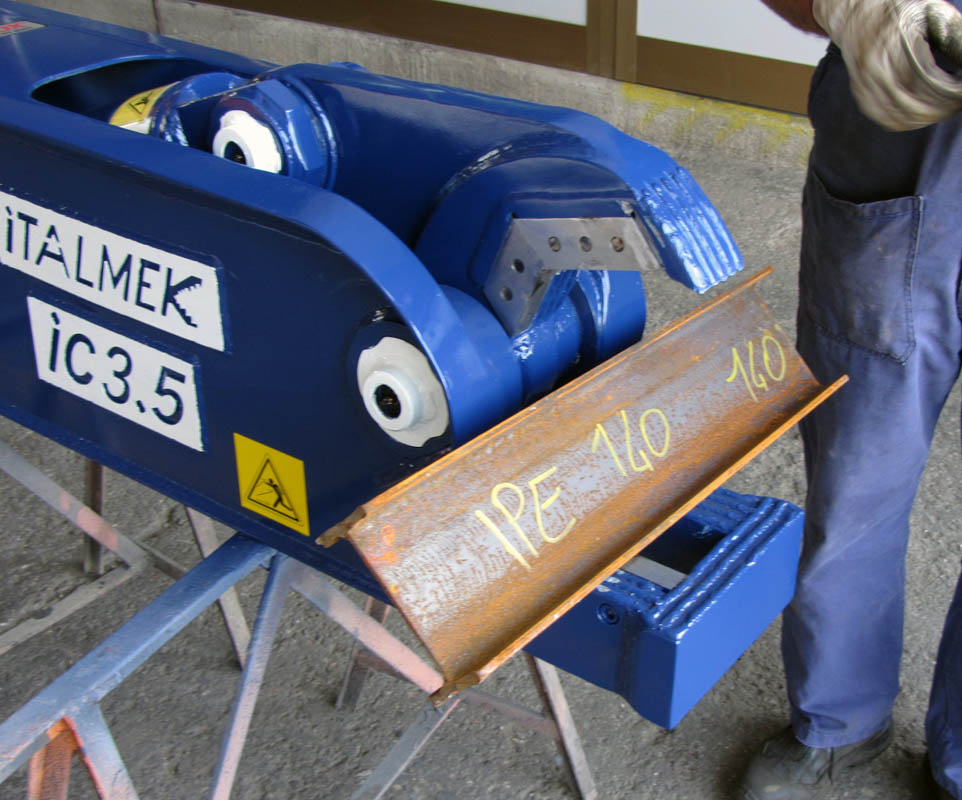

Cutting capacity (IPE)
mm
140
