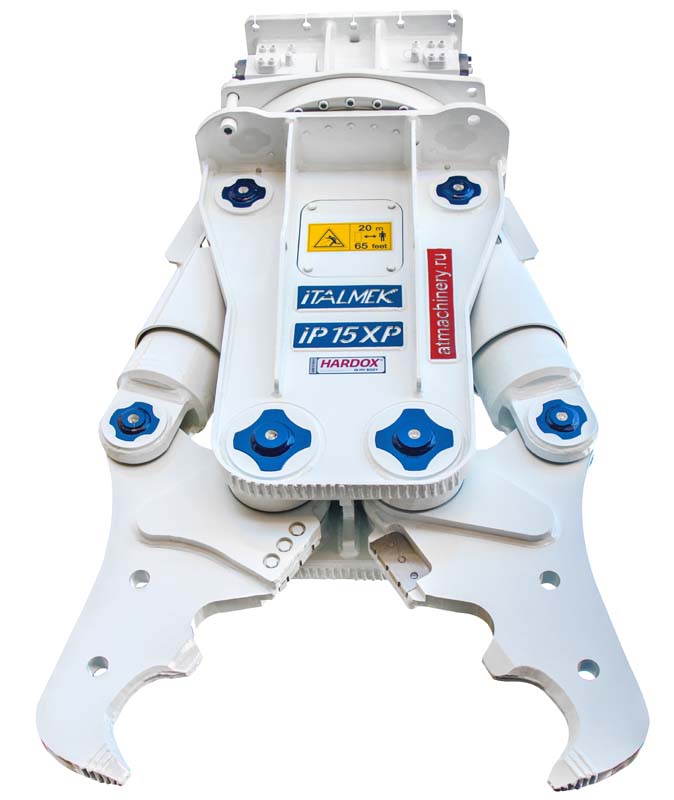

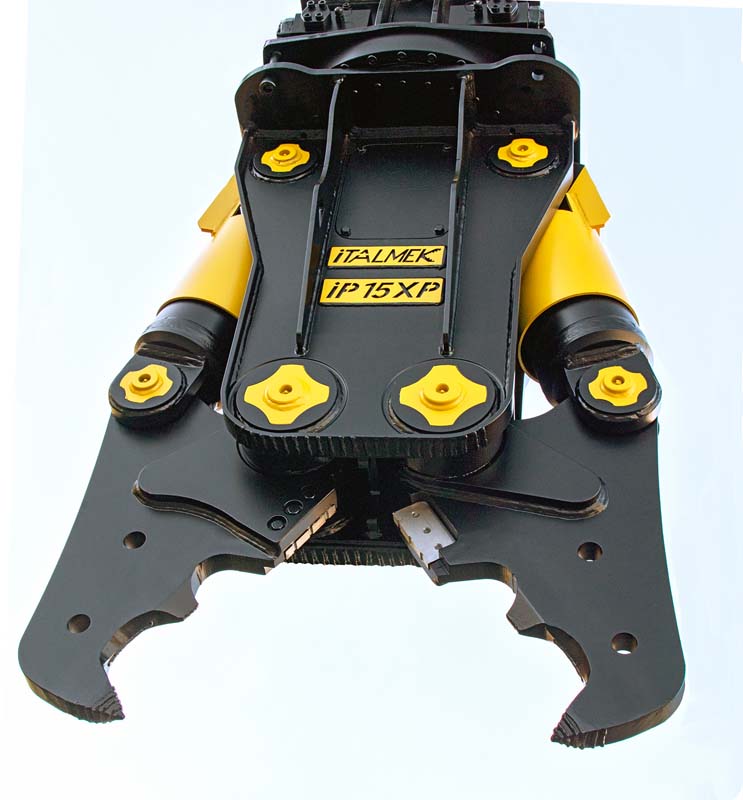

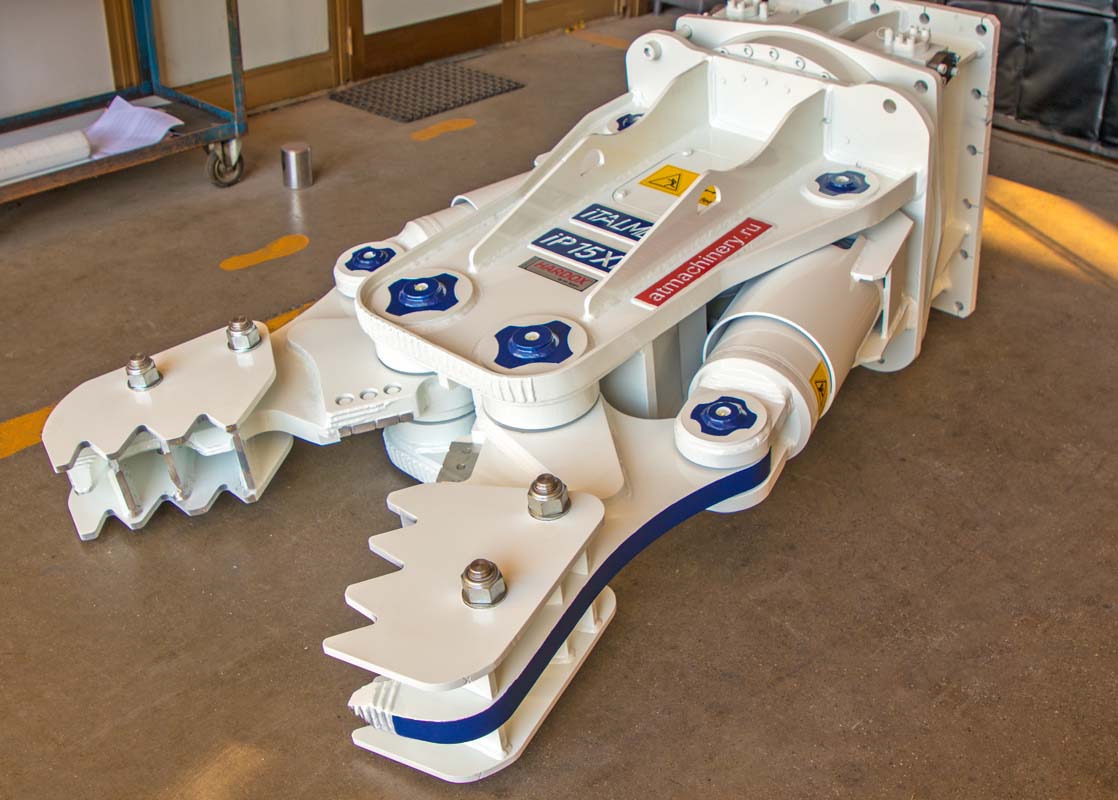

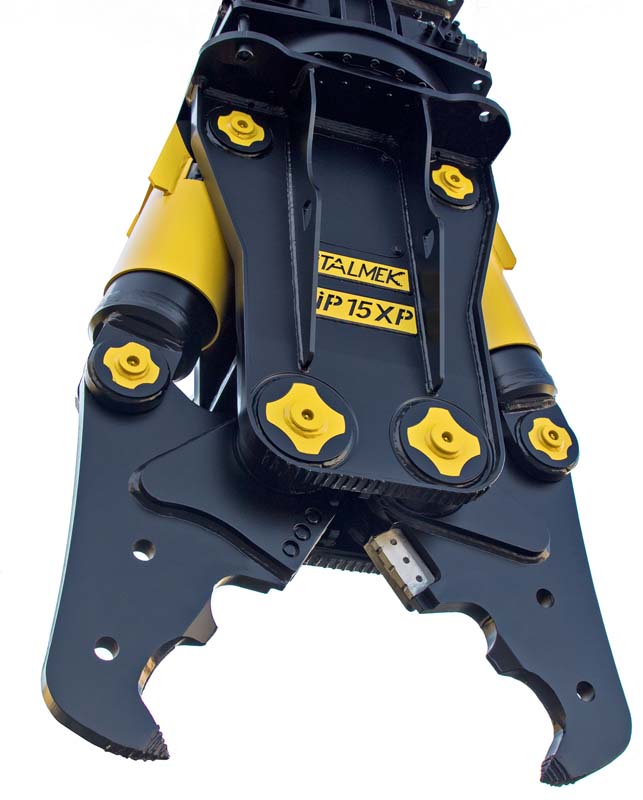

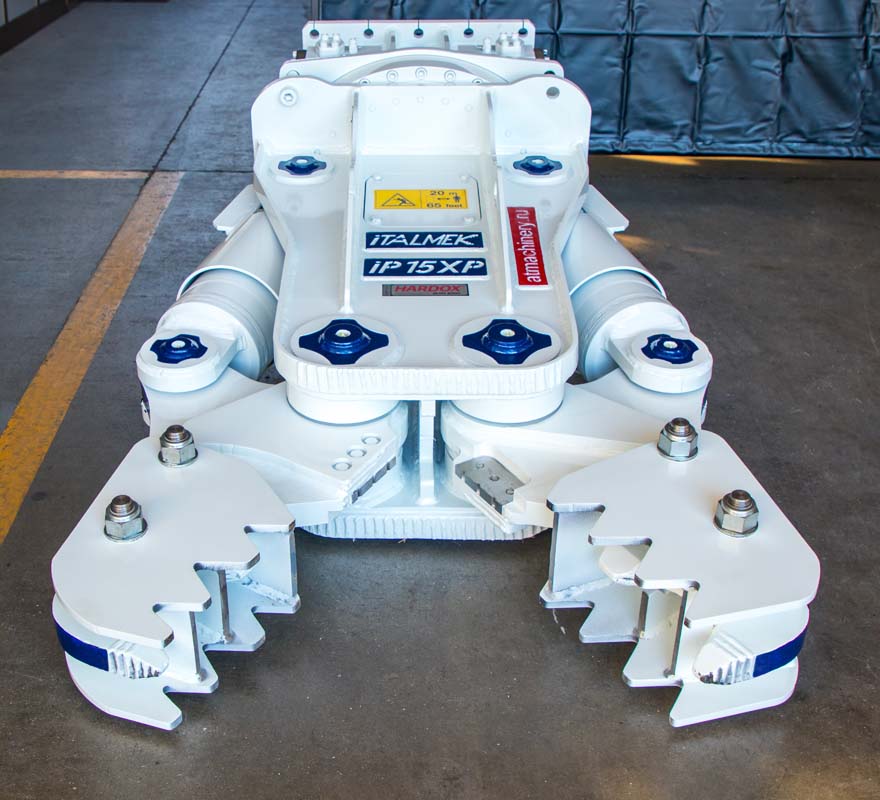

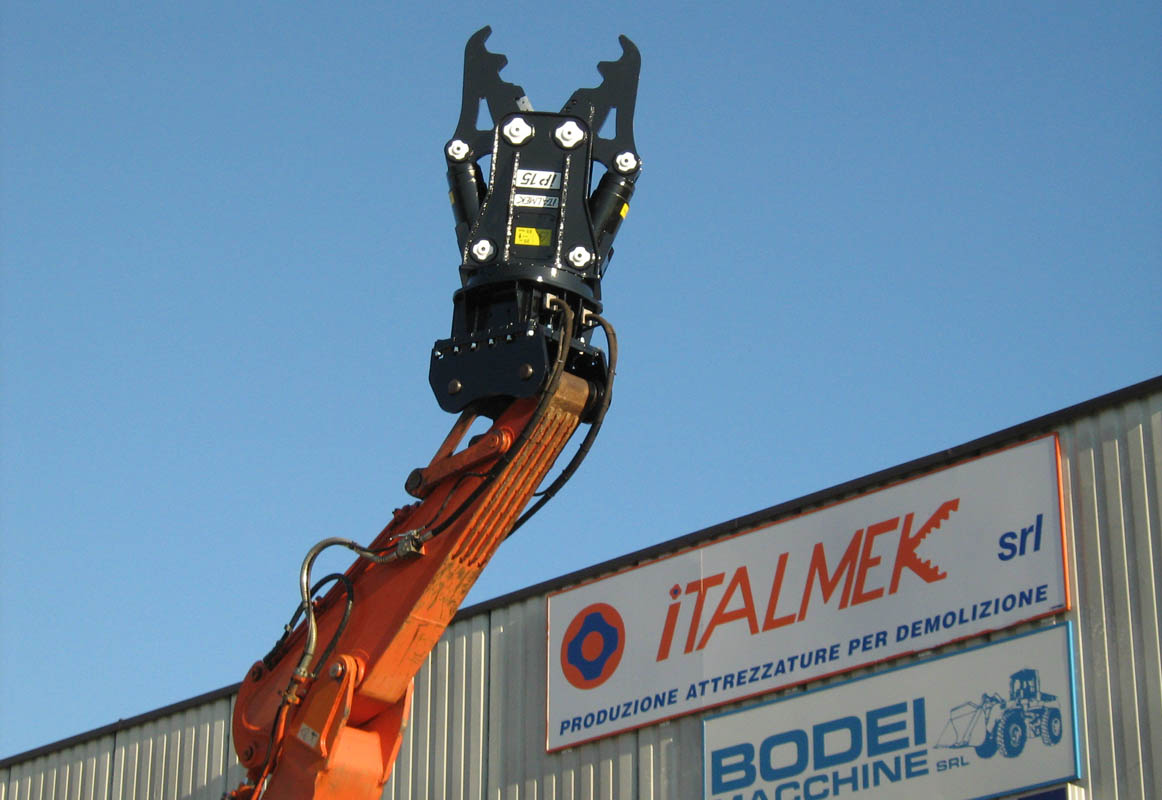

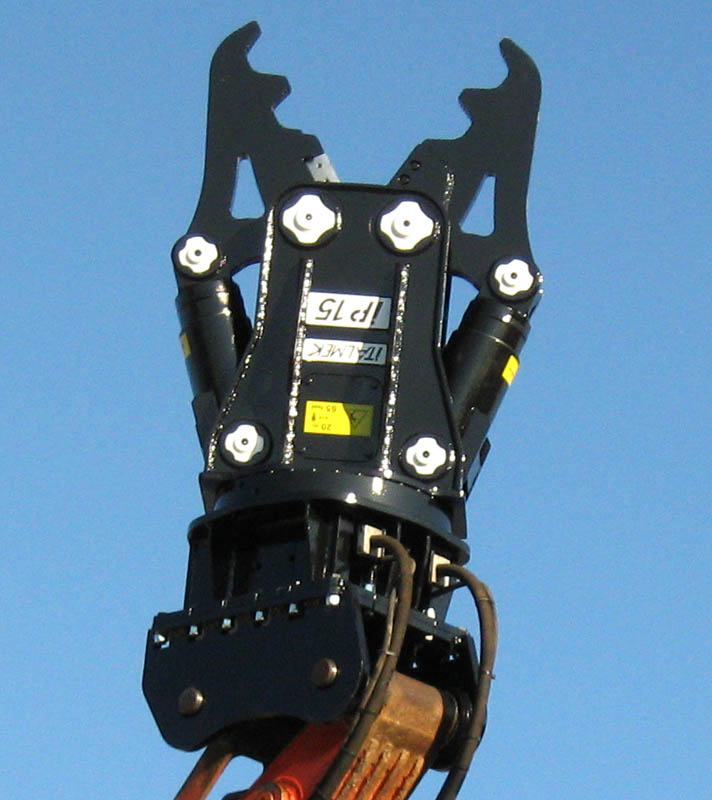

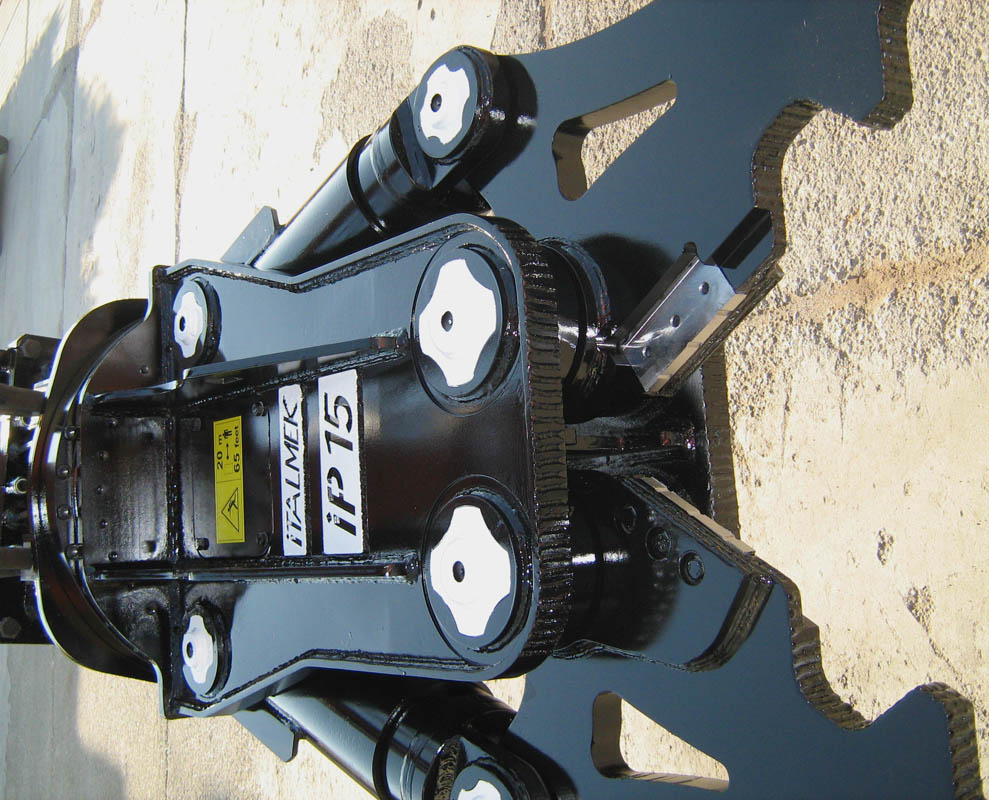

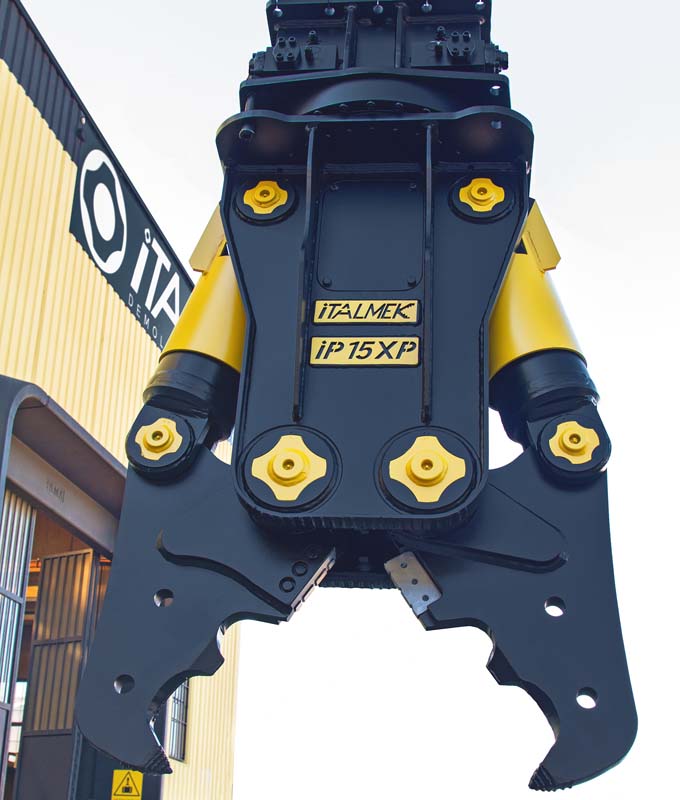

Demolition shear IP15

IP15 hydraulic demolition shear has a weight of 1.400 kg, an opening of 800 mm and a length of 1.900 mm. The maximum working pressure is 320 bar.

Technical data sheet
Weight
kg
1.400
Mouth opening
mm
800
Total Length
mm
1.900
Bucket position
ton
15 - 21
Working pressure
bar
320
Working flow
l/m
120
Rotation Pressure
bar
110
Rotation flow
l/m
30
Connection
SAE 6000
1" 90°
Connection (BSP)
BSP (Gas)
F 3/8""
