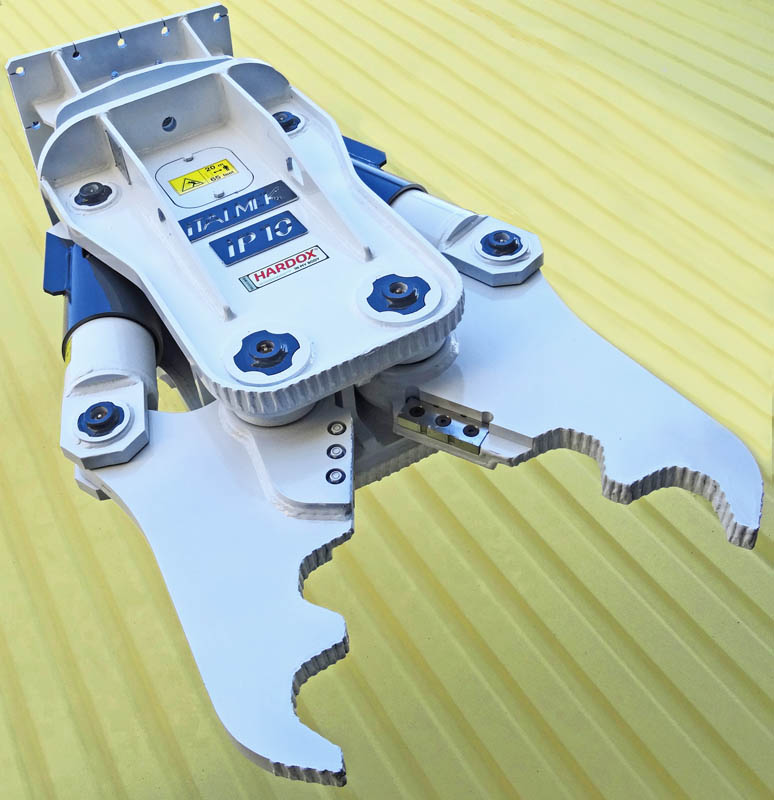

Demolition shear IP10

IP10 demolition shear has a weight of 950 kg, an opening of 690 mm and a length of 1.650 mm. The maximum working pressure is 300 bar.

Technical data sheet
Weight
kg
950
Mouth opening
mm
690
Rotation flow
l/m
8/10
Rotation Pressure
bar
150
Working flow
l/m
50/100
Working pressure
bar
300
Bucket position
ton
13 - 15
Total Length
mm
1.650
