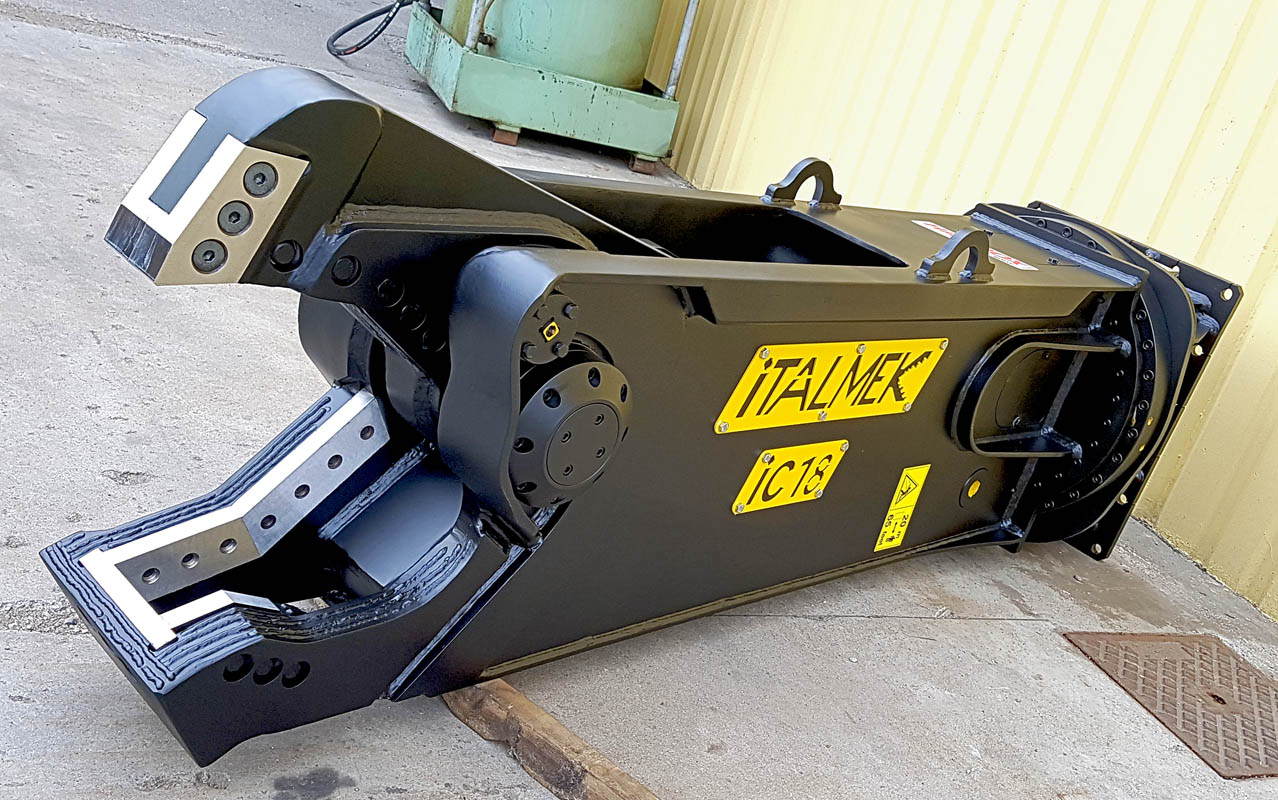

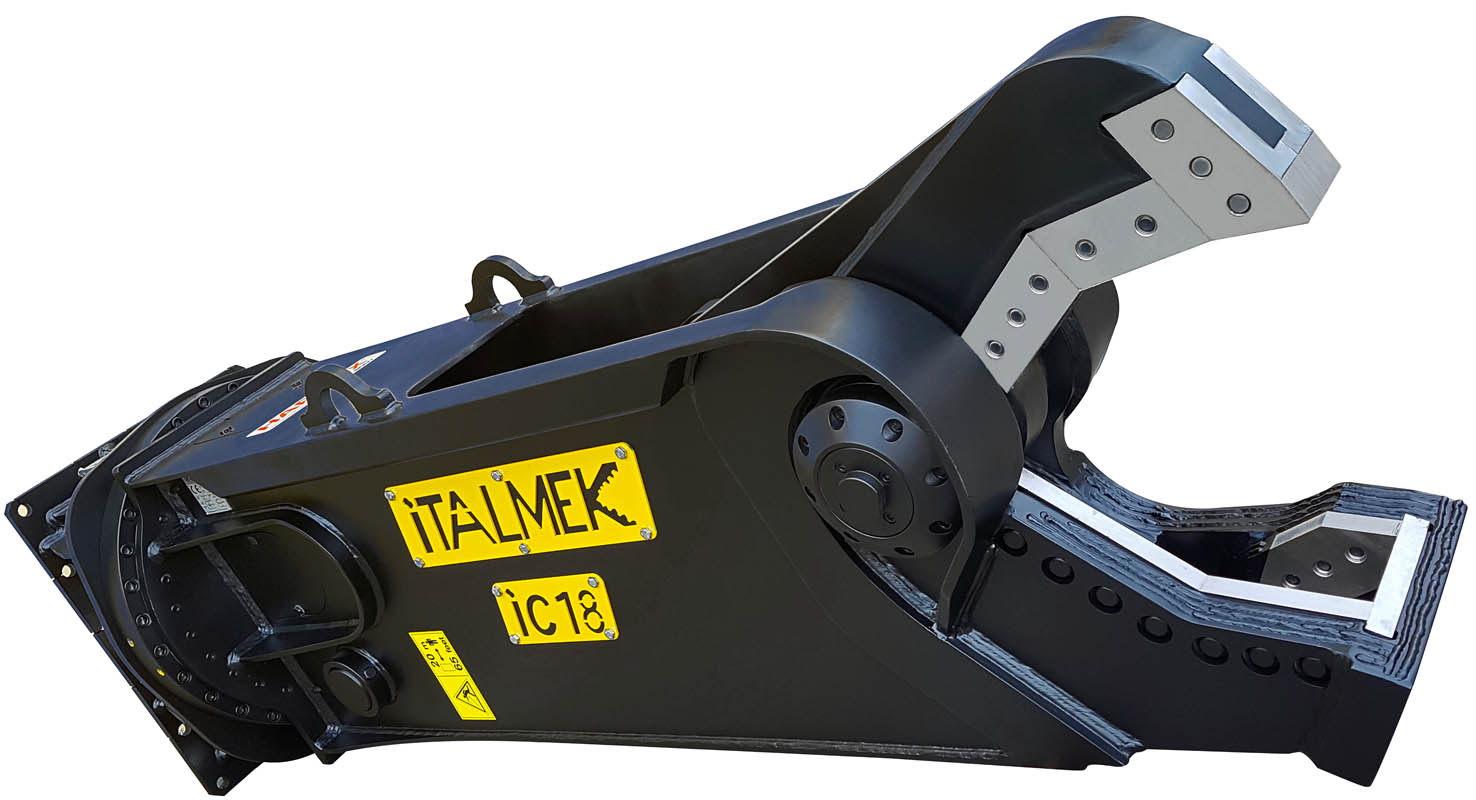

Steel shear IC18

IC18 steel shear is suitable for the demolition of small / medium size metal elements. The shear IC18 has a weight of 1.950 kg and a mouth opening of 480 mm. With hydraulic pressure adjusted to 320 bar its cutting capacity is enough to cut a 65 mm full round rod.

Technical data sheet
Weight
kg
1.950
Mouth opening
mm
480
Mouth depth
mm
430
Total Length
mm
2.490
Bucket position
ton
16 - 26
Boom position
ton
9 - 18
Working pressure
bar
320
Working flow
l/m
150 - 230
Rotation Pressure
bar
110
Rotation flow
l/m
30
Cutting capacity
mm
65
Cutting capacity (HEA)
mm
180
Cutting capacity (IPE)
mm
270
