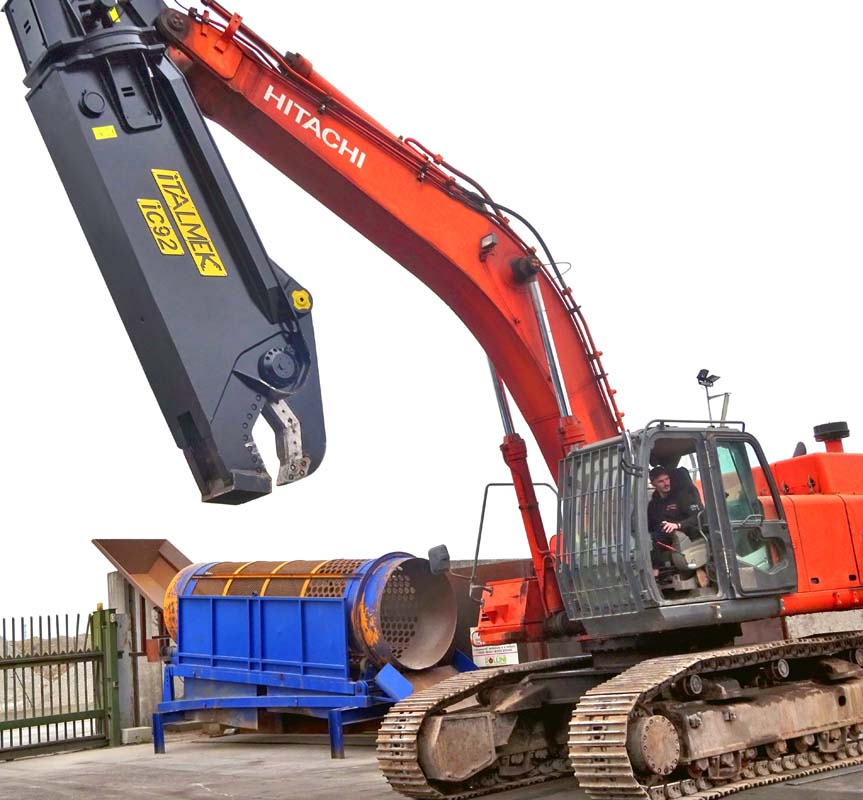

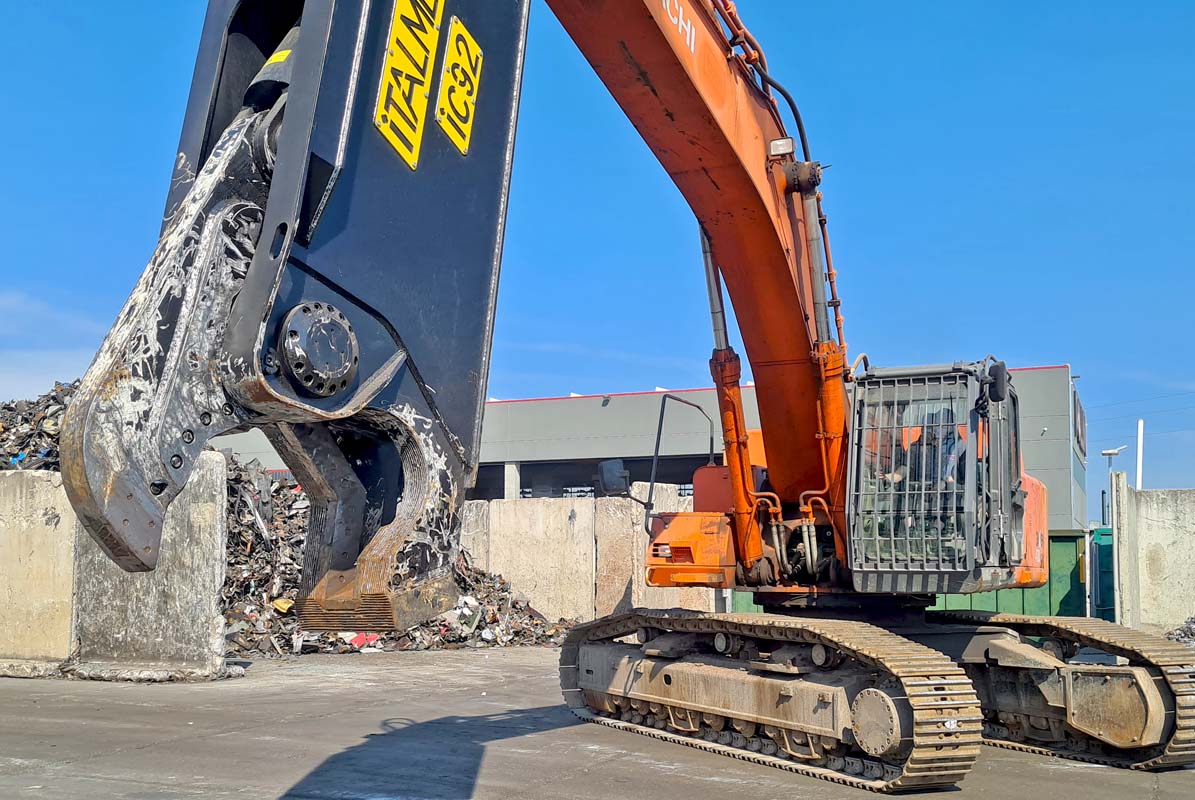

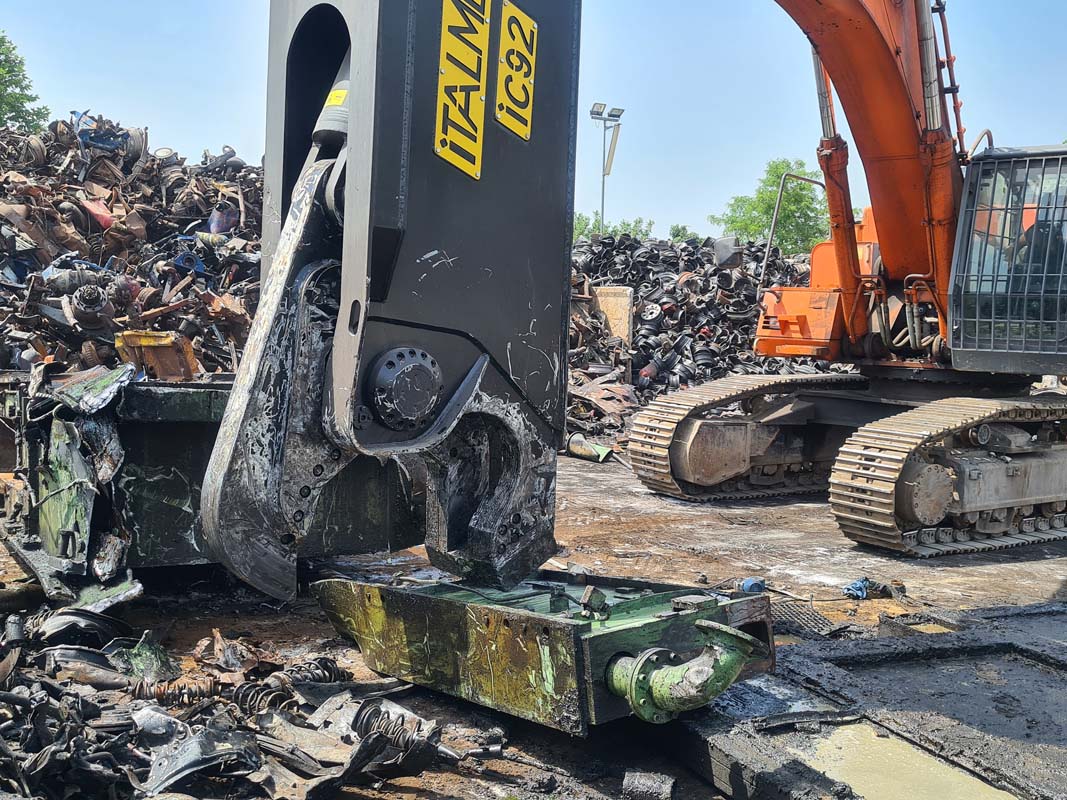

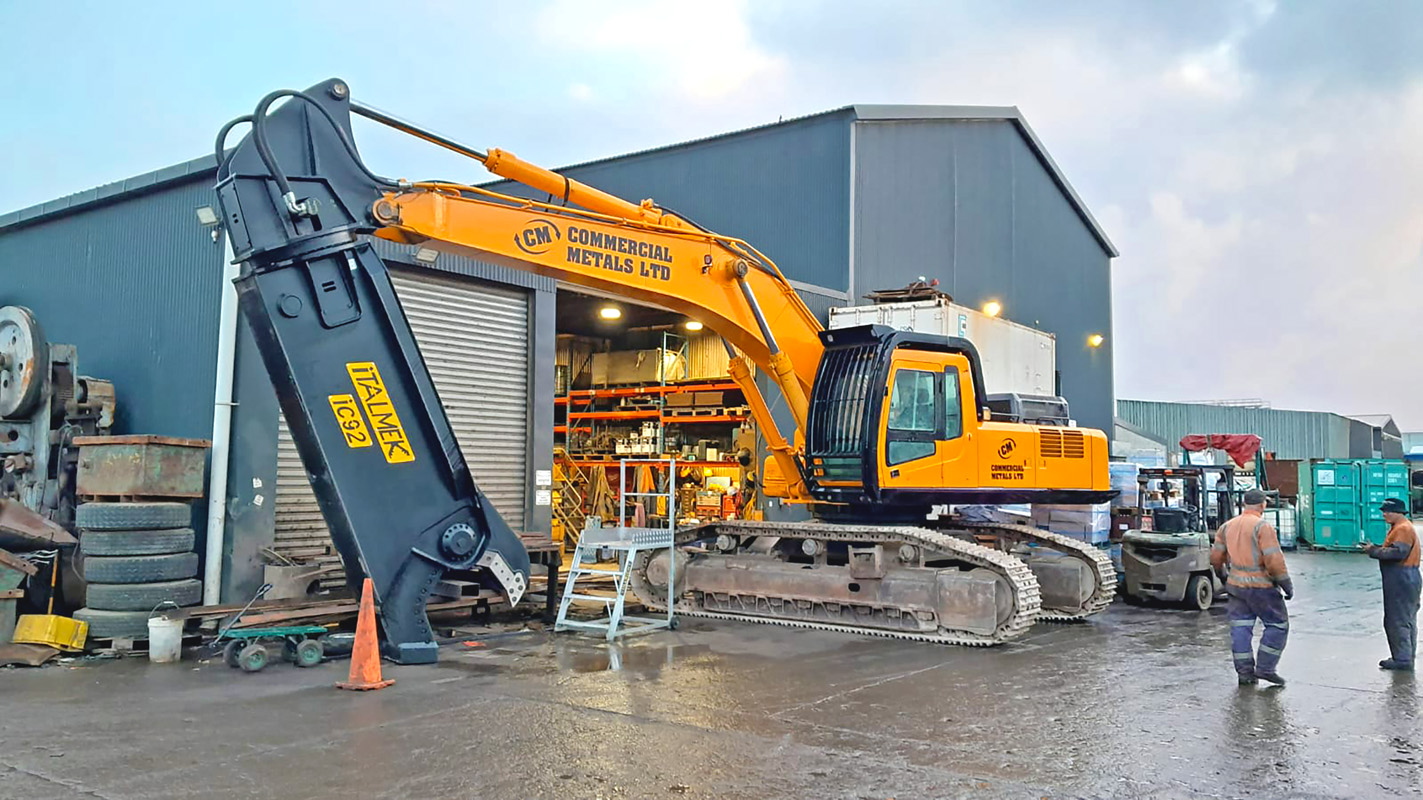

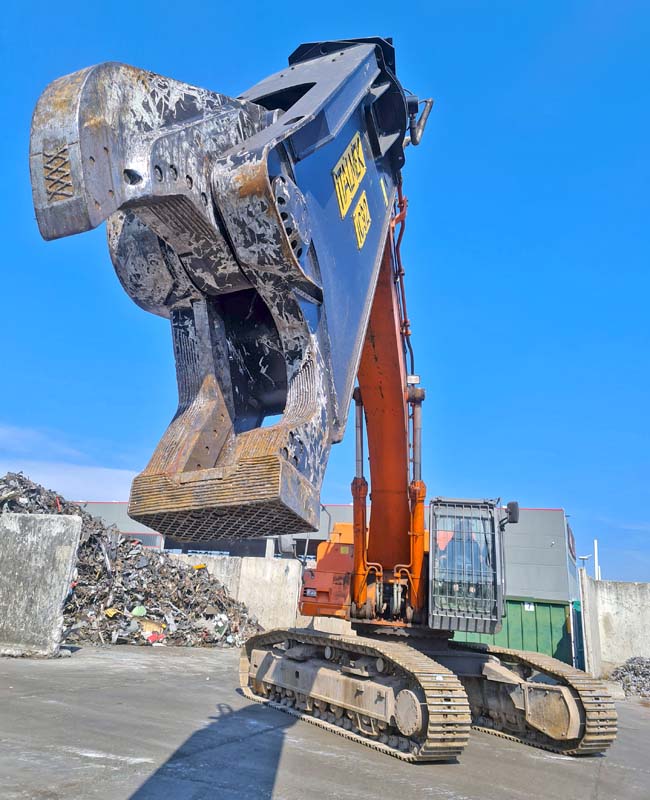

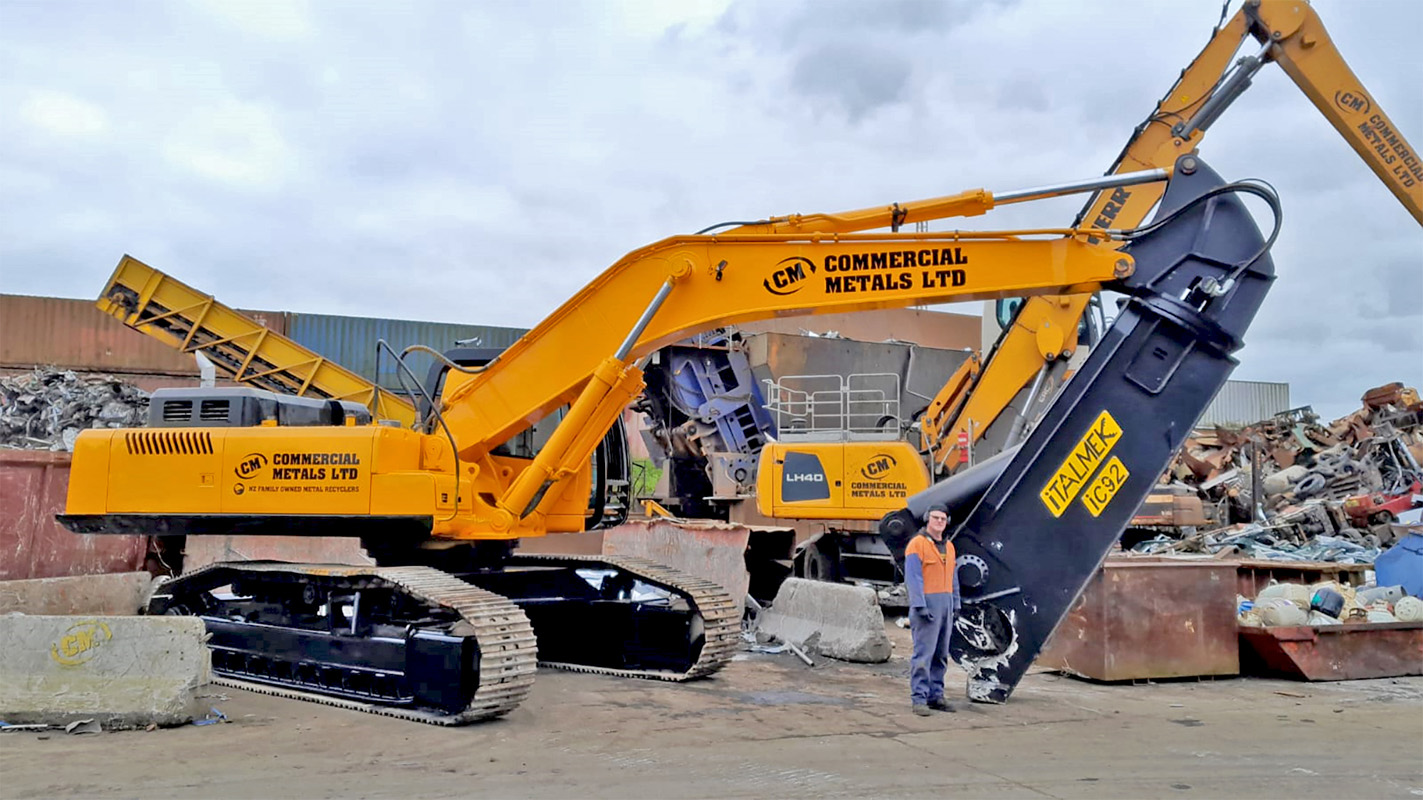

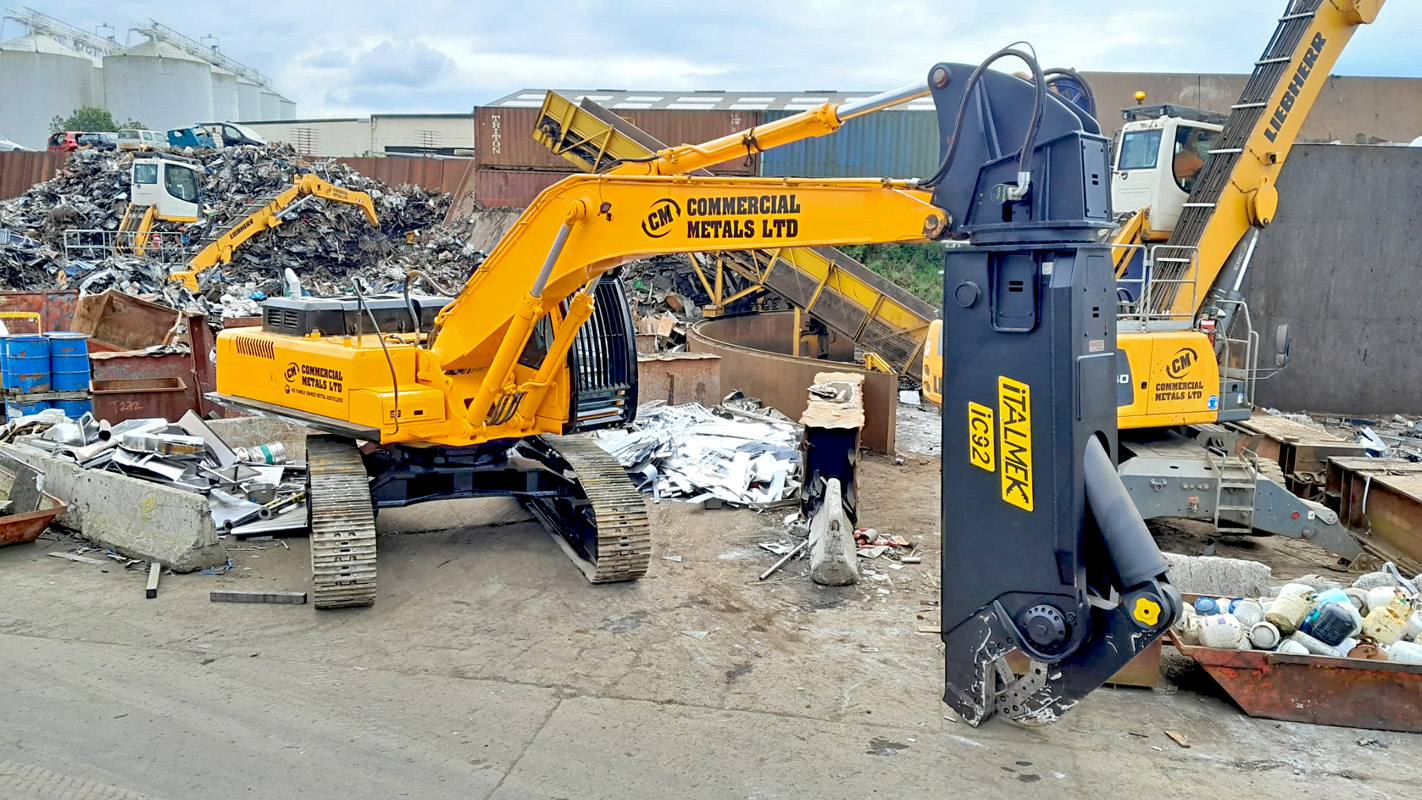

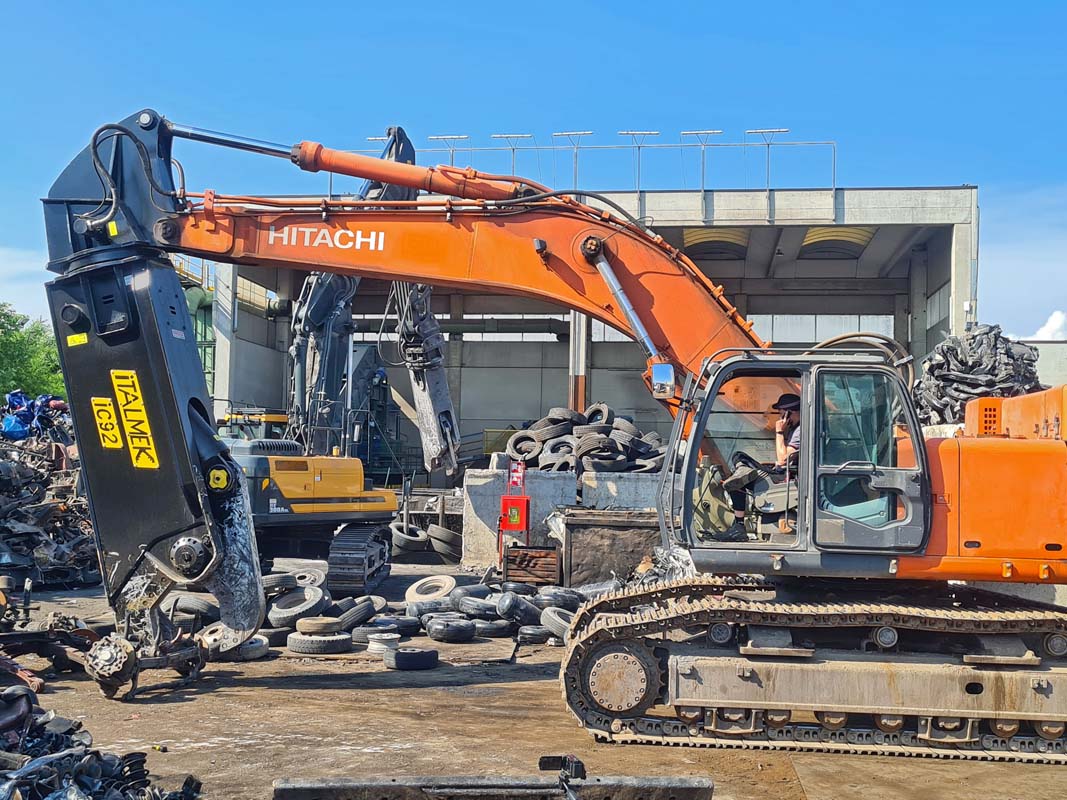

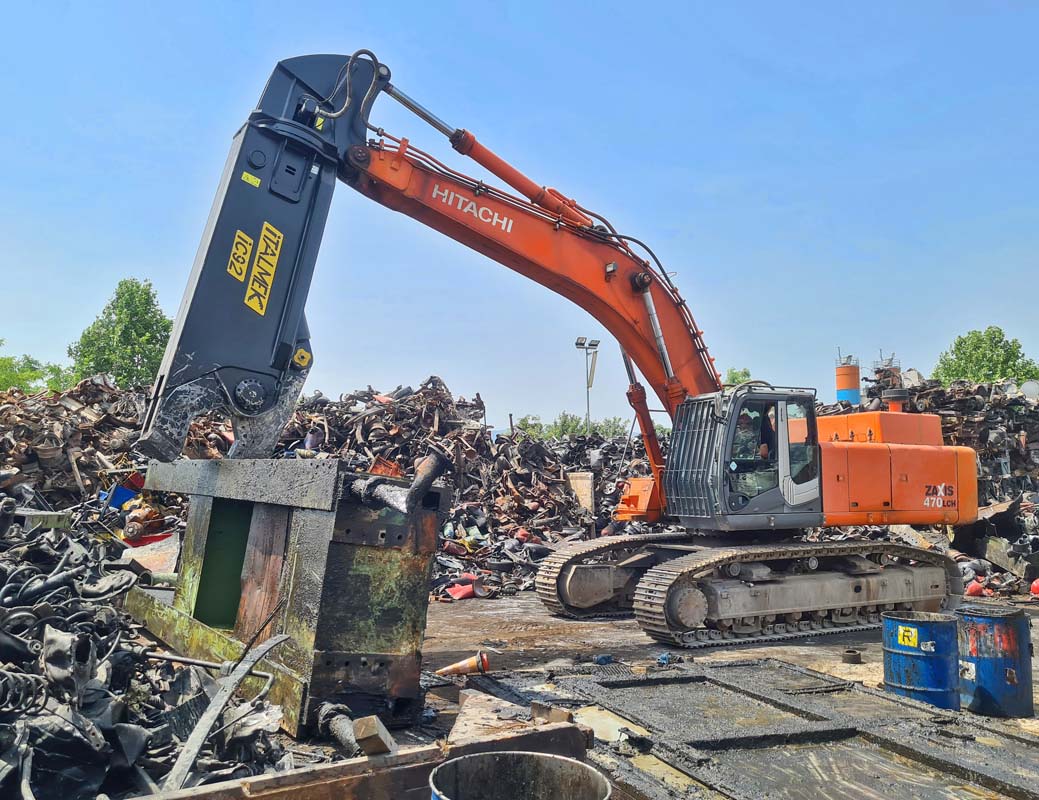

Steel shear IC92

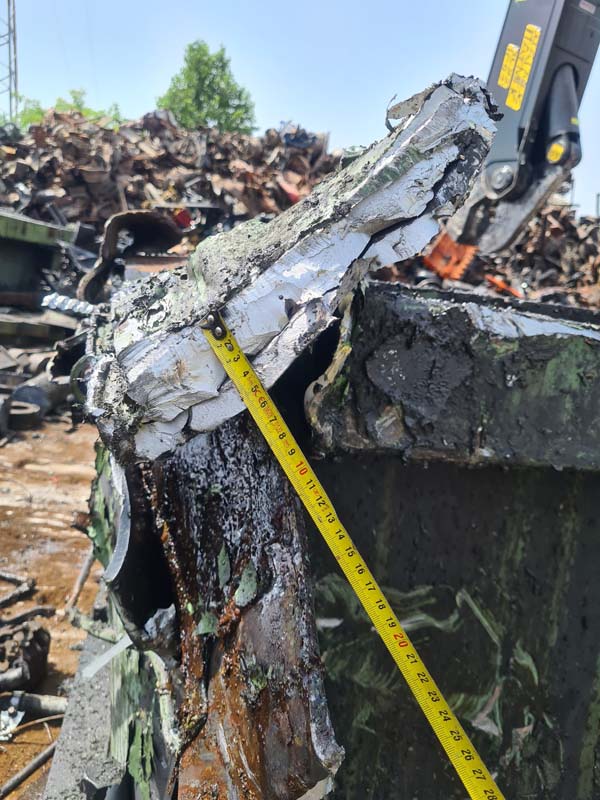

IC92 steel shear has a weight of 9.500 kg without adapter.  A mouth opening of 1000 mm and a length of 4.800 mm. With hydraulic pressure adjusted to 350 bar its cutting capacity is enough to cut a 140 mm full round rod.

Technical data sheet
Working flow
l/m
400 - 600
Working pressure
bar
350
Total Length
mm
4.800
Mouth opening
mm
1000
Weight
kg
9.500
Cutting capacity (IPE)
mm
800
Rotation Pressure
bar
180
Rotation flow
l/m
50
Mouth depth
mm
985
Boom position
ton
49 - 65
Bucket position
ton
80 - 110
Cutting capacity
mm
140
Cutting capacity (HEA)
mm
550
