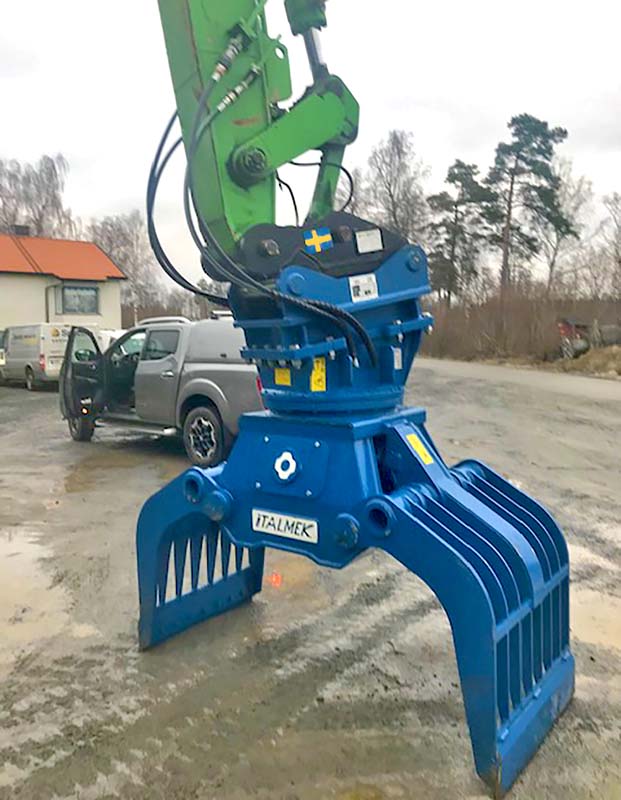

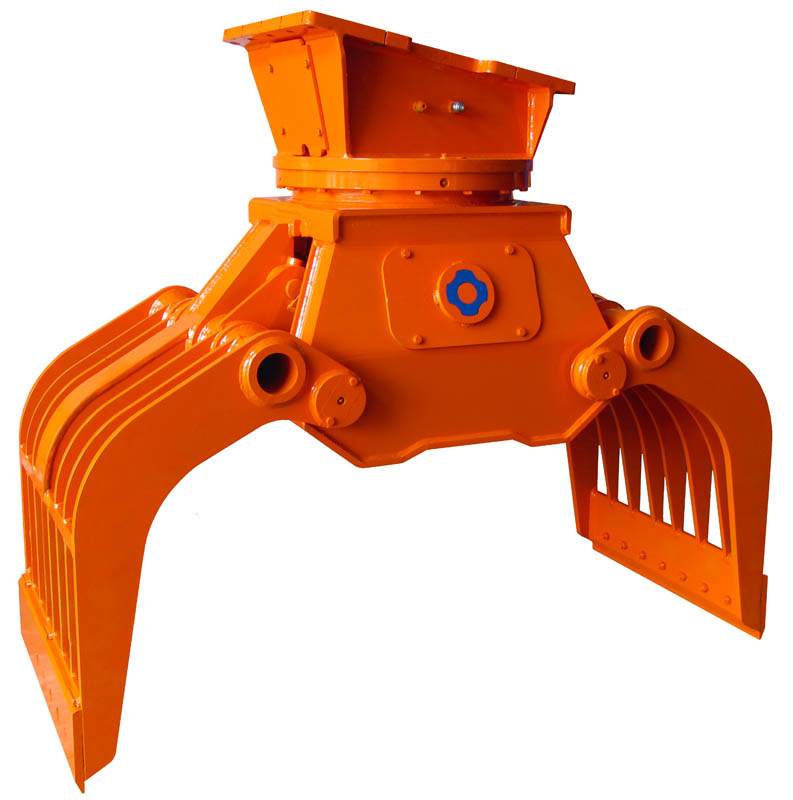

Demolition sorting grab IDG12

IDG12 demolition sorting grab has a weight of 1.150 kg and a mouth opening of 1.850 mm. The maxim hydraulic working pressure is 300 bar.

Technical data sheet
Weight
kg
1.150
Peso escavatore
ton
13/22
Working pressure
bar
300
Mouth opening
mm
1.850
Bucket position
ton
13 - 22
Rotation flow
l/m
10
Jaw width
mm
850
Height
mm
1.450
Working flow
l/m
100
Rotation Pressure
bar
150
Capacity
m3
0,420
Power on blade
ton
4.200
