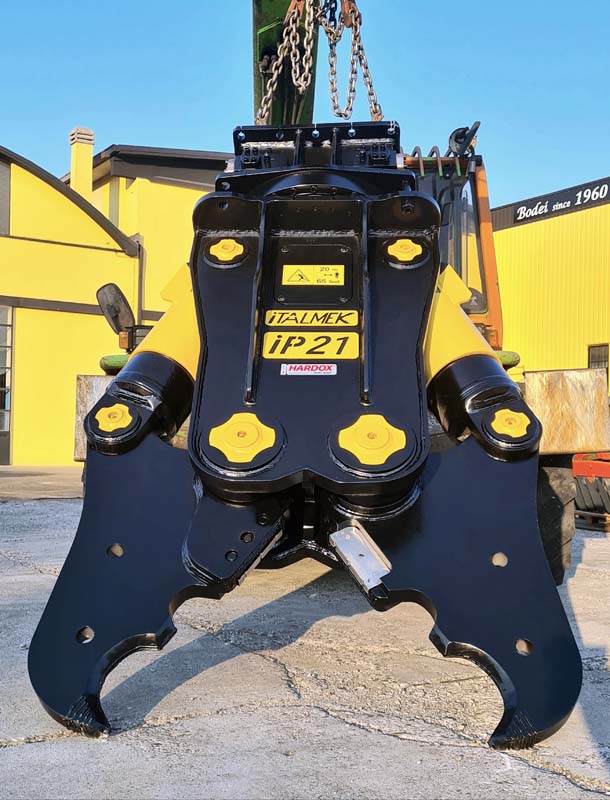

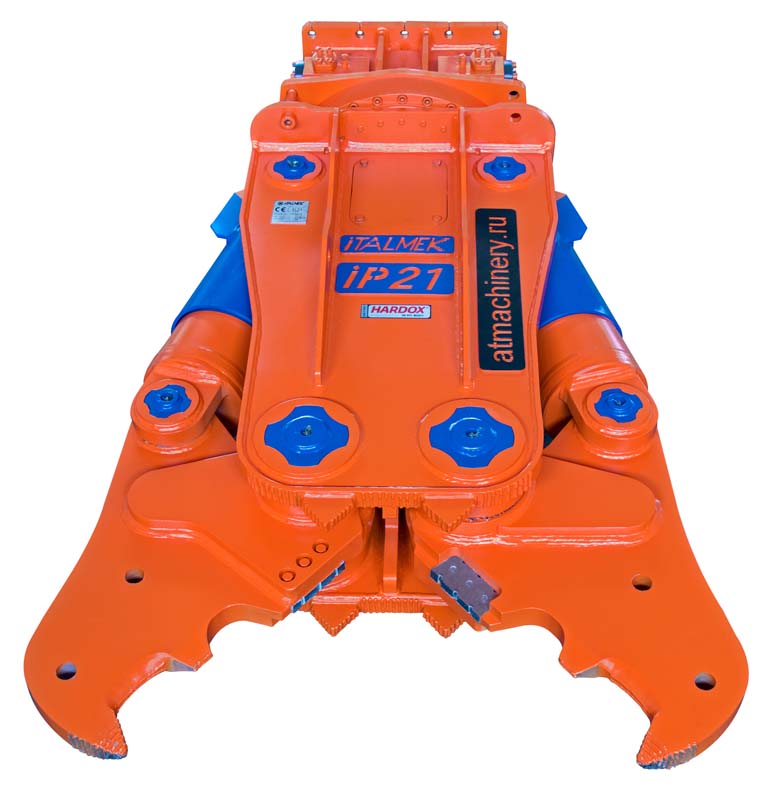

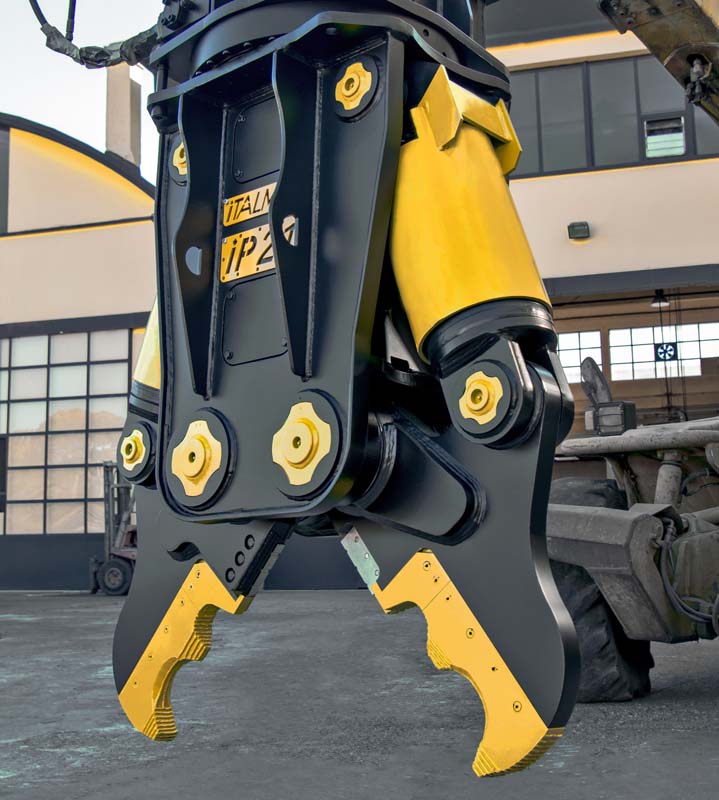

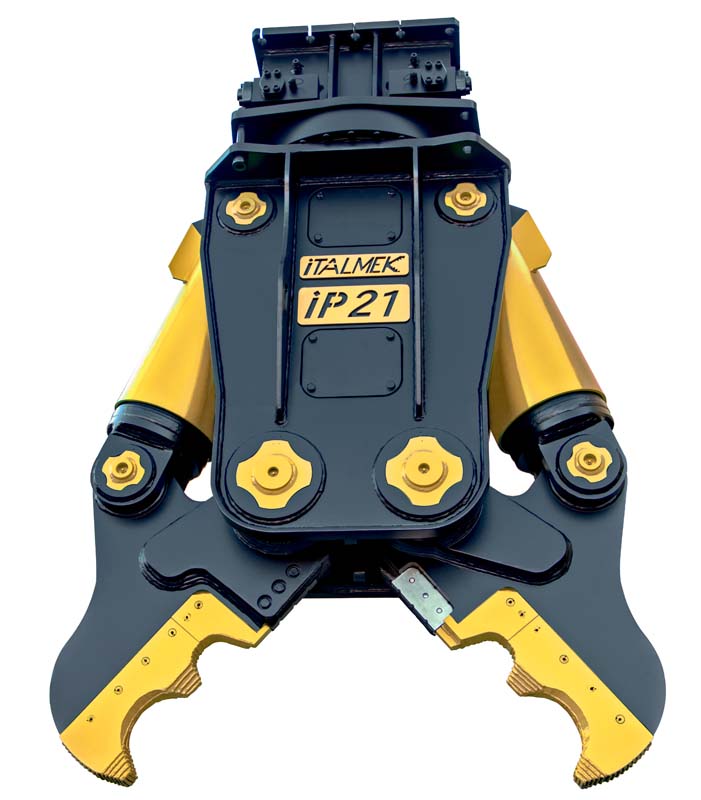

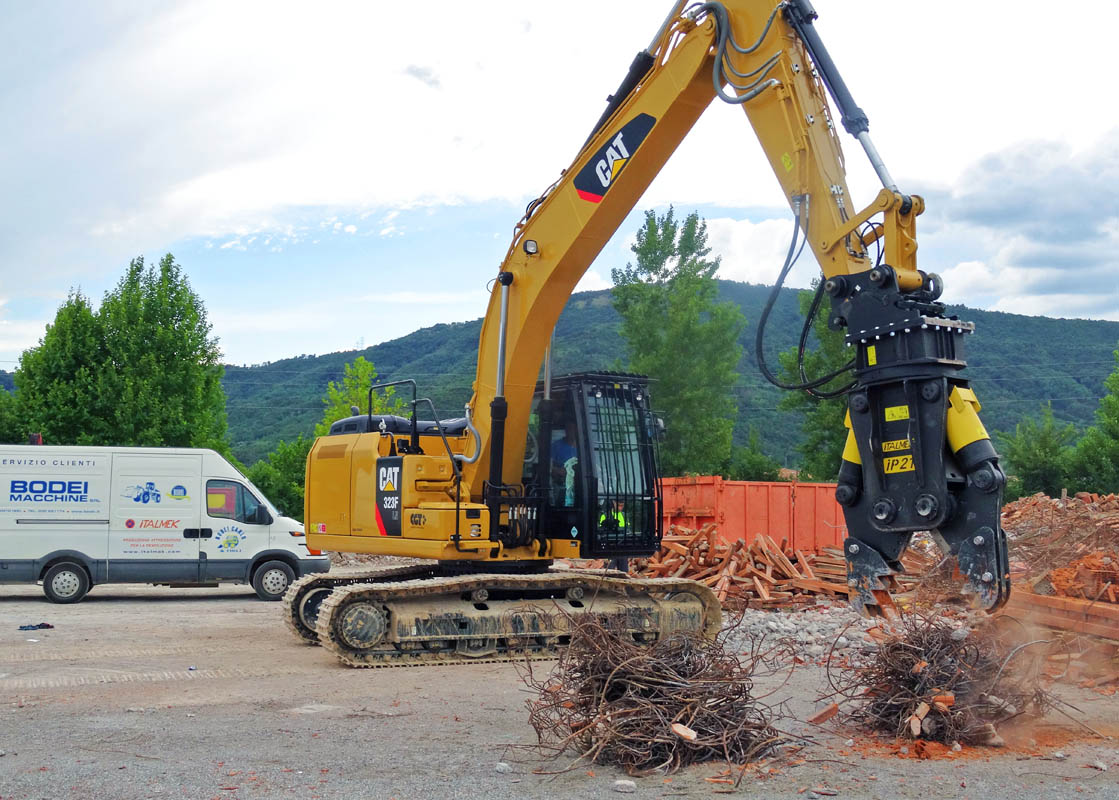

Demolition shear IP21

IP21 hydraulic demolition shear has a weight of 2.170 kg, an opening of 1.000 mm and a length of 2.100 mm. The maximum working pressure is 350 bar.

Technical data sheet
Weight
kg
2.170
Mouth opening
mm
1.000
Rotation flow
l/m
30
Rotation Pressure
bar
110
Working flow
l/m
200-280
Working pressure
bar
350
Bucket position
ton
22 - 29
Total Length
mm
2.100
