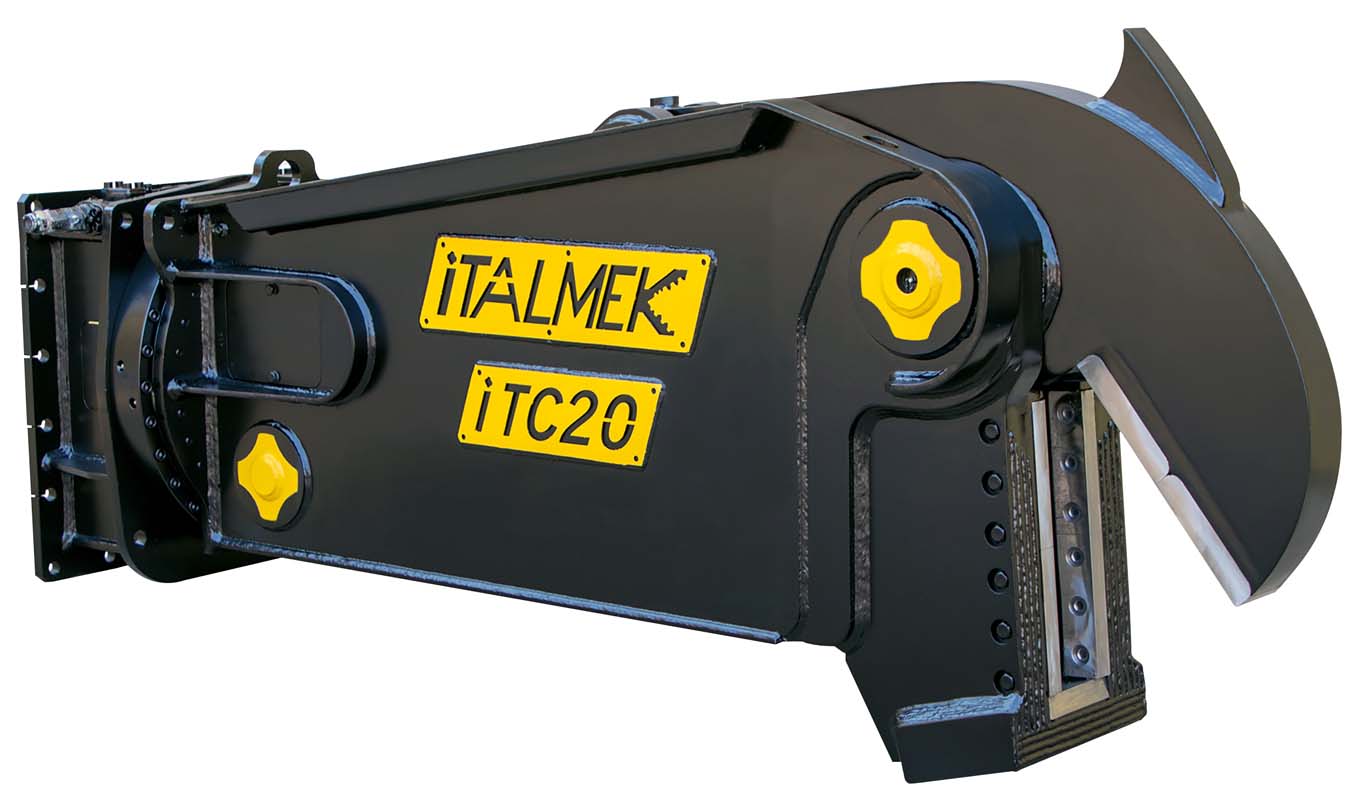

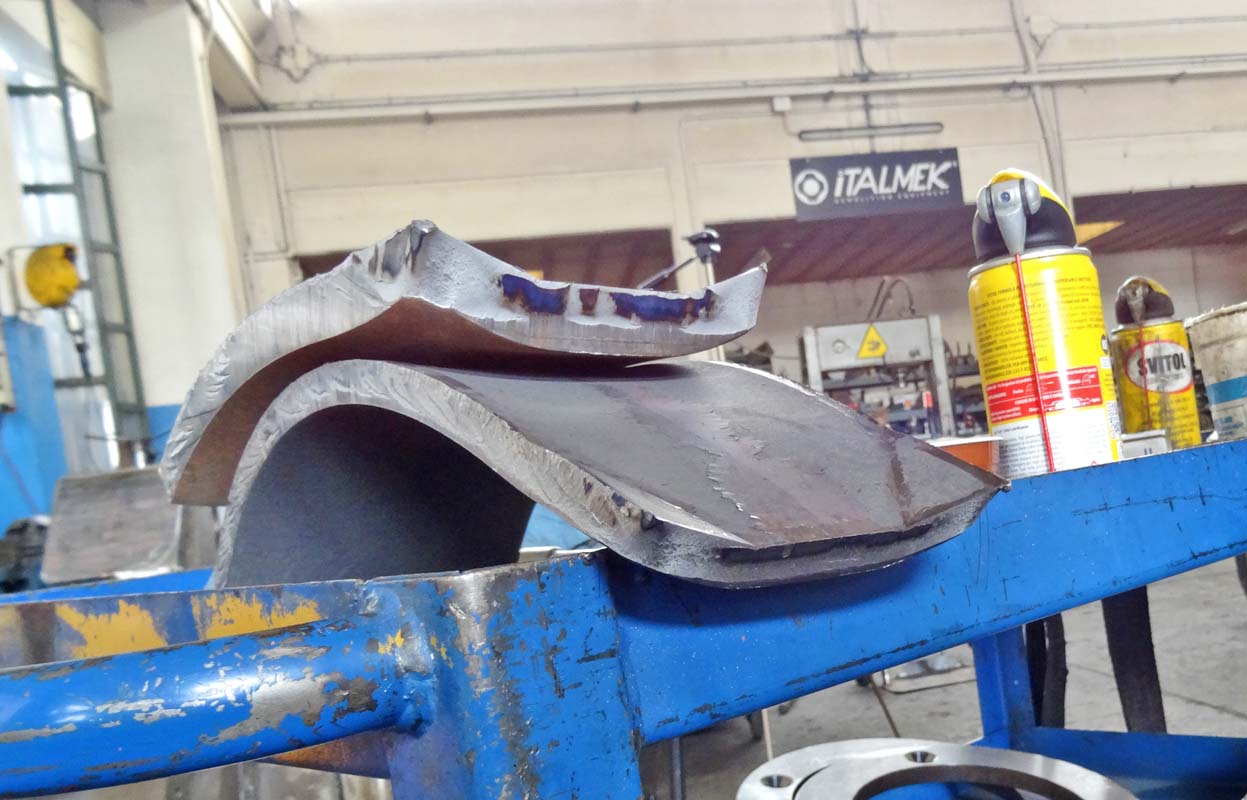

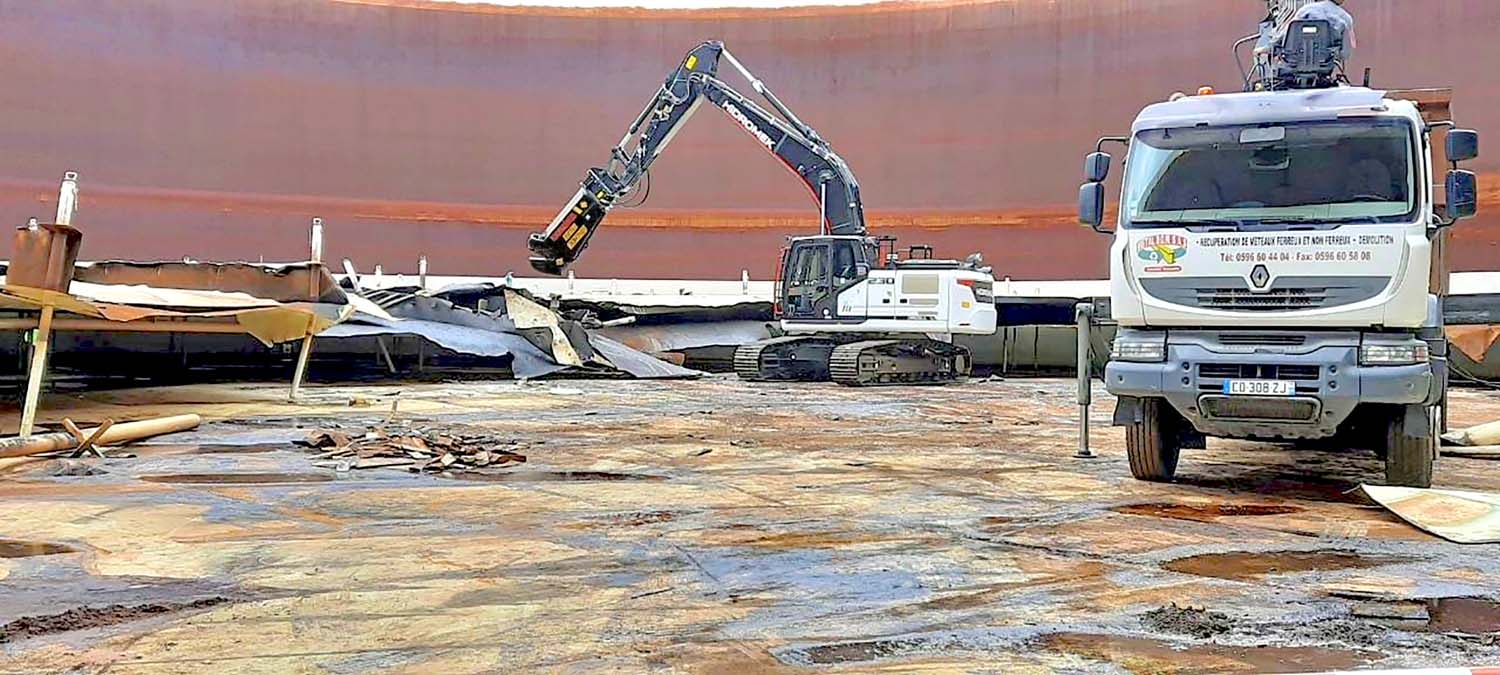

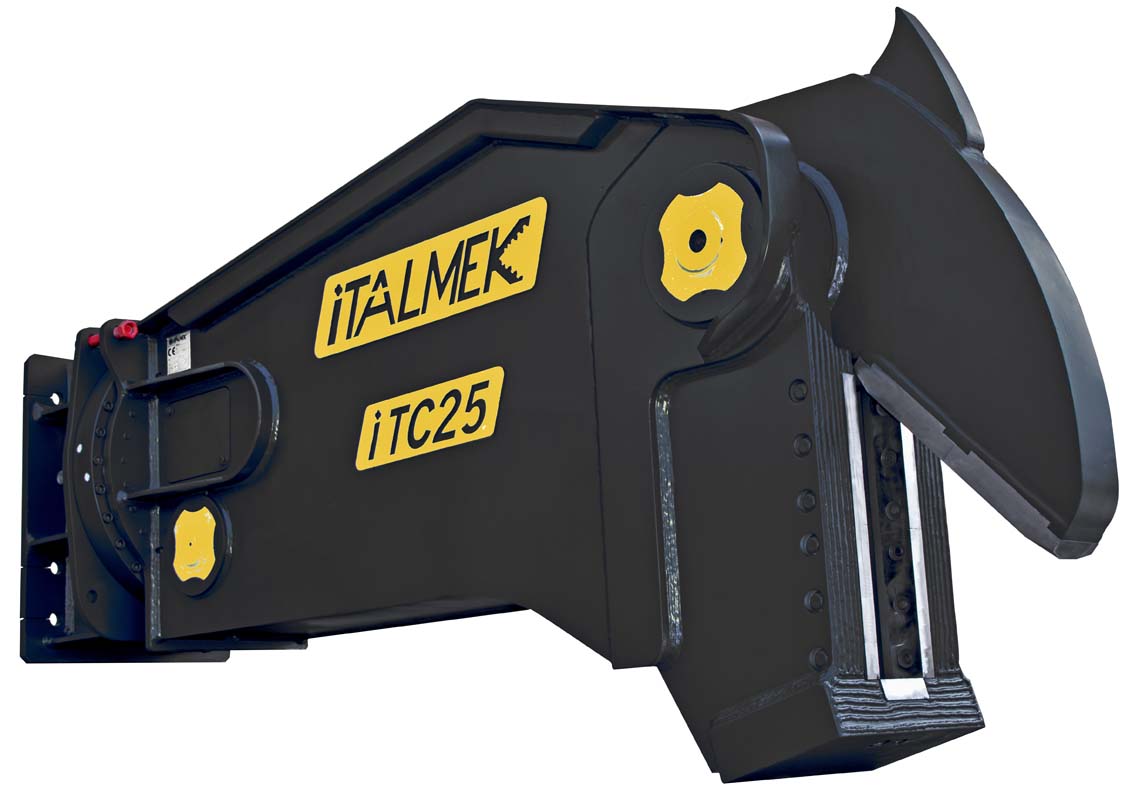

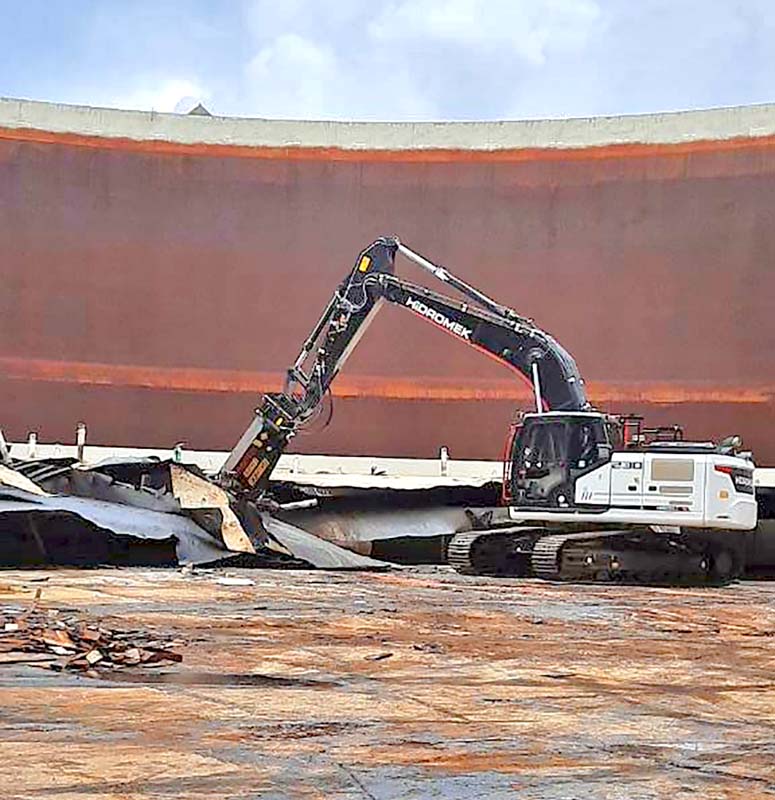

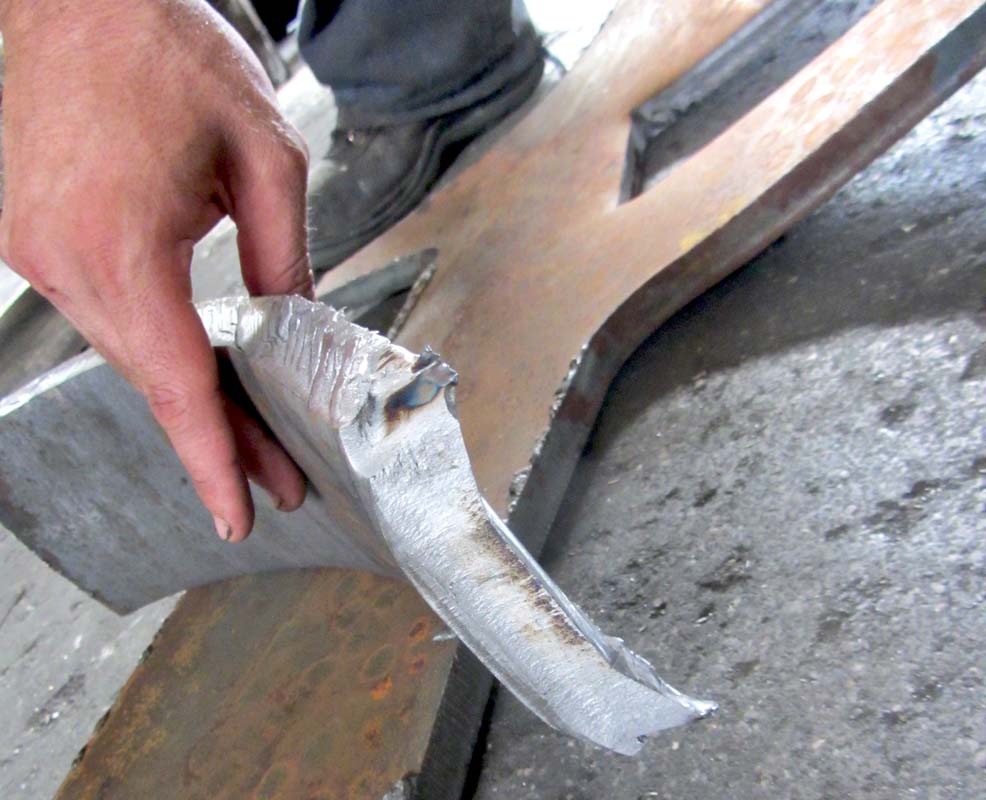

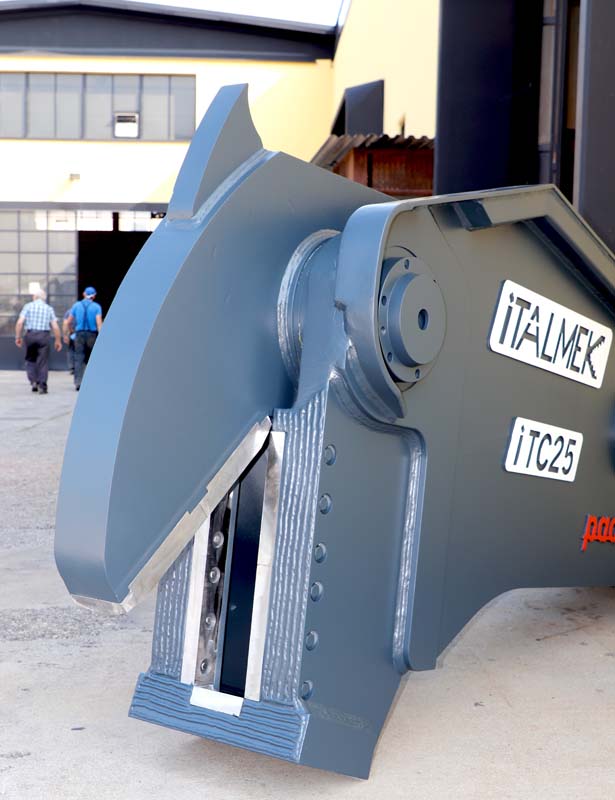

Special equipment dedicated to cutting tanks and flat iron plates. It cuts a rectangular slot in the steel, producing smooth and straight edges of steel plates on barges, railway cars, grain, water, oil and fuel tanks always leaving the remaining sections flat and easy to handle. The standard range goes from 2 to 7 ton of weight and allows the cutting of flat iron plates with thickness from 20 to 40 mm.
| ITC20 | ITC25 | ITC40 | ITC65 | ||
|
Weight |
kg |
2.200 |
2.850 |
3.700 |
6.500 |
|
Dimensions: |
|||||
|
Mouth opening |
mm |
330 |
355 |
380 |
400 |
|
Mouth depth |
mm |
450 |
500 |
580 |
650 |
|
Total length |
mm |
2.600 |
2.750 |
3.050 |
3.500 |
|

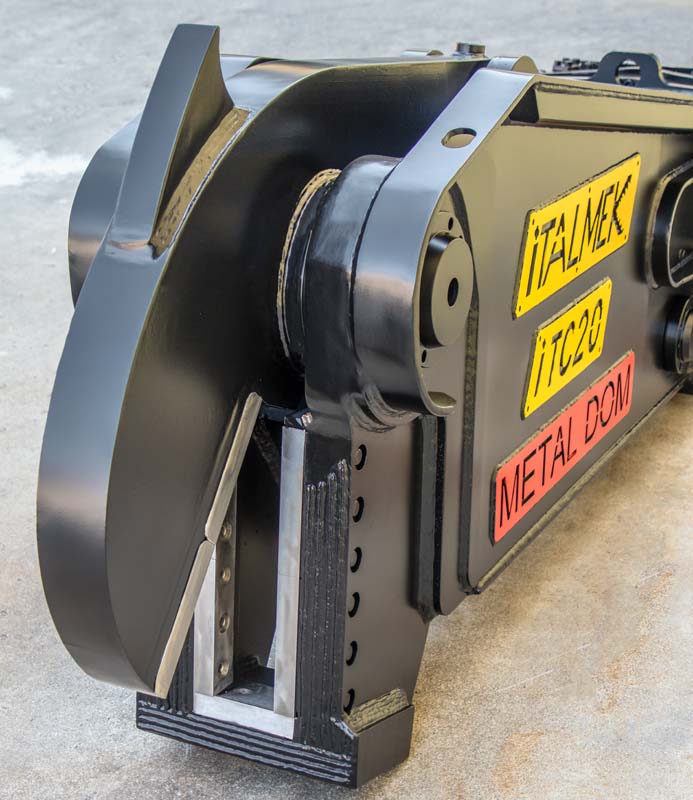

Movable jaw width |
mm |
100 |
120 |
140 |
150 |
|

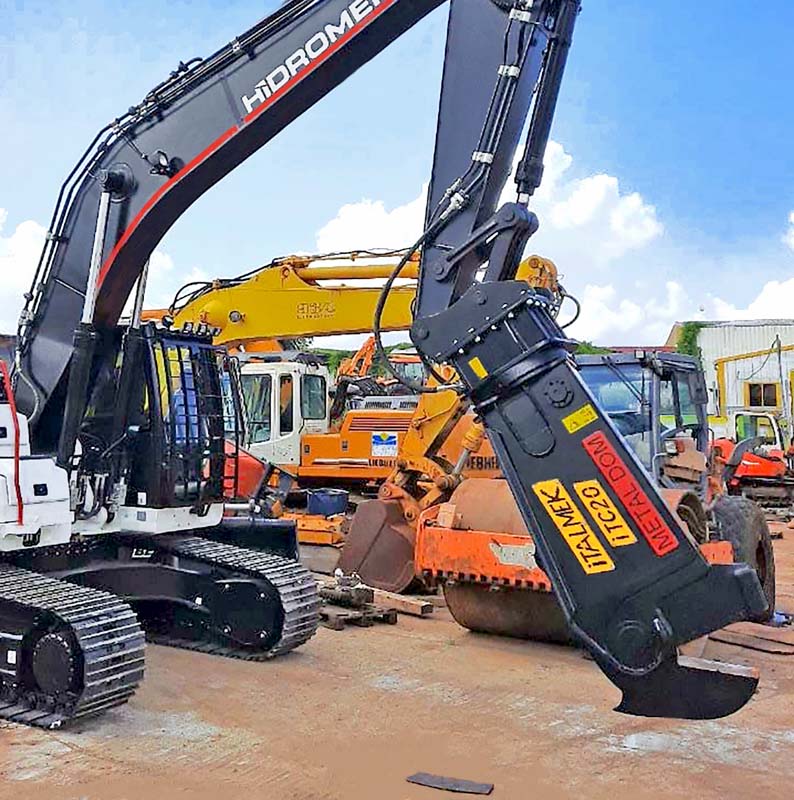

Excavator weight: |
|||||
|
Boom position: |
ton |
12-20 |
16-25 |
22-32 |
30-50 |
|
Bucket position: |
ton |
20-28 |
24-35 |
32-47 |
65-85 |
|
Working pressure: |
bar |
340 |
350 |
350 |
350 |
|
Working flow: |
l/m |
150/250 |
200/300 |
250/350 |
350/450 |
|
Rotation pressure: |
bar |
110 |
110 |
110 |
110 |
|
Rotation flow: |
l/m |
30 |
30 |
30 |
30 |
|

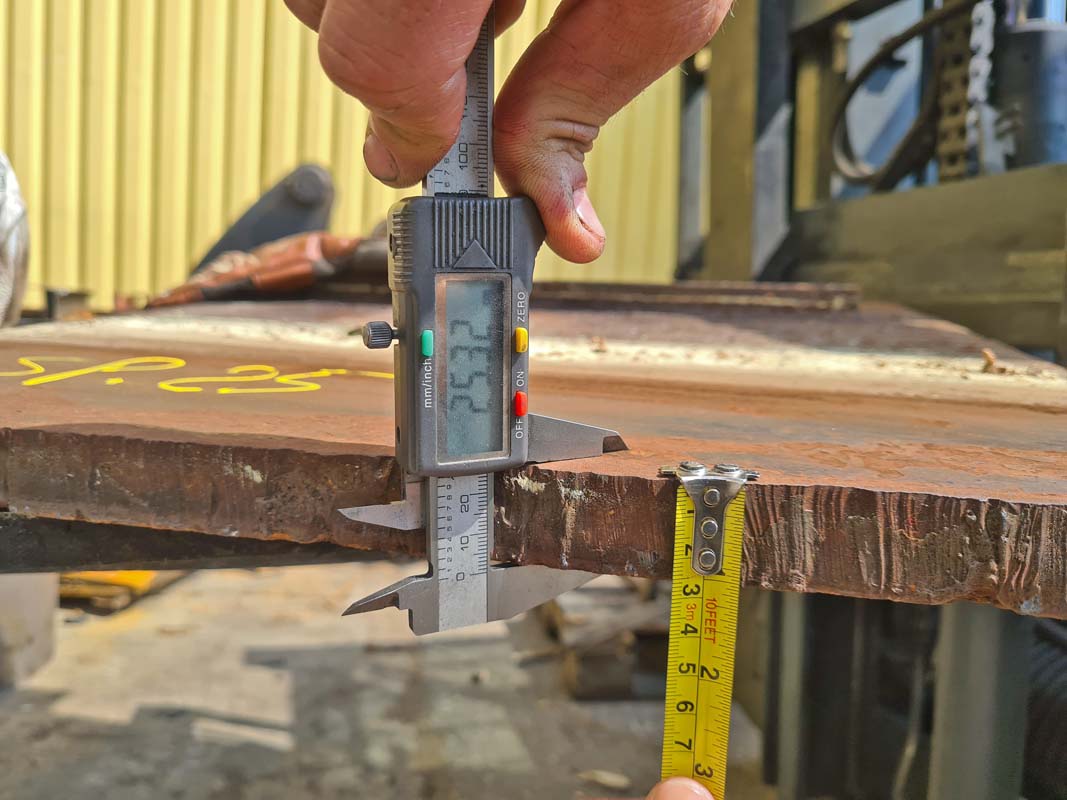

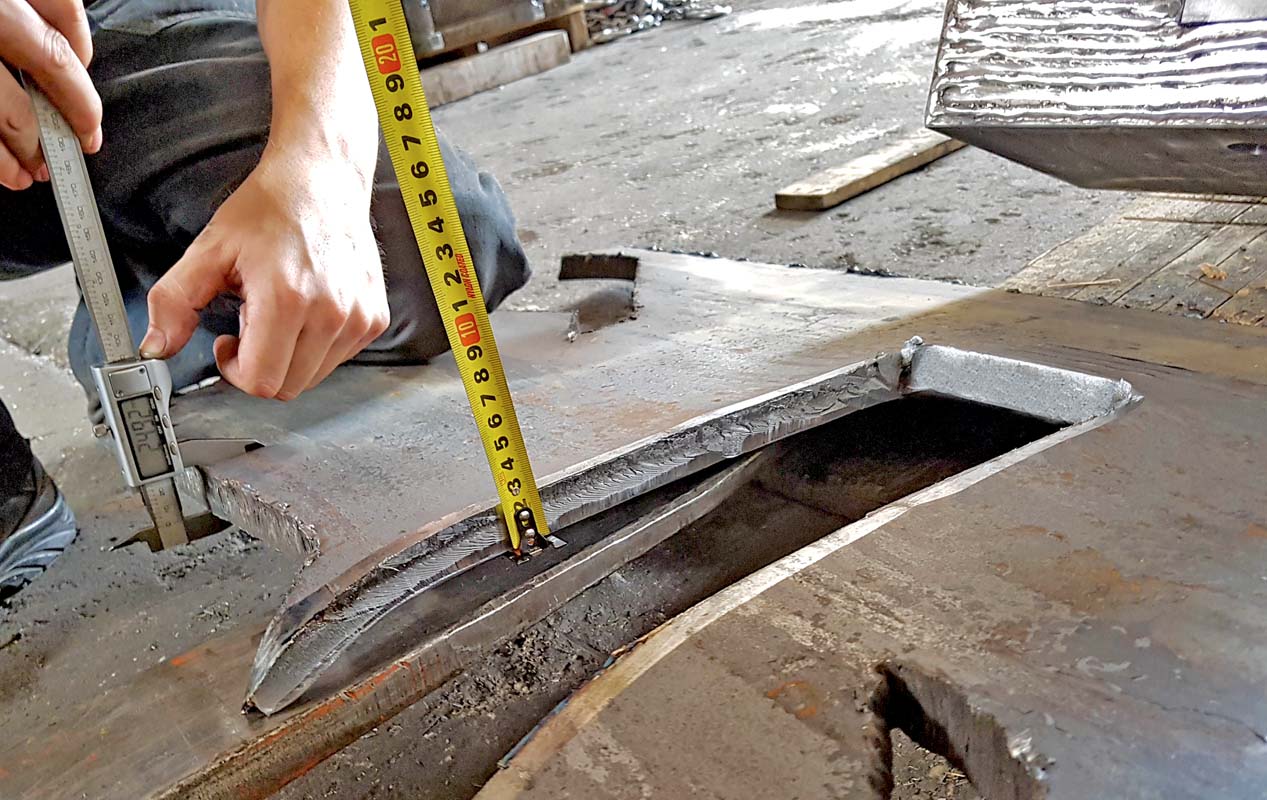

Cutting capacity: |
mm |
20 |
25 |
35 |
40 |
