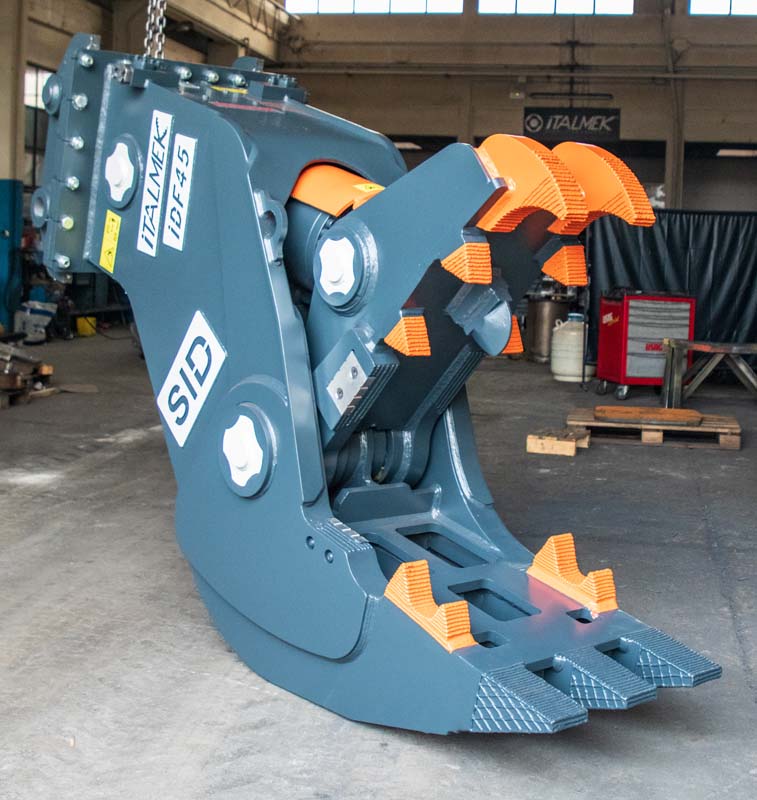

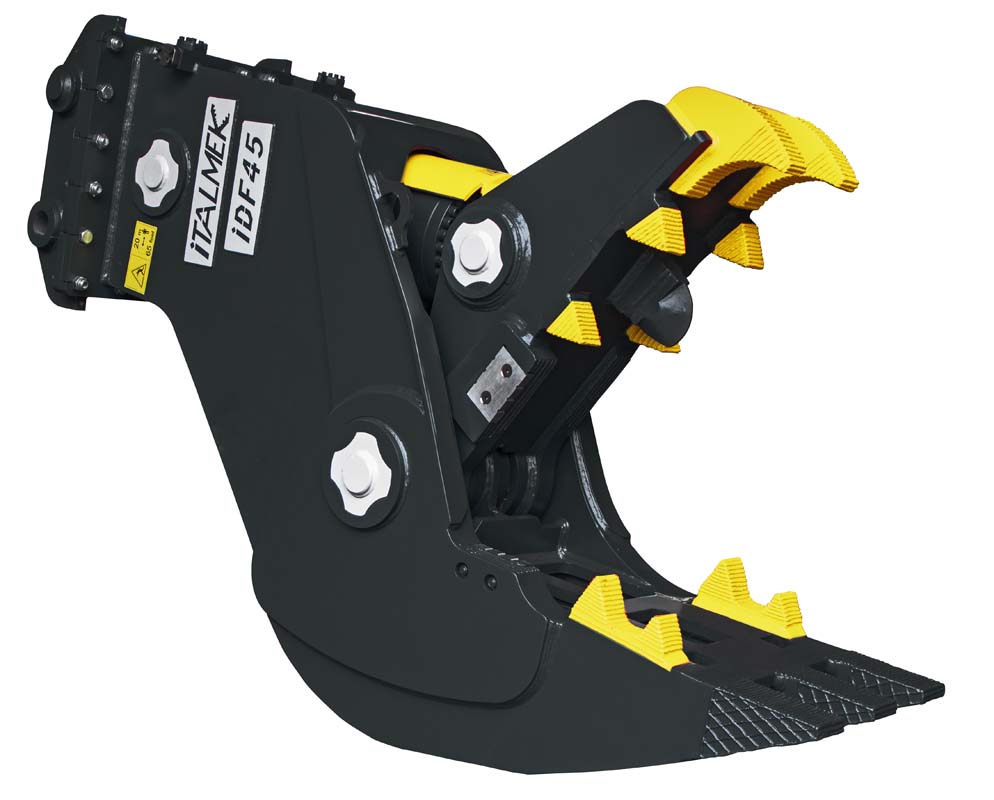

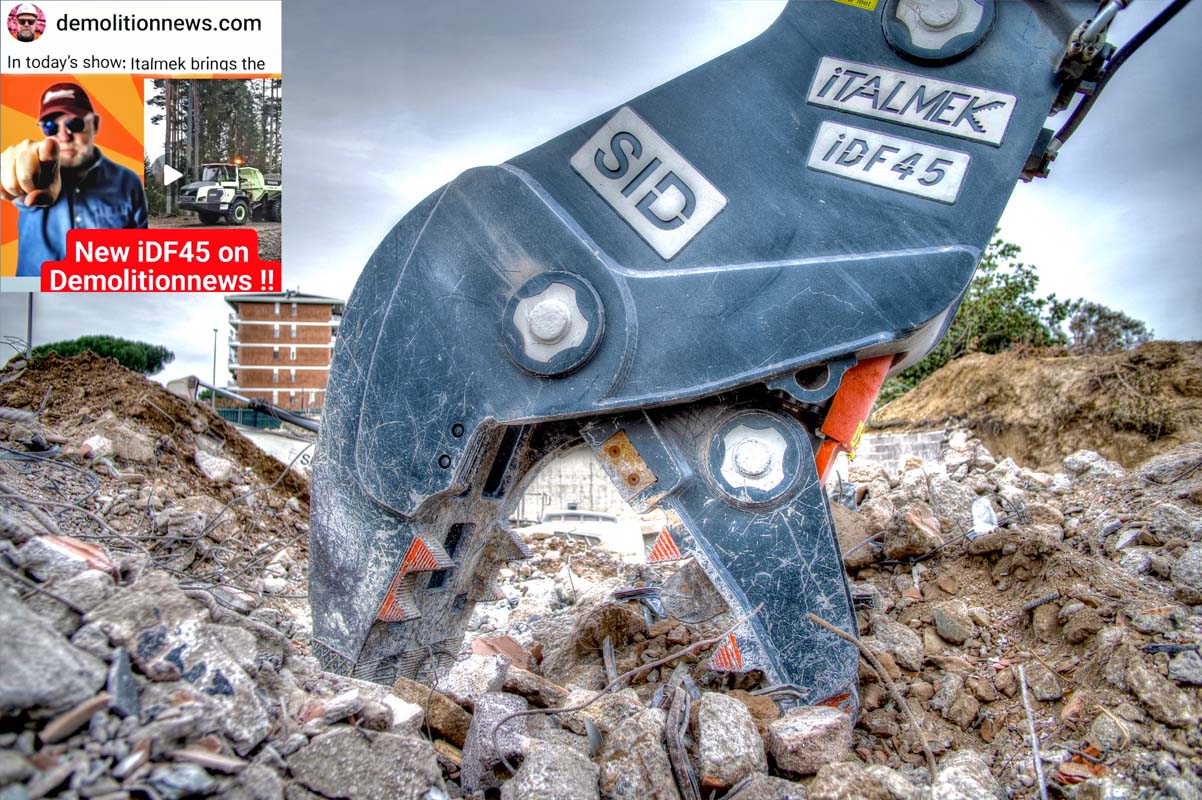

iDF45 Pulverizer

The iTALMEK IDF45 pulverizer design has been developed, on customer’s request, to be extremely robust and powerful but also fast.  The purpose of its project is to use it also like ripper or narrow bucket, a feature that makes it unique in the industry.

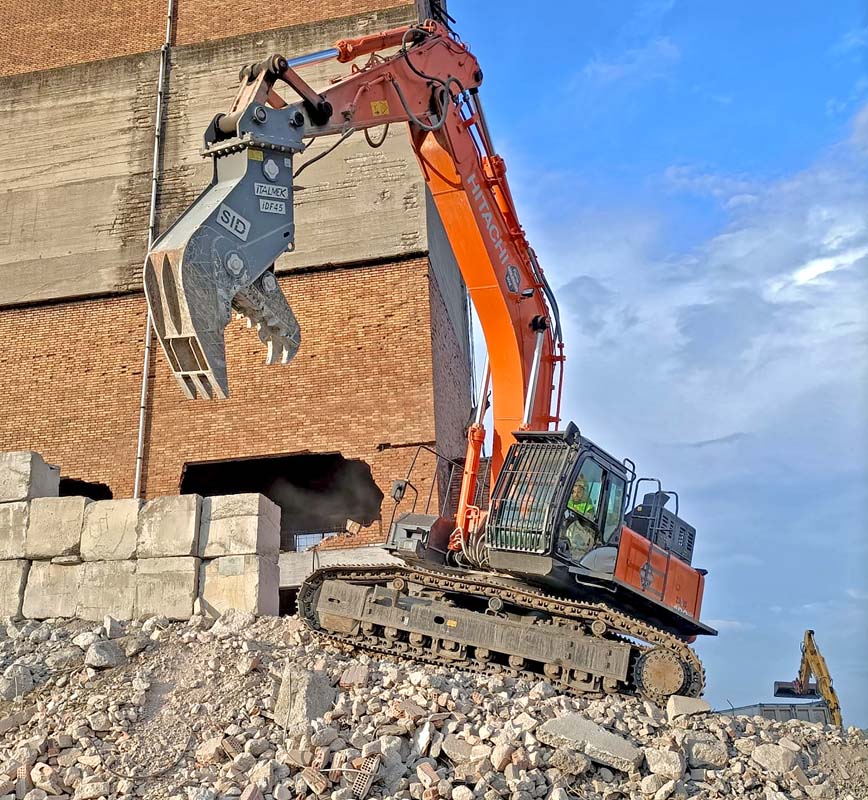

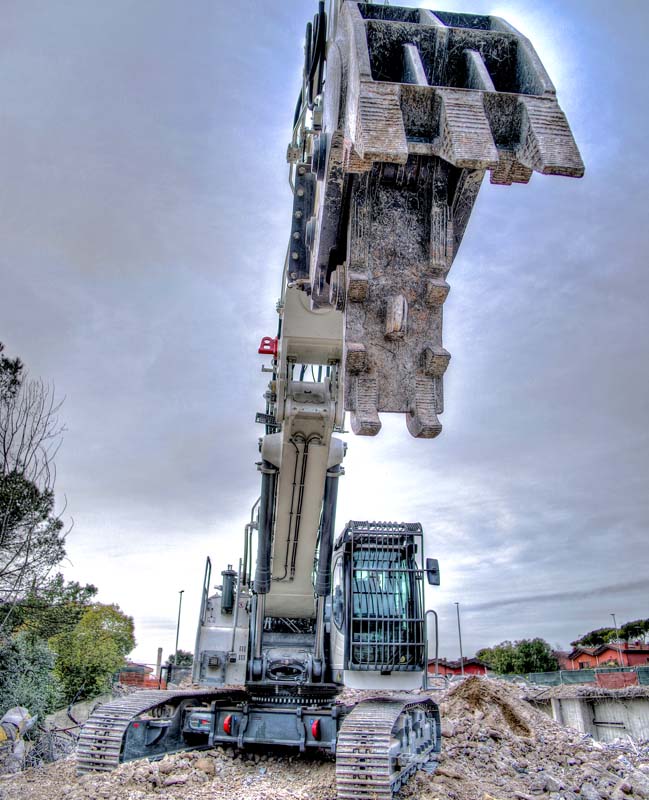

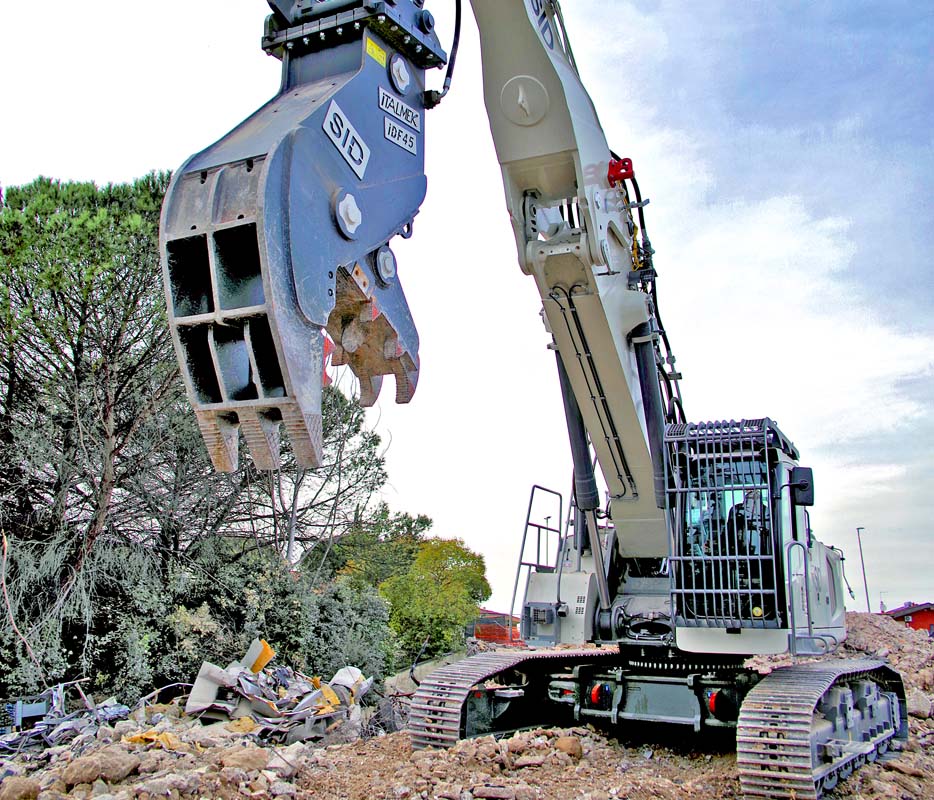

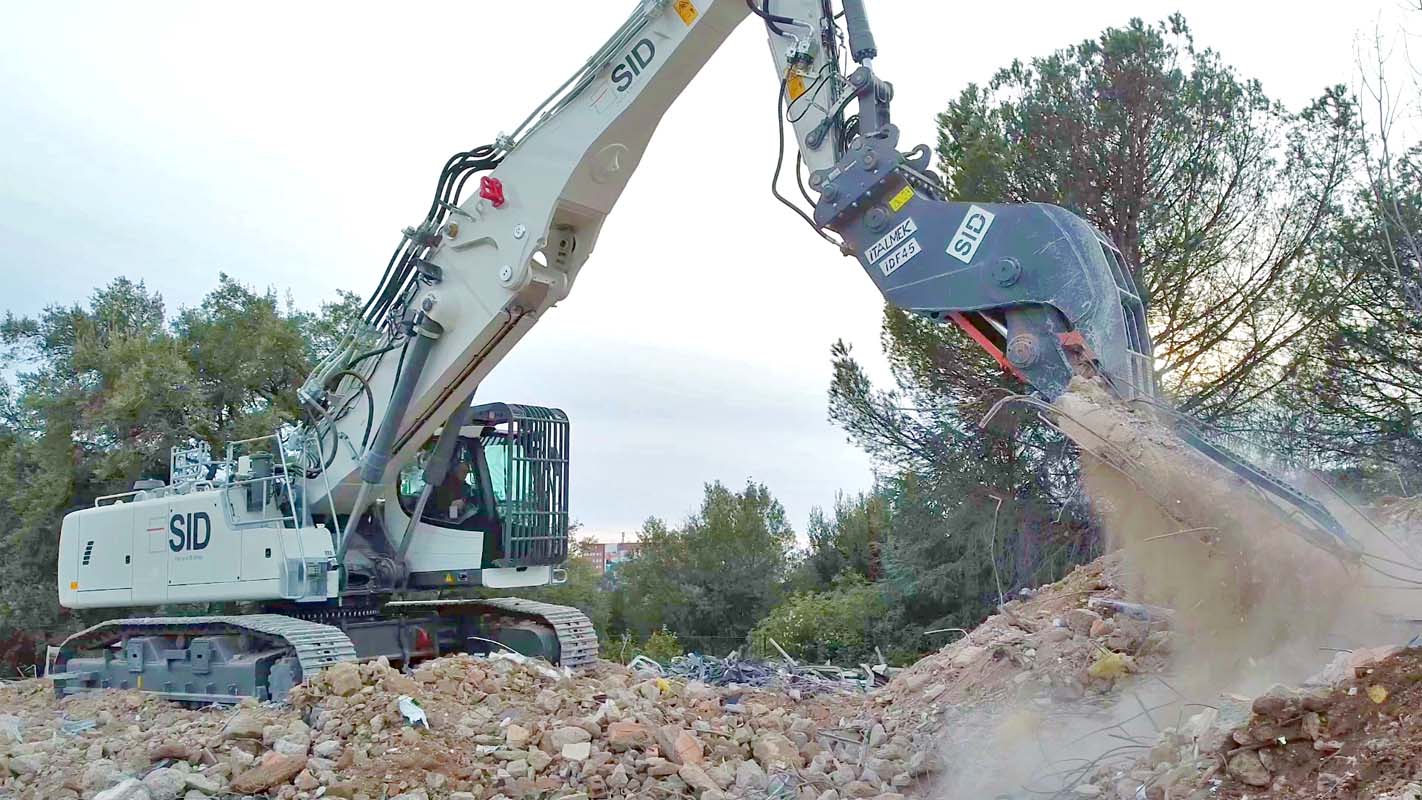

In fact, the operator can use it for the reduction of demolished material and the separation of metal rods from concrete but also to move, dig, pull or break elements and structures in reinforced concrete to be eliminated, broken, reduced .. pulverized.



We mount a very powerful cylinder that has been equipped with a Speed Booster System to speed up work cycles.

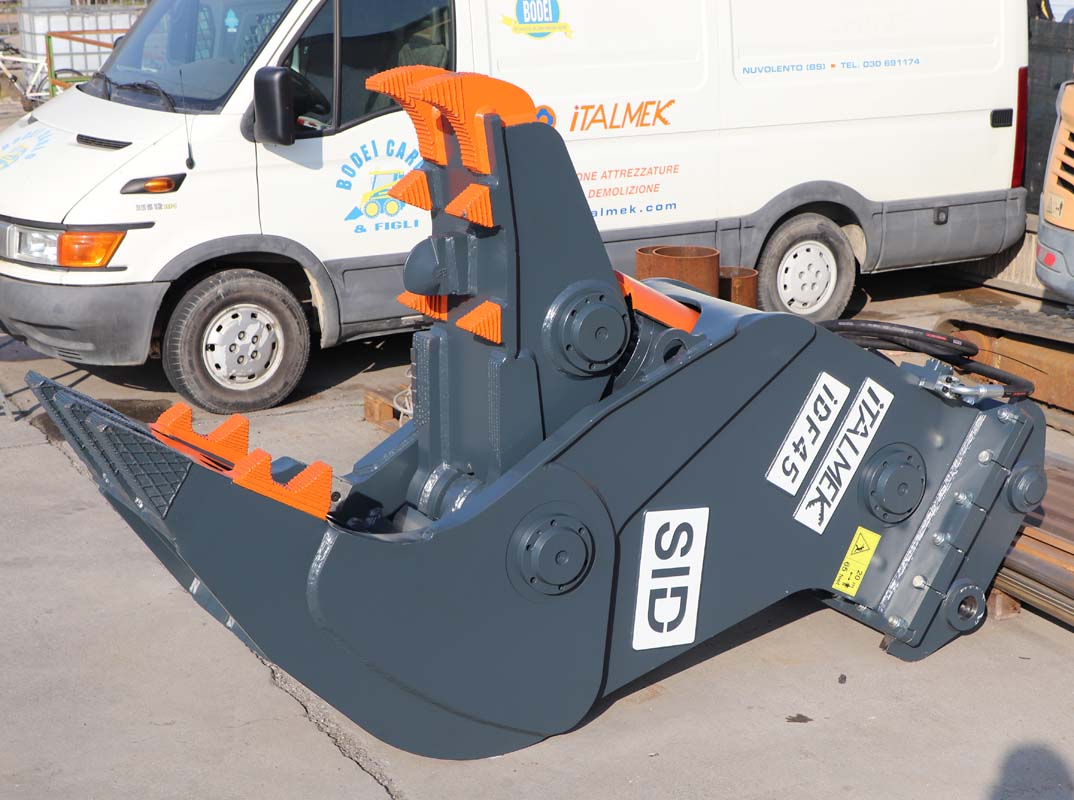

On request it can be supplied in the CPV version, with teeth on interchangeable plates.

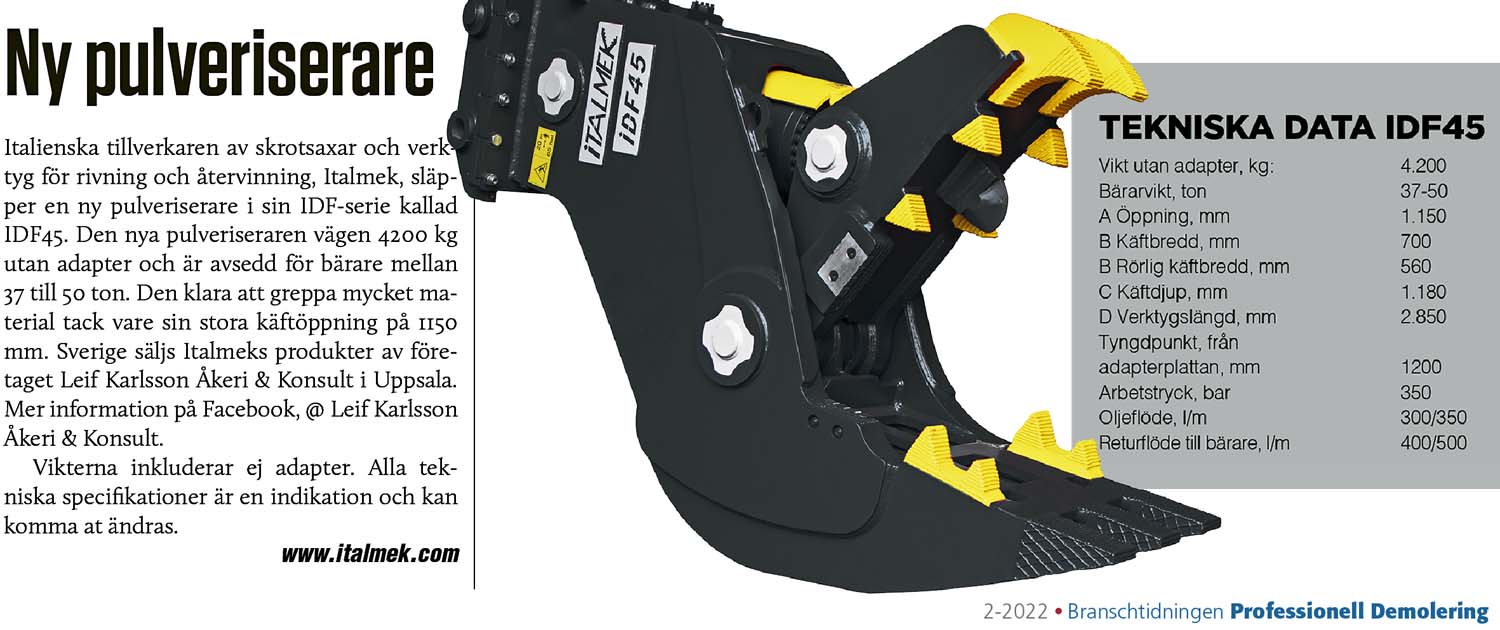

Technical data sheet
Weight
kg
4250
Mouth opening
mm
1200
Working flow
l/m
300-350
Working pressure
bar
350
Bucket position
ton
38-50
Total Length
mm
2900
Jaw width
mm
700
Mouth depth
mm
1180
