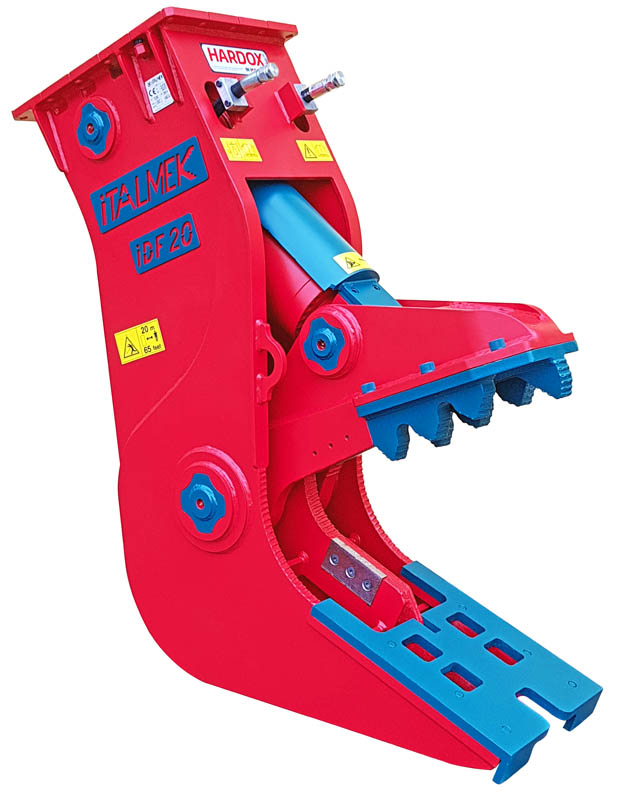

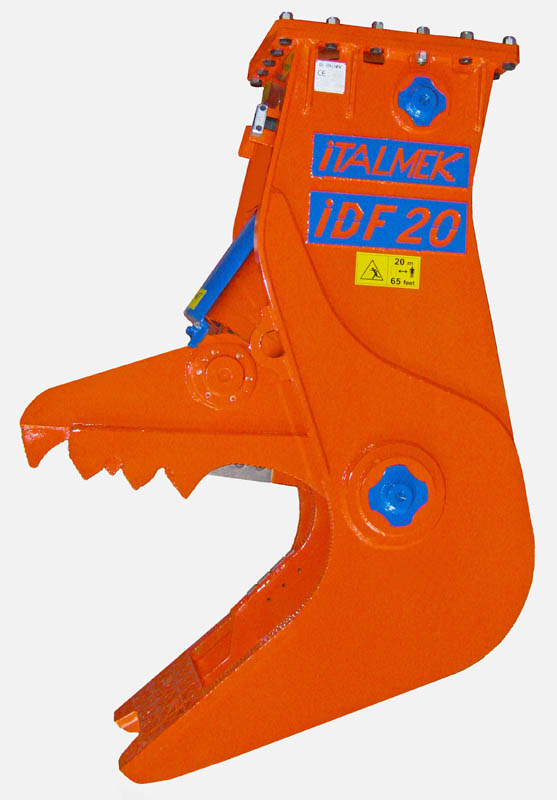

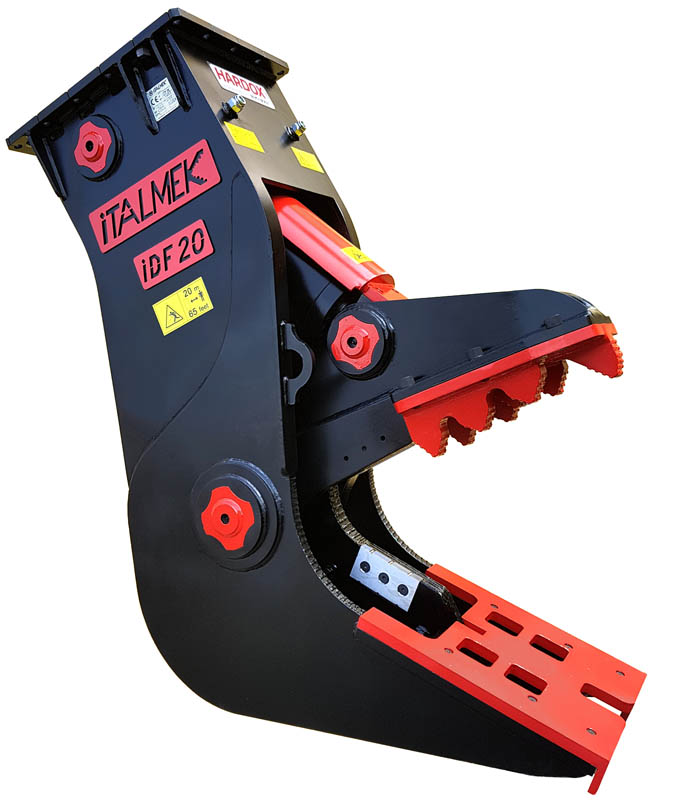

IDF20 Pulverizer

IDF20 pulverizer has a weight of 2.100 kg, an opening of 880 mm and a length of 2.100 mm.

Technical data sheet
Weight
kg
2.100
Mouth opening
mm
880
Working flow
l/m
100 - 200
Working pressure
bar
320
Bucket position
ton
18 - 25
Total Length
mm
2.100
Jaw width
mm
530
Mouth depth
mm
980
