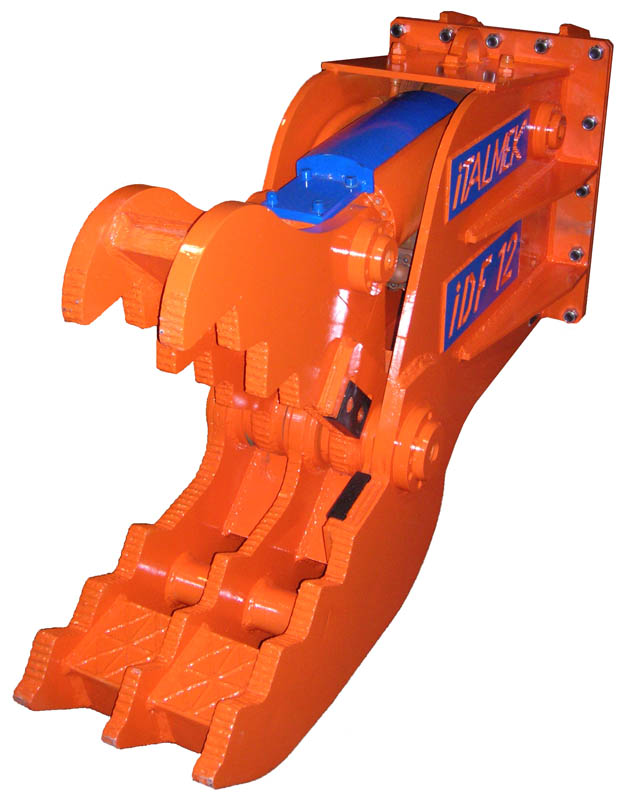

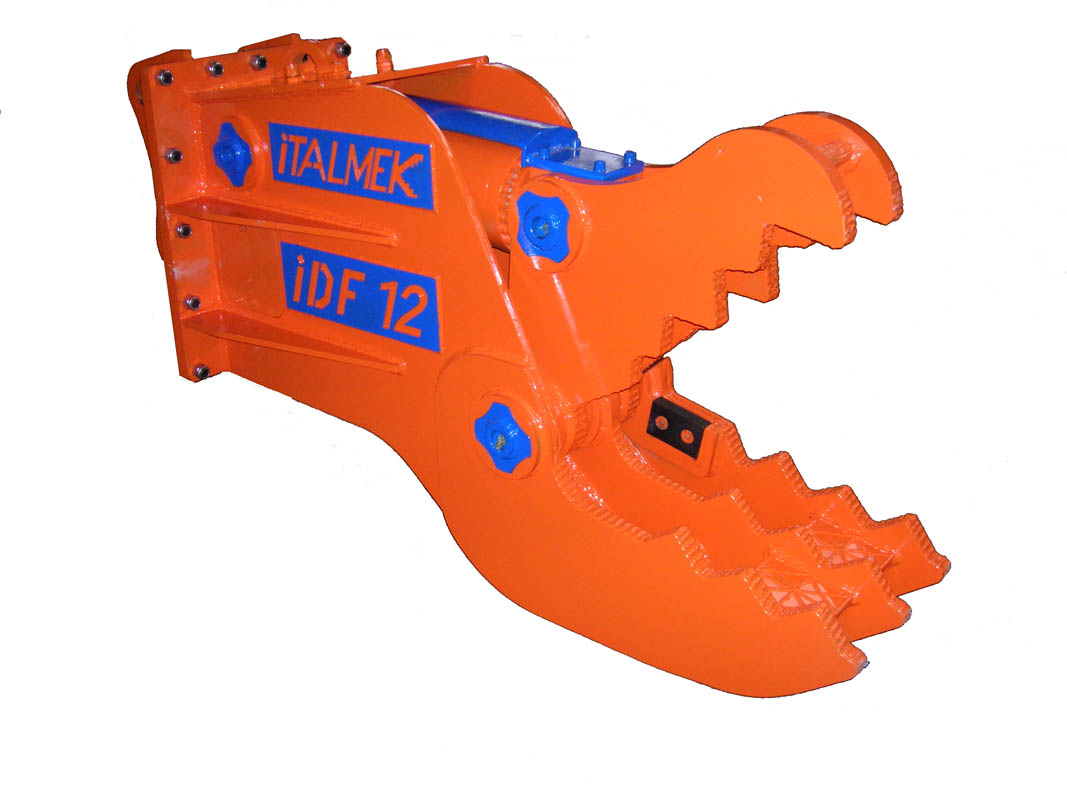

Fixed crushers IDF12

IDF12 fixed crushers has a weight of 1.050 kg, an opening of 660 mm and a length of 1.650 mm.

Technical data sheet
Weight
kg
1.050
Mouth opening
mm
660
Mouth depth
mm
650
Jaw width
mm
420
Total Length
mm
1.650
Bucket position
ton
10 - 18
Working pressure
bar
300
Working flow
l/m
90 - 150
Power on blade
ton
180
