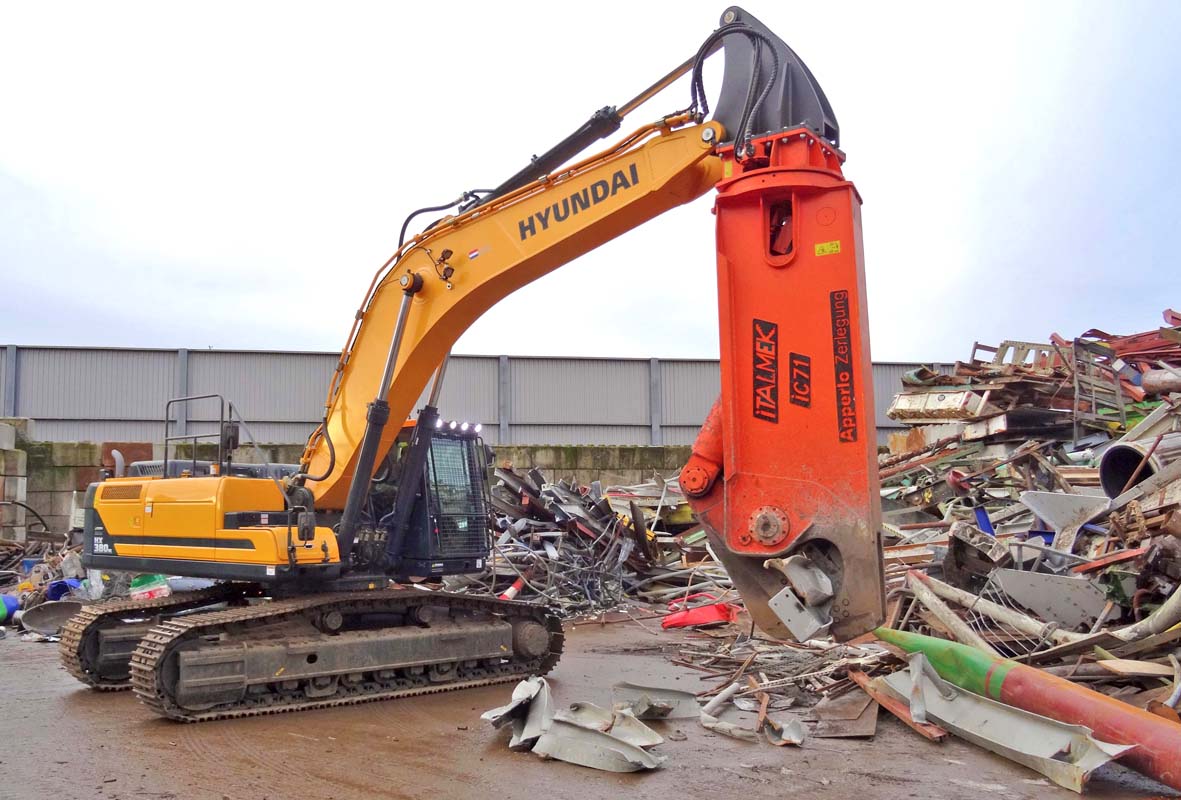

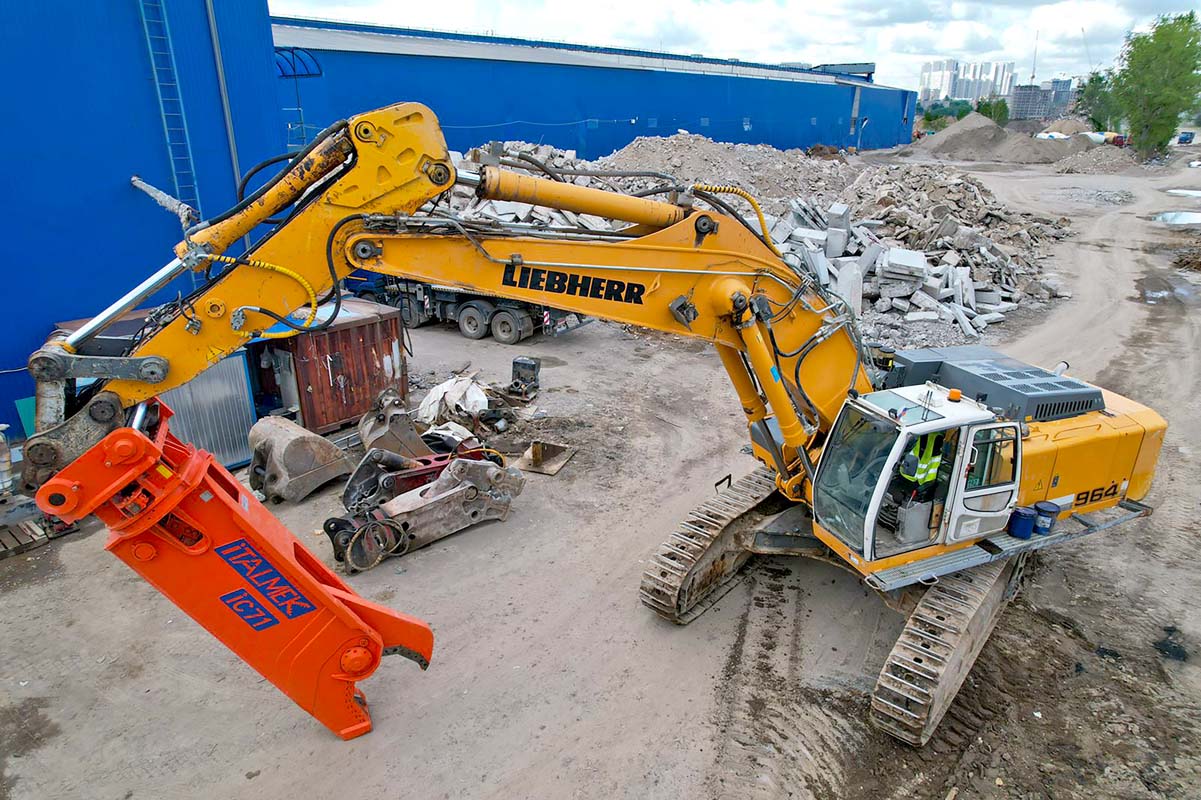

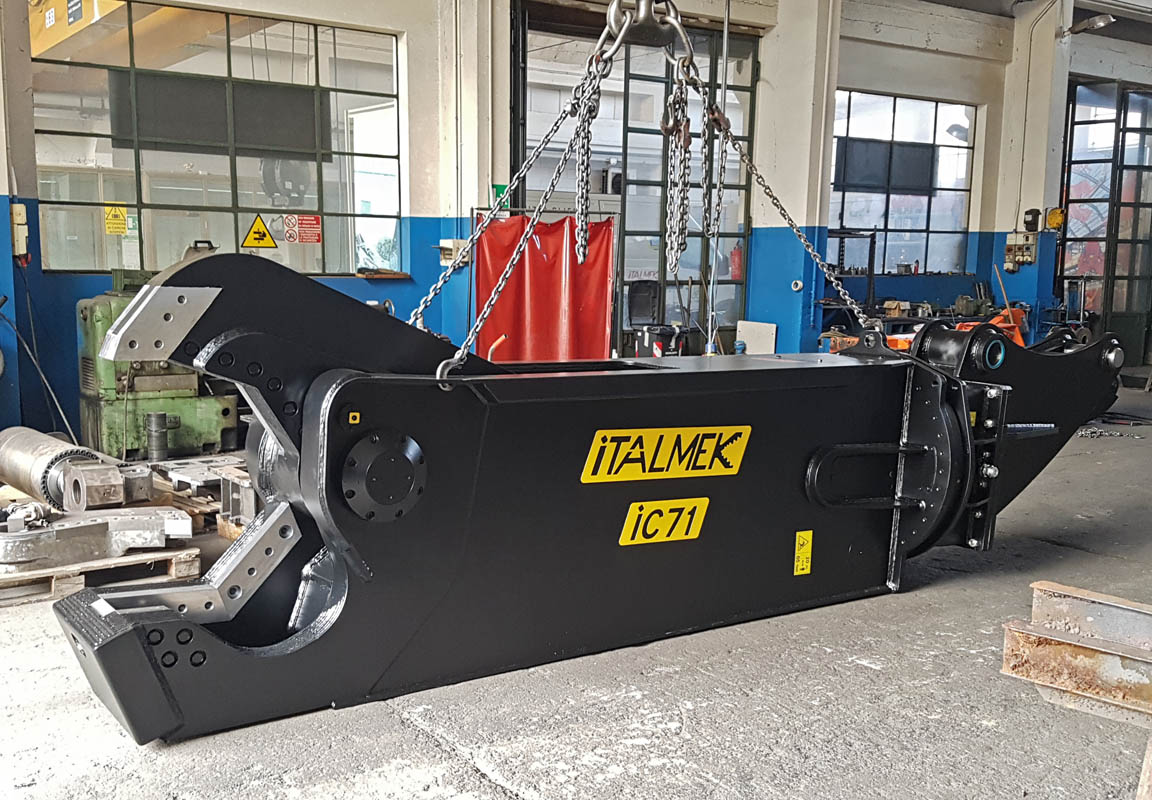

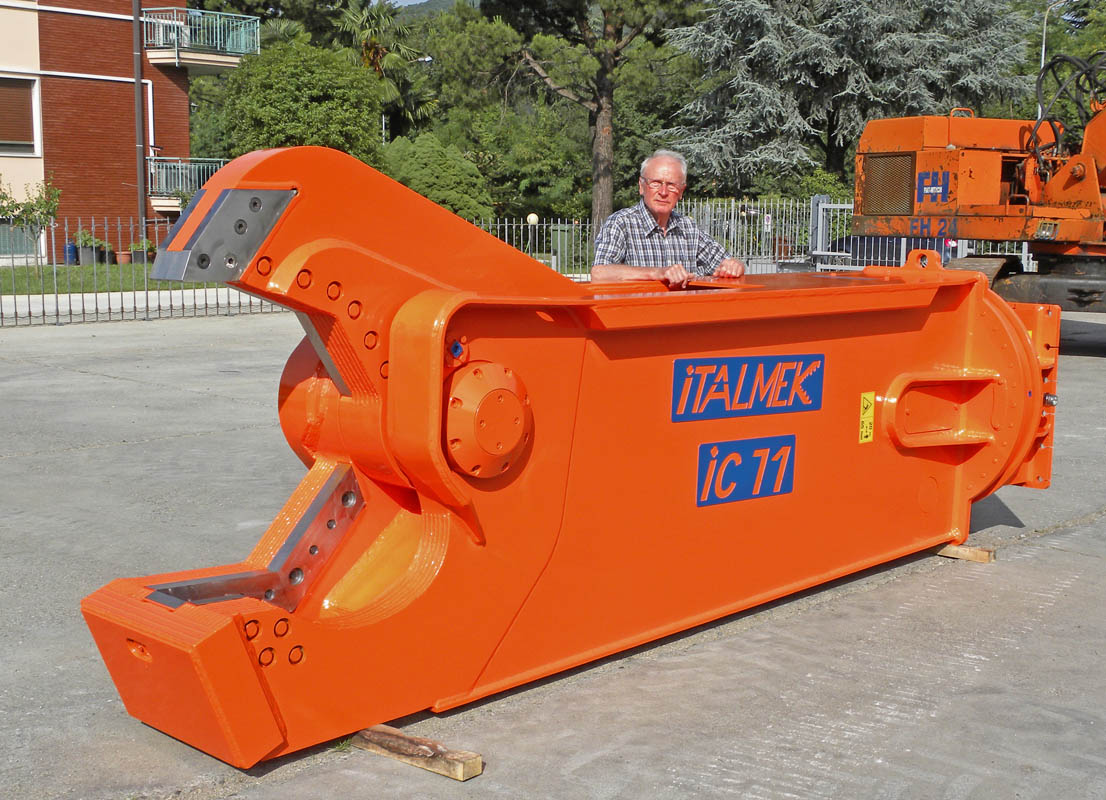

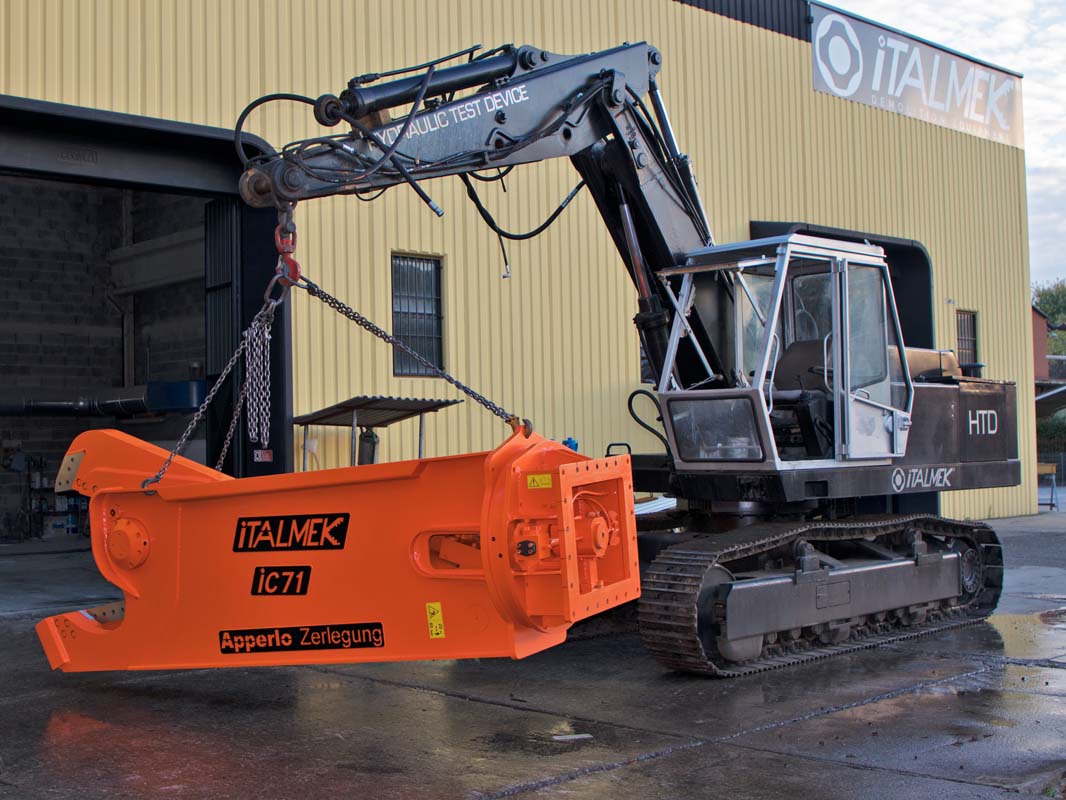

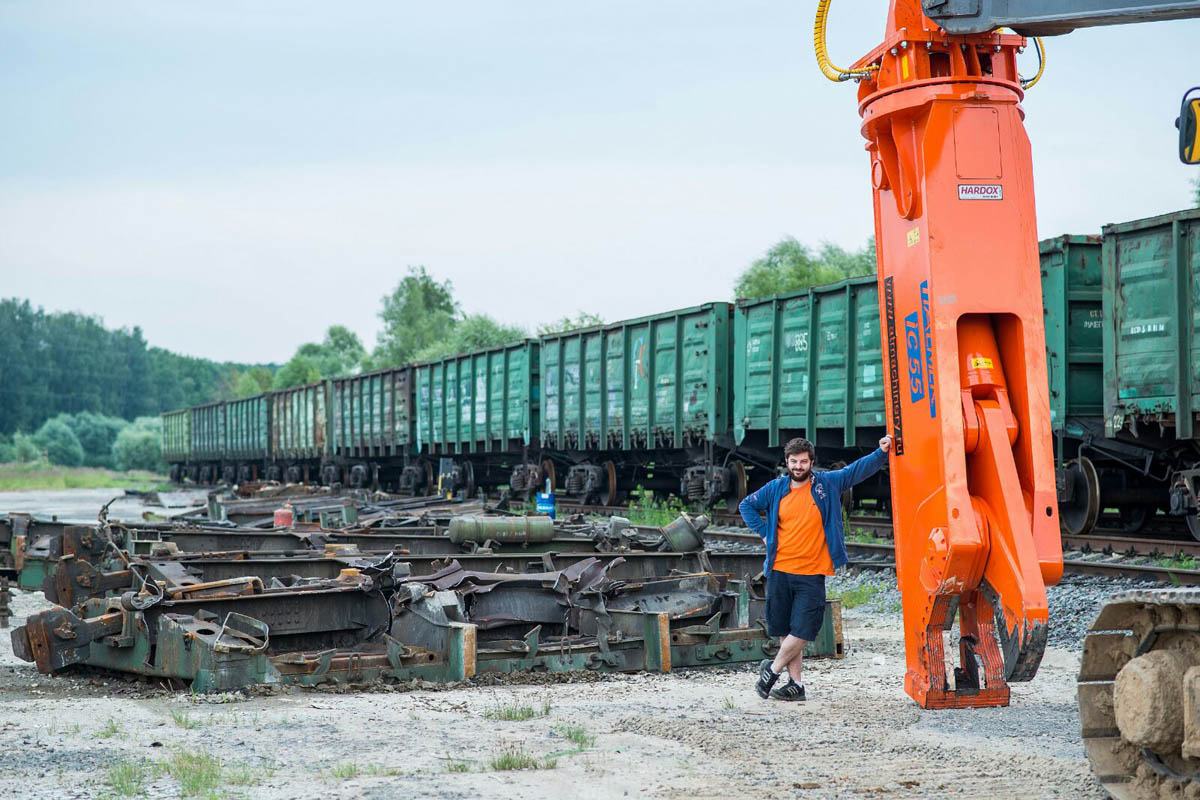

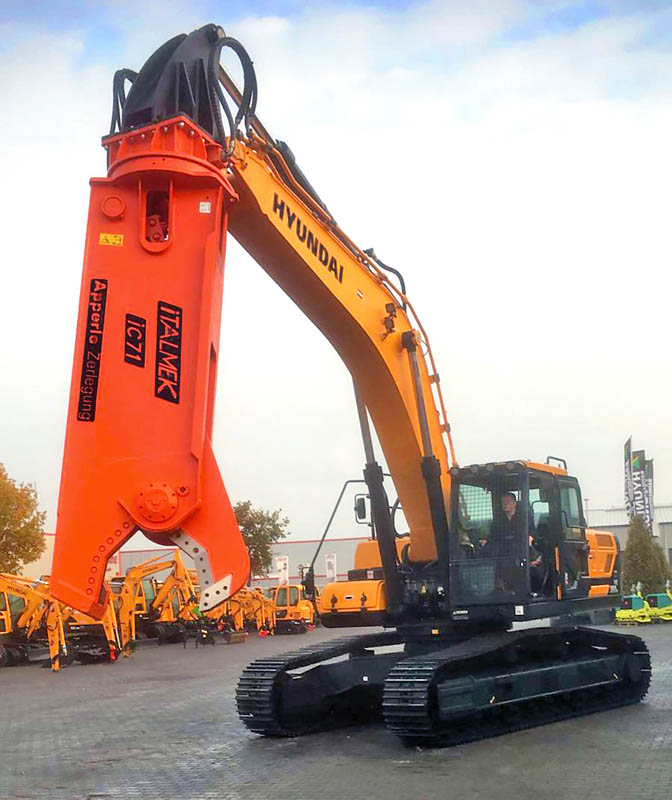

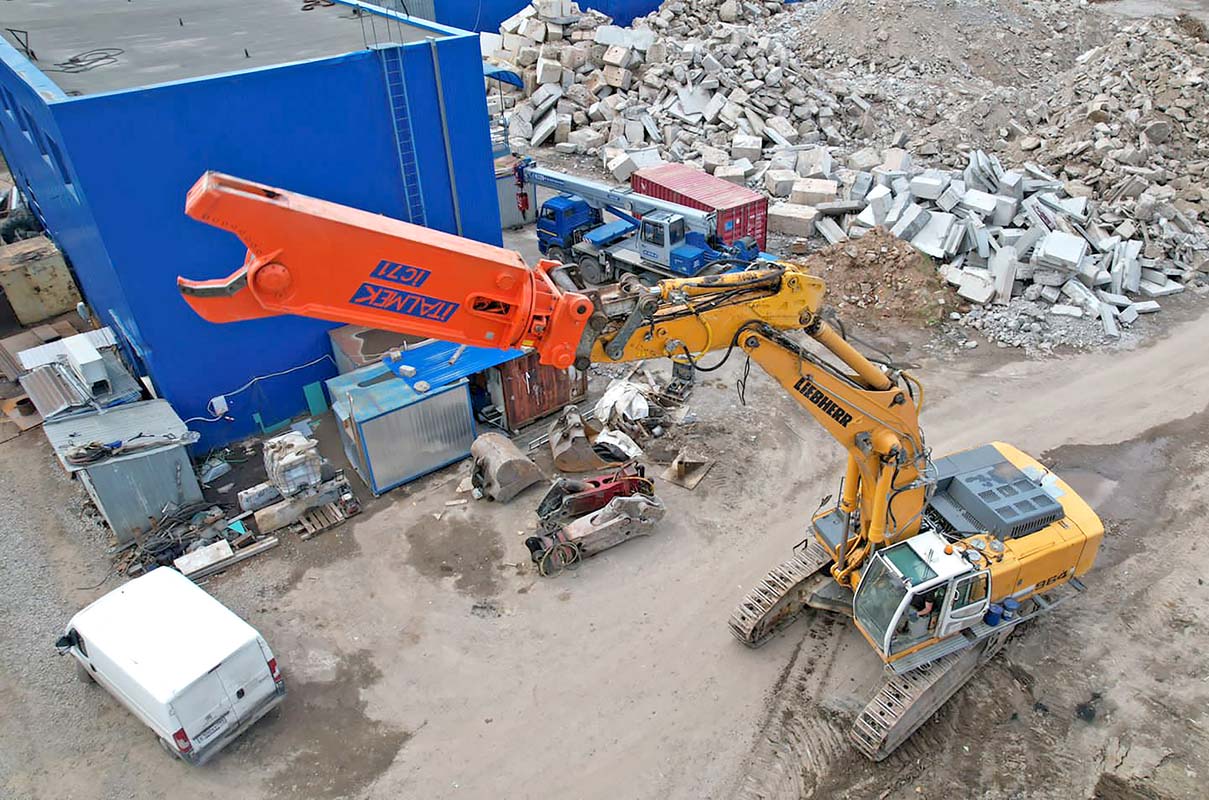

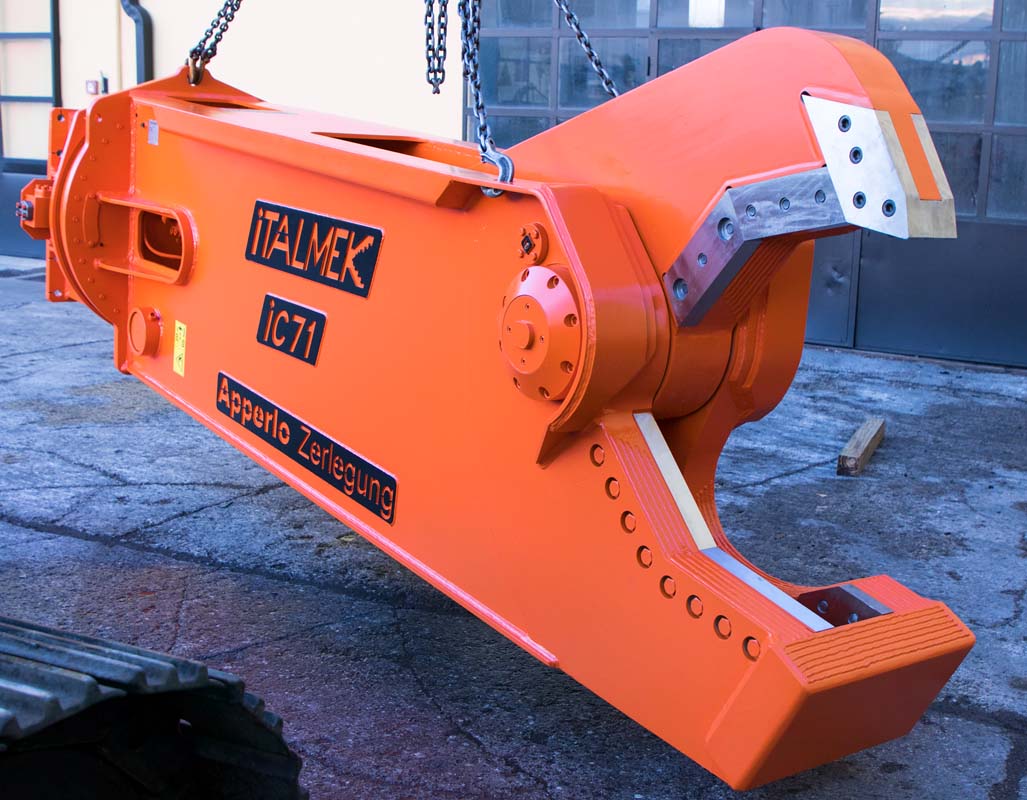

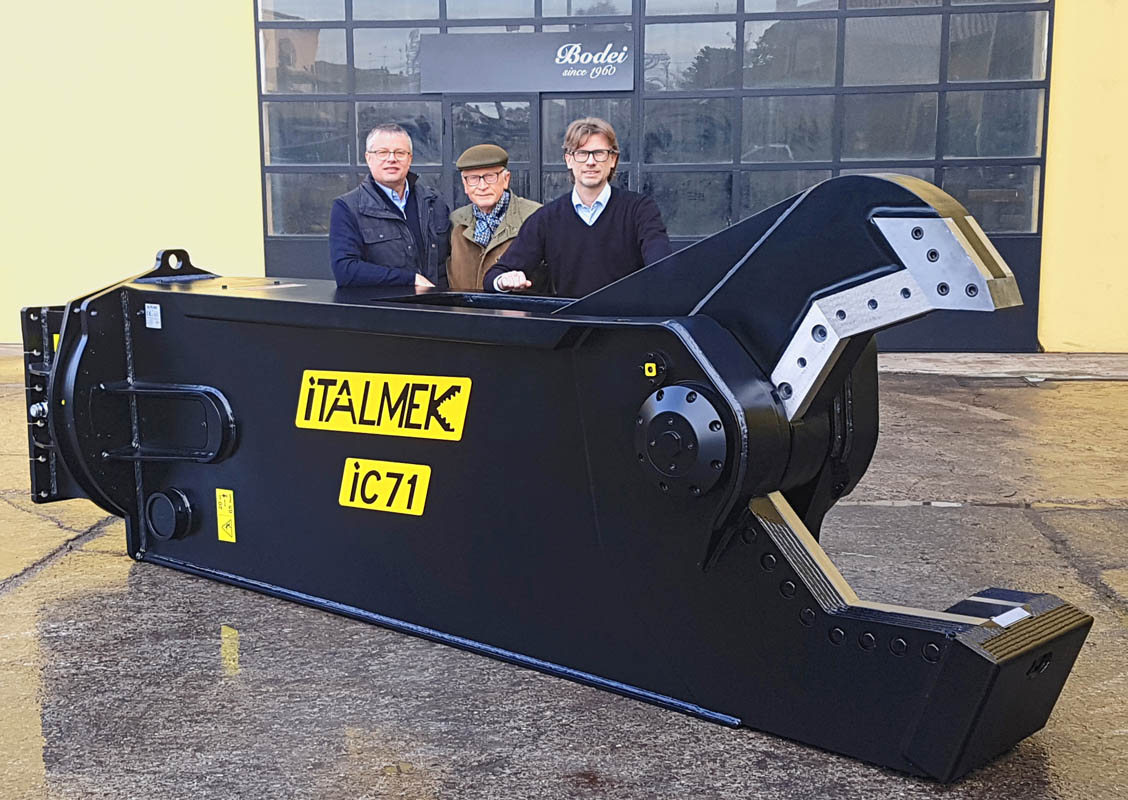

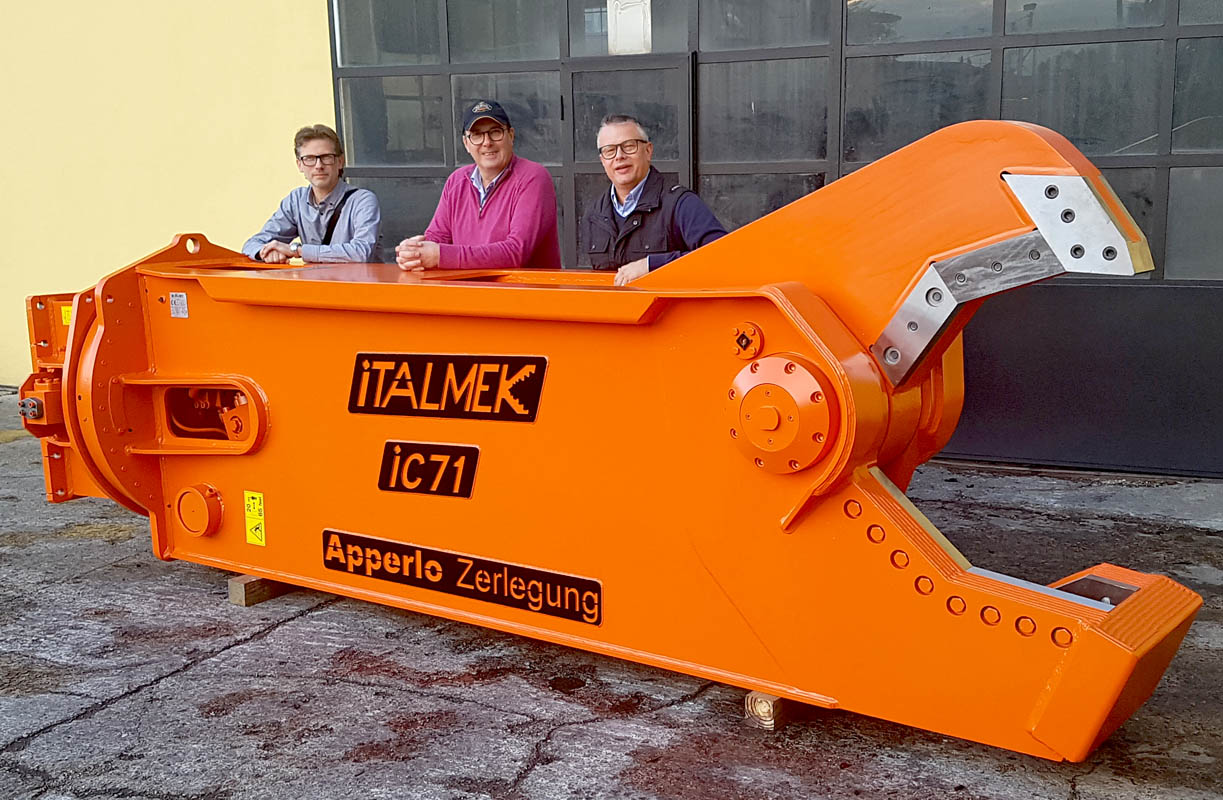

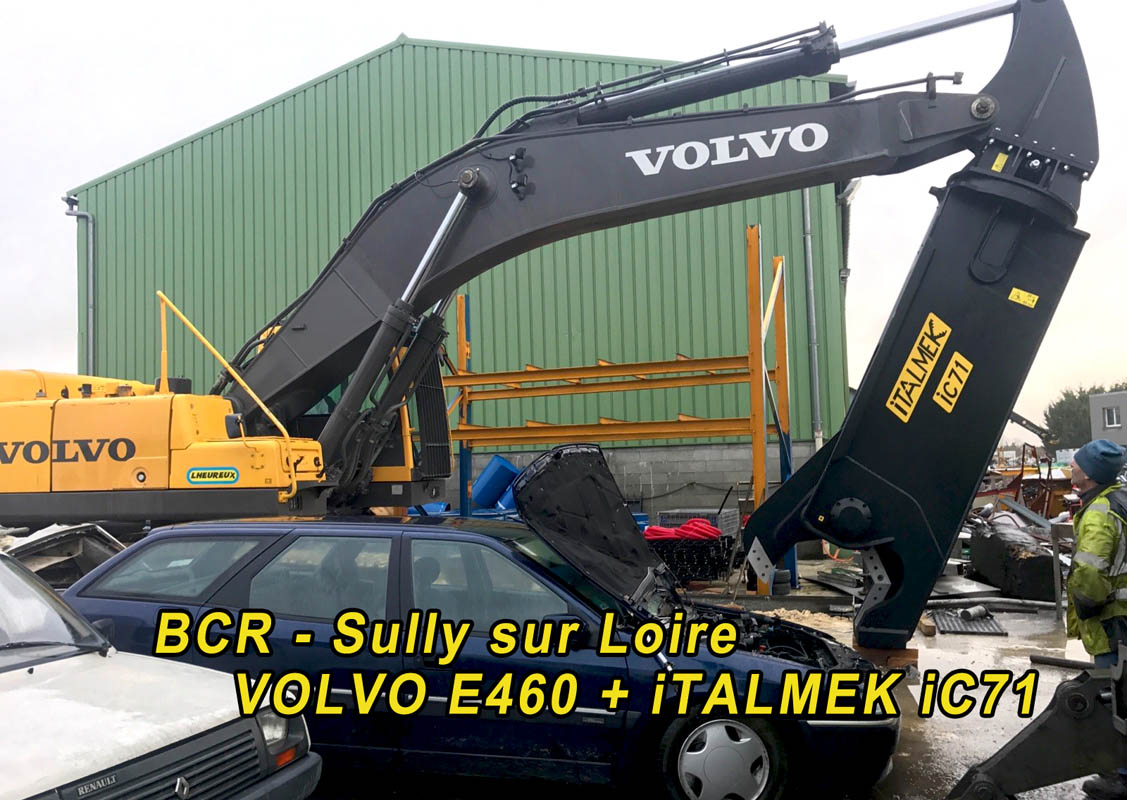

Steel shear IC71

The steel shear IC71 has a weight of 7.450 kg, a mouth opening of 870 mm and a length of 4.100 mm. With hydraulic pressure adjusted to 350 bar its cutting capacity is enough to cut a 120 mm full round rod.

Technical data sheet
Weight
kg
7.450
Working pressure
bar
350
Total Length
mm
4.100
Mouth opening
mm
870

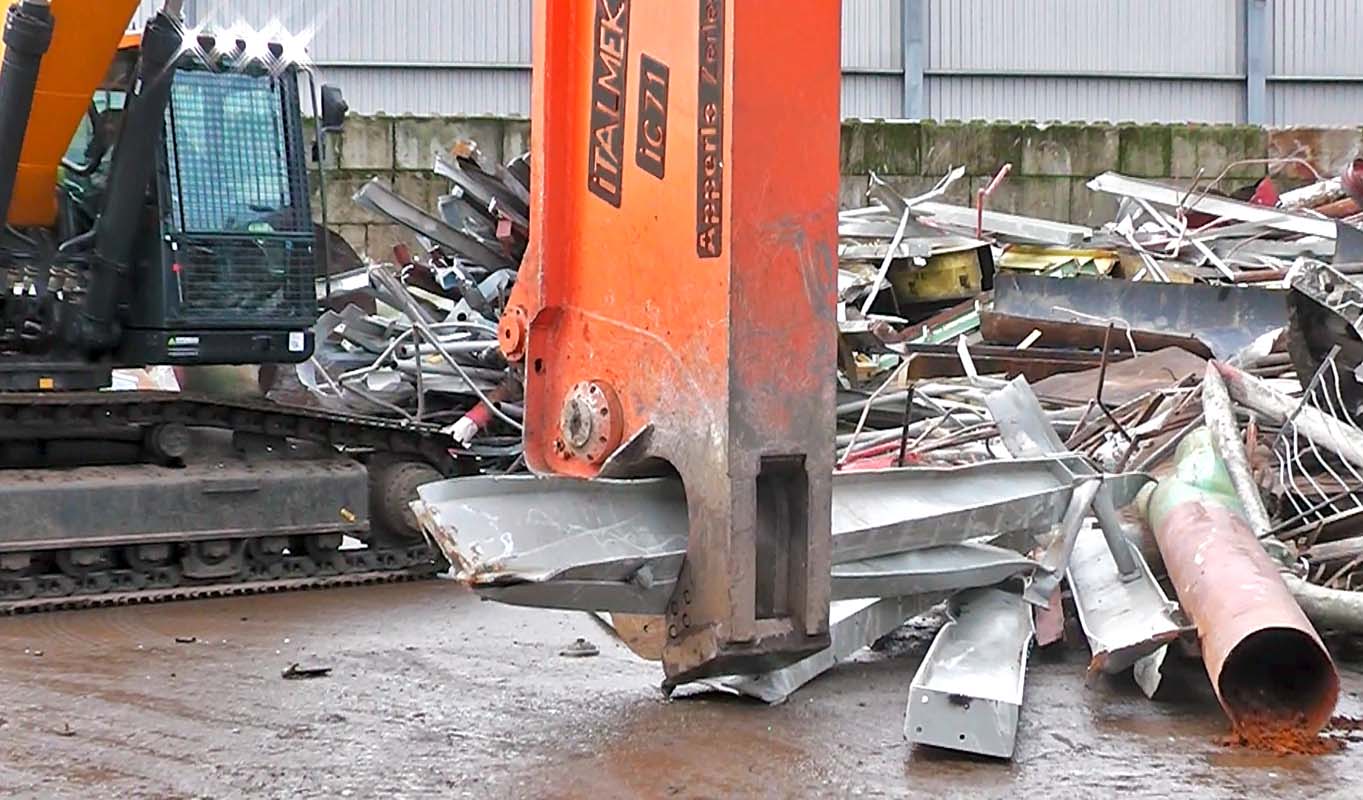

Cutting capacity (IPE)
mm
650
Cutting capacity (HEA)
mm
450
Cutting capacity
mm
120
Bucket position
ton
62 - 95
Boom position
ton
42 - 60
Mouth depth
mm
850
Rotation flow
l/m
50
Rotation Pressure
bar
180
Working flow
l/m
350 - 500
